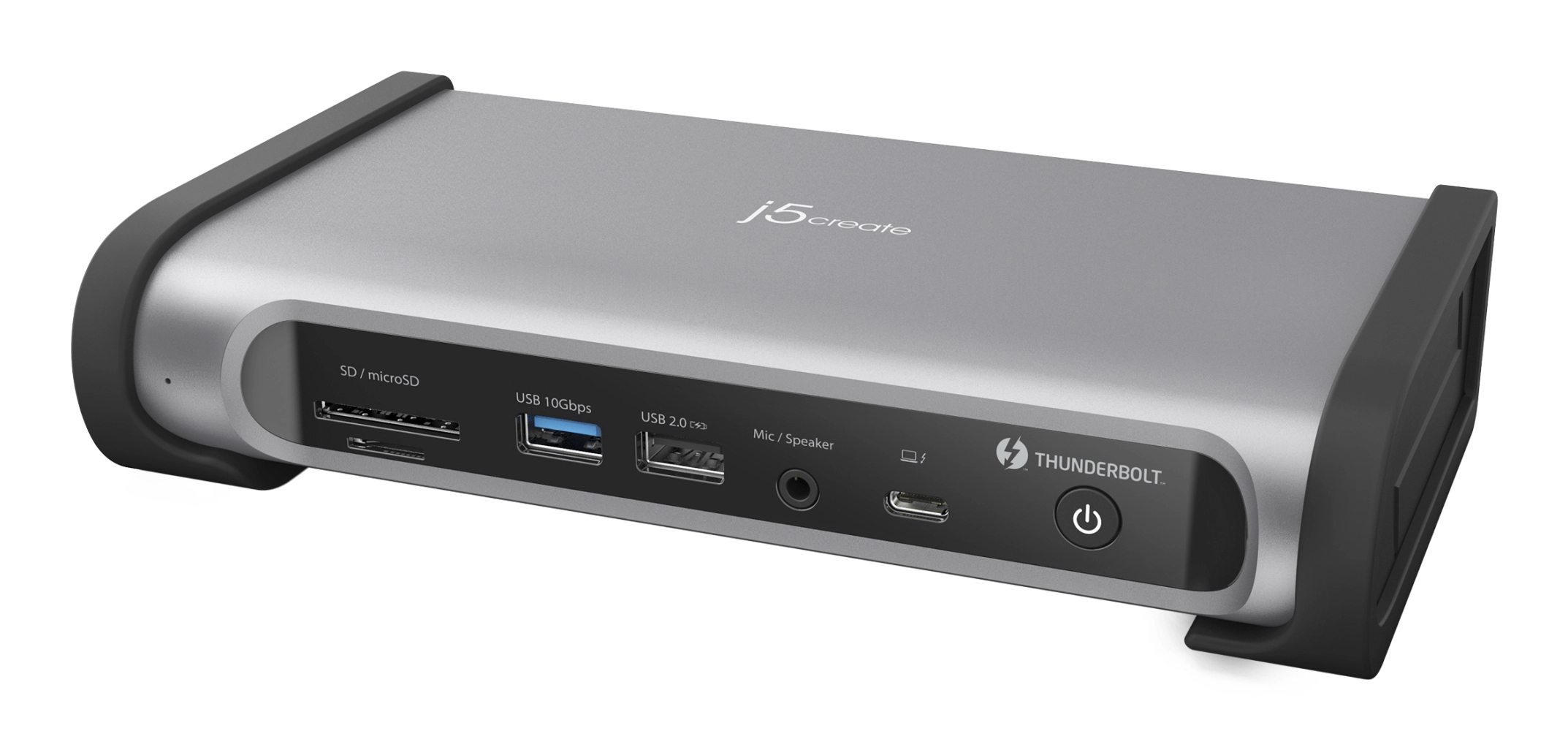

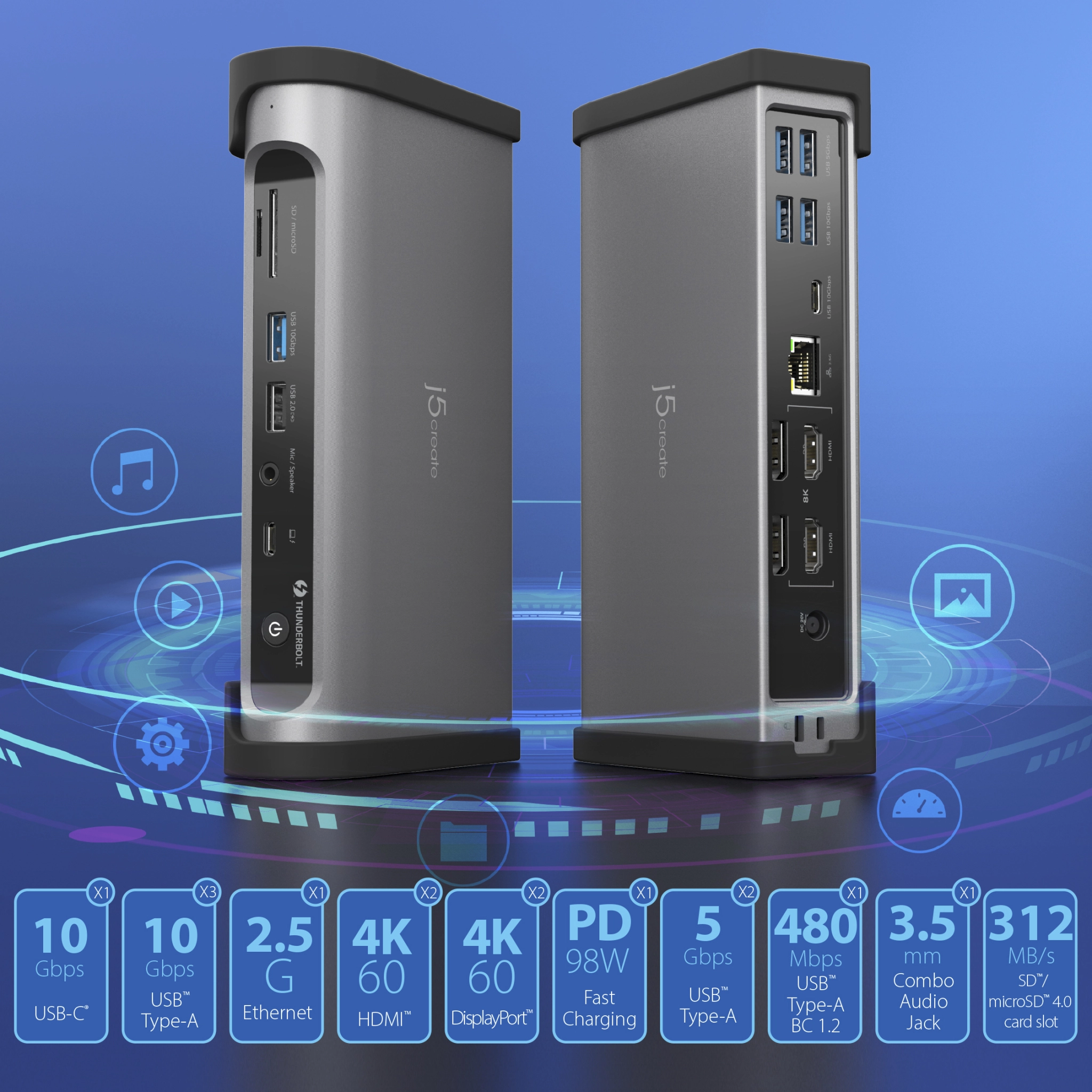

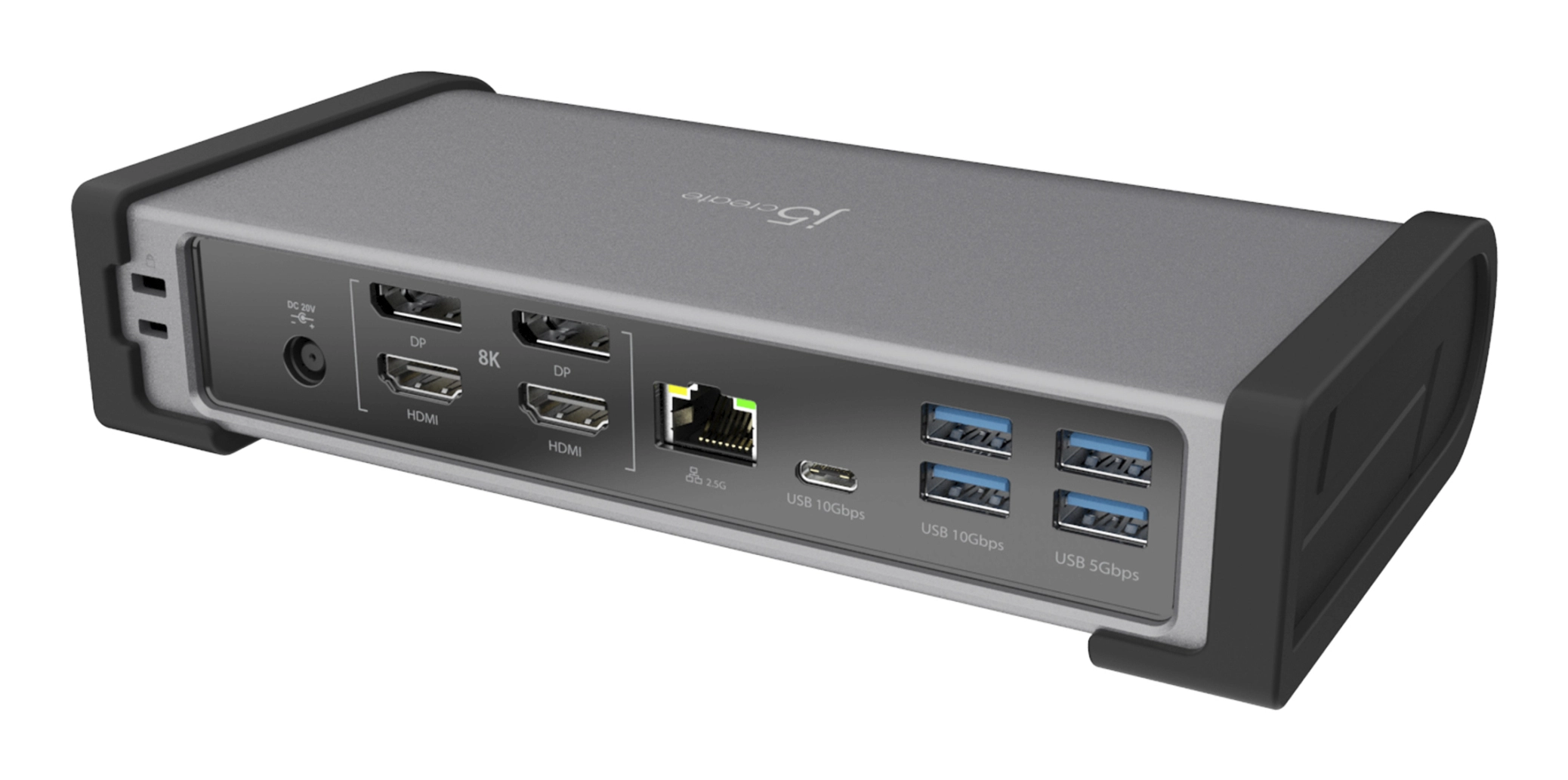

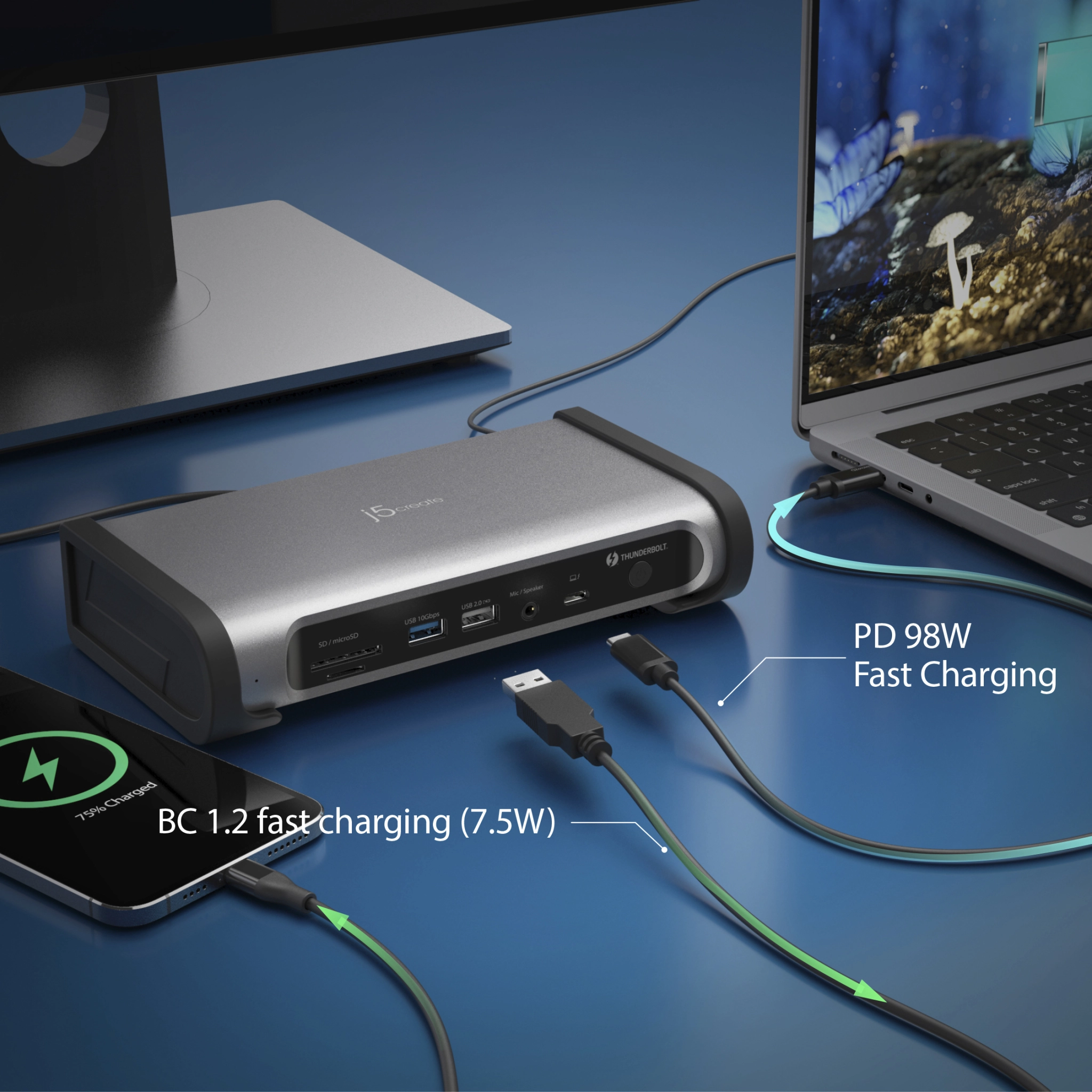

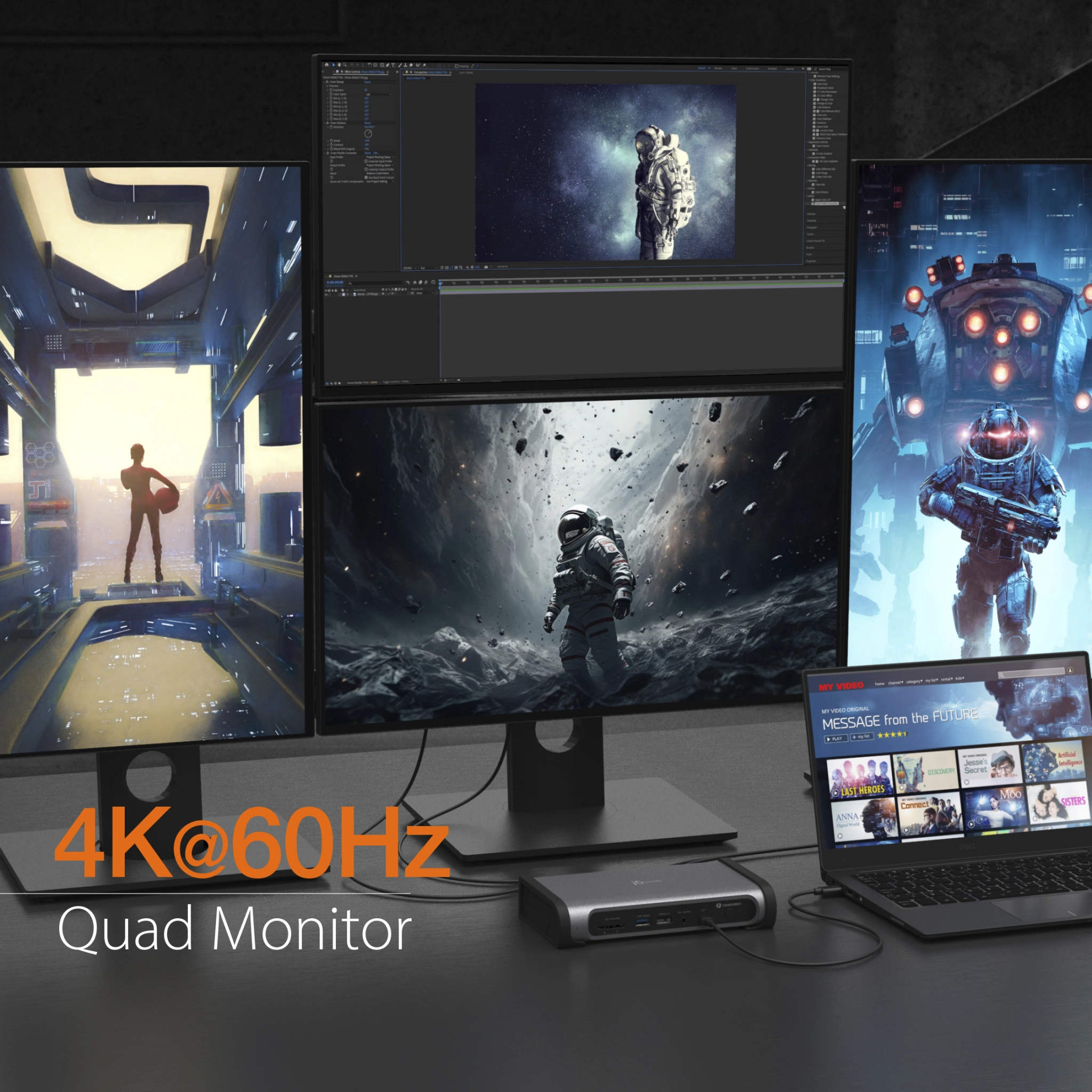

This Thunderbolt™ 4 Quad display Docking Station turns your Windows® laptop or Mac® into a full workstation, with resolution support up to Quad displays at 4K60Hz or Triple display at 4K60Hz or dual display at 5K60 Hz or 8K60Hz on the single display. Supports up to 98W power delivery for providing charging to your laptop. The quad display output and five USB™ 3.2 ports, and a USB-C® 3.2 port, this docking station is perfect for Thunderbolt™ 4 laptop requiring many high-performance ports and high-resolution displays. This Thunderbolt™ 4 docking station is also equipped with an RJ45 2.5 Gigabit Ethernet port, SD™/microSD™ 4.0 memory card reader/writer, and combo audio jack for maximum productivity. All 15 ports are combined into one slim docking station, so you will have all the connections you need to stay productive!

Specification

Product
Product id	990408
Brand	j5create
Partnr	JTD568-FN
EAN/UPC code	4712795088311
Warranty (months)	2 Years
Ports & interfaces
Connectivity technology	Wired
Host interface	Thunderbolt 4
USB 2.0 ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	3
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
USB Power Delivery	Y
USB Power Delivery up to	98 W
HDMI ports quantity	2
HDMI version	2.1
DisplayPorts quantity	2
DisplayPort version	1.4
Microphone in	Y
Combo headphone/mic port	Y
DC-in jack	Y
Network
Ethernet LAN	Y
Ethernet LAN (RJ-45) ports	1
Ethernet LAN data rates	10, 1000, 2500, 100 Mbit/s
Performance
Product colour	Grey
Card reader integrated	Y
Colour name	Dark / Space Grey
Compatible memory cards	SD, MicroSD (TransFlash)
Data transfer rate	10 Gbit/s
HD type	8K Ultra HD
Maximum digital resolution	7860 x 4320 Pixels
Number of displays supported	4
Cable lock slot	Y
Cable lock slot type	Kensington
Maximum refresh rate	240 Hz
On/off switch	Y
Housing material	Aluminium
LED indicators	Y
Charging function	Y
Country of origin	Taiwan
Power
Power source type	DC
Power supply	135 W
Input current	6.75 A
Compatible power plug types	UK
Thunderbolt 4 cable length	0.8 m
Software
Windows operating systems supported	Y
Mac operating systems supported	Y
Sustainability
Sustainability compliance	Y
Weight & dimensions
Width	201 mm
Depth	43 mm
Height	109 mm
Weight	681 g
Packaging data
Quantity per pack	1 stuk(s)
Package width	122 mm
Package depth	237 mm
Package height	94 mm
Package weight	1693 g
Packaging content
Manual	Y
AC adapter included	Y
Cables included	Thunderbolt
Operational conditions
Operating temperature (T-T)	0 - 48 °C
Storage temperature (T-T)	-10 - 65 °C
Operating relative humidity (H-H)	0 - 85 procent
Storage relative humidity (H-H)	0 - 85 procent
Technical details
Master (outer) case GTIN (EAN/UPC)	24712795088315
Warranty period	2 jaar
Compliance certificates	CE, REACH, RoHS
Logistics data
Master (outer) case net weight	3700 g
Export Control Classification Number (ECCN)	EAR99
Master (outer) case height	155 mm
Master (outer) case length	275 mm
Master (outer) case width	207 mm
Quantity per master (outer) case	2 stuk(s)
