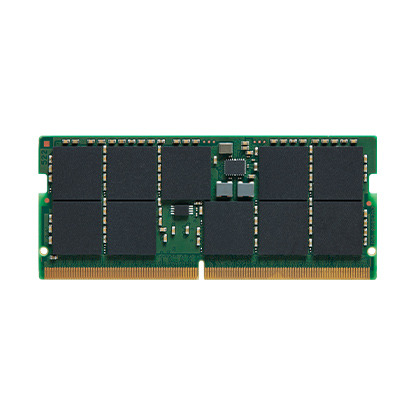

Kingston's KSM56T46BD8-32MH is a 4G x 72-bit (32GB) DDR5-5600 CL46 SDRAM (Synchronous DRAM) w/ parity, 2Rx8, ECC, memory module, based on twenty 2G x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR5-5600 timing of 46-45-45 at 1.1V. Each 262-pin SODIMM uses gold contact fingers.

Specification

Product
Product id	1029367
Brand	Kingston Technology
Partnr	KSM56T46BD8-32MH
EAN/UPC code	740617361261
Warranty (months)	Lifetime
Memory
Internal memory	32 GB
Internal memory type	DDR5
Memory layout (modules x size)	1 x 32 GB
Refresh row cycle time	295 ns
Row cycle time	48 ns
Row active time	32 ns
Technical details
Compliance certificates	RoHS
Operational conditions
Operating temperature (T-T)	0 - 95 °C
Storage temperature (T-T)	-55 - 100 °C
Features
Component for	Server
Memory form factor	262-pin SO-DIMM
Buffered memory type	Unregistered (unbuffered)
ECC	Y
CAS latency	46
On-Die ECC	Y
Memory ranking	2
Memory data transfer rate	5600 MT/s
Memory voltage	1.1 V
Row Precharge Time (TRP)	16
Product colour	Green
Sustainability
Doesn't contain	Halogen
