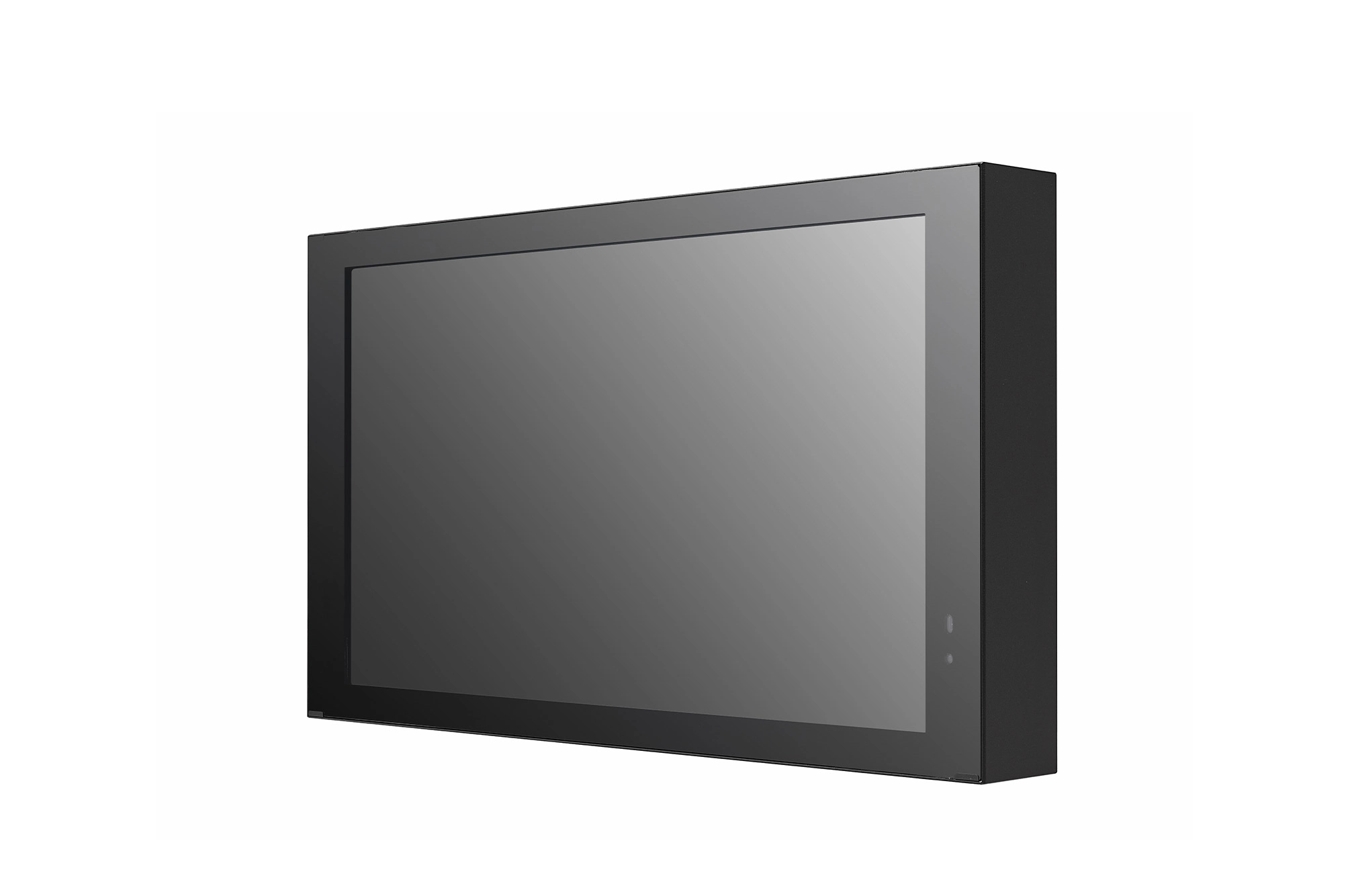

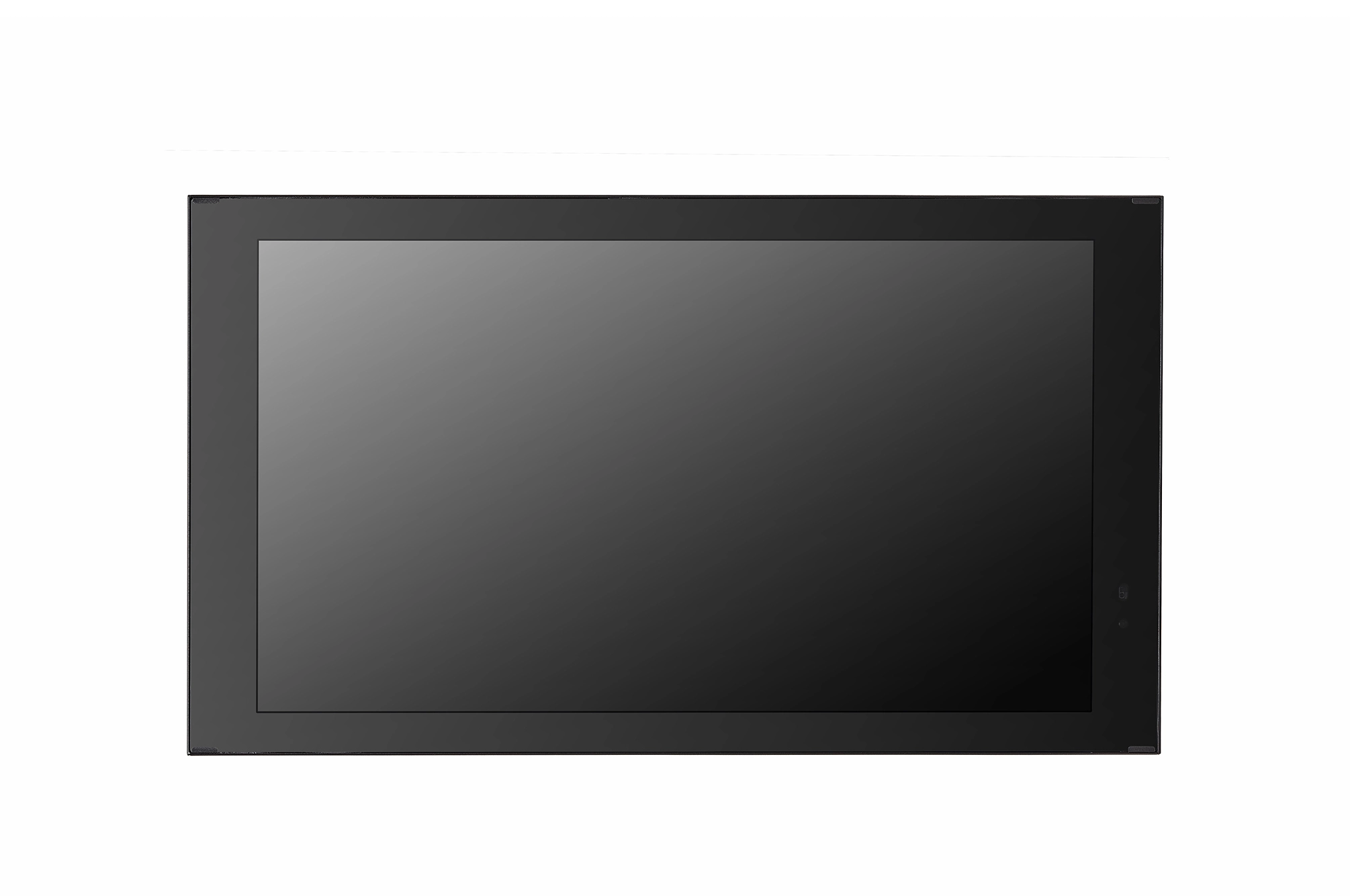

Versatile Outdoor Display Fit for Your Business

High Visibility Under Bright Environments
With a brightness of 1, 500 nits, 22XE1J boasts high visibility in bright environments. In addition, its clear visibility can deliver a variety of information even to those wearing polarized sunglasses.

21.5 inches of Versatile Screen Size
The small and light size of 21.5 inches allows for flexible use in various spaces. In particular, you can install the display in various way allowing for high utilization for small-medium businesses (SMB) to large businesses.

Secured Protection with IP56 Design
The display is sealed with IP56 design for reliable operation. It’s designed to be not only waterproof but also weatherproof against the damaging effects of the sun, rain, snow, dust and wind, which is an essential feature for outdoor application.

Wide Operating Temperature Range
22XE1J can be used under a wide range of operating temperatures which results in fewer constraints for outdoor installation

Conformal Coating
Conformal Coating* improves reliability of the circuit board, power board by protecting it against dust, iron powder, humidity, etc

Smart Brightness Control
The screen brightness is automatically adjusted depending on the ambient light. The brightness is increased in light for better visibility, while it is decreased in darkness for efficient power management.

High Performance with webOS
Quad Core SoC* can execute several tasks at the same time without a separate media player. In addition, webOS 4.1 platform enhances user convenience with intuitive UI and simple app development tools.

Easy Content Distribution
& SW Update
22XE1J features embedded Wi-Fi*, Bluetooth, Beacon making it easy to distribute content wirelessly and update Firmware. In particular, using Beacon and BLE (Bluetooth Low Energy), shop manager can do various promotional activities, such as providing promotional coupons or product information to visitor in real time.

Web Monitoring
(Control Manager)
This is a web-based monitoring solution, which provides a ease of control for the user. It enables users to have full access anywhere, anytime from their mobile phone & PC as long as they’re connected to a network while having access to both current and past data. It allows users to monitor the unit, make any adjustments and control it remotely in real-time.

LG's Simple Advertisement Helper, Promota

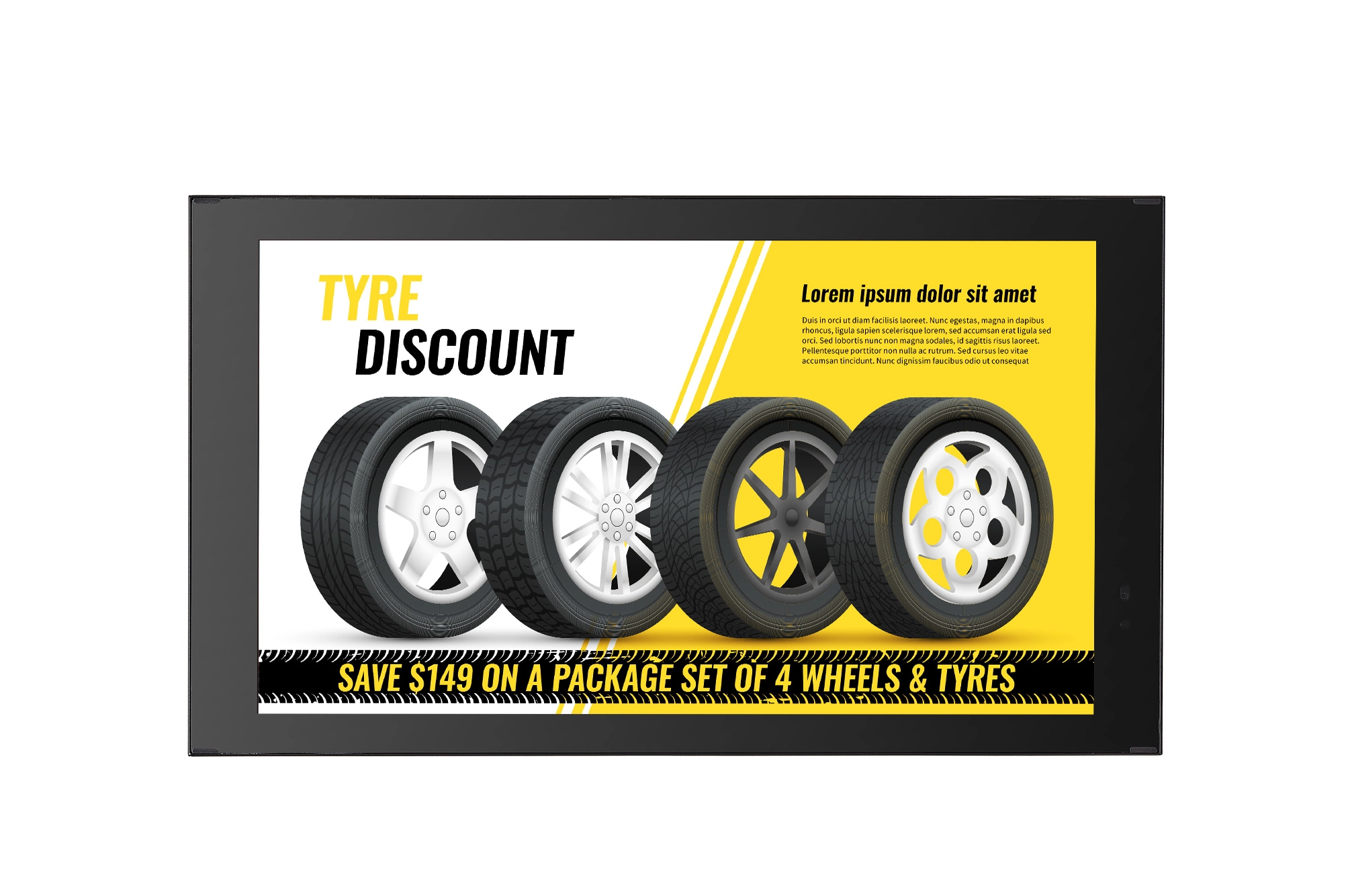

Using LG's Promota* application, downloadable on a mobile device, you can easily create your own display contents. With Promota, you can add text and images to create an online profile for your business as well as deliver information such as event news, seasonal menus, promotions, and even more to your customers while recommending easy-to-use templates relevant to your industry.

Real-time LG ConnectedCare Service
Maintenance is easy and fast with the optional LG ConnectedCare* service, a cloud service solution provided by LG. It remotely manages the status of displays in client workplaces for fault diagnosis and remote-control services, supporting the stable operation of clients' businesses.

Specification

Product
Product id	984715
Brand	LG Electronics
Partnr	22XE1J-B.AEU
EAN/UPC code	8806091435668
Display
Display diagonal	22 inch
LED backlighting type	Edge-LED
Display resolution	1920 x 1080 Pixels
Display brightness	1500 cd/m²
HD type	Full HD
Touchscreen	N
Native aspect ratio	16:9
Contrast ratio (typical)	1000:1
Contrast ratio (dynamic)	800000:1
Viewing angle, horizontal	178 °
Viewing angle, vertical	178 °
Display number of colours	16.7 million colours
Number of displays	1
Colour saturation	72 procent
Native refresh rate	60 Hz
Rated lifetime	50000 uur
Haze rate	25 procent
Panel type	AHVA
RGB colour space	NTSC
Ports & interfaces
HDMI ports quantity	1
DVI port	N
USB port	Y
USB ports quantity	1
USB version	2.0
Ethernet LAN	Y
Ethernet LAN (RJ-45) ports	1
Wi-Fi	Y
Audio (L/R) out	1
Audio
Built-in speaker(s)	N
Design
Design	Digital signage flat panel
Product colour	Black
Placement supported	Outdoor

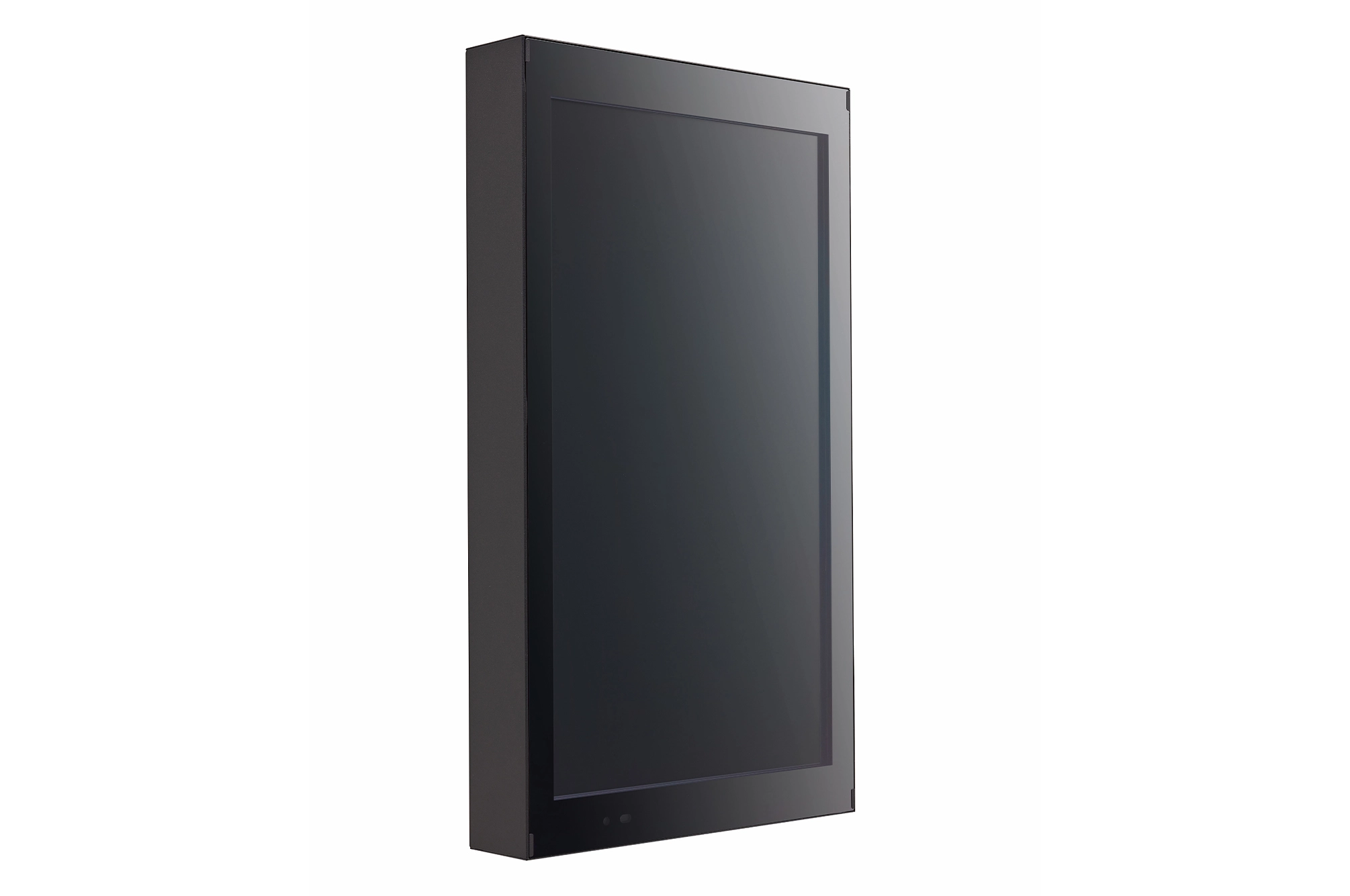

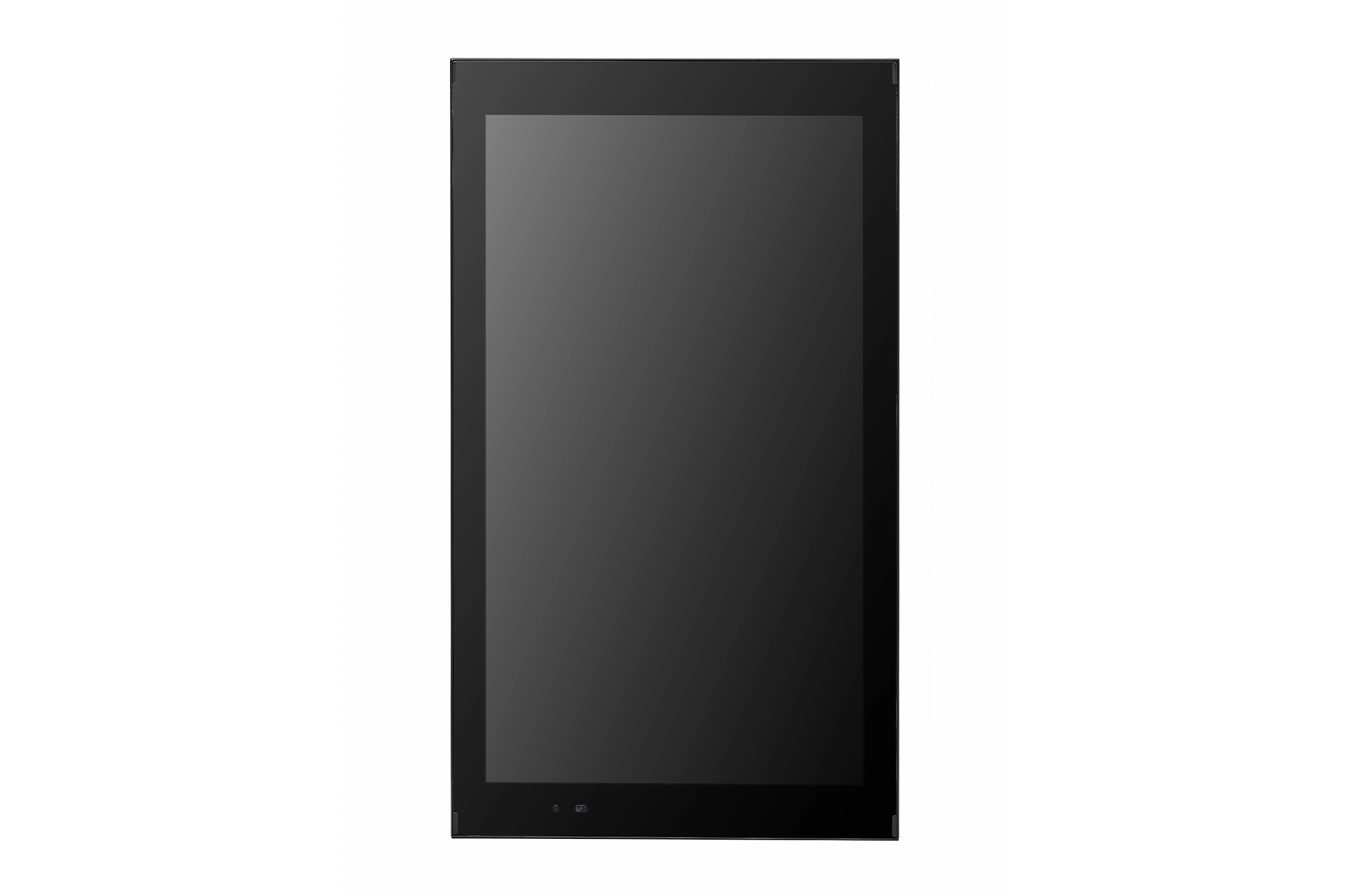

Orientation	Horizontal/Vertical
Wall mountable	Y
Screen shape	Flat screen

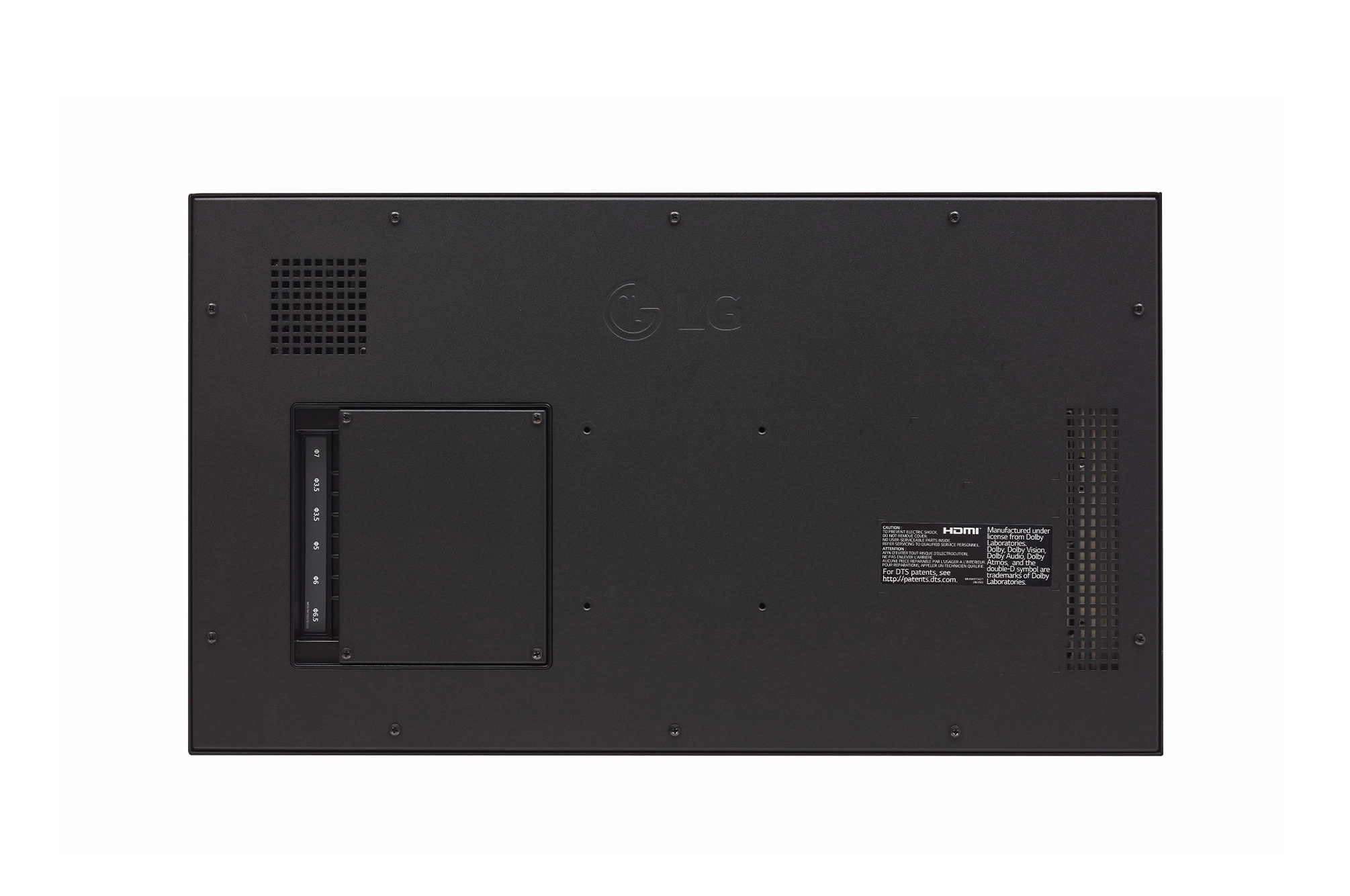

VESA mounting	Y
Panel mounting interface	100 x 100 mm
Anti-glare screen	Y
Tilt adjustment	Y
Bezel width (top)	38.3 mm
Bezel width (side)	240 mm
Bezel width (bottom)	240 mm
Performance
Purpose	Commercial
Wi-Fi Direct	Y
Browsing	Y
On Screen Display (OSD)	Y
Number of OSD languages	21
On Screen Display (OSD) languages	ARA, CHI (SIMPL), CHI (TR), CZE, DAN, DEU, DUT, ENG, ESP, FIN, FRE, GRE, ITA, JPN, KOR, NOR, POR, RUS, SWE, TUR
Ambient light sensor	Y
Operating hours (hours/days)	24/7
HDCP	Y
HDCP version	1.4
International Protection (IP) code	IP56
Power
Power consumption (typical)	85 W
Power consumption (standby)	0.5 W
Power consumption (off)	0.5 W
AC input voltage	100-240 V
AC input frequency	50-60 Hz
Heat dissipation	290 BTU/h
Computer system
Computer system	N
Built-in processor	N
Internal memory	16 GB
Operating system installed	WebOS
Weight & dimensions
Display width	557.3 mm

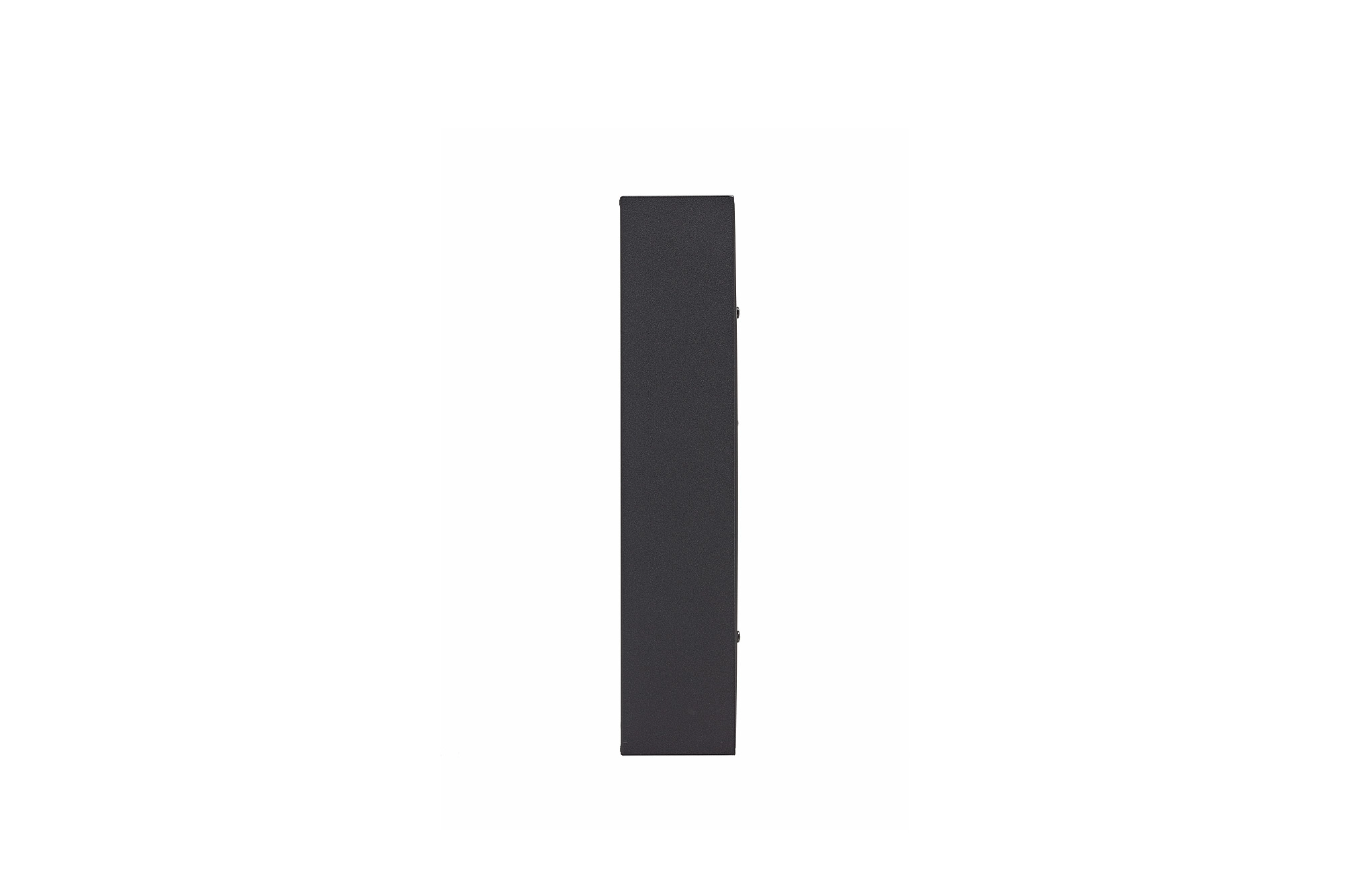

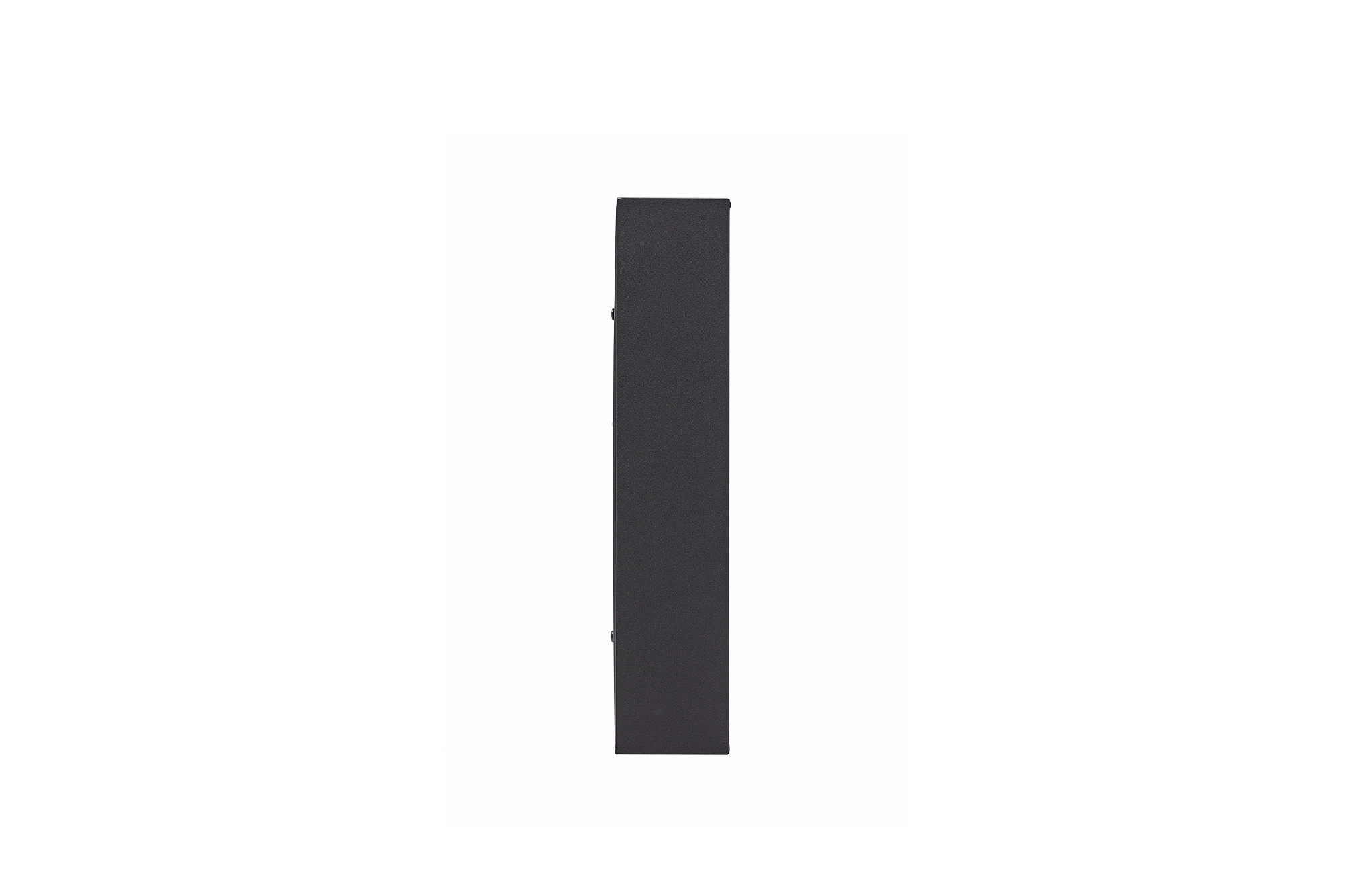

Display depth	66 mm
Display height	319.8 mm
Display weight	8700 g
Packaging data
Package width	632 mm
Package depth	187 mm
Package height	394 mm
Package weight	10000 g
Packaging content
Handheld remote control	Y
Stand colour	Black/Silver
Batteries included	Y
Cables included	AC, RS-232
Operational conditions
Operating temperature (T-T)	-30 - 0 °C
Operating relative humidity (H-H)	50 - 100 procent
Features
Base colour	Black
Suitable for outdoor use	Y
Heat dissipation (max)	393 BTU/h
Technical details
Special features	Embedded CMS (Local Contents Scheduling, Group Manager), USB Plug & Play, Fail over, Background Image (Booting Logo Image, No Signal Image), Sync Mode (Local Network Sync), Video Tag (4, Max One HDMI input), Play via URL, Rotation (Screen Rotation, External Input Rotation), Gapless Playback, Setting Data Cloning, SNMP, ISM Method, Status Mailing, Control Manager, Power (Smart Energy Saving, PM mode, Wake on LAN, Network Ready), Beacon, HDMI-CEC, SI Server Setting , webRTC, Pro:Idiom
Compliance certificates	CE, Federal Communications Commission (FCC)
Sustainability certificates	ErP
Other features
USB connector type	USB Type-A
Stand included	Y
