Clear View: Polarized Sunglasses
FPR (Film-type Patterned Retarder) technology is embedded with a QWP which enables clear visibility even when the viewer is wearing polarized sunglasses.
Conformal Coating
The product can be often unavoidably exposed to dust and water during maintenance. Conformal coating on every major circuit board eliminates such troubles by protecting it against dust, iron powder, humidity, etc.
Protection from Dust & Humidity
The XE series is sealed with IP56 design ensuring reliable operation. In addition to being waterproof, it is weatherproof against the sun, rain, snow, dust and wind's damaging effects.
Efficient Air Circulation
Offers superb reliability in high temperatures. The patented thermal management technology efficiently cools down heat generated from every part of the product, preventing outside air from entering.
Protect against External Impact
Tempered and laminated front glass ensures optimum protection, from outdoor extremities allowing minimal to no damage from external impacts.
Web & Mobile Monitoring
Easy to control at all times, embedded web monitoring in the panel allows a variety of parameters to be diagnosed in real time via temperature, pixel, door, ambient light and gyro sensors.

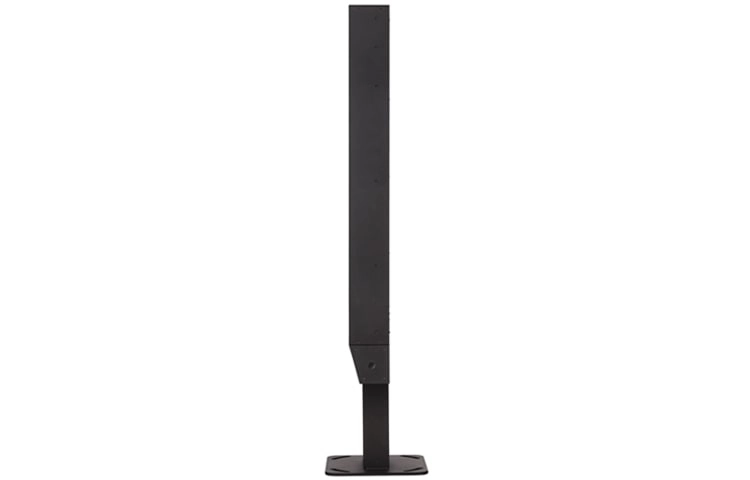

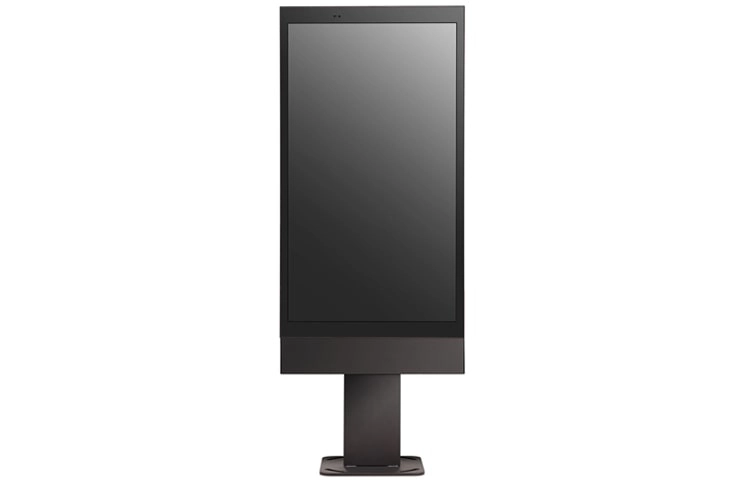

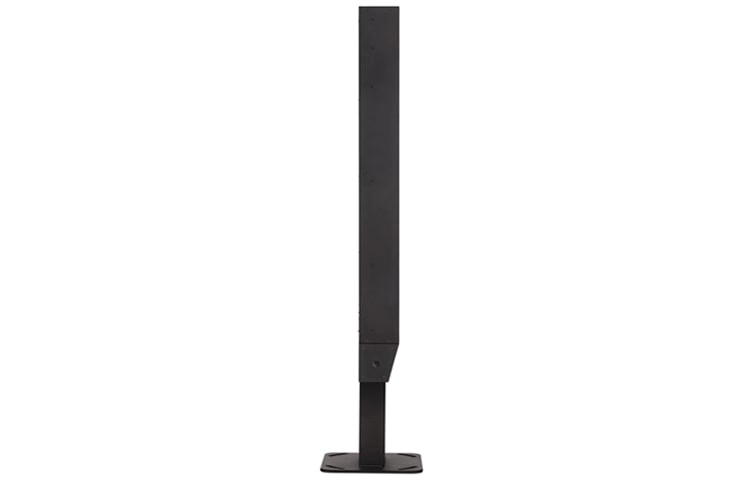

Applicable Stand Accessories
Optional stand to allow panel to stand freely and facilitate easy cable management.

Specification

Product
Product id	1005724
Brand	LG Electronics
Partnr	75XE3C-B.AEU
EAN/UPC code	8806087857382
Warranty (months)	24 months
Display
Display diagonal	75 inch
Display resolution	3840 x 2160 Pixels
Display brightness	3000 cd/m²
HD type	4K Ultra HD
Touchscreen	N
Native aspect ratio	16:9
Response time	8 ms
Contrast ratio (typical)	1200:1
Viewing angle, horizontal	178 °
Viewing angle, vertical	178 °
Surface hardness	2H
Haze rate	3 procent
Ports & interfaces
HDMI ports quantity	1
HDMI input ports quantity	1
DVI port	Y
DVI-D ports quantity	1
DisplayPorts quantity	1
USB port	Y
USB ports quantity	1
USB version	3.2 Gen 1 (3.1 Gen 1)
Ethernet LAN	Y
Ethernet LAN (RJ-45) ports	1
PC Audio in	Y
RS-232C	Y
Card reader integrated	Y
Compatible memory cards	SD
OPS module slot	N
Audio
Built-in speaker(s)	Y
Design
Design	Totem design
Product colour	Black
Placement supported	Outdoor
Orientation	Vertical
Anti-glare screen	Y
Bezel width (top)	110 mm
Bezel width (side)	73.3 mm
Bezel width (bottom)	230 mm
Performance
Purpose	Universal
International Protection (IP) code	IP56
Power
Power consumption (typical)	700 W
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Weight & dimensions
Width	1075.6 mm
Depth	218.9 mm
Height	1991.6 mm
Weight	180000 g
Packaging data
Package width	1308 mm
Package depth	468 mm
Package height	2296 mm
Packaging content
Handheld remote control	Y
Cables included	AC, HDMI, RS-232, USB
Operational conditions
Operating temperature (T-T)	-30 - 50 °C
Operating relative humidity (H-H)	5 - 100 procent
Storage temperature (T-T)	-20 - 60 °C
Storage relative humidity (H-H)	5 - 100 procent
Certificates
Certification	UL / cUL / CB FCC Class "A" / CE / KCC
Features
Base colour	Black
Suitable for outdoor use	Y
Harmonized System (HS) code	85285210
Other features
Display technology	IPS
