Large Display Optimized for Outdoor Advertisement

High Visibility Under Strong Sunlight
With outstanding high brightness of 3, 300 nits (Typ. ), the 86XF3SK outdoor display delivers contents clearly while captivating passersby, making it the optimized display for outdoor visibility.
In addition, its clear visibility can deliver a variety of information even to those wearing polarized sunglasses.

Superb Picture Quality with Ultra HD Resolution
With the resolution of UHD, it makes the color and details of the contents vivid and realistic.
In addition, the wide viewing angle applied with an IPS panel, provides clear contents.

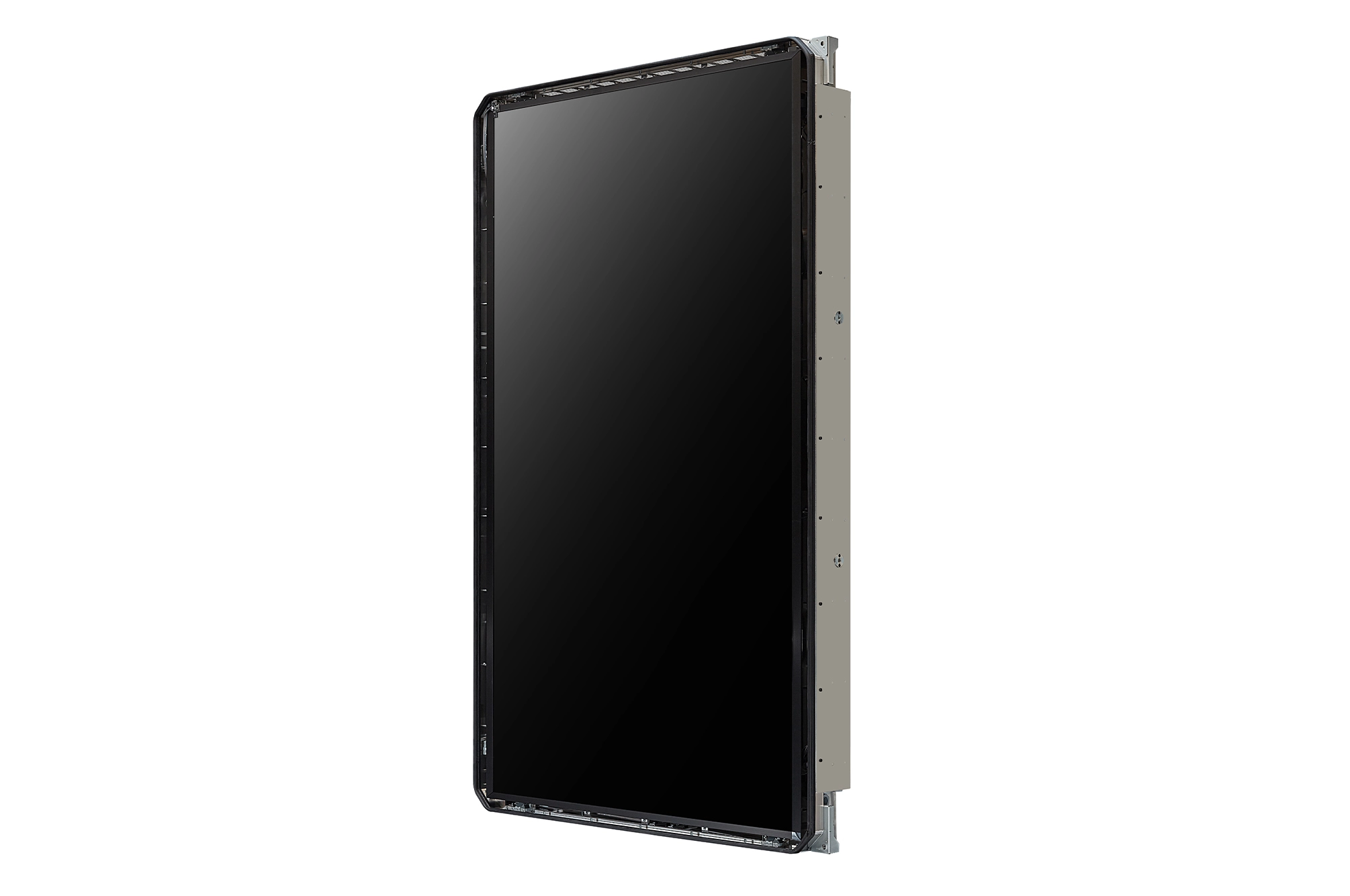

Open-frame Type Display
86XF3SK is an open-frame type high brightness displays
to give customers flexibility in exterior of casing such as colors or design.

Wide Range of Operating Temperature
The display offers superb reliability under a wide range of operating temperatures, which also goes through LG’s solar test* which causes a lot of thermal energy.
So the 86XF3SK requires fewer constraints for outdoor installations**
which are usually exposed to strong sunlight and various environmental changes.

* 86XF3SK is LG-internally tested based on international environment test standard IEC 600680205, MIL-STD-810G and TTA (Telecommunication Technology Association).
** 86XF3SK needs to be installed inside a casing according to LG's official installation guide to be used safely and appropriately. The installation guide is provided by LG.

Smart Brightness Compensation
The built-in BLU* sensor frequently measures the brightness of the display
and automatically compensates for reduced brightness during operation.

* BLU : Back Light Unit

Conformal Coating
Conformal Coating* improves reliability of the circuit board,
power board by protecting it against humidity.

* Conformal Coating : Thin protective films/breathing membranes that filter water vapor.

Smart Brightness Control
The screen brightness is automatically adjusted depending on the ambient light.
The brightness is increased in light for better visibility,
while it is decreased in darkness for efficient power management.

Electrical Safety
Circuit breaker inside 86XF3SK minimizes the possibility of product damage
by cutting off current when abnormal current is detected.

High-Performance with LG webOS 6.0
LG webOS 6.0, upgraded in SoC* and web engine,
is available on 86XF3SK for a smooth execution of several tasks.
LG webOS smart signage platform enhances user convenience with intuitive GUI. **

* SoC : System On Chip
** GUI : Graphical User Interface

Web Monitoring (Control Manager)
This is a web-based monitoring solution, which provides easy control for the user.
It enables users to have full access anywhere, anytime from their mobile phone & PC
as long as they’re connected to a network to monitor and control the displays remotely in real-time.

Specification

Product
Product id	1004848
Brand	LG Electronics
Partnr	86XF3SK-B
EAN/UPC code	8806091929624
Warranty (months)	24 months
Display
Display diagonal	86 inch
Display resolution	3840 x 2160 Pixels
Display brightness	3300 cd/m²
HD type	4K Ultra HD
Touchscreen	N
Native aspect ratio	16:9
Response time	8 ms
Contrast ratio (typical)	1100:1
Contrast ratio (dynamic)	500000:1
Viewing angle, horizontal	178 °
Viewing angle, vertical	178 °
Display number of colours	1.07 billion colours
Native refresh rate	120 Hz
Haze rate	3 procent
Colour gamut	68 procent
Panel type	IPS
Ports & interfaces
HDMI ports quantity	1
DVI port	N
DisplayPorts quantity	1
USB port	Y
USB ports quantity	1
USB version	2.0
Ethernet LAN	Y
Ethernet LAN (RJ-45) ports	2
Wi-Fi	N
RS-232C	Y
Remote (IR) output	1
Audio
Built-in speaker(s)	N
Design
Design	Totem design
Product colour	Black
Placement supported	Outdoor
Orientation	Vertical
VESA mounting	N
Bezel width (top)	51.95 mm
Bezel width (side)	66.4 mm
Bezel width (bottom)	51.95 mm
Performance
Purpose	Retail
On Screen Display (OSD)	Y
Operating hours (hours/days)	24/7
Automatic brightness control	Y
Power
Power consumption (typical)	1450 W
Power consumption (standby)	0.5 W
AC input voltage	100-240 V
AC input frequency	50-60 Hz
Computer system
Computer system	Y
Computer system type	System on Chip (SoC)
Internal memory	8 GB
Operating system installed	WebOS
Operating system version	6.0
Weight & dimensions
Display width	1225 mm
Display depth	179.48 mm
Display height	2034.3 mm
Display weight	140000 g
Packaging data
Package width	1503 mm
Package depth	468 mm
Package height	2296 mm
Package weight	156700 g
Packaging content
Handheld remote control	Y
Cables included	AC, HDMI, IR, LAN (RJ-45), RS-232, USB
Mounting kit	Y
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	10 - 80 procent
Technical details
Real Time Clock (RTC)	Y
Other features
USB connector type	USB Type-A
Display technology	LCD
Power consumption (max)	1800 W
Plug and Play	Y
