Unite as one
The MAG series fights alongside gamers in pursuit of honor.
With added military-inspired elements in these gaming products, they were reborn as the symbol of sturdiness and durability.

LIGHTNING GEN 4 PCI-E
MSI lightning Gen 4 PCI-E represents the bandwidth of a x16 interface to 64GB/s that has doubled compared to its previous generation.

REINFORCED, HEAVY SOLDERED CONNECTIONS
MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points and support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor shields the point of contact from electromagnetic interference.

Specification

Product
Product id	1011247
Brand	MSI Micro-Star International
Partnr	7D76-001R
EAN/UPC code	4711377010207
Processor
Processor manufacturer	AMD
Processor socket	Socket AM5
Compatible processor series	AMD Ryzen 7000 Series
Supported processor sockets	Socket AM5
Memory
Supported memory types	DDR5-SDRAM
Number of memory slots	4
Memory slots type	DIMM
Supported memory clock speeds	4800, 5000, 5200, 5400, 5600, 5800, 6000, 6200, 6400 MHz
Maximum internal memory	128 GB
Supported memory clock speed (max)	7600 MHz
Storage controllers
Supported storage drive interfaces	M.2, SATA
RAID levels	0, 1, 10
Internal I/O
USB 2.0 connectors	4
USB 3.2 Gen 1 (3.1 Gen 1) connectors	2
Number of SATA III connectors	6
Front panel audio connector	Y
Front panel connector	Y
ATX Power connector (24-pin)	Y
CPU fan connector	Y
Chassis intrusion connector	Y

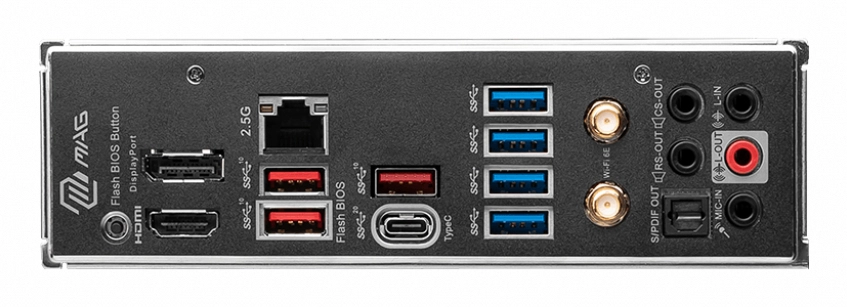

Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	3
Ethernet LAN (RJ-45) ports	1
USB 3.2 Gen 2x2 Type-C ports quantity	1
HDMI ports quantity	1
HDMI version	2.1
Headphone outputs	1
Microphone in	Y
Line-in	Y
Network
Ethernet LAN	Y
Ethernet interface type	2.5 Gigabit Ethernet
LAN controller	Realtek RTL8125B
Wi-Fi	Y
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6E (802.11ax)
Bluetooth	Y
Bluetooth version	5.2
Features
Component for	PC
Motherboard form factor	Micro ATX
Motherboard chipset family	AMD
Motherboard chipset	AMD B650
Audio chip	Realtek ALC4080
Audio output channels	7.1 kanalen
PC health monitoring	FAN
Product colour	Zwart
Windows operating systems supported	Windows 11 x64
Expansion slots
PCI Express x16 (Gen 3. x) slots	1
Number of M.2 (M) slots	2
Weight & dimensions
Width	243.84 mm
Depth	243.84 mm
