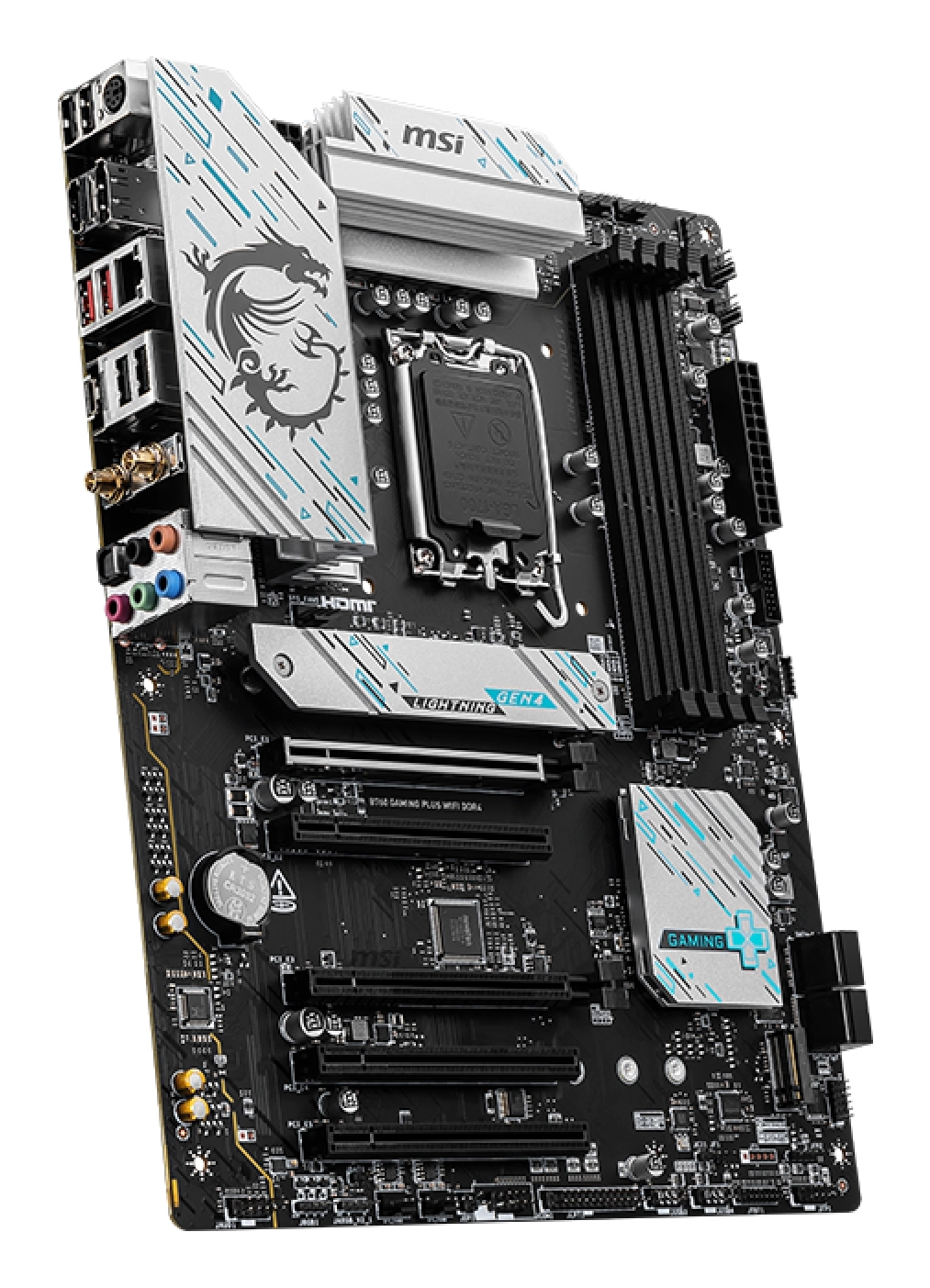

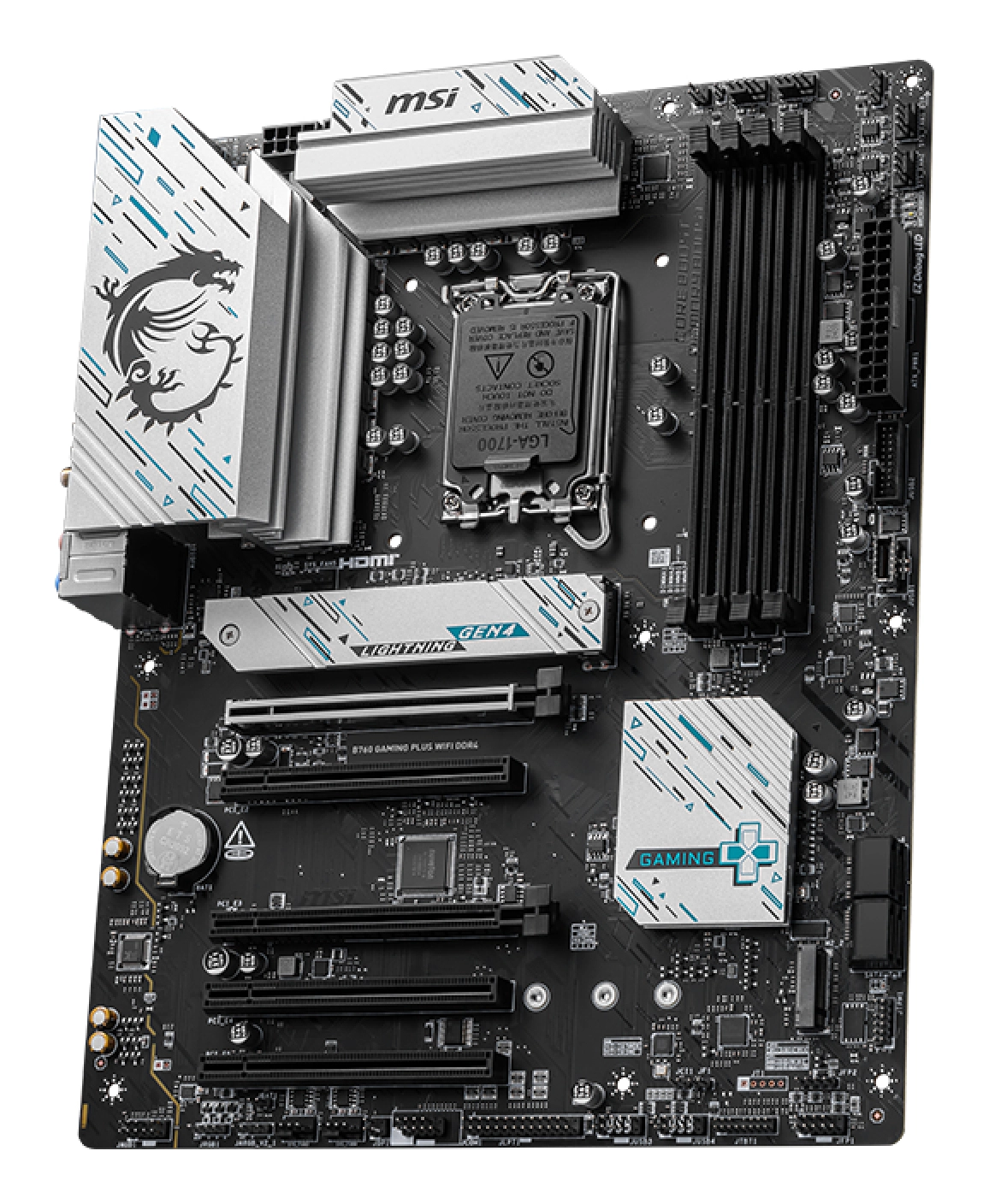

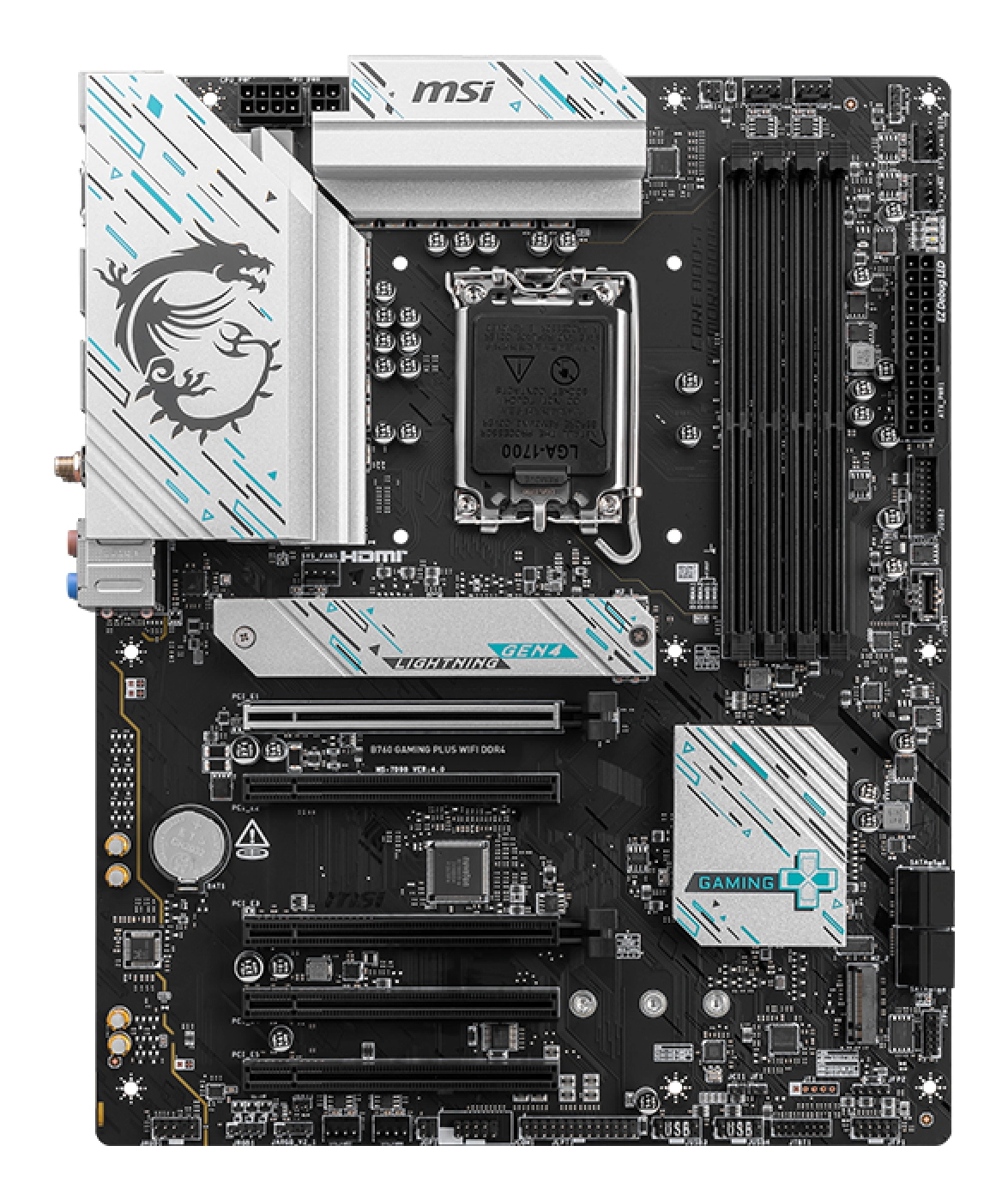

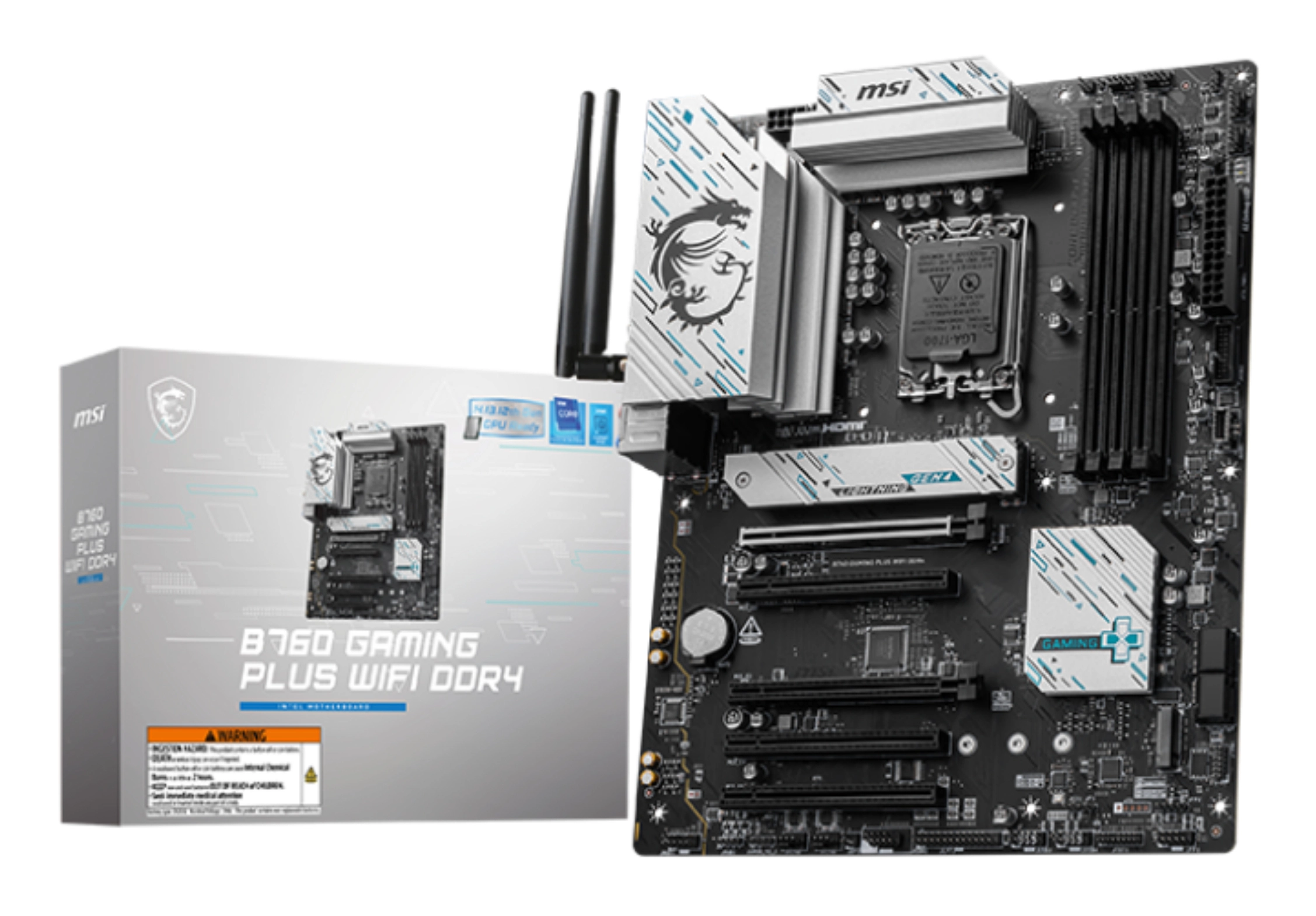

B760 GAMING PLUS WIFI DDR4
The B760 GAMING PLUS WIFI DDR4 is crafted to offer extensive connectivity, versatile tools, and a convenient Wi-Fi solution for gamers seeking a comprehensive experience. Featuring 2.5G LAN, Wi-Fi 6E, DDR4 support, PCIe 4.0 capabilities, and dual M.2 connectors, it is optimized for Intel® Core 14th /13th /12th Gen processors.

Extended Heatsink
Extended Heatsink enlarges the surface of heat dissipation, ensuring even high-end processors to run in full speed.

Heavy Plated VRM Heatsink
The VRM heatsink covers the upper MOS and helps dissipate the heat.

M.2 Shield Frozr
Keeps M.2 SSDs safe while preventing throttling, making them run faster.

7W/mK Thermal Pad & Additional Choke Pad
High quality 7W/mK MOSFET thermal pads and extra choke thermal pads ensure all cores running in high performcance.

DIY 2.0 – INTEGRATING WITH THE SYSTEM ENVIRONMENT
Connect and synchronize with MSI coolers and cases with strategically positioned pin-header locations including a dedicated pump-fan header.

OPTIMIZED FOR WATER COOLING
Designed to support the most popular All-In-One & customized water cooling solutions on the market. A dedicated water pump PIN header supports up to 3 amp, giving you full control of the water pump speed. A clearly marked ‘keep-out-zone’ allows for easy and safe installation and a perfect fit.

LIGHTNING GEN 4 PCI-E
Doubling over the previous generation, the bandwidth of a x16 interface can reach 64GB/s.

REINFORCED,
HEAVY SOLDERED CONNECTIONS
Secure to the motherboard with extra solder points and support the weight of heavy graphics cards.
FAST AND FUTURE-READY STORAGE
B760 GAMING PLUS WIFI DDR4 motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Start games faster, load levels faster and have a real advantage over your enemies.

Specification

Product
Product id	1011249
Brand	MSI Micro-Star International
Partnr	7D89-043R
EAN/UPC code	4711377247900
Processor
Processor manufacturer	Intel
Processor socket	LGA 1700
Compatible processor series	Intel Celeron, Intel Pentium Gold
Supported processor sockets	LGA 1700
Maximum internal memory supported by processor	128 GB
Memory
Supported memory types	DDR4-SDRAM
Number of memory slots	4
Memory slots type	DIMM
Memory channels	Dual-channel
ECC сompatibility	non-ECC
Supported memory clock speeds	2133, 2400, 2666, 2933, 3200, 3333, 3400, 3466, 3600, 3733, 3800, 4000, 4200, 4266, 4400, 4600, 4800, 5000, 5066, 5200, 5333 MHz
Maximum internal memory	128 GB
Supported memory clock speed (max)	5333 MHz
Storage controllers
Supported storage drive interfaces	M.2, SATA
Number of HDDs supported	4
Number of storage drives supported	6
RAID levels	0, 1, 5, 10
RAID support	Y
Internal I/O
USB 2.0 connectors	4
USB 3.2 Gen 1 (3.1 Gen 1) connectors	3
Number of SATA III connectors	4
Total number of SATA connectors	4
S/PDIF out connector	Y
TPM connector	Y
RGB LED pin header	Y

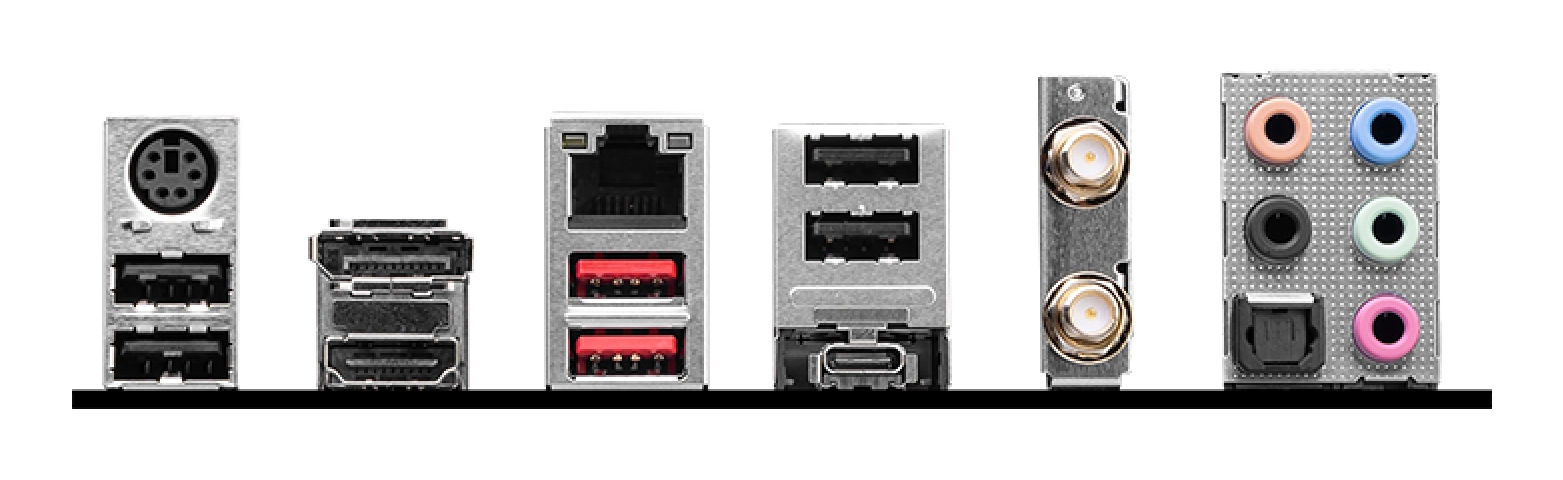

Rear panel I/O ports
USB 2.0 ports quantity	4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
HDMI version	2.1
DisplayPorts quantity	1
DisplayPort version	1.4
S/PDIF out port	Y
Network
Ethernet LAN	Y
Ethernet interface type	2.5 Gigabit Ethernet
LAN controller	Dragon RTL8125BG
Wi-Fi	Y
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Bluetooth	Y
Bluetooth version	5.3
Features
Component for	PC
Motherboard form factor	ATX
Motherboard chipset family	Intel
Motherboard chipset	Intel B760
Audio chip	Realtek ALC897
Audio output channels	7.1 kanalen
Product colour	Zwart/Wit
Windows operating systems supported	Windows 10 x64, Windows 11 x64
Expansion slots
PCI Express x1 slots	3
PCI Express x1 (Gen 3. x) slots	3
PCI Express x16 slots	2
PCI Express x16 (Gen 4. x) slots	2
Number of M.2 (M) slots	2
BIOS
BIOS type	UEFI AMI
BIOS memory size	256 Mbit
ACPI version	6.4
Weight & dimensions
Width	243.84 mm
Depth	304.8 mm
