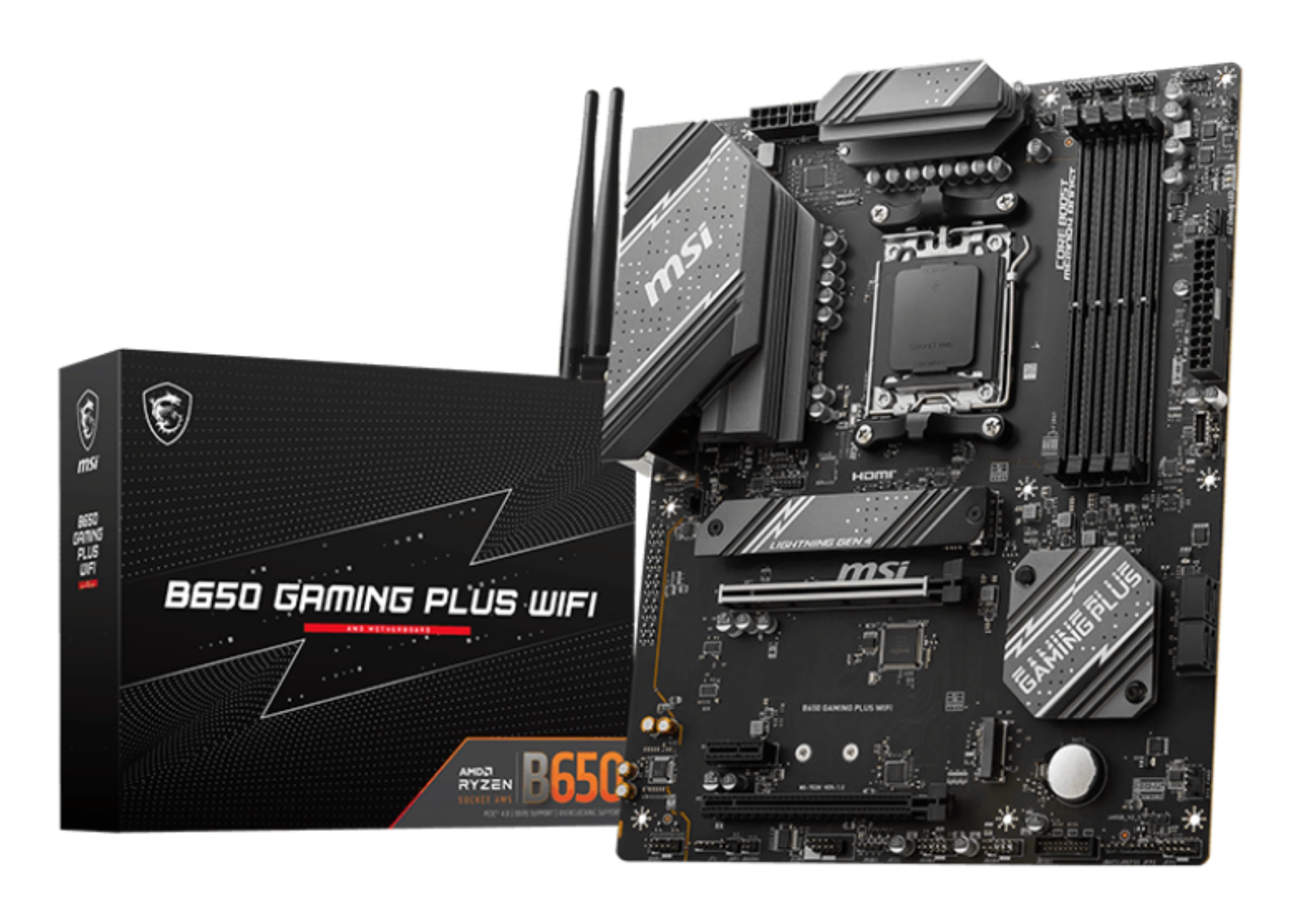

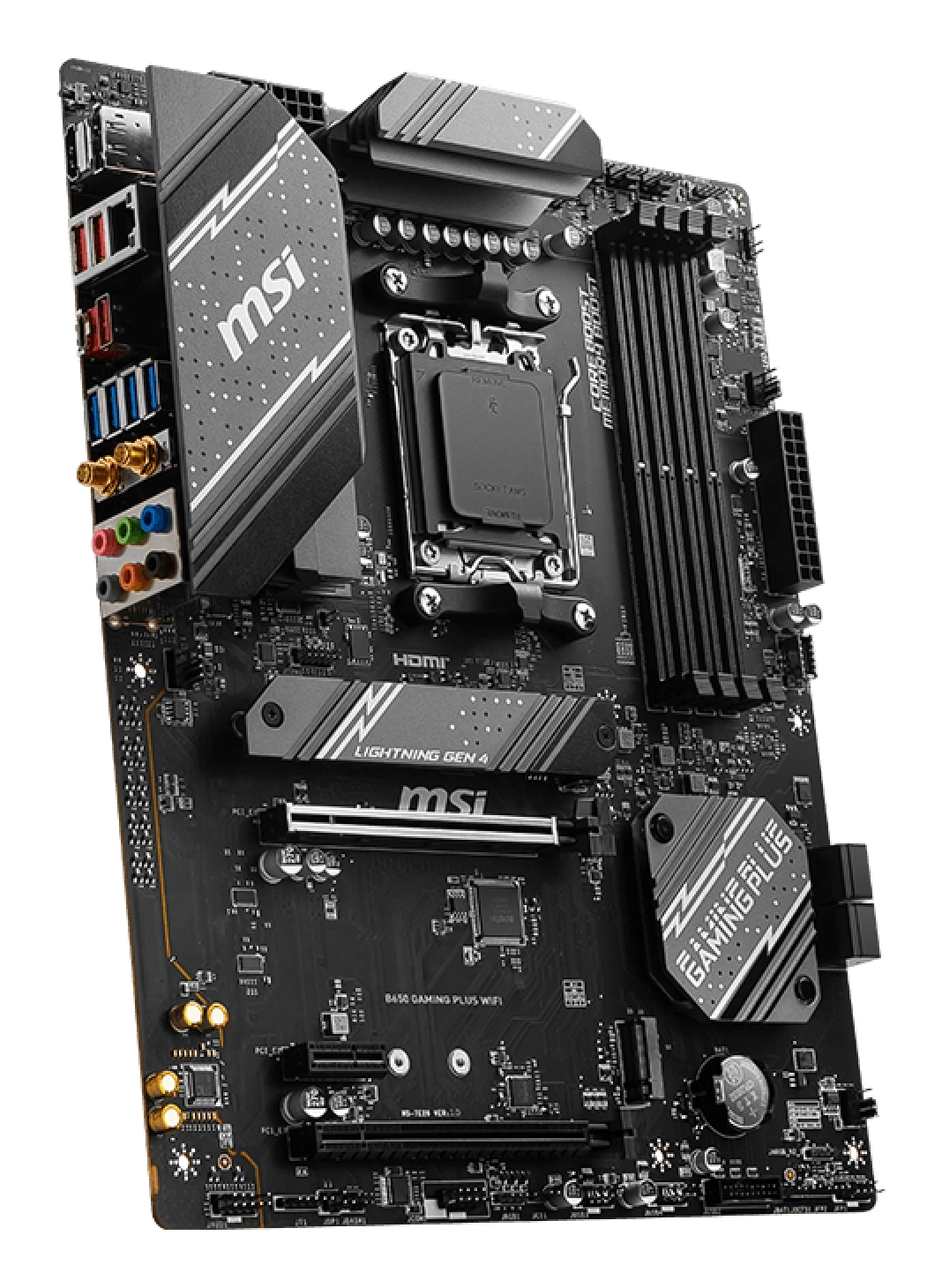

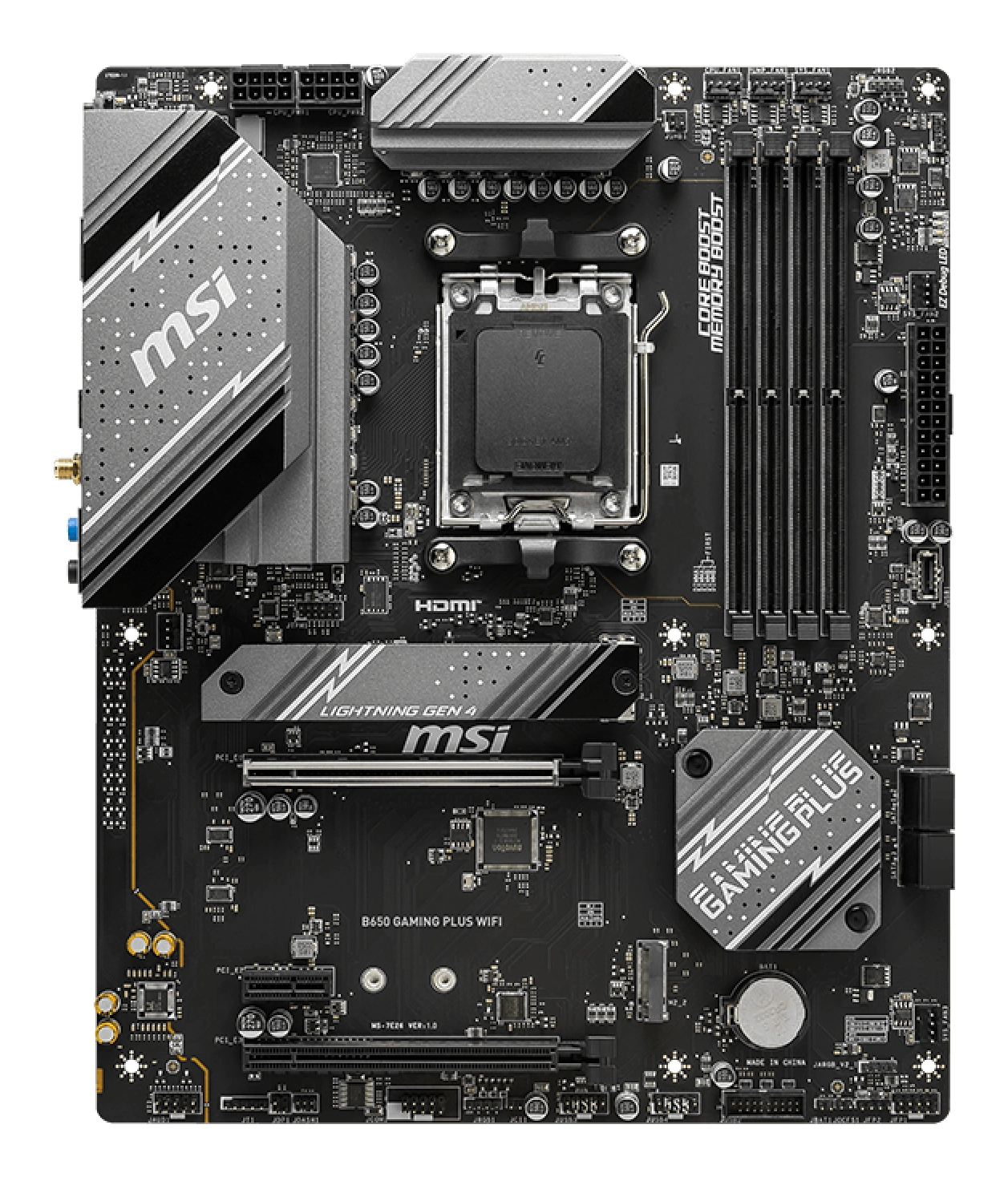

B650 GAMING PLUS WIFI
B650 GAMING PLUS WIFI is designed with tons of connectivity, flexible tools, and convenient Wi-Fi solution with DDR5 memory version for gamers who want all.

Extended Heatsink
Extended Heatsink enlarges the surface of heat dissipation and maintain the performance at heavy loads.

M.2 Shield Frozr
Strengthened M.2 thermal solution helps M.2 SSD safe and ensures incredible performance.

Heavy Plated VRM Heatsink
The VRM heatsink covers the upper MOS and helps dissipate the heat.

7W/mK Thermal Pad & Additional Choke Pad
High-quality 7W/mK MOSFET thermal pads and additional choke thermal pads ensure stable performance when all cores are running at high speed.

Chipset Heatsink
The chipset heatsink is designed to reduce dust and noise and also capable of maintaining high efficiency of PCH.

LIGHTNING GEN 4 PCI-E
MSI lightning Gen 4 PCI-E represents the bandwidth of a x16 interface to 64GB/s that has doubled compared to its previous generation.

REINFORCED,
HEAVY SOLDERED CONNECTIONS
MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points and support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor shields the point of contact from electromagnetic interference.

Specification

Product
Product id	1011265
Brand	MSI Micro-Star International
Partnr	7E26-001R
EAN/UPC code	4711377098052
Processor
Processor manufacturer	AMD
Processor socket	Socket AM5
Compatible processor series	AMD Ryzen 7000 Series
Supported processor sockets	Socket AM5
Memory
Supported memory types	DDR5-SDRAM
Number of memory slots	4
Memory slots type	DIMM
ECC сompatibility	non-ECC
Supported memory clock speeds	4800, 5000, 5200, 5400, 5600, 5800, 6000, 6200, 6400 MHz
Maximum internal memory	192 GB
Supported memory clock speed (max)	6000 MHz
Storage controllers
Supported storage drive interfaces	M.2, SATA
RAID levels	0, 1, 10
RAID support	Y
Graphics
Parallel processing technology support	Not supported
On-board graphics adapter	N
Internal I/O
USB 2.0 connectors	4
USB 3.2 Gen 1 (3.1 Gen 1) connectors	2
USB 3.2 Gen 2 (3.1 Gen 2) connectors	1
Number of SATA III connectors	4
Front panel audio connector	Y
Front panel connector	Y
ATX Power connector (24-pin)	Y
CPU fan connector	Y
Chassis intrusion connector	Y

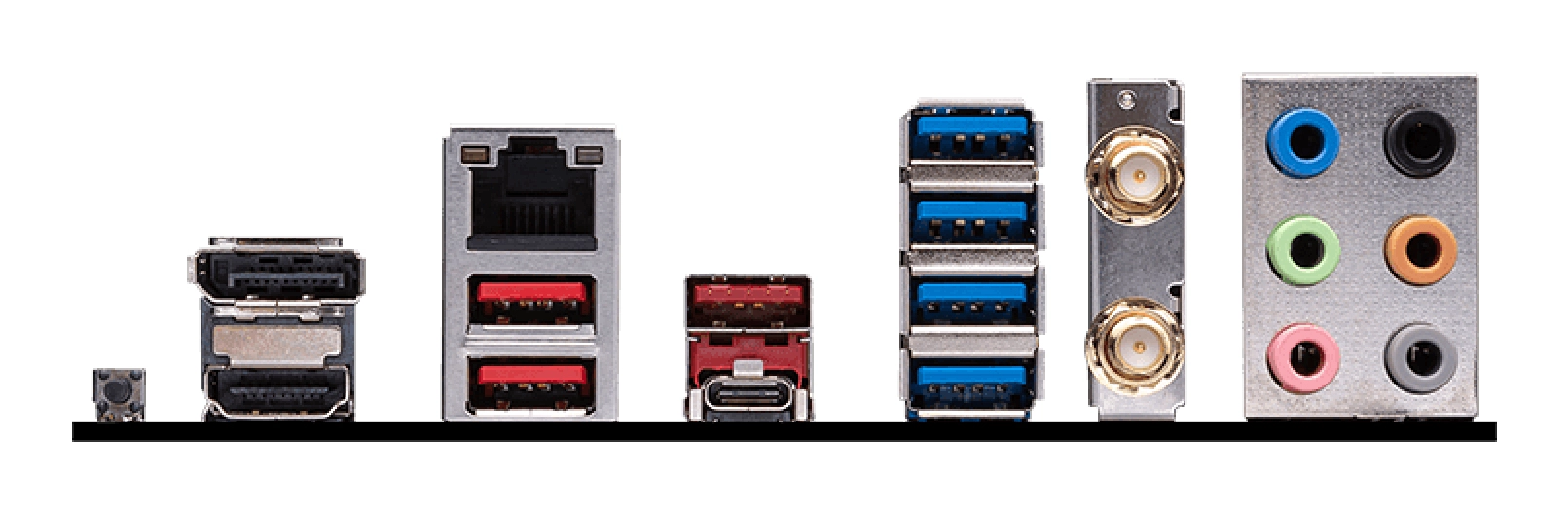

Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	3
Ethernet LAN (RJ-45) ports	1
USB 3.2 Gen 2x2 Type-C ports quantity	1
HDMI ports quantity	1
HDMI version	2.1
Headphone outputs	1
Microphone in	Y
Line-in	Y
Network
Ethernet LAN	Y
Ethernet interface type	2.5 Gigabit Ethernet
LAN controller	Realtek RTL8125B
Wi-Fi	Y
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Bluetooth	Y
Bluetooth version	5.3
Features
Component for	PC
Motherboard form factor	ATX
Motherboard chipset family	AMD
Motherboard chipset	AMD B650
Audio chip	Realtek ALC897
Audio output channels	7.1 kanalen
PC health monitoring	FAN
Product colour	Black
Windows operating systems supported	Windows 11 x64
Expansion slots
PCI Express x16 slots	2
PCI Express x16 (Gen 3. x) slots	1
Number of M.2 (M) slots	2
BIOS
BIOS type	UEFI AMI
BIOS memory size	256 Mbit
ACPI version	6.4
Weight & dimensions
Width	243.84 mm
Depth	304.8 mm
