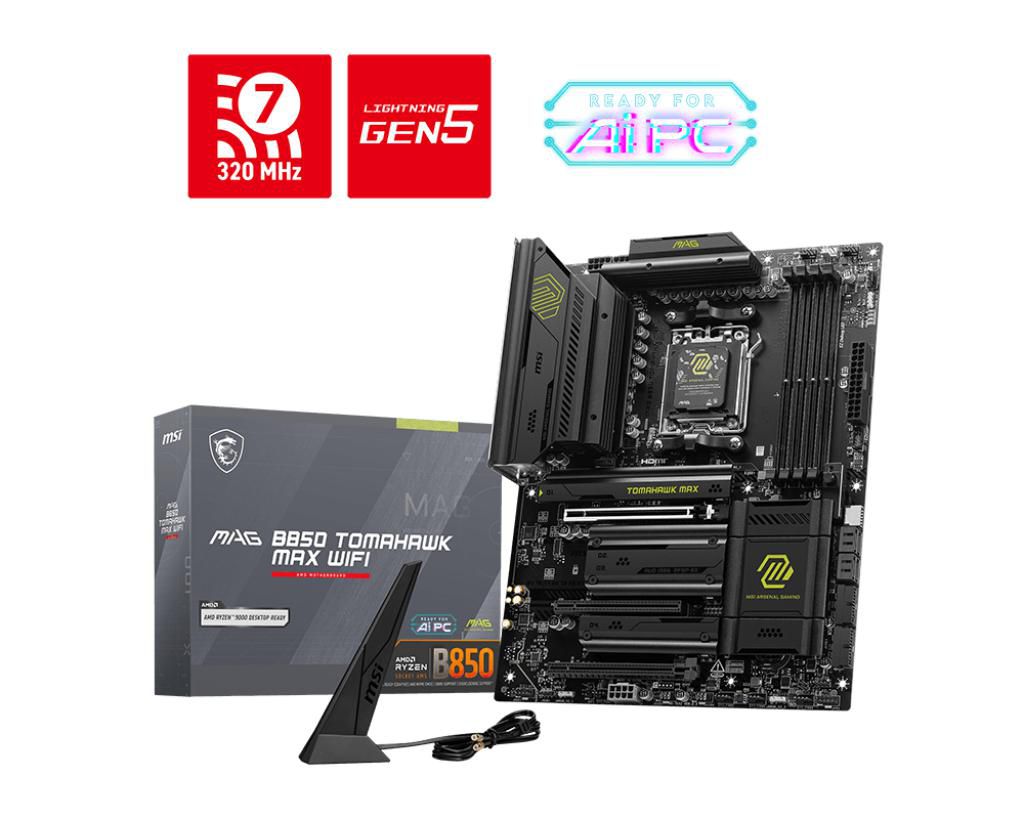

MSI B850 Tomahawk MAX wifi
MAG B850 TOMAHAWK MAX WIFI is designed for gamers with a stable, durable and DIY friendly foundation for their PC builds. Coming up with true Wi-Fi 7 solution, 5G LAN, USB 20Gbps, PCIe 5.0 solutions, Supplemental PCIe Power, and exclusive EZ DIY features, it's ready for the battlefield of AMD Ryzen™ 9000 series processors.

MSI's mainstream MAG series epitomizes stability and durability and is built to withstand the most intense gaming sessions. The entire lineup features robust construction with metallic-like hardness and excellent heat dissipation, ensuring stability for all critical gaming components.

MSI motherboards are designed with advanced hardware and technology, well-supporting the demanding computing usage of gaming and AI. Moreover, we also introduce AI to MSI Center and BIOS, making everything more effortless than before.

14+2+1 Duet Rail Power System
Unleash and sustain maximum performance with a flagship VRM design built with a total of 14+2+1 digital power phases. Combining dual power connectors and 80A Smart Power Stage, MAG B850 TOMAHAWK MAX WIFI is ready for the challenge of high-end processors.

OPTIMIZED PCB SOLUTION
The PCB design has been optimized for higher bandwidth and faster transfer speeds, which is also beneficial for reliable circuit transmission.

Extended Heatsink
Extended Heatsink enlarges the surface of heat dissipation and maintain the performance at heavy loads.

M.2 Shield Frozr
Strengthened M.2 thermal solution helps keep M.2 SSD safe and ensures incredible performance.

Heavy Plated VRM Heatsink
The VRM heatsink covers the upper MOS and helps dissipate the heat.

7W/mK Thermal Pad & Additional Choke Pad
High-quality 7W/mK MOSFET thermal pads and additional choke thermal pads ensure stable performance when all cores are runnging at high speed.

Enlarged Chipset Heatsink
The enlarged heatsink is designed to reduce dust and noise and capable of maintaining high efficiency of heat dissipation.

HIGH-BANDWIDTH AND LOW-LATENCY NETWORK
MSI's premium network solution provides incredible data transfer speed for demanding users.

Specification

Product
Product id	996027
Brand	MSI Micro-Star International
Partnr	MAG B850 TOMAHAWK MAX WIFI
EAN/UPC code	4711377290623
Warranty (months)	36 months
Processor
Processor manufacturer	AMD
Processor socket	Socket AM5
Compatible processor series	AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Supported processor sockets	Socket AM5
Maximum internal memory supported by processor	256 GB
Memory
Supported memory types	DDR5-SDRAM
Number of memory slots	4
Memory slots type	DIMM
Memory channels	Dual-channel
ECC сompatibility	non-ECC
Supported memory clock speeds	4800, 5600, 8400 MHz
Maximum internal memory	256 GB
Supported memory clock speed (max)	8400 MHz
Storage controllers
Supported storage drive types	HDD & SSD
Supported storage drive interfaces	M.2, Micro SATA III
Number of HDDs supported	4
Number of storage drives supported	8
RAID levels	0, 1, 10
RAID support	Y
Graphics
On-board graphics adapter	N
Internal I/O
USB 2.0 connectors	4
USB 3.2 Gen 1 (3.1 Gen 1) connectors	4
USB 3.2 Gen 2 (3.1 Gen 2) connectors	1
Number of SATA III connectors	4
Total number of SATA connectors	4
CPU fan connector	Y
Number of CPU fan connectors	6
Number of water pump connectors	1
RGB LED pin header	Y
Number of RGB LED pin headers	3
Rear panel I/O ports
USB 2.0 ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	3
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
HDMI version	2.1
Network
Ethernet LAN	Y
Ethernet interface type	5 Gigabit Ethernet
Wi-Fi	Y
Top Wi-Fi standard	Wi-Fi 7 (802.11be)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be)
Bluetooth	Y
Bluetooth version	5.4
Features
Component for	PC
Motherboard form factor	ATX
Motherboard chipset family	AMD
Motherboard chipset	AMD B850
Audio chip	Realtek ALC4080
Audio output channels	7.1 kanalen
Product colour	White
Windows operating systems supported	Windows 11 x64
Expansion slots
PCI Express x16 (Gen 3. x) slots	1
PCI Express x16 (Gen 4. x) slots	1
PCI Express x16 (Gen 5. x) slots	1
Number of M.2 (M) slots	4
1st M.2 largest key size	22110
1st M.2 highest PCI Express generation	5.0
2nd M.2 largest key size	2280
2nd M.2 highest PCI Express generation	5.0
3rd M.2 largest key size	2280
3rd M.2 highest PCI Express generation	4.0
4th M.2 largest key size	2280
4th M.2 highest PCI Express generation	4.0
Weight & dimensions
Width	243.84 mm
Depth	304.8 mm
