MSI's mainstream MAG series epitomizes stability and durability and is built to withstand the most intense gaming sessions. The entire lineup features robust construction with metallic-like hardness and excellent heat dissipation, ensuring stability for all critical gaming components.

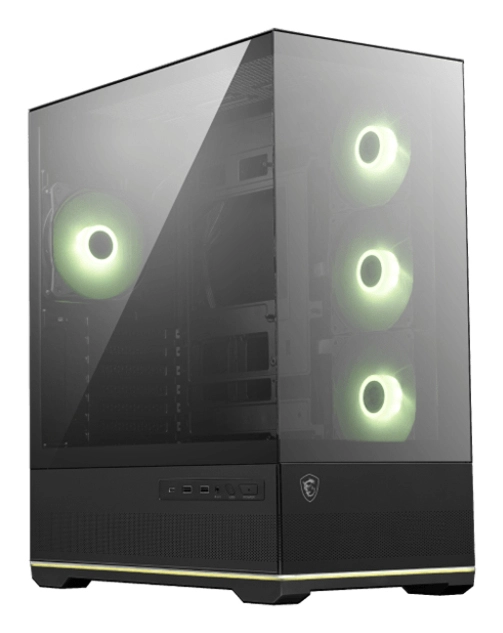

To fulfill the desire for showcasing an ARGB PC build, the MAG PANO 110R Series features a 270-degree panoramic display, enhancing aesthetics and maintaining a clean design.

Decorated with a metal nameplate to highlight the MAG family identity.

Featuring a 1-to-5 ARGB fan control hub, this system is fully compatible with MSI Mystic Light, allowing for easy sync and customizable ARGB lighting effects.

Pre-installed with 3 x ARGB reverse blade fans at the side and 1 x ARGB fan at the rear for optimal airflow and a clean, stylish design.

Specification

Product
Product id	986827
Brand	MSI Micro-Star International
Partnr	MAG PANO 110R PZ
EAN/UPC code	4711377293181
Warranty (months)	24 months
Design
Form factor	Midi Tower
Type	PC
Material	Tempered glass
Product colour	Black
Supported motherboard form factors	ATX, Micro ATX, Mini-ATX
Number of 3.5" bays	2
Number of 2.5" bays	2
Number of expansion slots	7
Side window	Y
Suitable for	Gaming
Illumination location	Case fans
On/off button	Y
LED indicators	Y
Maximum CPU cooler height	160 mm
Maximum graphics card length	200 mm
Maximum PSU length	400 mm
Power supply
Power supply included	N
Power supply location	Bottom
Supported power supply form factors	ATX
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
Combo headphone/mic port	Y
Cooling
Number of side fans supported (max)	3
Side fans diameters supported	120, 140 mm
Side fans installed	3x 120 mm
Rear fans installed	1x 120 mm
Number of rear fans supported (max)	1
Rear fans diameters supported	120 mm
Number of top fans supported (max)	3
Top fans diameters supported	120, 140 mm
Number of bottom fans supported (max)	3
Bottom fans diameters supported	120, 140, 160 mm
Rear radiator fan sizes supported	120 mm
Top radiator fan sizes supported	120, 240, 360 mm
Bottom radiator fan sizes supported	120, 240, 360 mm
Side radiator sizes supported	120, 240, 360 mm
Storage
Supported HDD sizes	2.5, 3.5 "
Weight & dimensions
Width	225 mm
Depth	420 mm
Height	485 mm
