Pre-build with Reverse-blade Fan
Pre-installed on the side are reverse blade fans, allowing the unobstructed display of the ARGB fan's beauty without any interference from fan frames.

Support Back-Connect Motherboard
Supporting back-connect motherboards enables easy installation without the worry of forgetting to connect cables, which might otherwise require disassembling graphics cards and coolers.

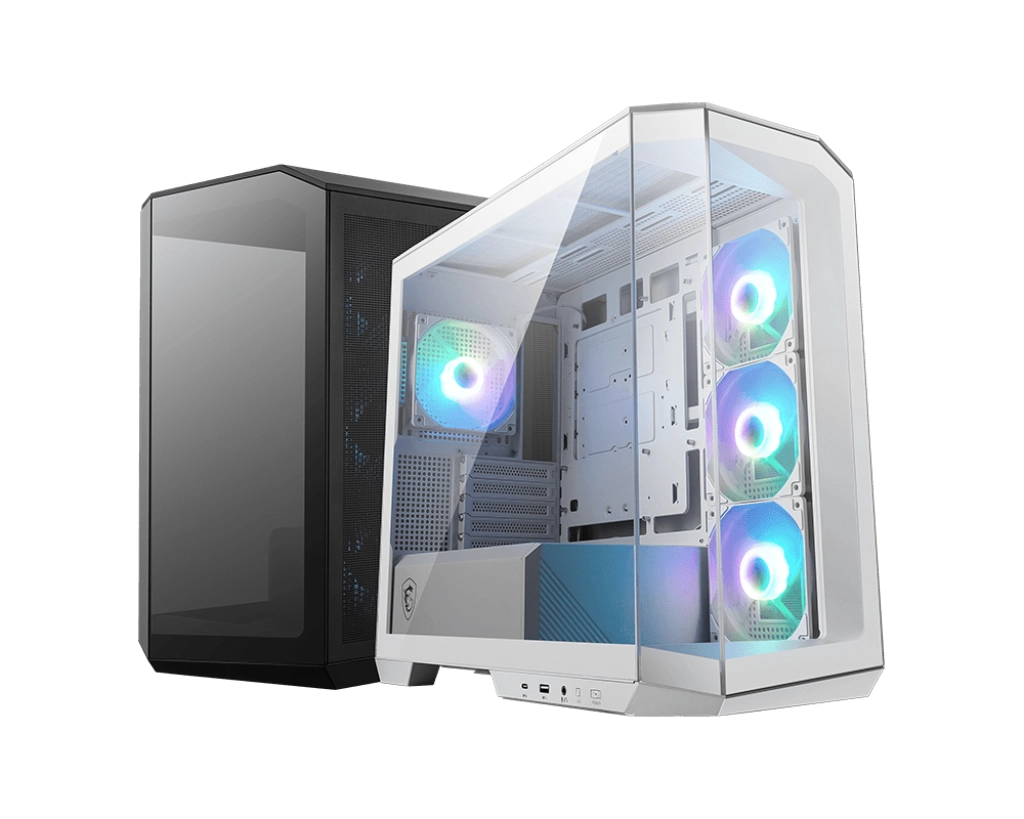

270-degree Panoramic Display
Drawing inspiration from the MAG logo, create a distinctive chassis design that embodies the unique MAG characteristics. The front interior of the chassis incorporates a space for displaying figurines, complemented by a 270-degree panoramic tempered glass, transforming it into a showcase-style chassis.

GPU Support Stand
Equipped with a level indicator to ensure effortless adjustment of the support height during installation, preventing sagging. Meanwhile, its magnetic base secures more stability within the
chassis.

1 to 4 ARGB-FAN Control Board
This fan control board supports up to 4 x ARGB fan function. Allow you to use the LED switch button to adjust the ARGB lighting intuitionally.

Specification

Product
Product id	942687
Brand	MSI Micro-Star International
Partnr	MAG PANO M100R PZ
EAN/UPC code	4711377136471
Design
Form factor	Micro Tower
Type	PC
Product colour	Black
Supported motherboard form factors	ATX, Micro ATX
Number of 3.5" bays	1
Number of 2.5" bays	1
Number of expansion slots	5
Side window	Y
Suitable for	Gaming
Illumination	Y
Illumination colour	Multi
Illumination location	Case fans
On/off button	Y
LED indicators	Y
Maximum CPU cooler height	175 mm
Maximum graphics card length	390 mm
Maximum PSU length	200 mm
Power supply
Power supply location	Bottom
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
Audio input	Y
Audio output	Y
Cooling
Side fans installed	3x 120 mm
Rear fans installed	1x 120 mm
Top fans installed	3x 120 mm
Bottom fans installed	1x 120 mm
Rear radiator fan sizes supported	120, 140 mm
Top radiator fan sizes supported	120, 240, 360 mm
Storage
Supported HDD sizes	2.5, 3.5 "
Weight & dimensions
Width	235 mm
Depth	440 mm
Height	405 mm
Weight	8660 g
Packaging data
Package weight	11260 g
