Product |
Product id
| 974116
|
Brand
| MSI Micro-Star International
|
Partnr
| PRO Z890-P WIFI
|
EAN/UPC code
| 4711377257701
|
Processor |
Processor manufacturer
| Intel
|
Processor socket
| LGA 1851 (Socket V1)
|
Compatible processor series
| Intel Core Ultra (Series 2)
|
Supported processor sockets
| LGA 1851
|
Maximum internal memory supported by processor
| 256 GB
|
Memory |
Supported memory types
| DDR5-SDRAM
|
Number of memory slots
| 4
|
Memory slots type
| DIMM
|
Memory channels
| Dual-channel
|
Non-ECC
| N
|
Supported memory clock speeds
| 6400, 9200 MHz
|
Maximum internal memory
| 256 GB
|
Supported memory clock speed (max)
| 9200 MHz
|
Storage controllers |
Supported storage drive types
| HDD & SSD
|
Supported storage drive interfaces
| M.2, SATA III
|
Number of HDDs supported
| 8
|
Number of storage drives supported
| 4
|
RAID levels
| 0, 1, 5, 10
|
RAID support
| Y
|
Internal I/O |
USB 2.0 connectors
| 4
|
USB 3.2 Gen 1 (3.1 Gen 1) connectors
| 4
|
USB 3.2 Gen 2 (3.1 Gen 2) connectors
| 1
|
Number of SATA III connectors
| 4
|
Total number of SATA connectors
| 4
|
CPU fan connector
| Y
|
TPM connector
| Y
|

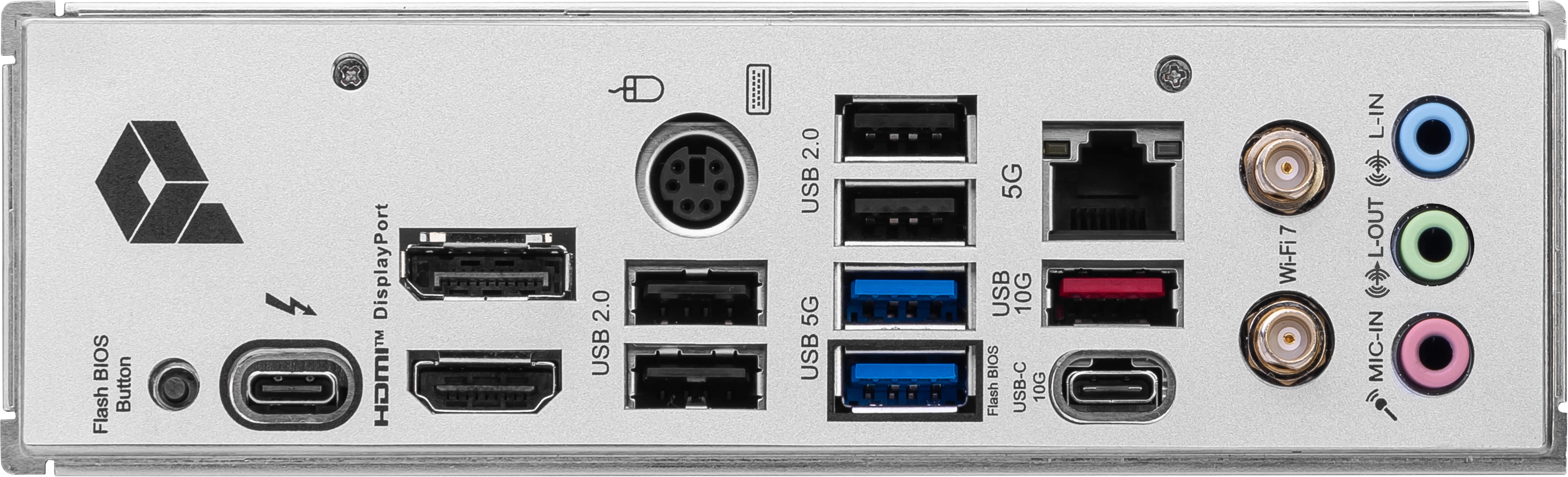

Rear panel I/O ports |
USB 2.0 ports quantity
| 4
|
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
| 2
|
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
| 1
|
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
| 1
|
Ethernet LAN (RJ-45) ports
| 1
|
HDMI ports quantity
| 1
|
HDMI version
| 2.1
|
DisplayPorts quantity
| 1
|
DisplayPort version
| 1.4
|
Thunderbolt ports quantity
| 1
|
Network |
Ethernet LAN
| Y
|
Ethernet interface type
| 5 Gigabit Ethernet
|
Wi-Fi
| Y
|
Top Wi-Fi standard
| Wi-Fi 7 (802.11be)
|
Wi-Fi standards
| 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be)
|
Bluetooth
| Y
|
Bluetooth version
| 5.4
|
Features |
Component for
| PC
|
Motherboard form factor
| ATX
|
Motherboard chipset family
| Intel
|
Motherboard chipset
| Intel Z890
|
Audio chip
| Realtek ALC897
|
Audio output channels
| 7.1 kanalen
|
Product colour
| Black
|
Windows operating systems supported
| Windows 11
|
Expansion slots |
PCI Express x1 slots
| 1
|
PCI Express x16 slots
| 3
|
Number of M.2 (M) slots
| 4
|
Weight & dimensions |
Width
| 243.84 mm
|
Depth
| 304.8 mm
|
