TAKE THE ESSENTIALS
VENTUS brings a fundamentally solid experience to users looking for a performance graphics card. A sharp-looking updated design with TORX FAN 4.0 and Airflow Control lets VENTUS breeze through any task.

REVOLUTIONARY
TRIPLE-FAN THERMAL
Three fans on a huge heatsink ensures a cool and quiet experience.

CORE PIPE
Core Pipes are precision-crafted to make maximum use of the available space. A squared section of heat pipes fully touch the GPU baseplate to then spread heat along the full length of the heatsink.

COPPER BASEPLATE
Heat from the GPU and memory modules is immediately captured by a solid nickel-plated copper baseplate and then rapidly transferred to an array of heat pipes. This widening of the thermal transfer systems with highly efficient mechanisms improves overall efficiency.

AIRFLOW CONTROL
Stay stealthy with Airflow Control which improves airflow dynamics. Deflectors provide additional surface area and guide air to where it’s needed for maximum cooling.

TORX FAN 4.0
TORX FAN 4.0 is built on teamwork, with pairs of fan blades bound together with a linked outer ring design that focuses airflow into the Triple-Fan cooling system.

DrMos
DrMOS power stage solutions provide great efficiency with low power loss and enhanced voltage controls.

Fuse
Additional fuses built into the custom PCB provide additional safeguards against electrical damage.

Specification

Product
Product id	1011737
Brand	MSI Micro-Star International
Partnr	V515-016R
EAN/UPC code	4711377102551
Processor
Graphics processor family	NVIDIA
Graphics processor	GeForce RTX 4060 Ti
Maximum resolution	7680 x 4320 Pixels
CUDA	Y
CUDA cores	4352
Processor boost clock speed	2565 MHz
Maximum displays per videocard	4
Parallel processing technology support	Not supported
Memory
Discrete graphics adapter memory	8 GB
Graphics adapter memory type	GDDR6
Memory bus	128 Bit
Data transfer rate	18 Gbit/s
Ports & interfaces
Interface type	PCI Express 4.0

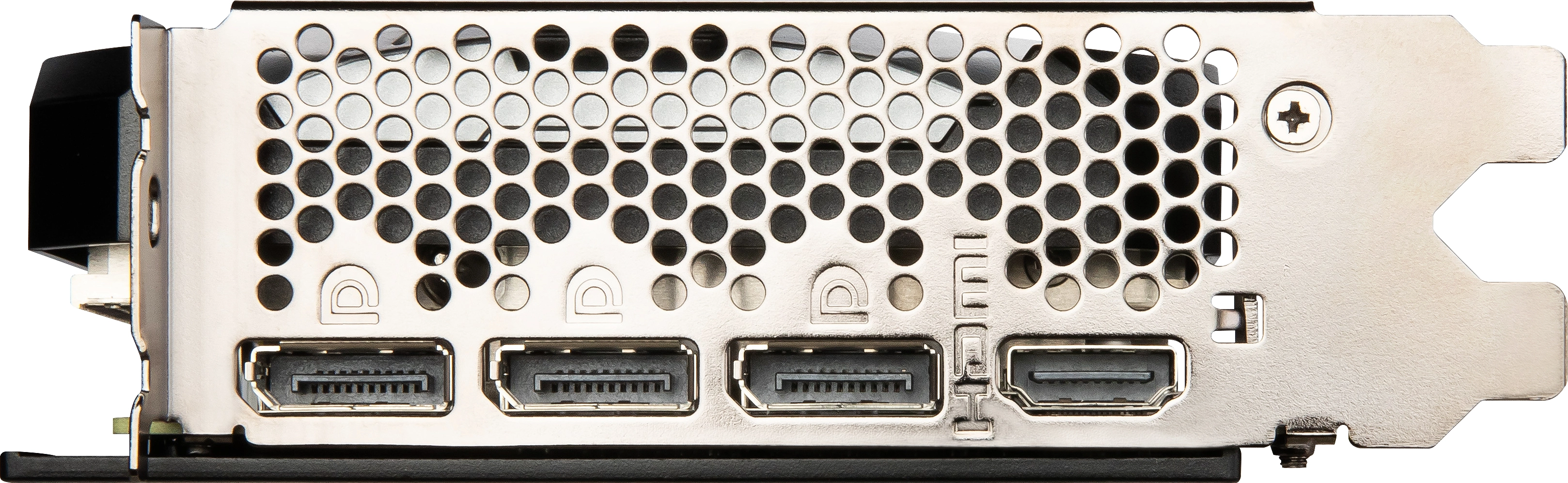

HDMI ports quantity	1
DisplayPorts quantity	3
HDMI version	2.1a
DisplayPort version	1.4a
Performance
TV tuner integrated	N
DirectX version	12.0
OpenGL version	4.6
HDCP	Y
Dual Link DVI	N
NVIDIA G-SYNC	Y
AMD FreeSync	N
Design
Cooling type	Active
Cooling technology	MSI TORX Fan 4.0
Number of fans	3 ventilator(en)
Form factor	Full-Height/Full-Length (FH/FL)
Product colour	Grey
Power
Minimum system power supply	550 W
Power consumption (typical)	160 W
Supplementary power connectors	1x 8-pin
Packaging content
Quick installation guide	Y
Weight & dimensions
Weight	713 g
Depth	43 mm
Length	308 mm
Height	120 mm
Packaging data
Package weight	1065 g
Package type	Box
