Gaming Unbound
GAMING SLIM series is a thinner variant of GAMING series while maintaining high performance capabilities and aggressive looks.

Elevate performance with TRI FROZR 3 cooling and its key features – TORX FAN 5.0, Core Pipe, and Airflow Control.

TRI FROZR 3 THERMAL DESIGN
Stay cool and quiet. MSI’s TRI FROZR 3 thermal design enhances heat dissipation all around the graphics card.

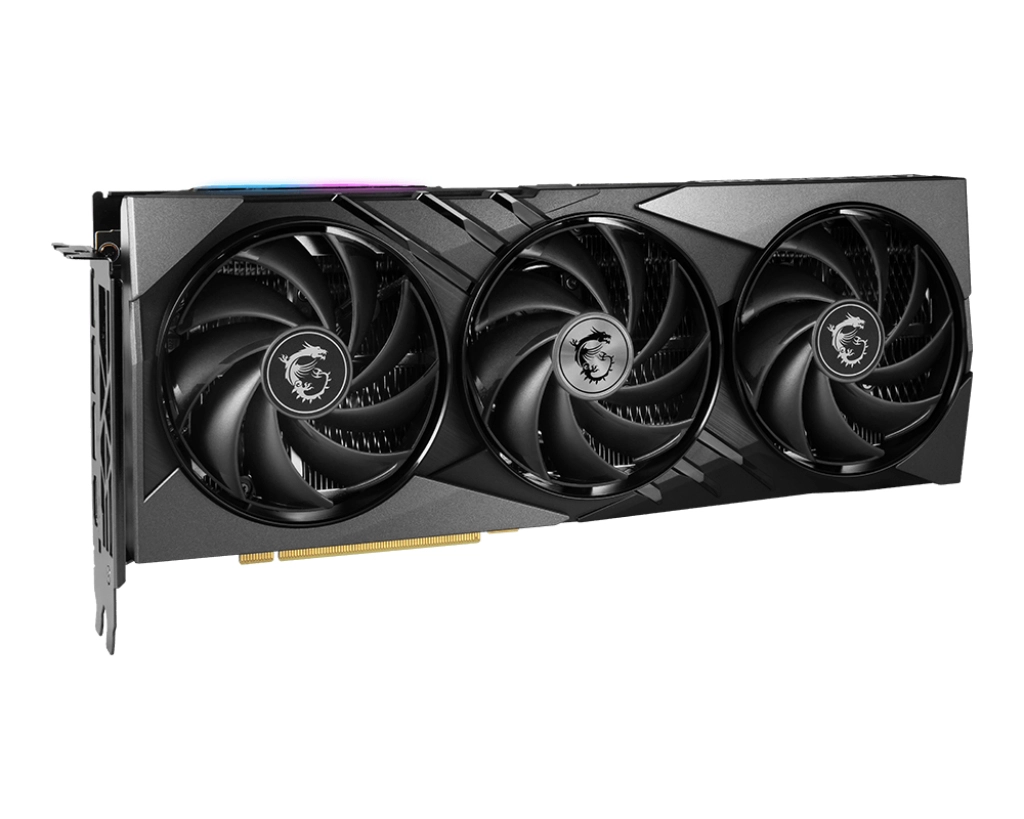

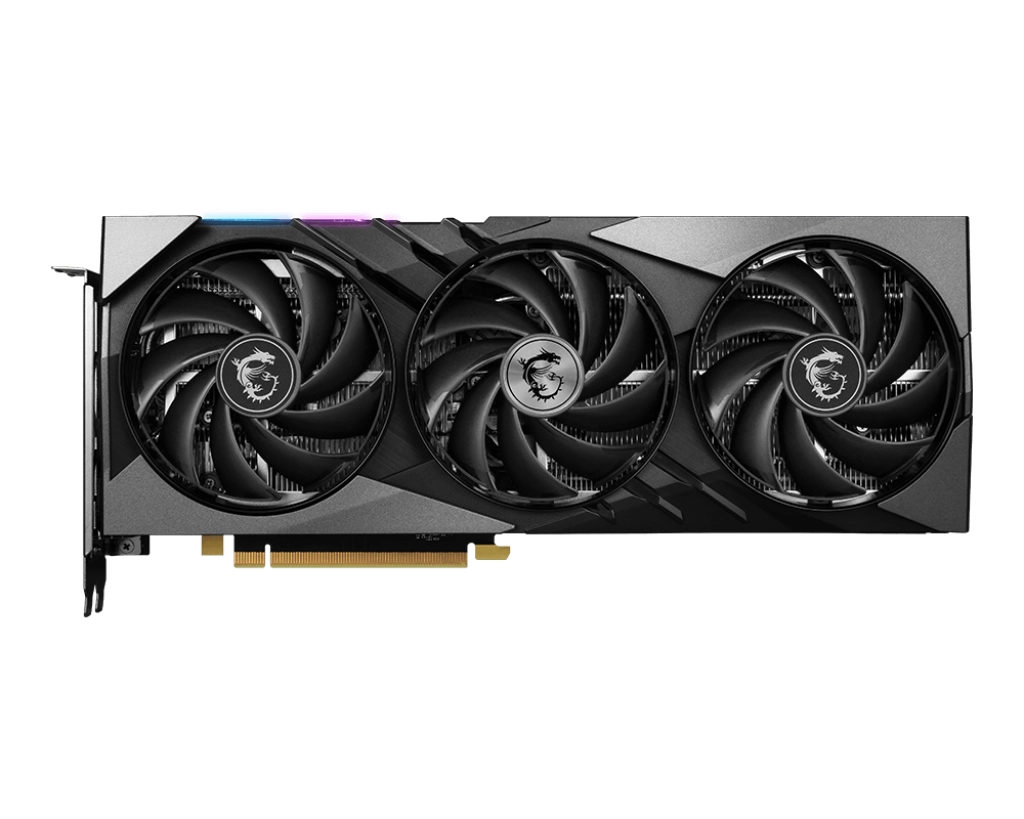

TORX FAN 5.0
TORX FAN 5.0 is a culmination of fan design improvements to increase the air pressure and flow into the heatsink. Ring arcs link three sets of fan blades that tilt 22 degrees together to maintain high-pressure airflow even at slower rotational speeds. The resulting increased airflow is +23% compared to an axial fan.

AIRFLOW CONTROL
Airflow Control improves airflow dynamics through the Wave Curved 2.0 and updated deflectors design for optimizing the balance between cooling and quieter acoustics.

ELEVATED DETAILS
Take a closer look at the other thermal solution features that help to control temperatures and the noise level.

UNRESTRICTED COOLING

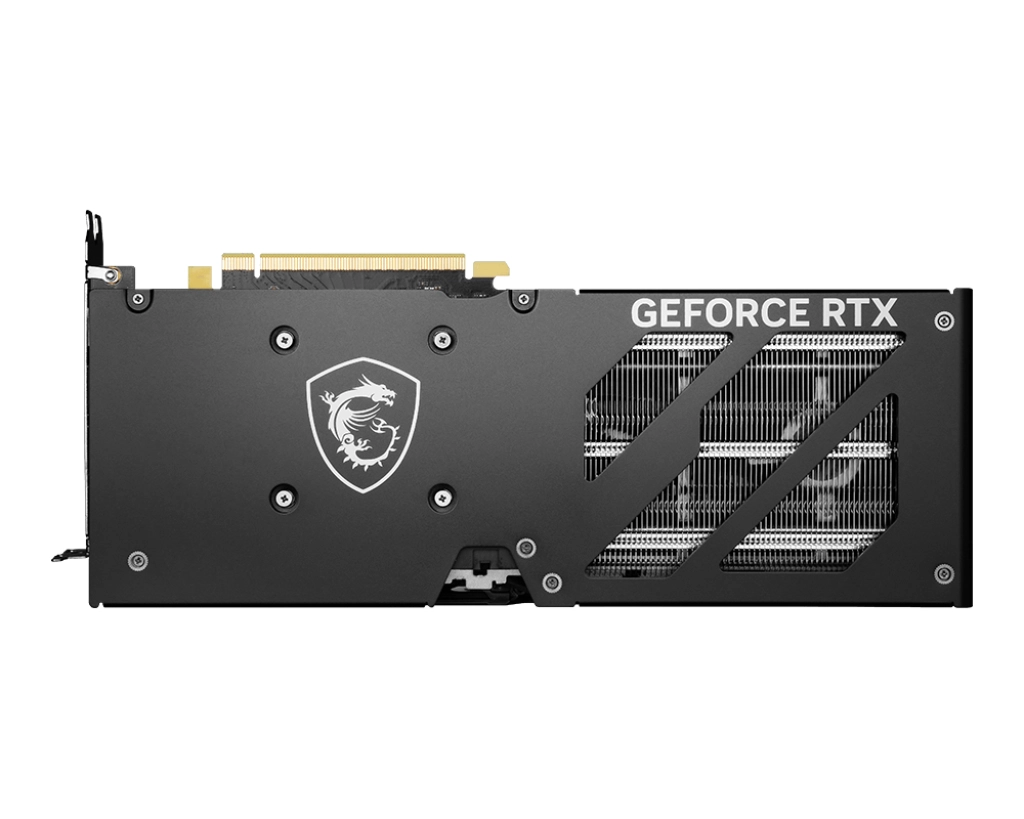

A large airflow vent on the backplate allows exhaust air to pass through directly.

ZERO FROZR
The fans completely stop when temperatures are relatively low, eliminating all noise.

Specification

Product
Product id	1011740
Brand	MSI Micro-Star International
Partnr	V517-002R
EAN/UPC code	4711377122092
Processor
Graphics processor family	NVIDIA
Graphics processor	GeForce RTX 4060 Ti
Maximum resolution	7680 x 4320 Pixels
CUDA	Y
CUDA cores	4352
Processor frequency	2685 MHz
Processor boost clock speed	2670 MHz
Maximum displays per videocard	4
Memory
Discrete graphics adapter memory	16 GB
Graphics adapter memory type	GDDR6
Memory bus	128 Bit
Data transfer rate	18 Gbit/s
Ports & interfaces
Interface type	PCI Express x8 4.0
HDMI ports quantity	1
DisplayPorts quantity	3
HDMI version	2.1a
DisplayPort version	1.4a
Performance
TV tuner integrated	N
DirectX version	12 Ultimate
OpenGL version	4.6
HDCP	Y
Dual Link DVI	N
NVIDIA G-SYNC	Y
Design
Cooling type	Active
Cooling technology	MSI TORX FAN 5.0
Number of fans	3 ventilator(en)
Form factor	Full-Height/Full-Length (FH/FL)
Illumination	Y
Product colour	Black, Grey
Power
Minimum system power supply	550 W
Power consumption (typical)	165 W
Supplementary power connectors	1x 8-pin
Weight & dimensions
Weight	919 g
Depth	46 mm
Length	307 mm
Height	125 mm
Packaging data
Package weight	1636 g
Package type	Box
