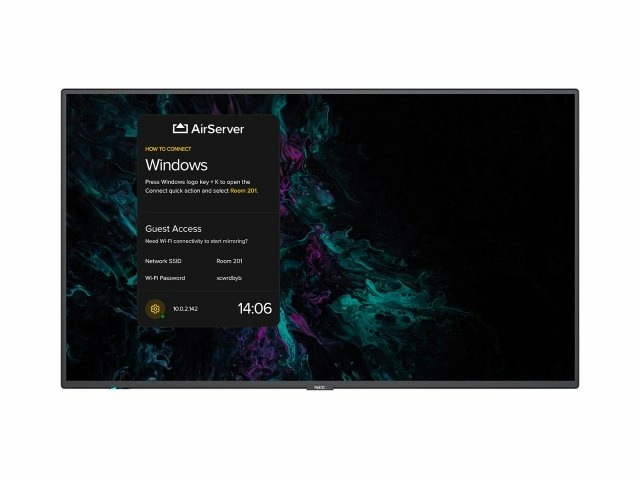

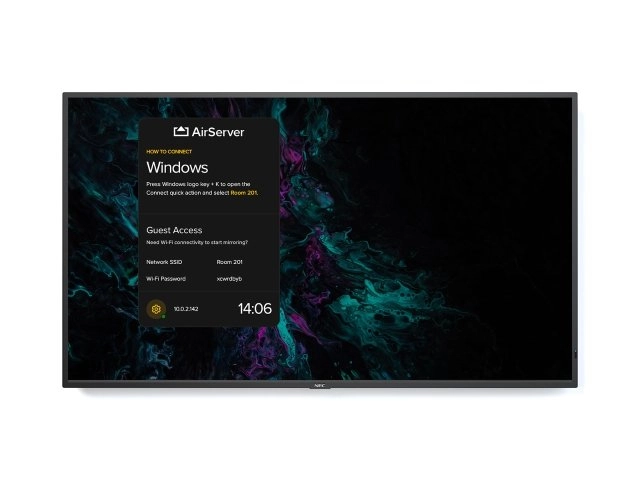

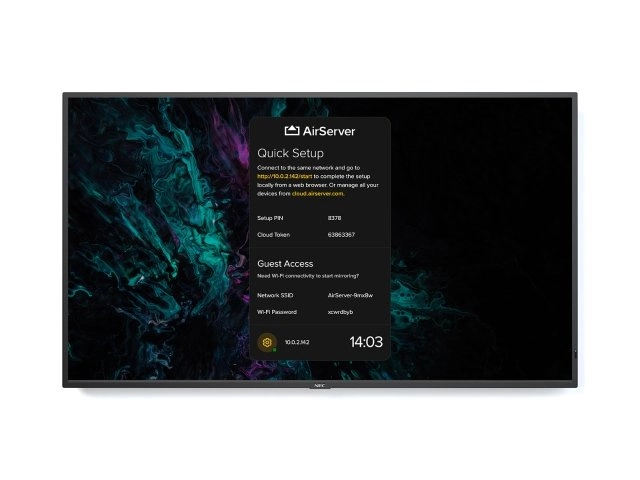

Content sharing made simple with native wireless screen mirroring

Initiating effective collaboration in meeting rooms has never been easier to plan, install and operate. Simply share content from your personal device to the large meeting room display.

The MultiSync® ME/M series AirServer models provide a sleek combination of intuitive screen sharing with professional display technology for meeting rooms and huddle spaces.

Future-proof and upgradable, AirServer software is powered by a pre-installed modular SoC Raspberry Pi module which transforms the Sharp/NEC M and ME series large format display into a universal screen mirroring receiver. With AirServer enabled on the Sharp/NEC large format display, users can wirelessly mirror the content on their personal screen (Mac or PC, iPhone, iPad, Android or Chromebook) to the meeting room display, instantly turning the room into a collaborative space.

Specification

Product
Product id	972803
Brand	NEC
Partnr	40001655
EAN/UPC code	5415247353744
Warranty (months)	3 years
Display
Display diagonal	86 inch
LED backlighting type	Direct-LED
Display resolution	3840 x 2160 Pixels
Display brightness	500 cd/m²
HD type	4K Ultra HD
Native aspect ratio	16:9
Response time	8 ms
Contrast ratio (typical)	8000:1
Viewing angle, horizontal	178 °
Viewing angle, vertical	178 °
Display number of colours	1.073 billion colours
Display diagonal (metric)	217.4 cm
Native refresh rate	60 Hz
Horizontal scan range	26 - 135 kHz
Panel type	IPS
Vertical scan range	23 - 86 Hz
Ports & interfaces
HDMI ports quantity	4
DisplayPorts quantity	4
USB port	Y
USB ports quantity	3
USB version	2.0
Ethernet LAN	Y
Ethernet LAN (RJ-45) ports	1
Ethernet LAN data rates	100 Mbit/s
RS-232 interface	Y
Audio
Built-in speaker(s)	Y
Number of built-in speakers	2
RMS rated power	30 W
Design
Design	Digital signage flat panel
Product colour	Black
Orientation	Horizontal/Vertical
VESA mounting	Y
Bezel width (top)	14.3 mm
Bezel colour	Pantone 426M (black)
Bezel width (side)	14.3 mm
Bezel width (bottom)	14.8 mm
Performance
Purpose	Universal
Miracast	Y
Apple AirPlay support	Y
Ambient light sensor	Y
Operating hours (hours/days)	24/7
Power
Power consumption (typical)	320 W
Power consumption (standby)	0.5 W
Energy efficiency class (SDR)	G
AC input voltage	100-240 V
Energy efficiency class (HDR)	G
AC input frequency	50-60 Hz
Energy consumption (SDR) per 1000 hours	193 kWu
Energy consumption (HDR) per 1000 hours	178 kWu
Energy efficiency scale	A to G
Weight & dimensions
Display width	1927 mm
Display depth	83.2 mm
Display height	1099.1 mm
Display weight	47000 g
Packaging data
Package width	2090 mm
Package depth	225 mm
Package height	1225 mm
Package weight	65100 g
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	20 - 80 procent
Storage temperature (T-T)	-20 - 60 °C
Storage relative humidity (H-H)	10 - 80 procent
Certificates
Certification	BSMI; CE; EAC; EMC Class B; Energy Star 8; FCC Class B; KC/KCC; PSB; RCM; RoHS; VCCI
Other features
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Display technology	LED
