Ultra-short throw projector LCD WXGA3000AL incl. Wall-mount + Interactive Multipen Module NP04Wi + Multi-Touch Module NP01TM



NEC
Not in stock
€ 1.635,60
€ 1.979,07 incl 21% VAT
Description
Get great performance while saving the environment. Advanced Eco features help to substantially lower your operating cost without compromising on quality and flexibility. Less shadow and glare gives the presenter more space to engage with his audience and enhances the experience when using the interactive multi-pen solution.

The UM301Wi is particularly suited for classrooms and small to medium sized meeting rooms.

Benefits
- No Shadow and Glare thanks to ultra-short throwing distance – for an enhanced interactive whiteboard experience and more space to engage with your audience when presenting.
- Minimized Cost of Ownership – due to long lamp life and lower power consumption.
- Innovative new Eco functions – to reduce power consumption.
- Future proof connectivity – due to numerous analog and digital connection terminals including MHL support, network capability as well as optional wireless connectivity.

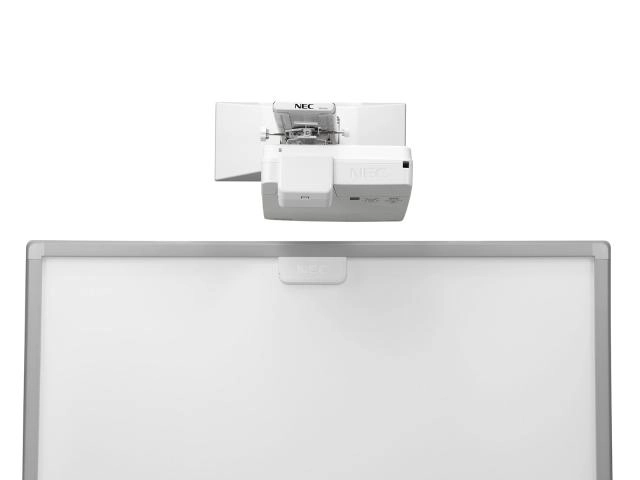

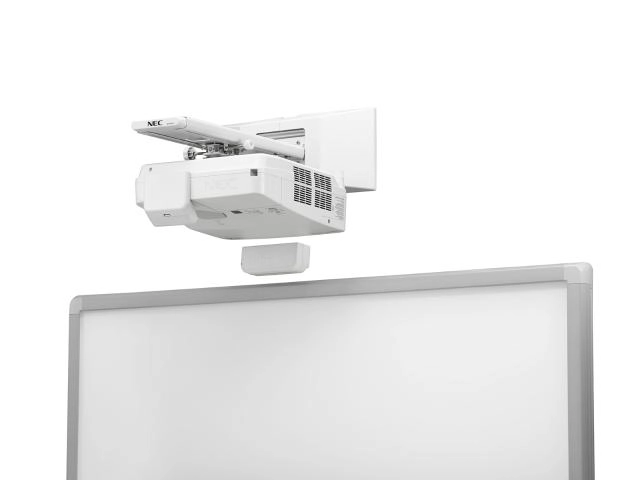

- Wall-mount included – for quick and easy installation, compatible with height adjustable systems.
- Multi-Pen Interactivity – Easy and time-saving installation with auto-calibration.
- Free DisplayNote Multiuser Licence – present, share, collaborate with up to 5 participants across multiple devices (available until March 2017).

Specification

Product
Product id 551131
Brand NEC
Partnr 60004207
EAN/UPC code 5028695611733
Projector
Projector brightness 3000 ANSI lumens
Projection technology 3LCD
Projector native resolution WXGA (1280x800)
Contrast ratio (typical) 6000:1
Native aspect ratio 16:10
Supported aspect ratios 16:10
Screen size compatibility 58 - 110 "
Projection distance 0.1 - 0.51 m
Keystone correction, horizontal -10 - 10 °
Keystone correction, vertical -10 - 10 °
Lamps
Service life of lamp 5000 uur
Bulb power 170 W
Service life of lamp (economic mode) 8000 uur
Lamp power (economic mode) 140 W
Lens system
Focus Manual
Fixed focal length 4.78 mm
Digital zoom 1.4 x
Throw ratio 0.36:1
Offset 81 procent
Video
Analog signal format system NTSC, NTSC 3.58, NTSC 4.43, PAL, PAL 60, PAL M, PAL N, SECAM
Full HD N
HD-Ready Y
3D N
Supported video modes 480i, 480p, 576i, 576p, 720p, 1080i
Supported graphics resolutions 640 x 480 (VGA), 720 x 480, 720 x 576, 800 x 600 (SVGA), 832 x 624, 1024 x 768 (XGA), 1152 x 864 (XGA+), 1152 x 870, 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 768 (WXGA), 1280 x 800 (WXGA), 1280 x 960, 1360 x 768 (WXGA), 1366 х 768, 1400 x 1050 (SXGA+), 1440 x 900 (WXGA+), 1600 x 1200 (UXGA), 1600 x 900, 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA)

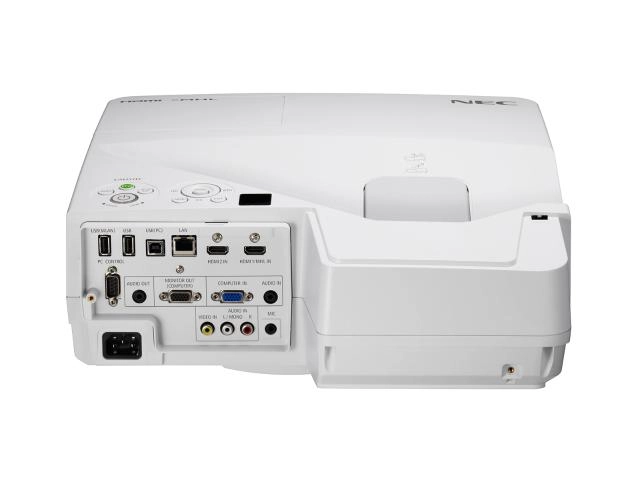

Ports & interfaces
VGA (D-Sub) ports quantity 2
HDMI ports quantity 2
HDMI connector type Full-size
Composite video in 1
DVI port N
USB 2.0 ports quantity 3
Audio (L/R) in 1
Microphone in Y
Serial interface type RS-232
PC Audio in Y
PC Audio out Y
PC in (D-Sub) Y
Mobile High-Definition Link (MHL) Y
AC (power) in Y
Network
Ethernet LAN Y
Ethernet LAN (RJ-45) ports 1
Wi-Fi N
Storage
Card reader integrated N
Technical details
On Screen Display (OSD) Y
Features
Noise level 27 dB
Noise level (economic mode) 27 dB
Password protection Y
RoHS compliance Y
Certification CE; Gost-R; TüV GS
Multimedia
Built-in speaker(s) Y
RMS rated power 20 W
Number of built-in speakers 1
Design
Product type Wall-mounted projector
Product colour White
Cable lock slot type Kensington
Cable lock slot Y
Display
Built-in display N
Power
Power source AC
Power consumption (typical) 227 W
Power consumption (standby) 0.5 W
Power consumption (max) 285 W
Power consumption (network standby) 3 W
Power consumption (economy mode) 190 W
AC input voltage 100 - 240 V
AC input frequency 50/60 Hz
Operational conditions
Operating temperature (T-T) 5 - 40 °C
Storage temperature (T-T) -10 - 50 °C
Operating relative humidity (H-H) 20 - 80 procent
Storage relative humidity (H-H) 20 - 80 procent
Weight & dimensions
Weight 5500 g
Width 378 mm
Depth 428 mm
Height 112 mm
Packaging content
Handheld remote control Y
Remote control type IR
Mounting brackets included Y
Manual Y
Quick start guide Y
Cables included AC, VGA
Other features
RS-232 ports 1
