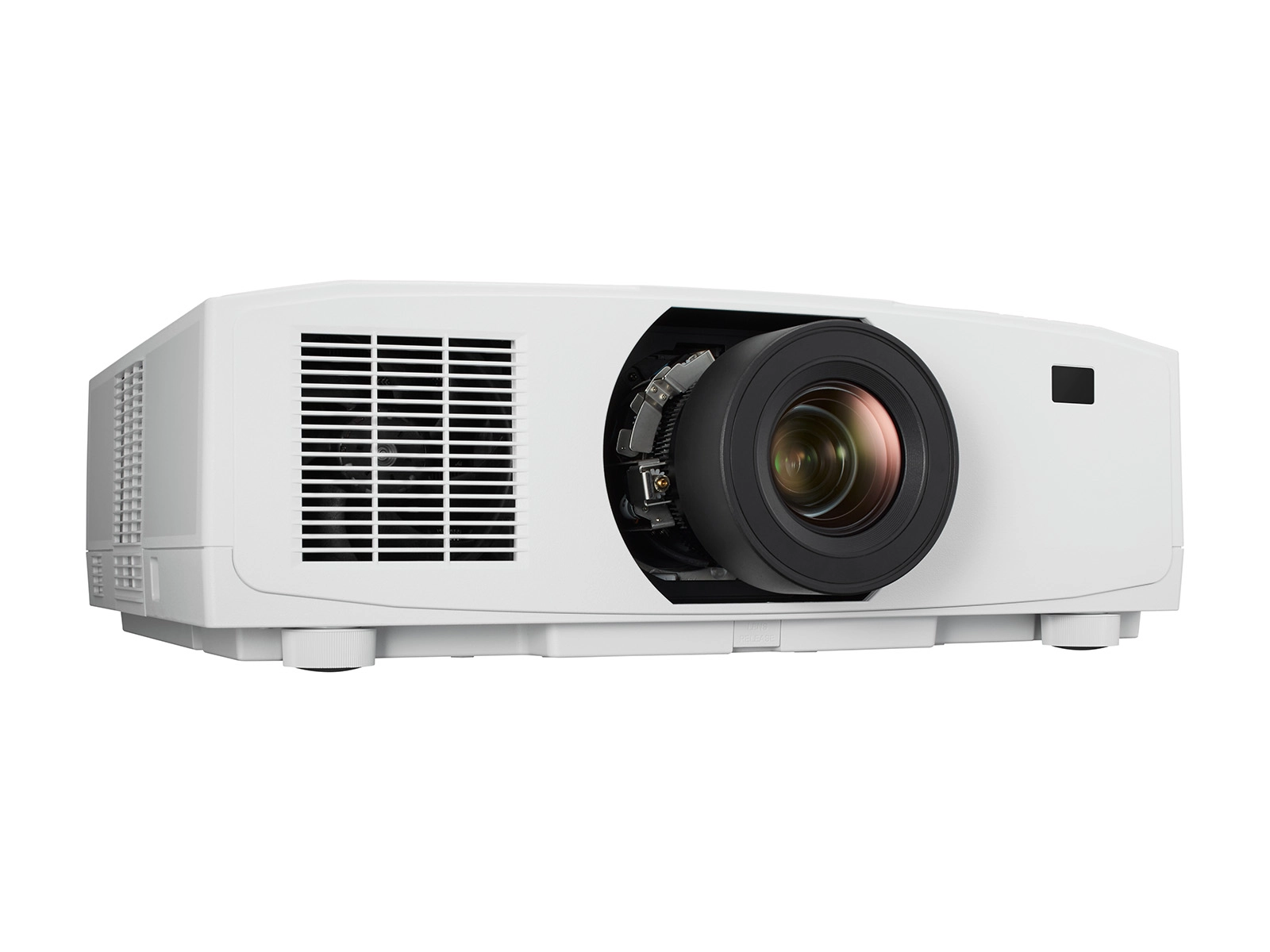

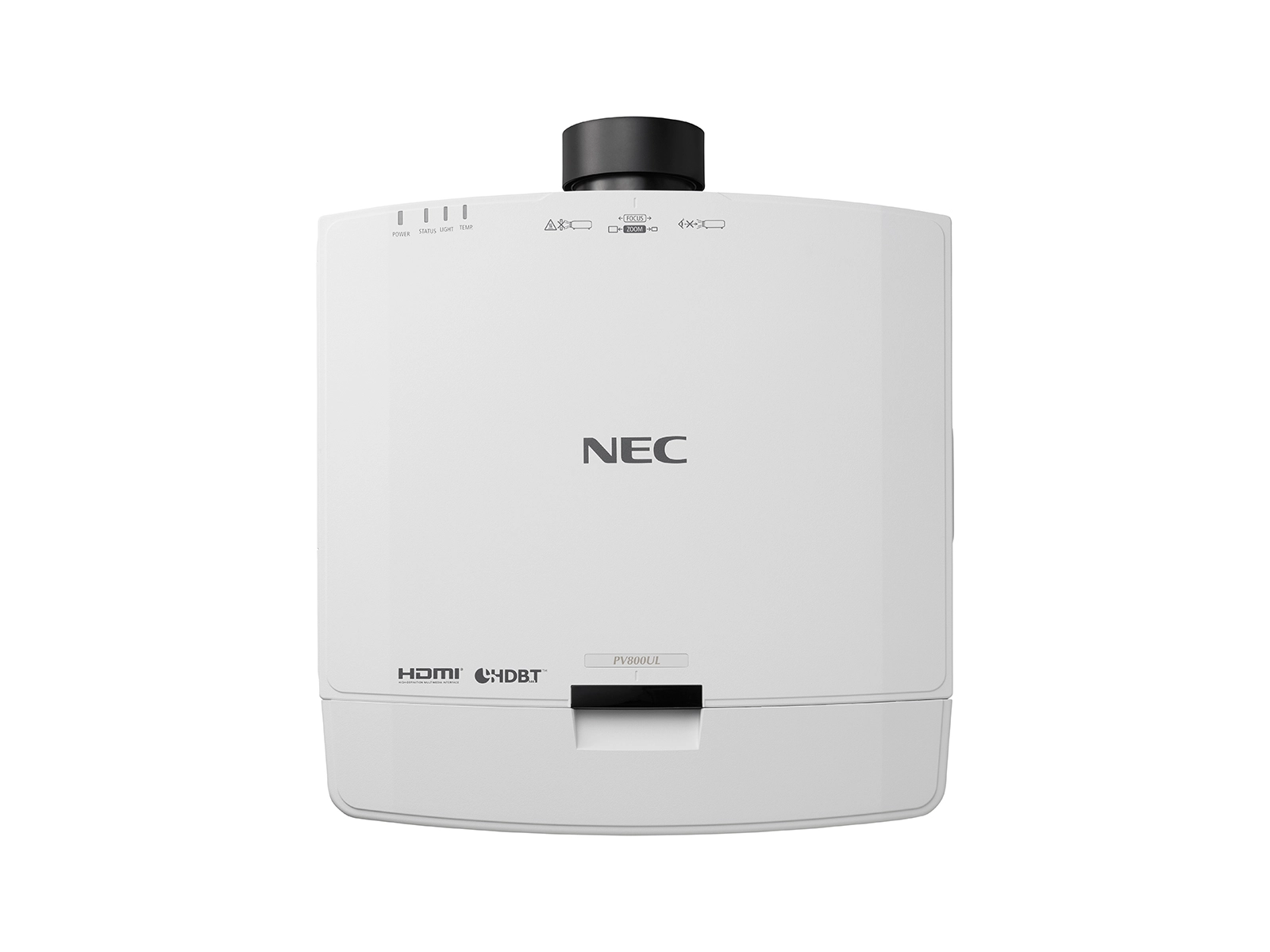

Cost-effective LCD-based laser projector with interchangeable lenses

A highly economical projection solution, the PV710UL offers essential installation flexibility, low maintenance and long-life laser performance, yet remains impressively cost-efficient and conveniently compact.

3LCD technology generates brilliantly vivid colour, which, at 7100 Lm brightness, promotes an outstanding visual perception. A broad range of interchangeable lens options are available, alongside essential professional features.

The PV710UL offers the ideal upgrade path to transition to long-life, maintenance-free laser light source technology. Using the same mount and lenses as the lamp-based NEC PA Series projectors, operators can gain additional cost savings by utilising existing assets. For visualisation in large spaces, the PV710UL offers outstanding value for higher education, corporate, leisure and hospitality sectors.

Specification

Product
Product id	902986
Brand	NEC
Partnr	60005575
EAN/UPC code	5028695614758
Warranty (months)	3 years
Projector
Projector brightness	7100 ANSI lumens
Projection technology	3LCD
Projector native resolution	WUXGA (1920x1200)
Contrast ratio (typical)	3000000:1
Native aspect ratio	16:10
Supported aspect ratios	16:10
Screen size compatibility	40 - 500 "
Smart projector	N
Projection distance	0.7 - 50.9 m
Keystone correction, horizontal	-30 - 30 °
Vertical synchronization (max)	120000 kHz
Vertical synchronization (min)	50000 kHz
Keystone correction, vertical	-30 - 30 °
Light source
Light source type	Lamp
Service life of light source	20000 uur
Light source brightness	7400 lm
Lens system
Focus	Manual
Zoom capability	Y
Zoom type	Manual
Horizontal lens shift range	-20 - 20 procent
Vertical lens shift range	-50 - 10 procent
Video
Analog signal format system	Not supported
Full HD	N
3D	N
Supported graphics resolutions	1280 x 768 (WXGA), 1920 x 1200 (WUXGA), 3840 x 2160
Ports & interfaces
VGA (D-Sub) ports quantity	1
HDMI ports quantity	4
HDMI connector type	Full-size
DVI port	N
HDBaseT port	Y
USB 2.0 ports quantity	1
USB 2.0 Type-A ports quantity	1
Serial interface type	RS-232
PC Audio in	Y
PC Audio out	Y
PC in (D-Sub)	Y
Network
Smart TV	N
Ethernet LAN	Y
Ethernet LAN (RJ-45) ports	1
Wi-Fi	N
Storage
Card reader integrated	N
Features
Interactive	N
Noise level	40 dB
HDCP	Y
Certification	CE; EAC; ErP; RoHS; TUEV Type Approved
Multimedia
Built-in speaker(s)	N
Design
Product type	Standard throw projector
Market positioning	Presentation
Product colour	White
Display
Built-in display	N
Power
Power source	AC
Power consumption (typical)	434 W
Power consumption (standby)	0.5 W
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-10 - 50 °C
Operating relative humidity (H-H)	20 - 80 procent
Storage relative humidity (H-H)	20 - 80 procent
Weight & dimensions
Weight	11200 g
Width	499 mm
Depth	407 mm
Height	164 mm
Packaging content
Handheld remote control	Y
Remote control type	IR
Manual	Y
Cables included	Power
Logistics data
Quantity per pack	1 stuk(s)
