Intuitive professional content delivery

Great first impressions can make all the difference; presenting your business in the best possible way will boost your brand. With slim, modern styling, 24/7 operation and high haze panel to reduce reflections when ambient light is high, the Mxx1-2 series is the professional way to deliver your message, yet at an attractive price point.

With the optional Raspberry PI Compute Module or the more powerful Intel® Smart Display Module (Intel® SDM) computing device, you are primed and ready for intuitive signage creation delivering real-time media playback for exceptional visual experiences. For advertising, infotainment and meeting room applications, the Mxx1-2-2 Series provides powerful, upgradable functionality and all the aesthetic appeal to effortlessly reflect your brand credentials.

Specification

Product
Product id	979692
Brand	NEC
Partnr	60006084
EAN/UPC code	5028695127470
Warranty (months)	3 years
Display
Display diagonal	50 inch
LED backlight	Y
Display resolution	3840 x 2160 Pixels
HD type	4K Ultra HD
Touchscreen	N
Native aspect ratio	16:9
Response time	8 ms
Contrast ratio (typical)	8000:1
Viewing angle, horizontal	178 °
Viewing angle, vertical	178 °
Display number of colours	1.073 billion colours
Display diagonal (metric)	125.7 cm
Supported graphics resolutions	1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1360 x 768 (WXGA), 1366 x 768, 1400 x 1050 (SXGA+), 1440 x 900 (WXGA+), 1440 x 900, 1600 x 1200 (UXGA), 1600 x 1200, 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 1920 x 2160, 3840 x 2160, 4096 x 2160
Native refresh rate	60 Hz
High Dynamic Range (HDR) technology	High Dynamic Range 10 (HDR10), Hybrid Log-Gamma (HLG)
High Dynamic Range (HDR) supported	Y
Haze rate	25 procent
Colour depth	8 Bit
Horizontal scan range	26 - 135 kHz
Panel type	VA
Vertical scan range	23 - 86 Hz
Ports & interfaces
HDMI ports quantity	2
HDMI input ports quantity	2
DVI port	N
DisplayPorts quantity	1
DisplayPorts in	1
USB port	Y
USB ports quantity	1
USB version	2.0
Ethernet LAN	Y
Ethernet LAN (RJ-45) ports	1
Ethernet LAN data rates	100 Mbit/s
Wi-Fi	N
RS-232 interface	Y
Audio Return Channel (ARC)	Y
Audio
Built-in speaker(s)	Y
RMS rated power	20 W
Design
Design	Kiosk design
Product colour	Black
Placement supported	Indoor

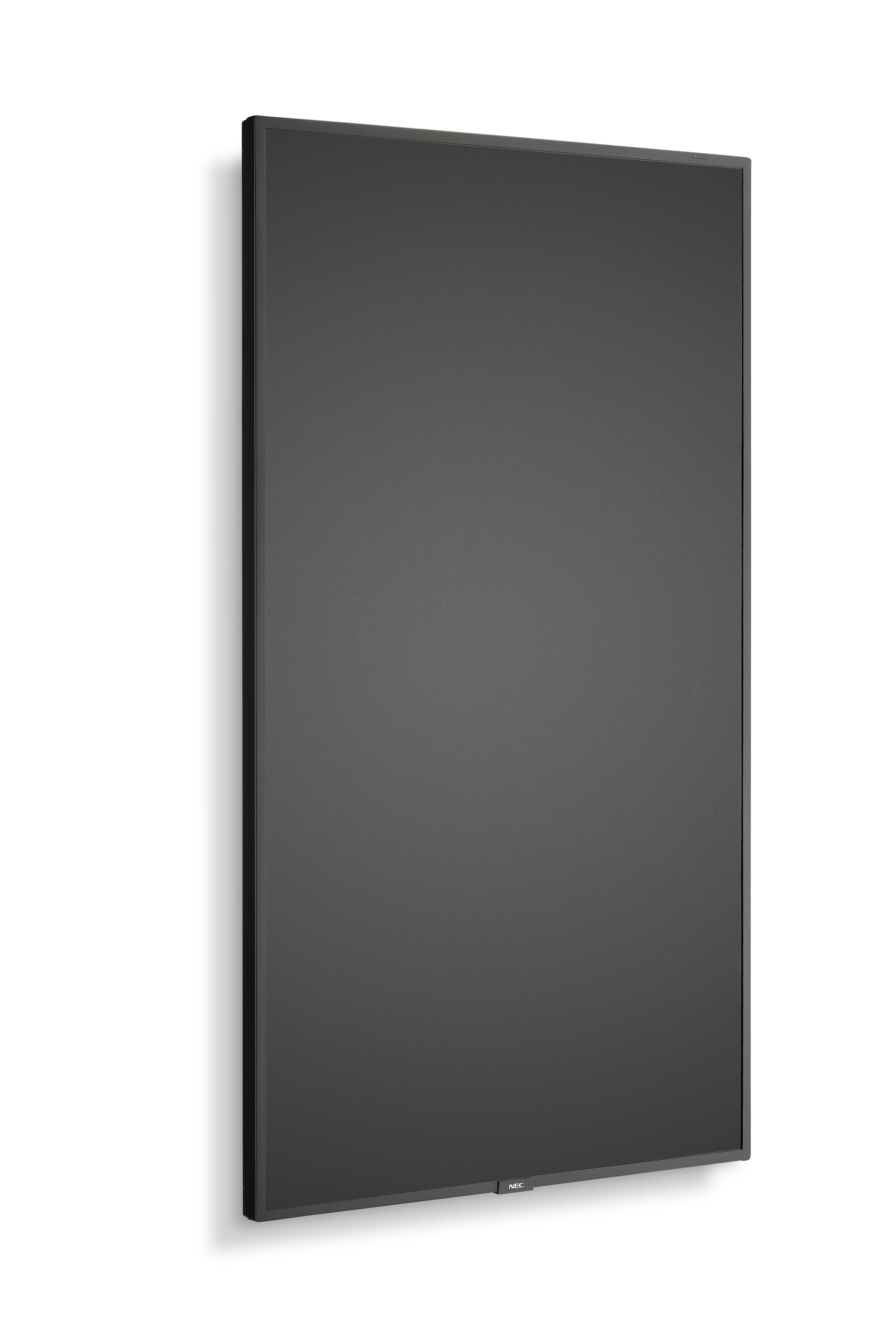

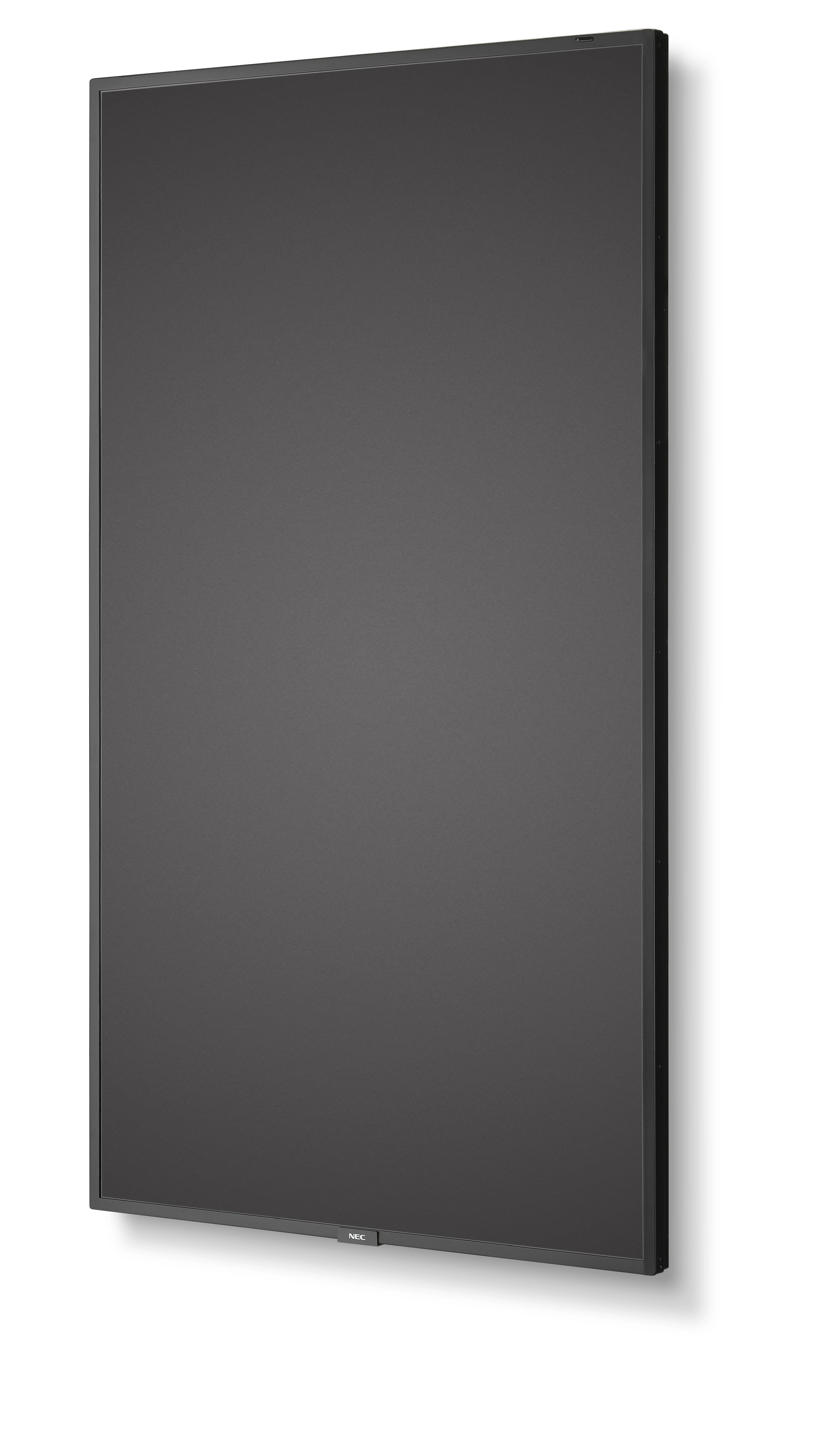

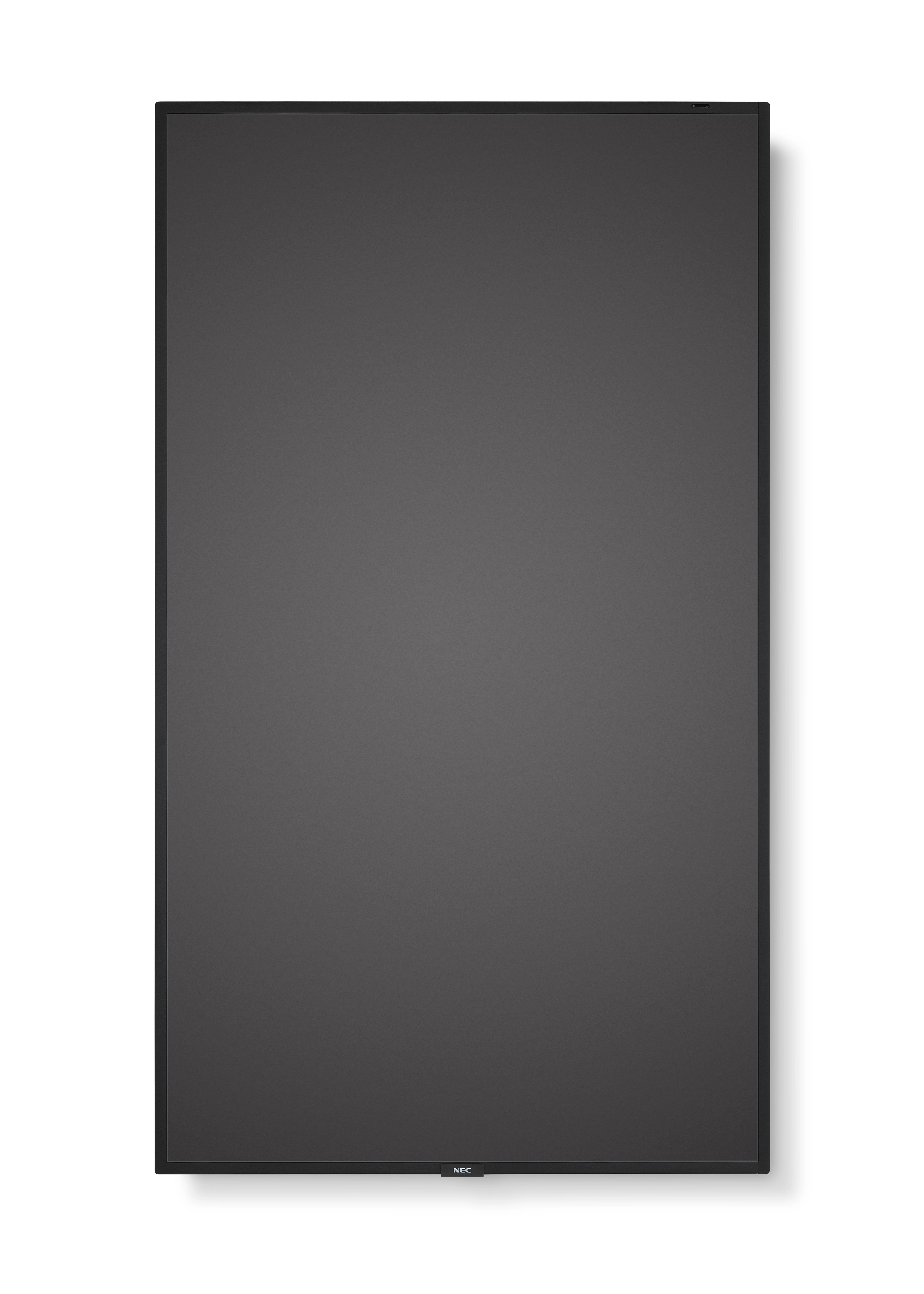

Orientation	Horizontal/Vertical
Wall mountable	Y
Screen shape	Flat screen
VESA mounting	Y
Panel mounting interface	400 x 400 mm
Bezel width (top)	14.9 mm
Bezel width (side)	14.9 mm
Bezel width (bottom)	14.9 mm
Performance
Purpose	Universal
HDCP	Y
International Protection (IP) code	IP5X, IP2X
Web browser	Y
Power
Power consumption (typical)	68 W
Power consumption (standby)	0.4 W
Energy efficiency class (SDR)	G
AC input voltage	100 - 240 V
Energy efficiency class (HDR)	F
AC input frequency	50/60 Hz
Energy consumption (SDR) per 1000 hours	68 kWu
Energy consumption (HDR) per 1000 hours	62 kWu
Energy efficiency scale	A to G
Computer system
Computer system	Y
Built-in processor	Y
Processor manufacturer	Intel
Video formats supported	HEVC, HEVC/H.265, MP4, MPG, TS
Audio formats supported	AAC, LPCM, MP3, WMV
Image formats supported	JPG
Weight & dimensions
Display width	1128.4 mm
Display depth	62.6 mm
Display height	649 mm
Display weight	17300 g
Packaging data
Package width	1298 mm
Package depth	224 mm
Package height	860 mm
Package weight	24100 g
Packaging content
Handheld remote control	Y
Batteries included	Y
Cables included	AC, HDMI
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	20 - 80 procent
Storage temperature (T-T)	-20 - 60 °C
Storage relative humidity (H-H)	10 - 90 procent
Certificates
Certification	ISO 9241-307
Features
Base material	Metal
Suitable for indoor use	Y
Technical details
Compliance certificates	BSMI, CE, EAC, Electromagnetic Compatibility (EMC), Federal Communications Commission (FCC), KC, KCC, PSB, RCM, RoHS, VCCI
Sustainability certificates	ENERGY STAR
DICOM	Y
Other features
Package type	Box
Housing material	Metal, Plastic
Remote control battery type	AAA
Power supply type	Internal
Stand included	N
Manual	Y
Built-in camera	N
Backlight type	Direct LED
Display technology	LED
Headphone outputs	1
Headphone connectivity	3.5 mm
