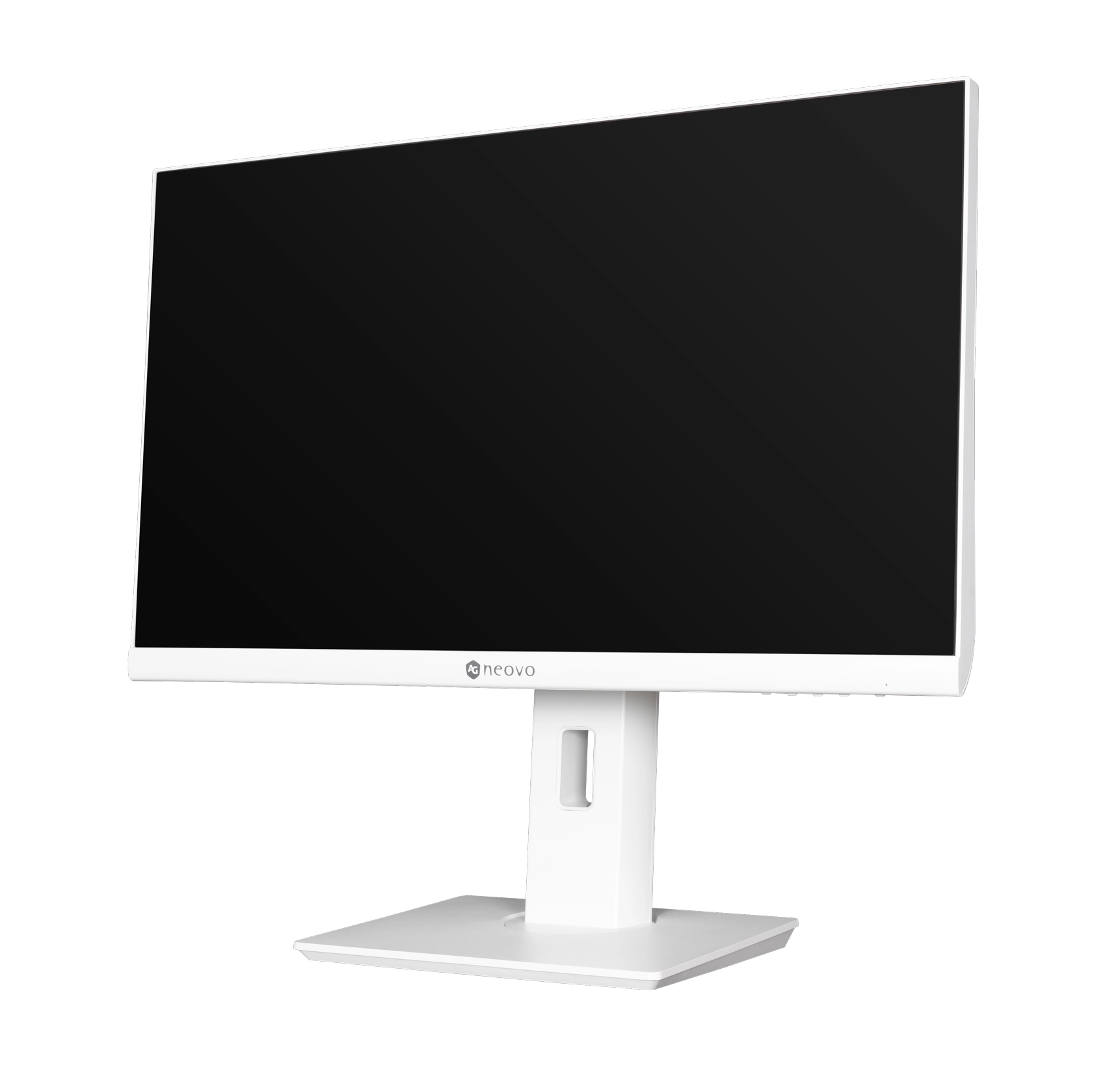

24'' Clinical Review Monitor for Modern Medical Workstations
Introducing the ME-2401, a 24” clinical review monitor thoughtfully crafted to revolutionise document scrutiny in clinics. Every meticulous detail is accentuated, enhancing patient record evaluations. Beyond its crisp display, the monitor champions safety with its IEC/EN 60601 certified power adaptor. Its sophisticated ergonomic design, combined with VESA mounting compatibility, promises versatility – from a traditional desk setup to the hustle and bustle of medical trolleys.

Crisp Image Quality
Tailored for medical precision, the ME-2401 features 2MP (1920 x 1080) resolution, offering unmatched clarity, facilitating accurate diagnostics and integration.

Safety First
Our monitor features an IEC/EN60601 certified power adaptor, ensuring safe, consistent operations.

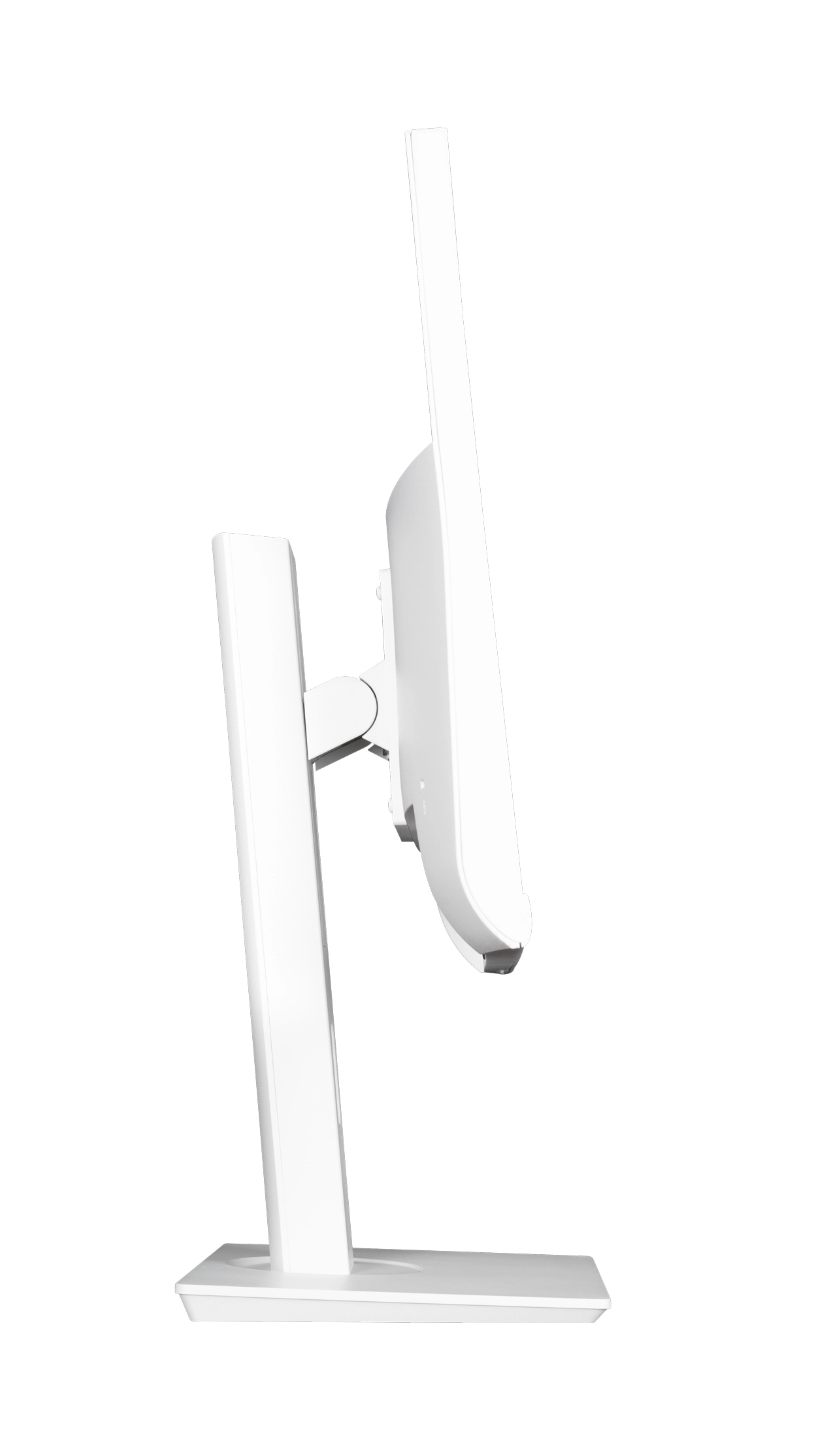

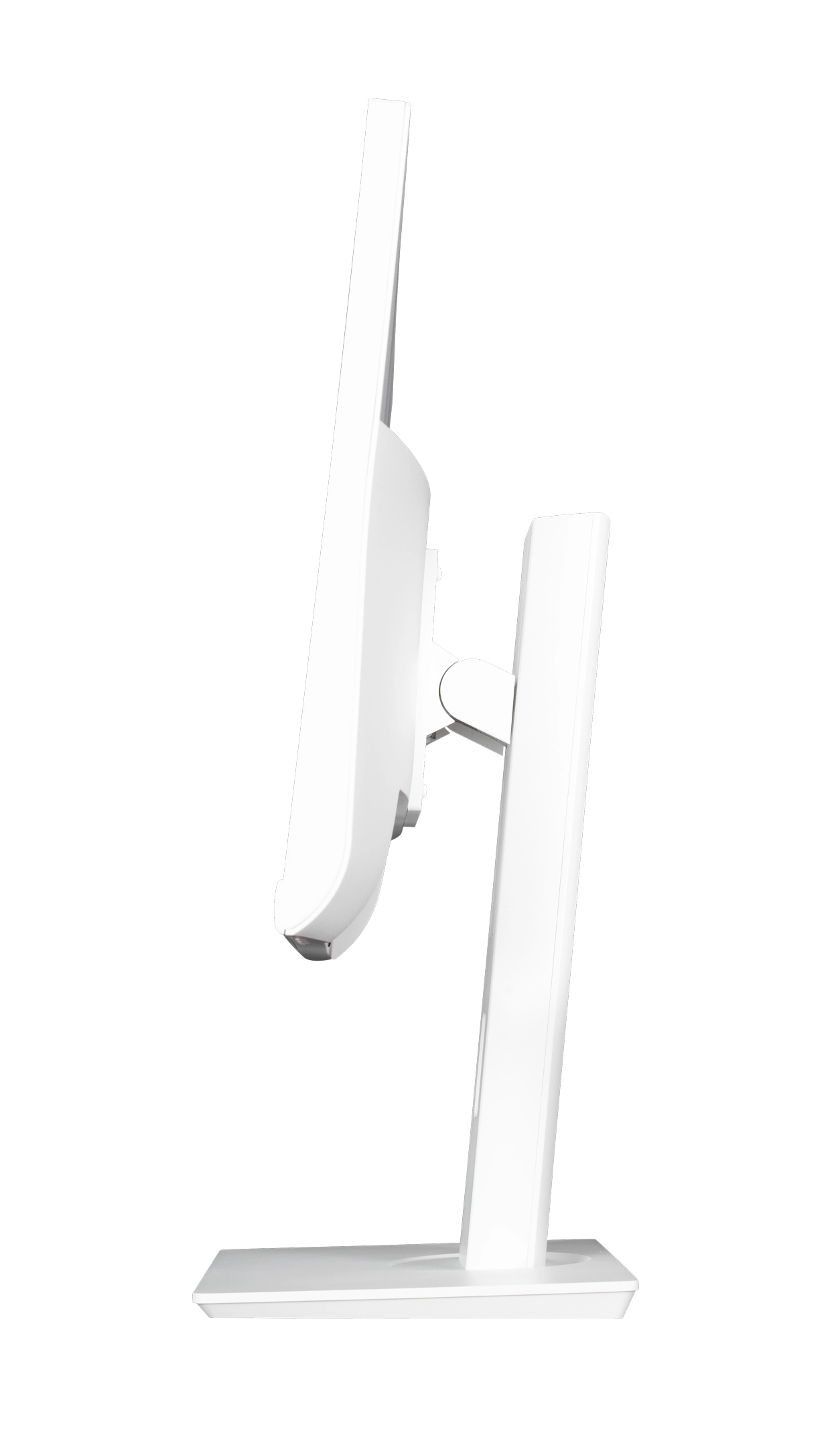

Flexible Ergonomics
Whether it’s tilt, pivot, or swivel, find your perfect angle. Optimise efficiency and maintain comfort even during those extended reviews.

Versatile Mounting
Adaptability at its finest. With a 100 x 100mm VESA specification, mount the ME-2401 with ease, be it on dynamic medical trolleys or sleek wall setups

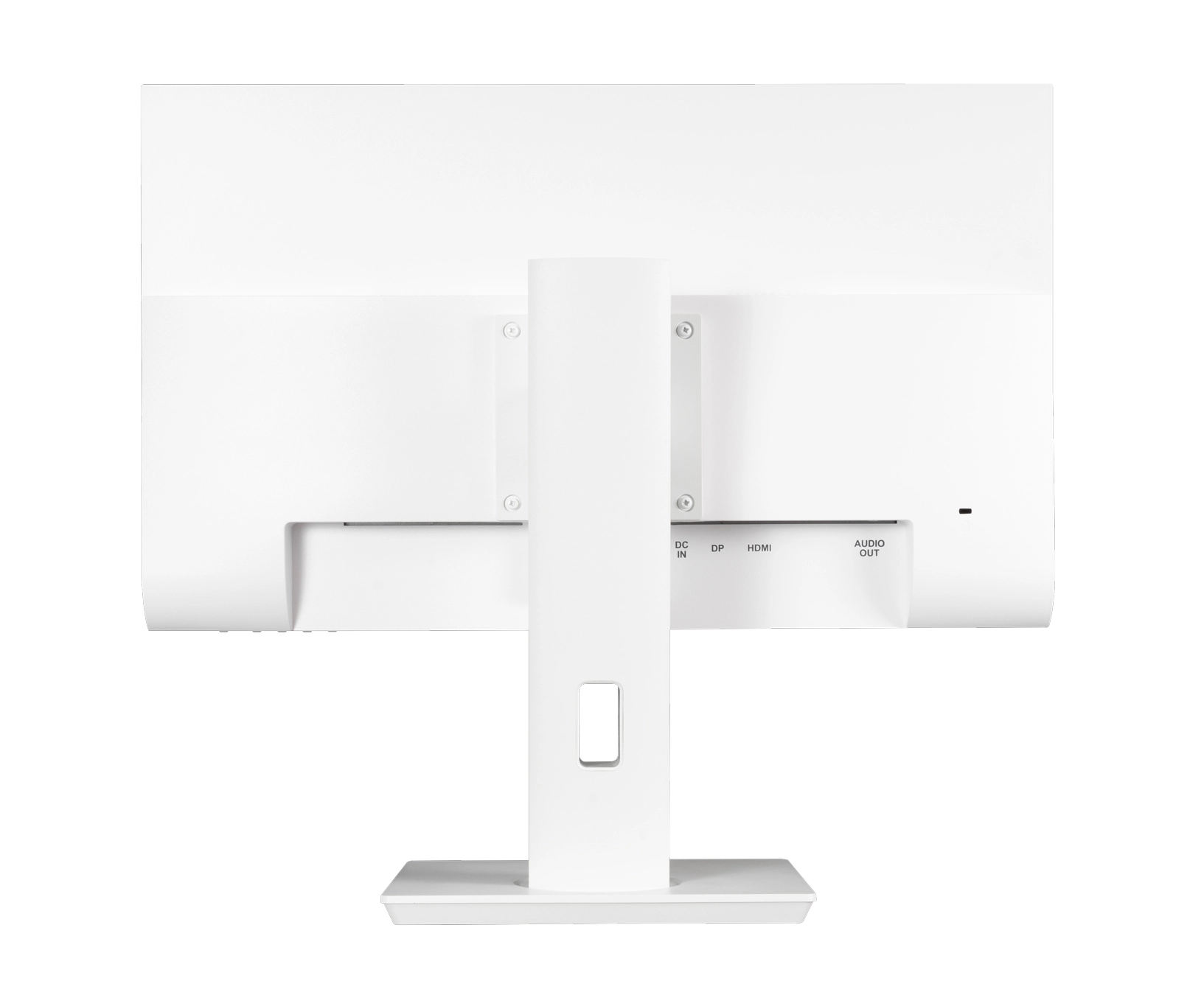

Broad Connectivity
Integration has never been smoother. With HDMI and DisplayPort interfaces, ME-2401 caters to the diverse connectivity needs of modern medical systems.

Eye-Care Technology
Prioritising your well-being. Crafted for extended usage, our monitor minimises eye strain through its flicker-free performance and protective blue light filter.

Specification

Product
Product id	941814
Brand	AG Neovo
Partnr	ME2401
EAN/UPC code	4710739597608
Technical details
Compliance certificates	CE, EAC, Low Voltage Directive (LVD), REACH, RoHS, UKCA, WEEE
Display
Display diagonal	23.8 inch
Display resolution	1920 x 1080 Pixels
Native aspect ratio	16:9
Panel type	IPS
Display brightness (typical)	250 cd/m²
Response time	5 ms
HD type	Full HD
Display technology	LED
Haze rate	25 procent
Anti-glare screen	Y
Screen shape	Flat screen
Contrast ratio (typical)	20000000:1
Viewing angle, horizontal	178 °
Viewing angle, vertical	178 °
Display number of colours	16.7 million colours
Pixel pitch	0.275 x 0.275 mm
Digital horizontal frequency	30 - 80 kHz
Digital vertical frequency	56 - 75 Hz
Surface hardness	3H
Multimedia
Built-in speaker(s)	Y
Built-in camera	N
Number of speakers	2
RMS rated power	4 W
Design
Market positioning	Medical
Product colour	White

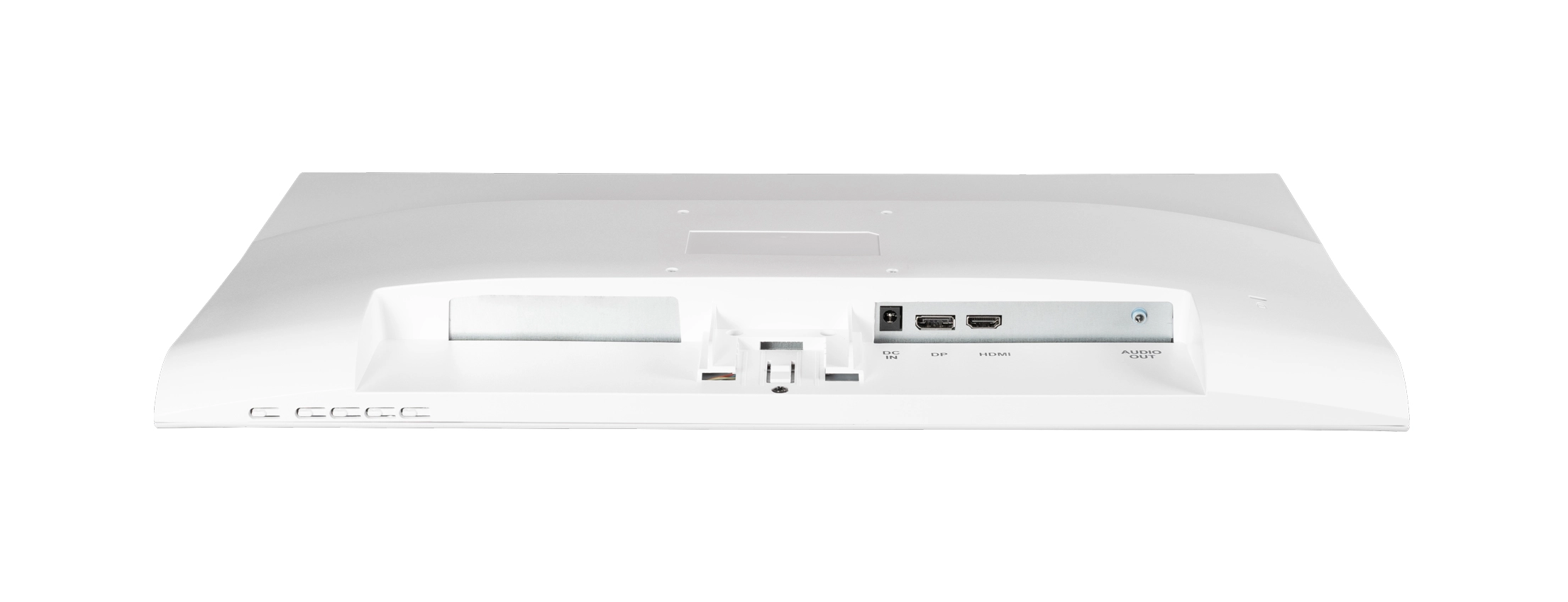

Ports & interfaces
Built-in USB hub	N
HDMI	Y
HDMI ports quantity	1
HDMI version	1.4
DisplayPorts quantity	1
Audio output	Y
Headphone out	Y
Headphone outputs	1
Headphone connectivity	3.5 mm
Ergonomics
VESA mounting	Y
Panel mounting interface	100 x 100 mm
Cable lock slot	Y
Cable lock slot type	Kensington
Adjustable height (max)	120 mm
Height adjustment	Y
Swivelling	Y
Pivot angle	0 - 90 °
Pivot	Y
Swivel angle range	-45 - 45 °
Wall mountable	Y
Tilt angle range	-5 - 20 °
Tilt adjustment	Y
Packaging data
Stand included	Y
Cables included	AC, HDMI
Power adapter included	Y
Package width	654 mm
Package depth	182 mm
Package height	407 mm
Package weight	7100 g
Power
Energy efficiency class (SDR)	E
Energy consumption (SDR) per 1000 hours	18 kWu
Power consumption (typical)	18 W
Energy efficiency class (HDR)	Not available
Power consumption (standby)	0.5 W
Power consumption (off)	0.3 W
AC adapter output voltage	12 V
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	10 - 85 procent
Storage relative humidity (H-H)	5 - 95 procent
Weight & dimensions
Width (with stand)	540 mm
Depth (with stand)	190 mm
Height (with stand)	537.4 mm
Weight (with stand)	5000 g
Width (without stand)	540 mm
Depth (without stand)	48.6 mm
Height (without stand)	324.4 mm
Weight (without stand)	3000 g
Other features
Power supply type	External
Touchscreen	N
