32'' Clinical Review Monitor for Modern Medical Workstations
Introducing the ME-3201, a 32” clinical review monitor designed to transform document scrutiny in clinics. Every meticulous detail is accentuated, enhancing patient record evaluations. Beyond its crisp display, the monitor champions safety with its IEC/EN 60601 certified power adaptor. Its VESA mounting compatibility promises versatility – from a traditional desk setup to the hustle and bustle of medical trolleys.

Crisp Image Quality
Tailored for medical precision, the ME-3201 features 2MP (1920 x 1080) resolution, offering unmatched clarity, facilitating accurate diagnostics and integration.

Safety First
Our monitor features an IEC/EN60601 certified power adaptor, ensuring safe, consistent operations.

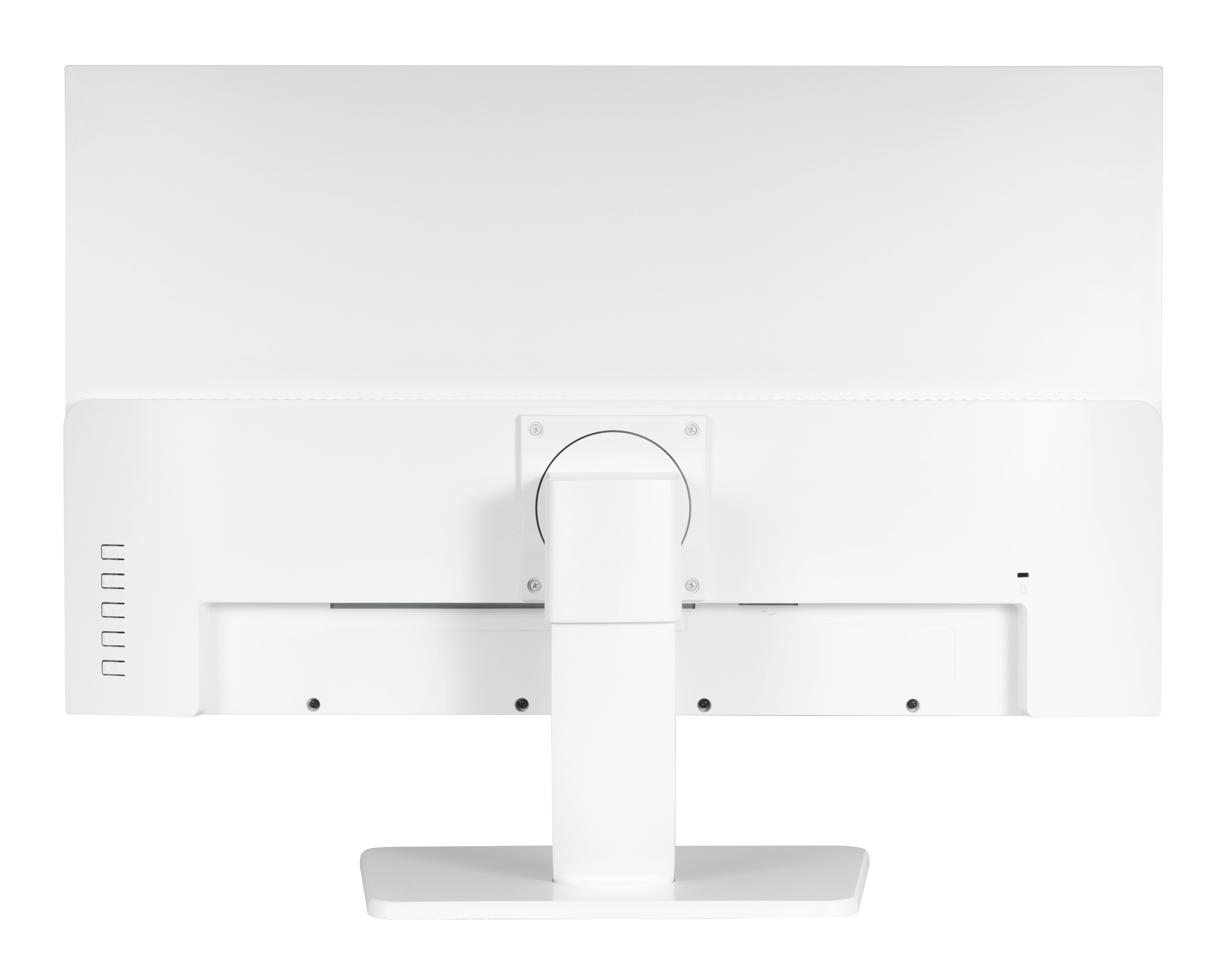

Versatile Mounting
Adaptability at its finest. With a 100 x 100mm VESA specification, mount the ME-3201 with ease, be it on dynamic medical trolleys or sleek wall setups.

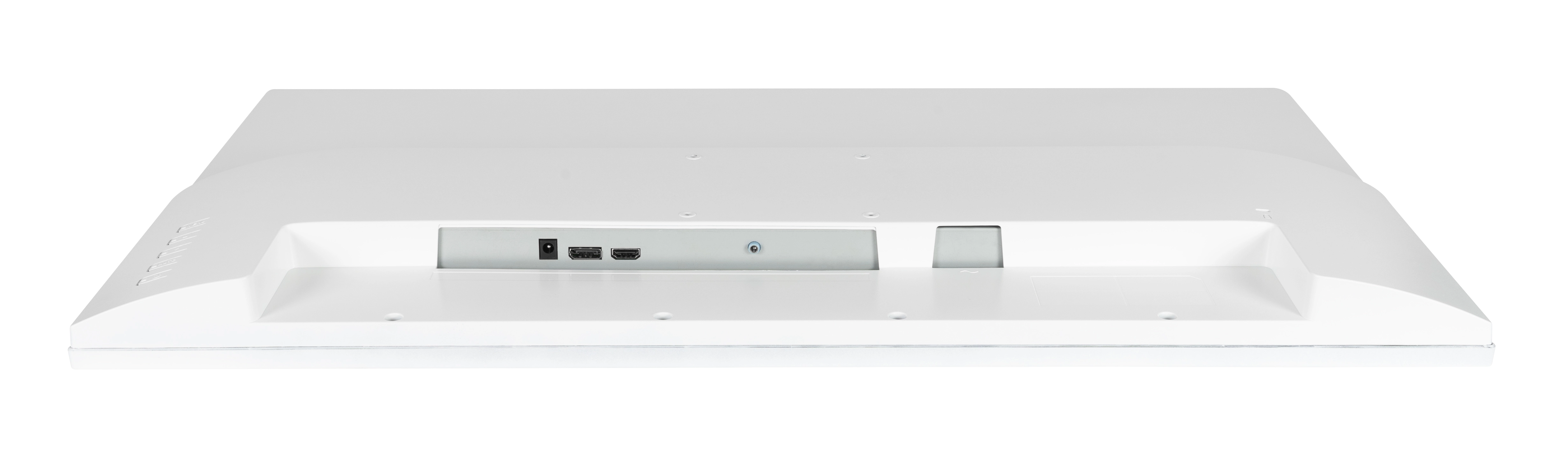

Broad Connectivity
Integration has never been smoother. With HDMI and DisplayPort interfaces, ME-3201 caters to the diverse connectivity needs of modern medical systems.

Eye-Care Technology
Prioritising your well-being. Crafted for extended usage, our monitor minimises eye strain through its flicker-free performance and protective blue light filter.

Specification

Product
Product id	950566
Brand	AG Neovo
Partnr	ME3201
EAN/UPC code	4710739598247
Technical details
Compliance certificates	EAC, Low Voltage Directive (LVD), REACH, RoHS, WEEE
Display
Display diagonal	31.5 inch
Display resolution	1920 x 1080 Pixels
Native aspect ratio	16:9
Panel type	VA
Display brightness (typical)	300 cd/m²
Response time	5 ms
HD type	Full HD
Haze rate	25 procent
Anti-glare screen	Y
Screen shape	Flat screen
Contrast ratio (typical)	20000000:1
Viewing angle, horizontal	178 °
Viewing angle, vertical	178 °
Display number of colours	16.7 million colours
Pixel pitch	0.364 x 0.364 mm
Digital horizontal frequency	30 - 81 kHz
Digital vertical frequency	56 - 75 Hz
Surface hardness	3H
Multimedia
Built-in speaker(s)	Y
Built-in camera	N
Number of speakers	2
RMS rated power	6 W
Design
Market positioning	Medical
Product colour	White
Ports & interfaces
Built-in USB hub	N
HDMI	Y
HDMI ports quantity	1
DisplayPorts quantity	1
Audio output	Y
Ergonomics
VESA mounting	Y
Panel mounting interface	100 x 100 mm
Cable lock slot	Y
Cable lock slot type	Kensington
Wall mountable	Y
Tilt angle range	-5 - 15 °
Tilt adjustment	Y
Packaging data
Stand included	Y
Cables included	AC, HDMI
Power adapter included	Y
Quick start guide	Y
Package width	801 mm
Package depth	207 mm
Package height	521 mm
Package weight	10200 g
Power
Energy efficiency class (SDR)	E
Energy consumption (SDR) per 1000 hours	26 kWu
Power consumption (typical)	26 W
Energy efficiency class (HDR)	Not available
Power consumption (standby)	0.5 W
Power consumption (off)	0.3 W
AC adapter output voltage	12 V
Operational conditions
Operating temperature (T-T)	5 - 35 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	20 - 85 procent
Storage relative humidity (H-H)	5 - 95 procent
Weight & dimensions
Width (with stand)	728.8 mm
Depth (with stand)	236.7 mm
Height (with stand)	540.3 mm
Weight (with stand)	8700 g
Width (without stand)	728.8 mm
Depth (without stand)	57.4 mm
Height (without stand)	433.1 mm
Weight (without stand)	5500 g
Other features
Power supply type	External
Touchscreen	N
