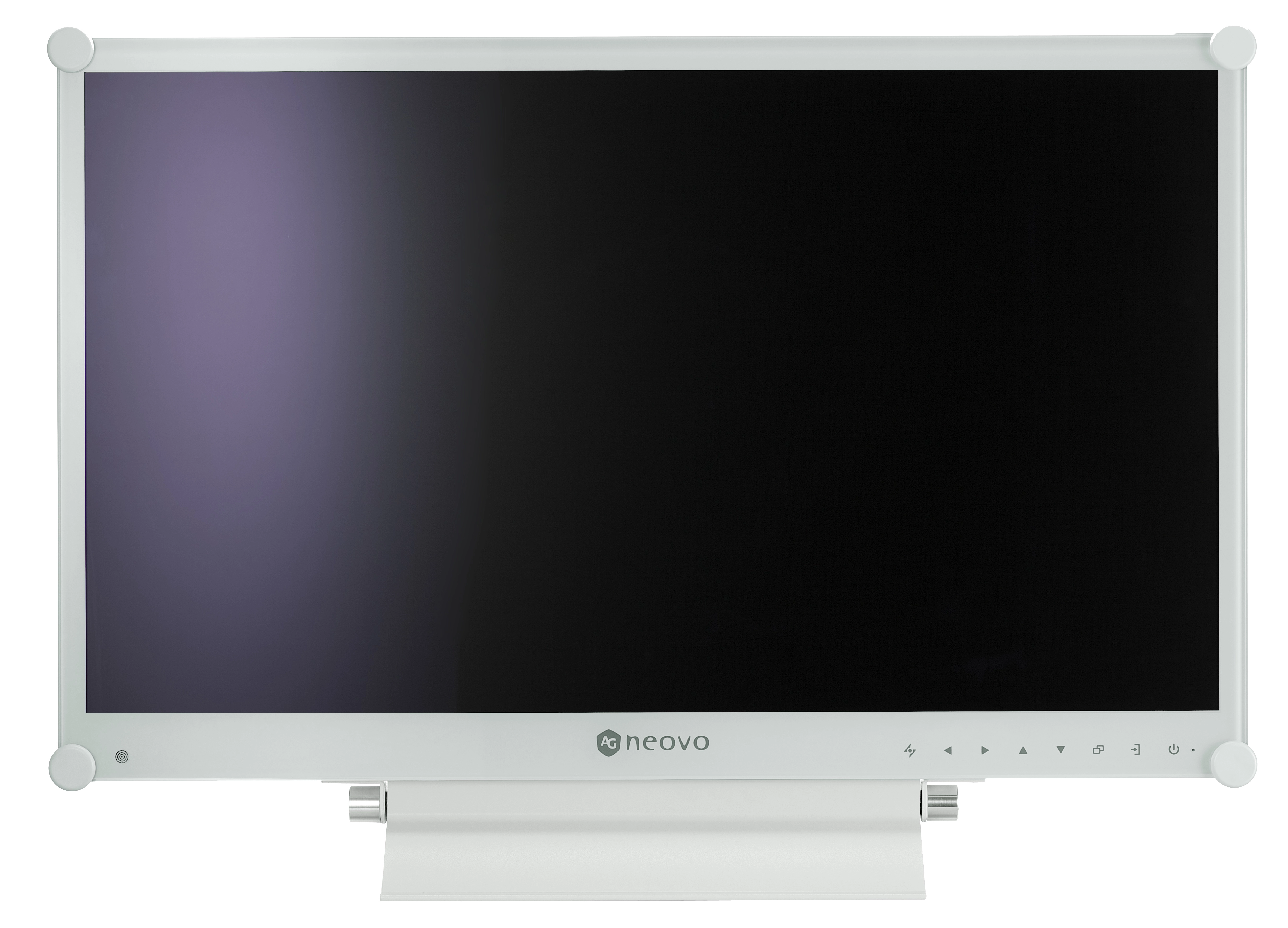

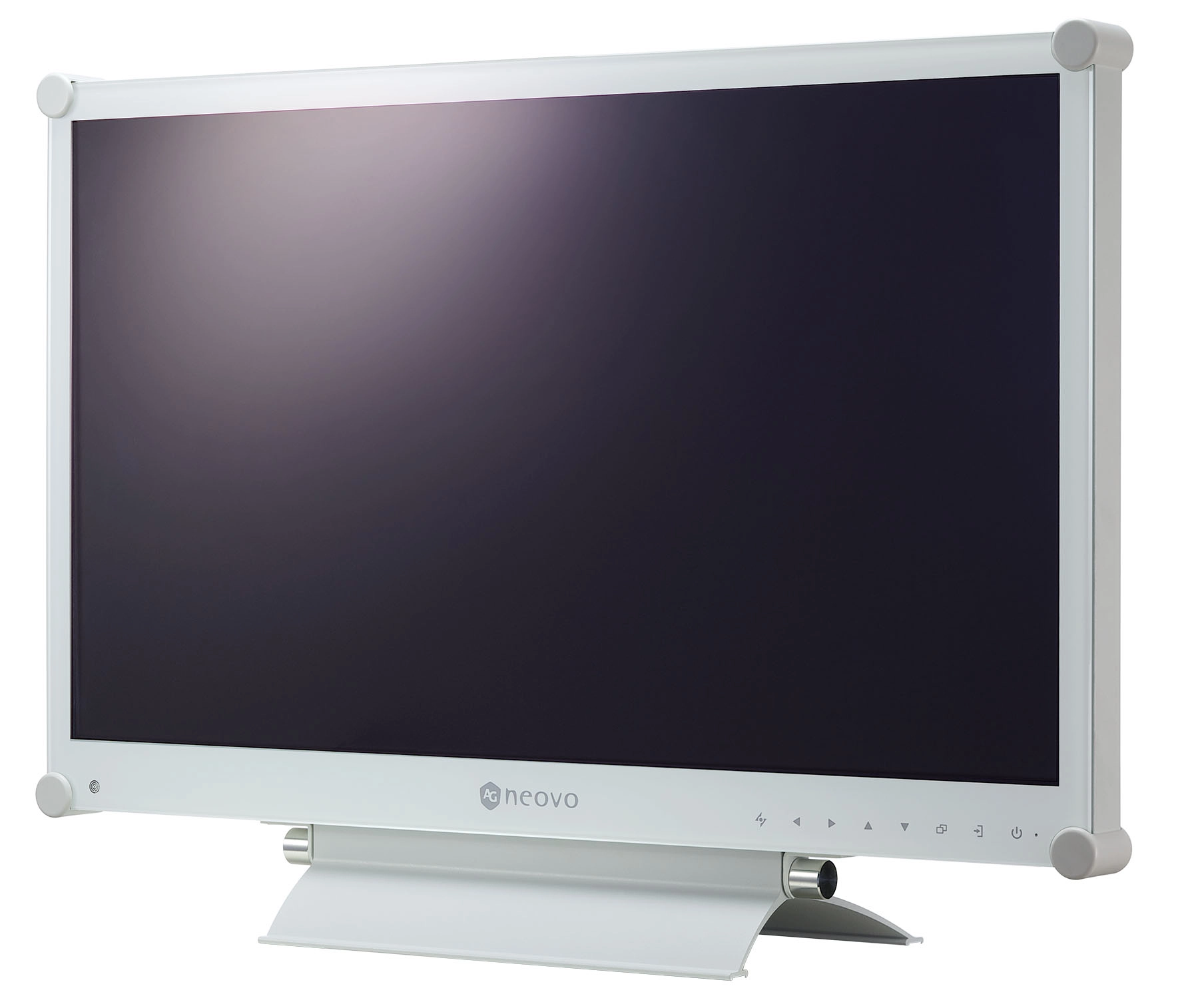

High-Durability Clinical Review Monitor
The MX-2402 24’’ clinical review monitor is designed for durability in diverse healthcare settings, featuring an impact-resistant IK10-rated metal casing and front-side IP65 NeoV Glass for dust and water protection as well as easy cleaning. Compliant with IEC/EN 60601-1 and IEC/EN 60601-1-2 medical equipment standards, DICOM Part 14 compliance, and a wide temperature range, it ensures excellent and reliable image performance in demanding medical environments, including medical laboratories, emergency departments, medical carts, and more.

Performance with Aesthetics

Premium Design for Lasting Excellence
The display’s premium design seamlessly blends aesthetic elegance with unmatched durability, making it a superior choice for diverse applications. This approach enhances the visual appeal of any setting and guarantees the longevity of your investment, ensuring sustained performance and style through years of extensive use.

Effortless OSD Navigation
Empowering users with front-facing touch controls, the display simplifies OSD navigation, addressing the challenge of accessing monitor controls in tightly configured or wall-mounted setups. This feature significantly reduces maintenance time and enhances user experience, allowing for quick adjustments and settings changes without disrupting the setup.

Compliance with Medical Safety Standards
Meeting IEC/EN 60601-1 and IEC/EN 60601-1-2 standards ensures our monitors adhere to international safety norms, providing reliable protection. Additionally, the product comes with an external power adapter which is also EN60601-1 certified. This commitment to safety allows healthcare professionals to operate with confidence and peace of mind.

Energy Efficiency
EcoSmart Technology dynamically adjusts backlighting based on environmental lighting, reducing power consumption by 30-50%. This feature not only saves energy but also supports sustainable operation, essential for businesses aiming to minimize their ecological impact while maintaining constant operation.

Maximize Multitasking Efficiency
By leveraging the Picture-in-Picture (PiP) and Picture-by-Picture (PbP) features of the display, you can seamlessly manage and view multiple image sources on a single screen. This capability is ideal for environments that demand constant monitoring of various data streams or for users aiming to streamline their workflow, enhancing productivity and operational oversight without sacrificing display quality.

Exceptional Cleanliness for Medical
Engineered to support extensive cleaning with solutions including 75% alcohol, acids, and alkalis, making it perfectly suited for environments demanding the highest standards of sanitation.

Robust Metal Casing Protection with IK10 Rating
The monitor’s casing ensures reliable performance with its IK10 rating, indicating high resistance to physical impacts. This superior protection is critical in continuous operation scenarios, where the monitor must withstand the test of time without faltering in its duty.

Reliable Across Temperature Extremes:
Designed to deliver steadfast performance in a broad temperature spectrum, this display seamlessly adapts to fluctuating environmental conditions. Whether situated in the cool confines of a storage facility or the heated ambiance of a busy clinical setting, it guarantees consistent operation and resilience.

Optimal Image Quality Assurance

DICOM 14 Standard Compliance
The preset DICOM mode meets medical imaging requirements to represent accurate and consistent medical images, allowing medical professionals to review with confidence.

Consistent Clarity with Anti-Burn-in Technology
Integrating patented anti-burn-in technology, the display combats the risk of ghosting and image degradation, preserving panel quality over extended periods. This ensures reliable performance in environments where static images need to be monitored for long periods of time, maintaining image clarity and extending the lifespan of the display.

Flexible Installation and Multiple Inputs

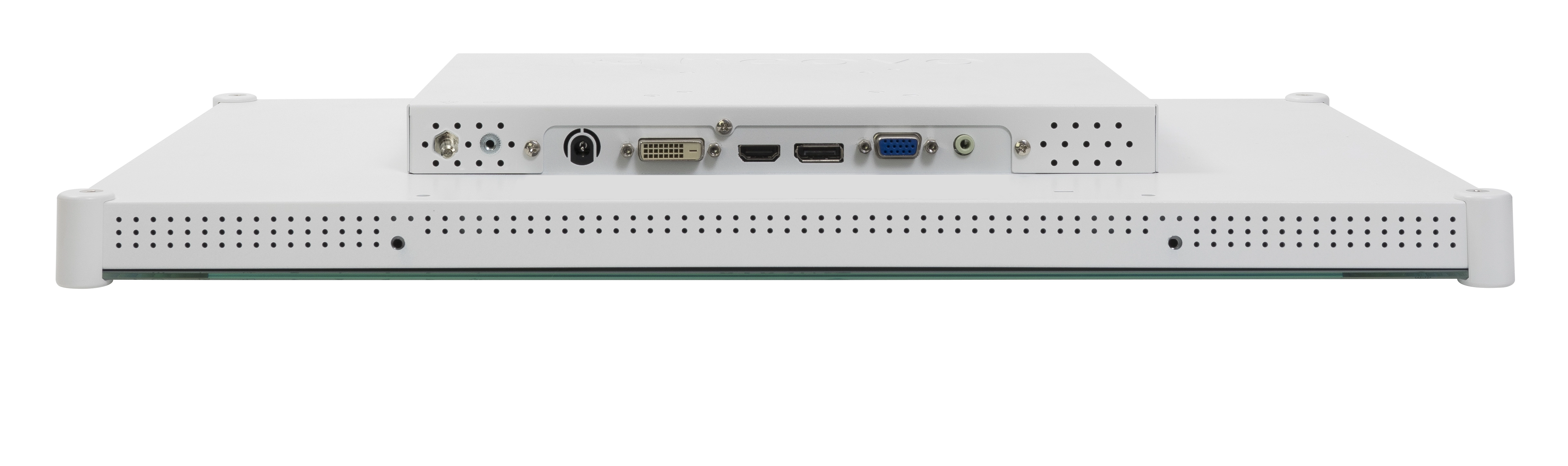

Comprehensive Device Integration
Equipped with VGA, DVI, DisplayPort, and HDMI inputs, this monitor ensures seamless compatibility with various devices. These flexible connectivity options enhance functionality, allowing efficient multiple-device connections and a streamlined workspace.

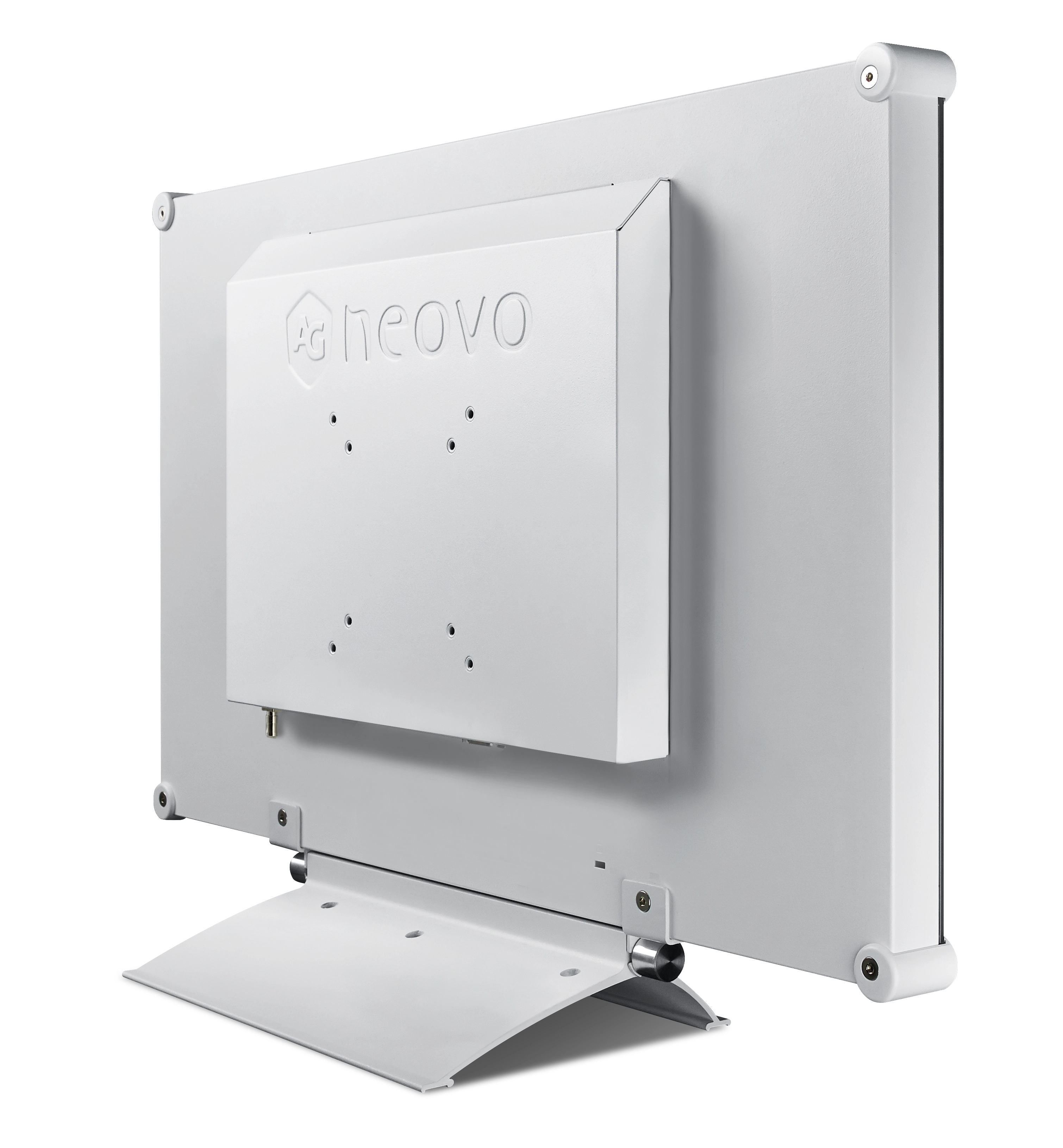

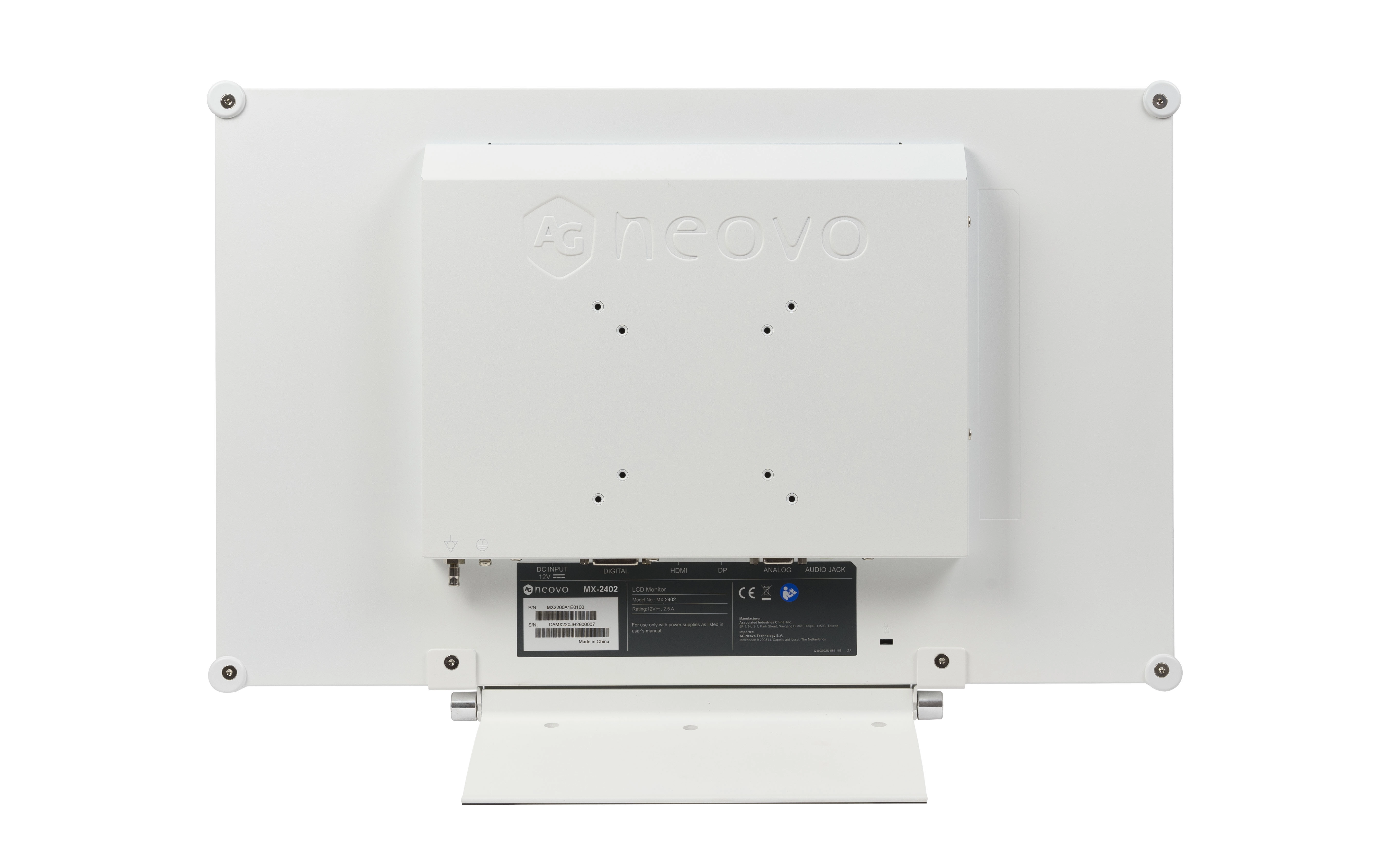

Flexible Mounting Options
The MX-2402 supports 75 x 75 mm and 100 x 100 mm VESA mounts, enabling installation on walls, ceilings, or medical carts. This adaptability ensures easy integration into diverse clinical setups, optimising space and viewing angles.

Specification

Product
Product id	953313
Brand	AG Neovo
Partnr	MX2402
EAN/UPC code	4710739598322
Technical details
Compliance certificates	CE, EAC, Low Voltage Directive (LVD), REACH, RoHS, UKCA, WEEE
Display
Display diagonal	23.8 inch
Display resolution	1920 x 1080 Pixels
Native aspect ratio	16:9
Panel type	VA
Display brightness (typical)	300 cd/m²
Response time	5 ms
HD type	Full HD
Display technology	LED
Haze rate	25 procent
LED backlight	Y
Anti-glare screen	Y
Screen shape	Flat screen
Contrast ratio (typical)	20000000:1
Viewing angle, horizontal	178 °
Viewing angle, vertical	178 °
Display number of colours	16.7 million colours
Pixel pitch	0.275 x 0.275 mm
Digital horizontal frequency	24 - 83 kHz
Digital vertical frequency	50 - 75 Hz
Surface hardness	3H
Multimedia
Built-in speaker(s)	Y
Built-in camera	N
Number of speakers	2
RMS rated power	4 W
Design
Market positioning	Medical
Product colour	White
Housing material	Metal
Glass thickness	3 mm
IK code	IK10
International Protection (IP) code	IP65
Ports & interfaces
Built-in USB hub	N
VGA (D-Sub) ports quantity	1
DVI port	Y
DVI-D ports quantity	1
HDMI	Y
HDMI ports quantity	1
HDMI version	1.4
DisplayPorts quantity	1
Audio input	Y
Headphone out	N
Ergonomics
VESA mounting	Y
Panel mounting interface	75 x 75, 100 x 100 mm
Cable lock slot	Y
Cable lock slot type	Kensington
Wall mountable	Y
Tilt angle range	3 - 21 °
Tilt adjustment	Y
Packaging data
Stand included	Y
Cables included	AC, Audio (3.5mm), VGA
Power adapter included	Y
Quick start guide	Y
Package width	672 mm
Package depth	249 mm
Package height	517 mm
Package weight	10600 g
Power
Energy efficiency class (SDR)	E
Energy consumption (SDR) per 1000 hours	18 kWu
Power consumption (typical)	18 W
Energy efficiency class (HDR)	Not available
Power consumption (standby)	0.5 W
Power consumption (off)	0.3 W
AC adapter output voltage	12 V
Operational conditions
Operating temperature (T-T)	-5 - 45 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	10 - 90 procent
Storage relative humidity (H-H)	5 - 95 procent
Weight & dimensions
Width (with stand)	562.4 mm
Depth (with stand)	196 mm
Height (with stand)	392.8 mm
Weight (with stand)	7700 g
Width (without stand)	562.4 mm
Depth (without stand)	56.2 mm
Height (without stand)	352.6 mm
Weight (without stand)	6900 g
Other features
Display surface reflectivity (typical)	1 procent
Power supply type	External
Touchscreen	N
Transmission rate	97%
