Clarity, Control, and Confidence for Mission-Critical Monitoring

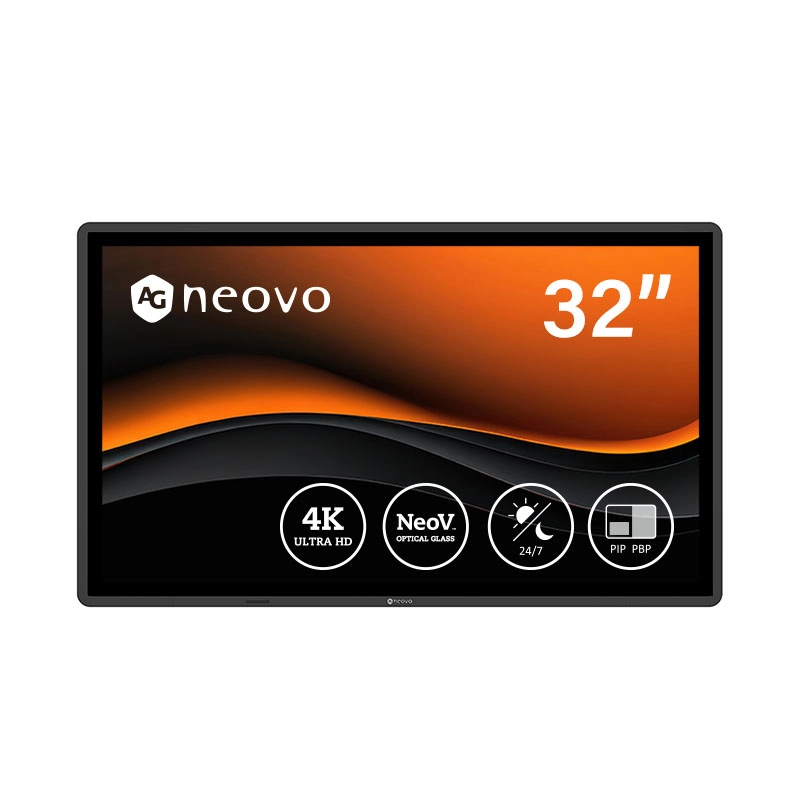

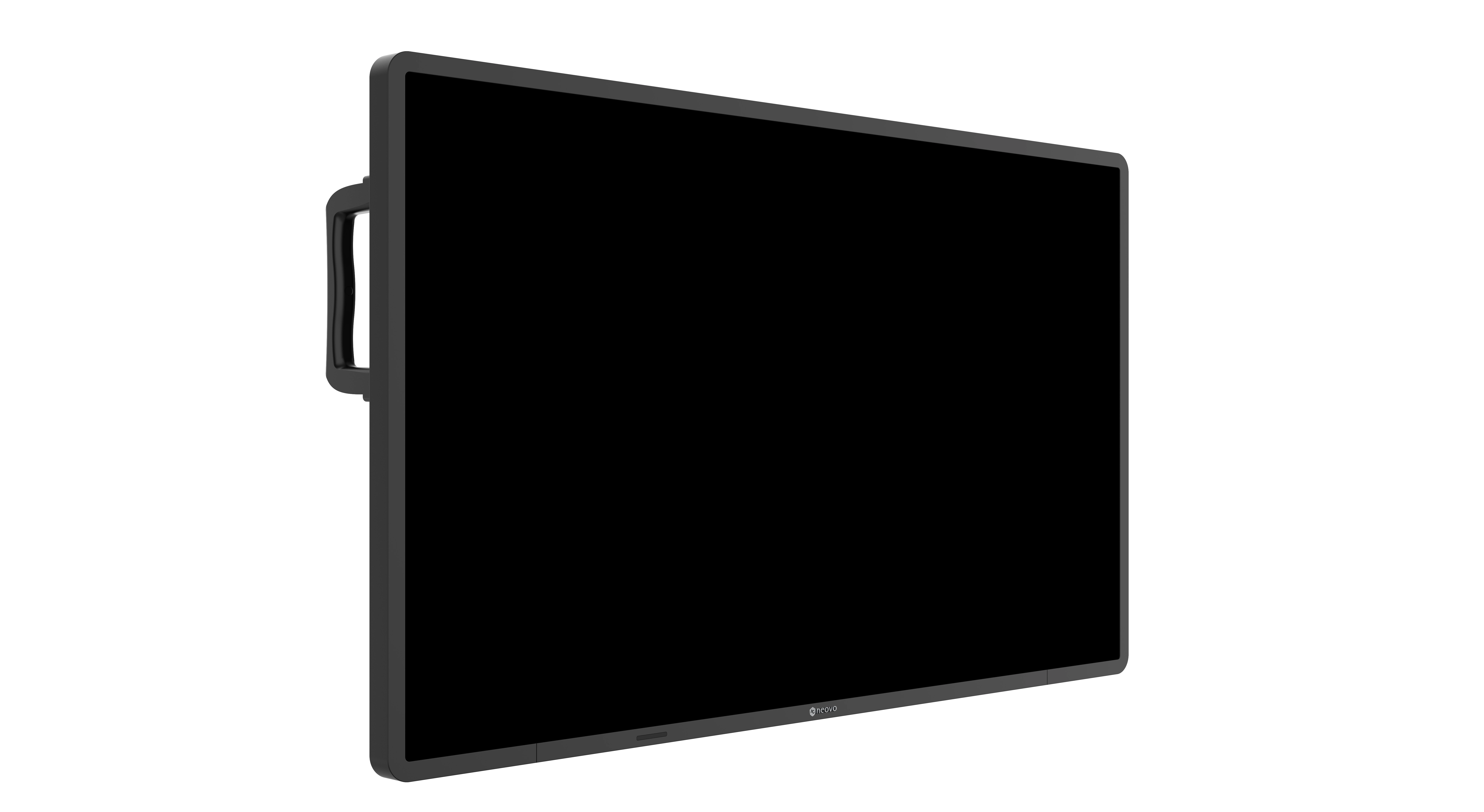

The AG Neovo QX3202 is a 32-inch 4K display purpose-built for environments where precision, control, and uptime are paramount. With 4× HDMI and native quad-view capabilities, as well as DP inputs, it allows operators to monitor up to four video sources simultaneously, eliminating the need for external switchers. The display supports remote management via RS232 and LAN, enabling seamless integration into control room systems. Combined with blackout mode for low-light conditions, industrial-grade durability, and optional custom keypad shortcuts, the QX3202 empowers system integrators to simplify installations while ensuring long-term operational stability.

Adaptive Viewing for Every Scenario

Native 4K Display for Detailed Multi-Source Monitoring
The QX Series features native 4K UHD resolution (3840 × 2160), delivering exceptional image clarity and detail. Each input port supports 4K signal sources, allowing multiple feeds to be displayed simultaneously with sharp, accurate visuals. Ideal for monitoring security footage, data dashboards, and real-time operations where clarity is critical.

Quad-view, PIP, and PBP Modes With Flexible Monitor Layout
Display up to four HDMI sources simultaneously with quad-view, PIP, or PBP layouts, and adjust each window’s aspect ratio independently. This allows operators to keep priority feeds prominent while maintaining visibility of supporting sources, delivering a clear, adaptable viewing setup for dynamic, multi-system environments.

Optimised for Dark or Sensitive Environments
Designed for operators who work in low-light control rooms, night-shift environments, and situations requiring absolute discretion.

Ultra-Low 2 cd/m² Brightness
Reduce backlight all the way down to 2 cd/m²—far below the 50–100 cd/m² limit of standard displays—ensuring glare-free, comfortable visibility without affecting situational awareness.

Instant Blackout Mode
Blank the screen immediately without powering down, keeping systems running while maintaining full discretion during sensitive moments.

Unified Installation and Control

Streamlined Multi-System Integration
With four native HDMI and DisplayPort inputs, the QX Series eliminates the need for external matrix switchers or complex cabling. Connect up to four systems directly and manage them through built-in quad-view or PIP/PBP modes—saving installation time and reducing failure points.

Scalable Expansion and Centralised Control

DisplayPort Daisy-Chain
The DisplayPort daisy-chain function allows one QX display to share its active on-screen sources with the following unit, enabling scalable visual configurations with minimal cabling.

Centralised Management​ & Control
Control multiple displays as one through RS232 loop-through, keeping key settings aligned across units. When remote access is required, LAN control enables configuration over IP. Fully compatible with Neovo Controller for simple, unified management.

Simplified Custom Control

Personalised Display Settings
Save and recall up to five customised configurations, ensuring fast adaptation to different operators, shifts, or operational scenarios.

Direct Hardware Control
A standard 15-pin D-sub port enables connection to a pre-defined keypad for instant access to essential functions, including blackout, backlight, volume, power, input source, and screen layout.

A dedicated dimming port supports an optional control knob, allowing precise and intuitive adjustment of display brightness for fast, reliable operation.

Uninterrupted Operations

Failover Function
Automatically switches to a backup input when the primary signal fails, with input priority set by user preference or default order.

Proactive Alerts and Monitoring
RS232 feedback provides real-time notifications for signal loss and thermal issues. These alerts enable immediate response, helping reduce downtime and maintain continuous visibility. By identifying potential problems early, proactive alerts support smoother operations and more efficient maintenance in mission-critical environments.

Flexible Orientation for Ceiling-Mounted Installations
Built-in image rotation ensures correct orientation when mounted upside-down, supporting ceiling-mounted setups often required in tight spaces or above operator consoles. No need for external processors or video flipping software. Suitable for use with Ceiling Mount CMP-01 + LMK-02.

Durable Build
Built with AG Neovo’s signature NeoV™ Optical Glass with Anti-glare, AG coating and rugged metal housing, it protects against scratches and impacts.

24/7 Operations with Anti-Burn-In™ Technology
AG Neovo patented Anti-Burn-in™ technology ensures stable long-term performance with static images and increases the panel’s life cycle.

Specification

Product
Product id	998619
Brand	AG Neovo
Partnr	QX3202
EAN/UPC code	4710739598803
Design
Product colour	Black
Product type	CCTV monitor
Housing material	Metal
Mounting type	Ceiling/Wall
IK code	IK08, IK10
Display
Display diagonal	32 inch
Display resolution	3840 x 2160 Pixels
Viewing angle, horizontal	178 °
Display type	LED
Viewing angle, vertical	178 °
Panel type	VA
Display brightness	350 cd/m²
Display number of colours	1.07 billion colours
Pixel pitch	0.182 x 0.182 mm
Display aspect ratio	16:9
Contrast ratio (typical)	3000:1
Response time	5 ms
Haze rate	25 procent
Anti-glare screen	Y
Surface hardness	3H
Digital horizontal frequency	30 - 160 kHz
Digital vertical frequency	30 - 76 Hz
Glass thickness	3.2 mm
Performance
Built-in speaker(s)	Y
Number of built-in speakers	2
VESA mounting	Y
Speaker power	10 W
Panel mounting interface	200 x 200 mm
Picture-by-Picture (PbP)	Y
Picture-in-Picture	Y
Operating hours (hours/days)	24/7

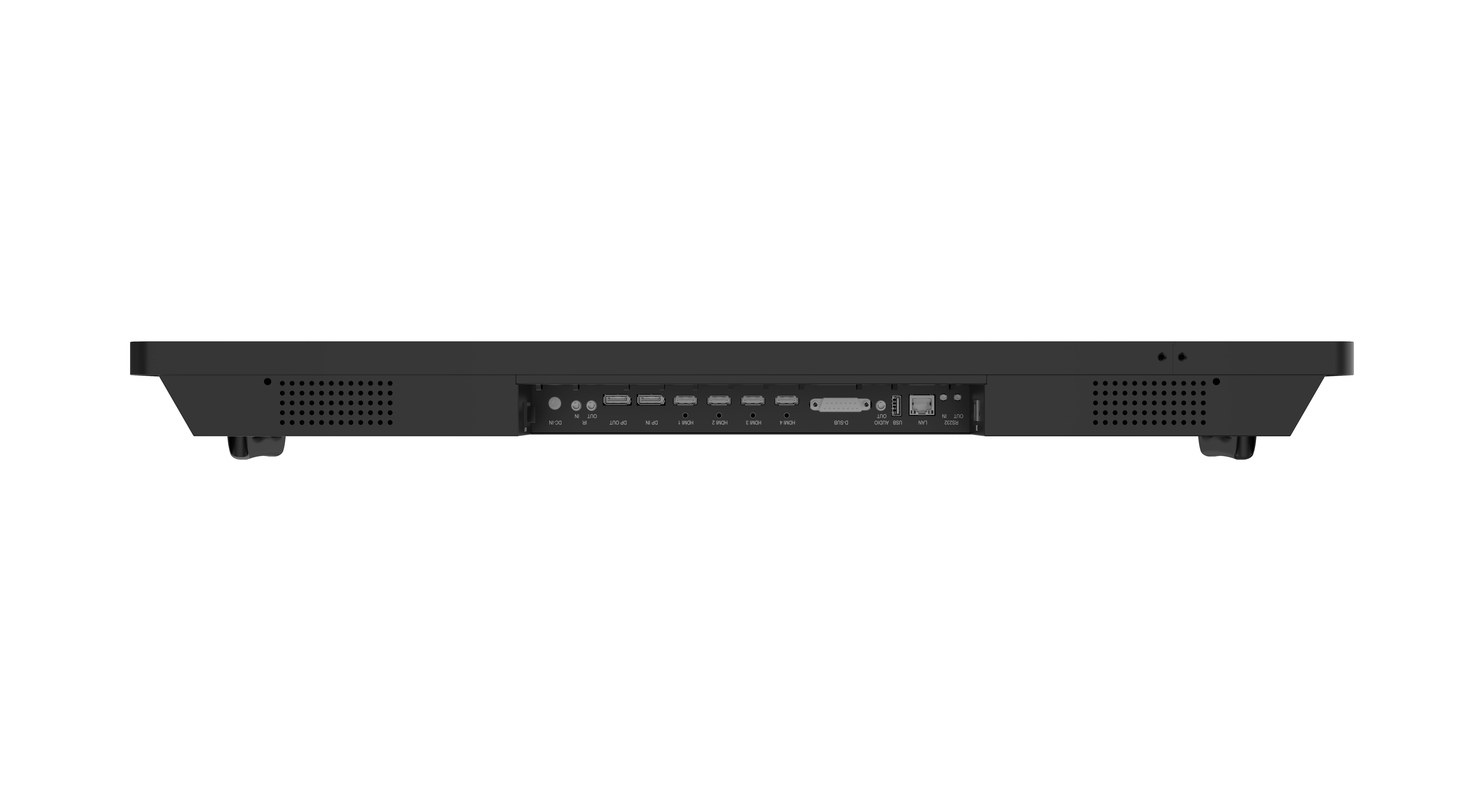

Ports & interfaces
HDMI version	2.0
HDMI input ports quantity	4
Ethernet LAN	Y
DisplayPort version	1.2
DisplayPorts out	1
RJ-45 ports quantity	1
DisplayPorts in	1
USB port	Y
USB 2.0 ports quantity	1
RS-232 ports	2
Audio output	3.5 mm
DC-in jack	Y
Remote (IR) input	1
Remote (IR) output	1
Power
Power consumption (standby)	0.5 W
Power source type	DC
Power supply type	External
Energy efficiency class (SDR)	G
Power consumption (typical)	48 W
Energy consumption (SDR) per 1000 hours	48 kWu
Power consumption (off)	0.3 W
AC adapter output voltage	24 V
AC adapter output current	5.5 A
Energy efficiency scale	A to G
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 procent
Storage temperature (T-T)	-20 - 60 °C
Storage relative humidity (H-H)	5 - 95 procent
Technical details
Compliance certificates	CE, Low Voltage Directive (LVD), REACH, RoHS, BSMI, CCC, cUL, UL, Federal Communications Commission (FCC), KCC, PSE, RCM, UKCA, WEEE
Weight & dimensions
Weight	10200 g
Height	451.4 mm
Depth	79.3 mm
Width	756.5 mm
Bezel width (top)	12.8 mm
Package width	850 mm
Bezel width (side)	12.8 mm
Package depth	145 mm
Bezel width (bottom)	12.8 mm
Package height	530 mm
Package weight	12600 g
Packaging content
AC adapter included	Y
Cables included	HDMI, AC
Handheld remote control	Y
Quick start guide	Y
