Unmatched Clarity and Reliability for High-Stakes Surveillance

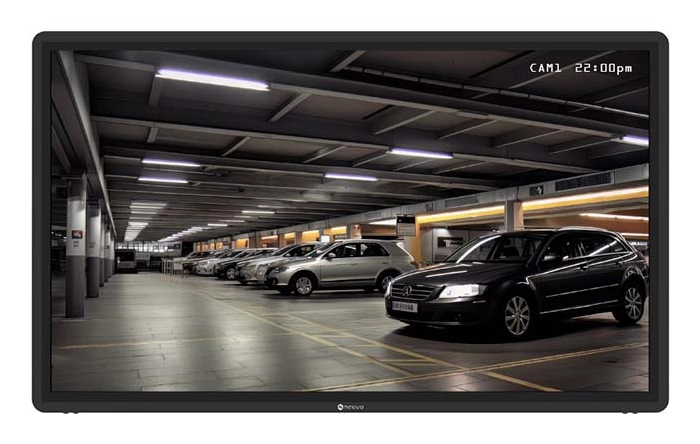

The TTN-4301 43” LCD display is engineered for critical surveillance in environments like transportation hubs, retail stores, and manufacturing sites, offering exceptional operational excellence 24/7. Its robust construction ensures longevity, and its comprehensive connectivity alongside advanced remote management capabilities streamline operations. Designed specifically for crucial surveillance and property security, the TTN-4301 delivers crystal-clear, detailed video footage with 4K resolution, boosting security efficacy in demanding conditions.

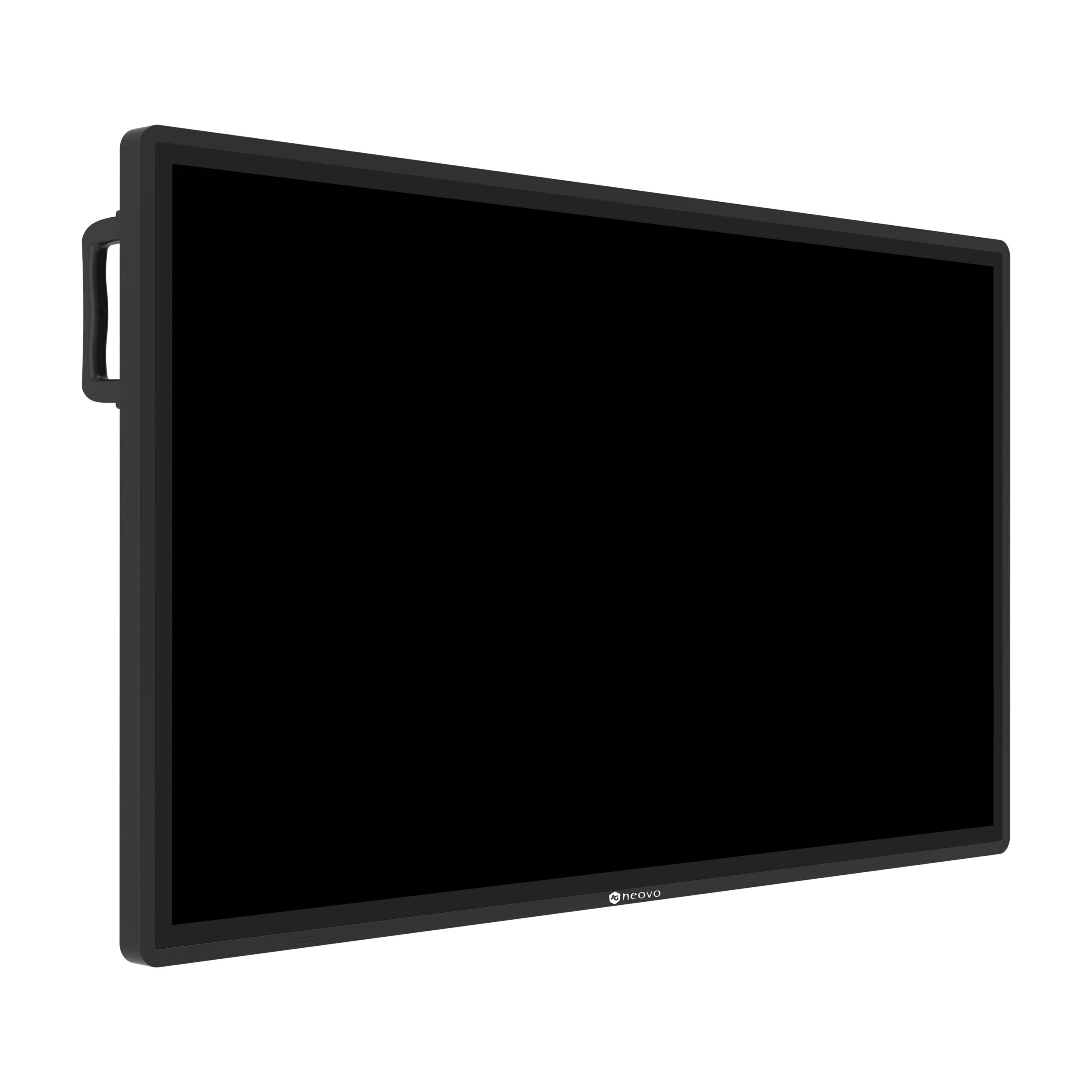

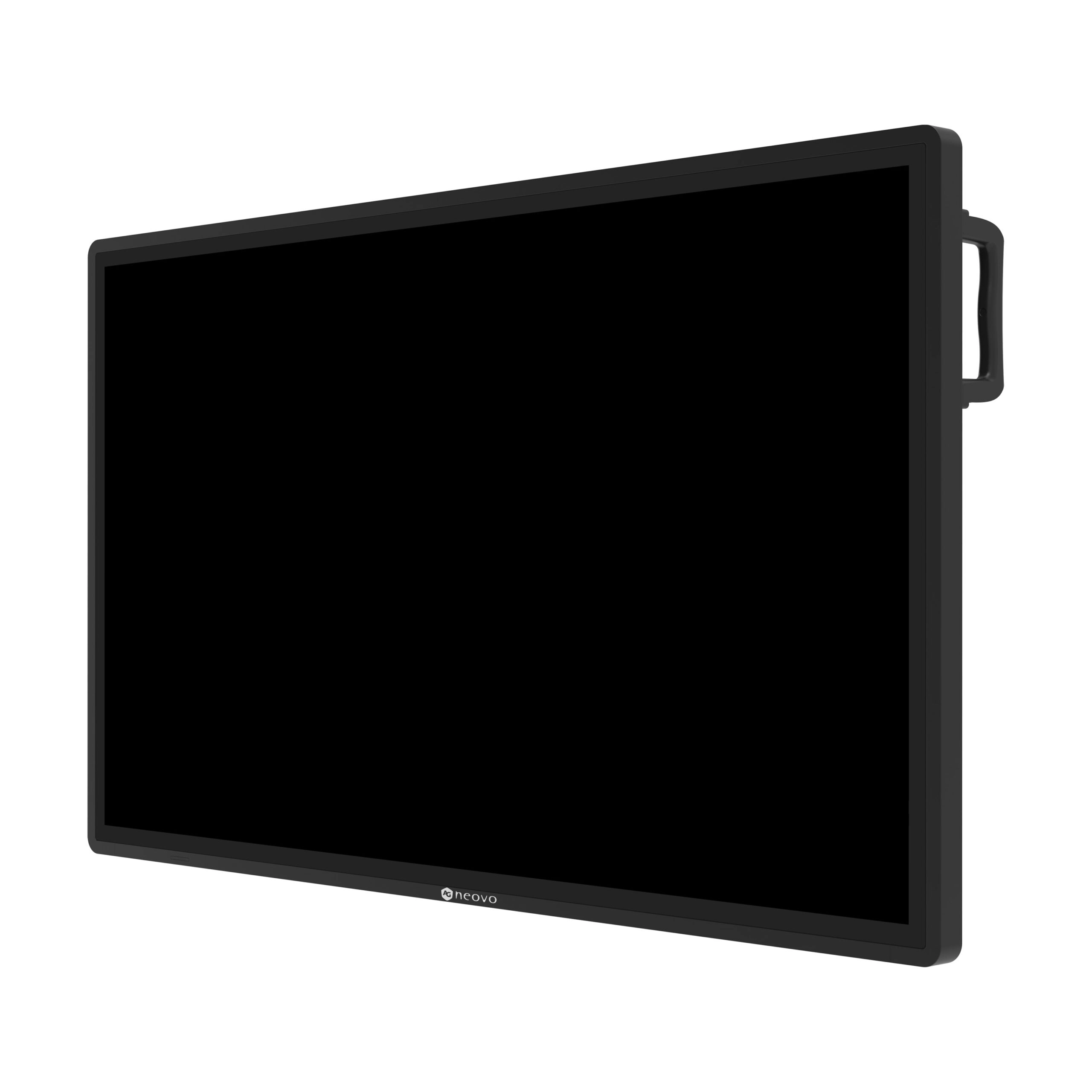

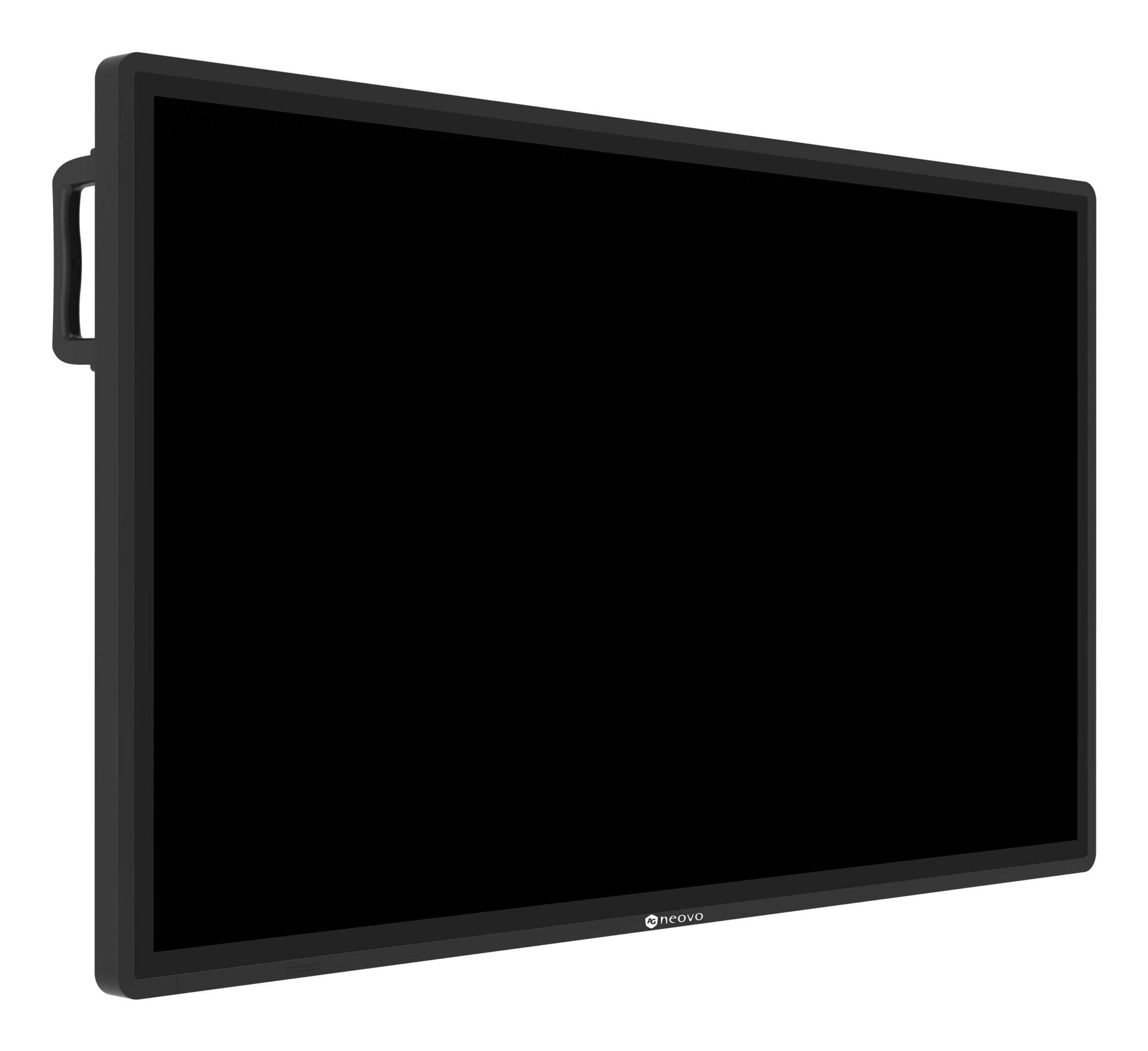

Exceptional Front Protection

Experience outstanding durability with our IP22-rated LCD display, crafted to withstand dust and water. The front panel is enhanced with IK08 hardness glass, providing superior scratch resistance and maintaining clarity and resilience over time.

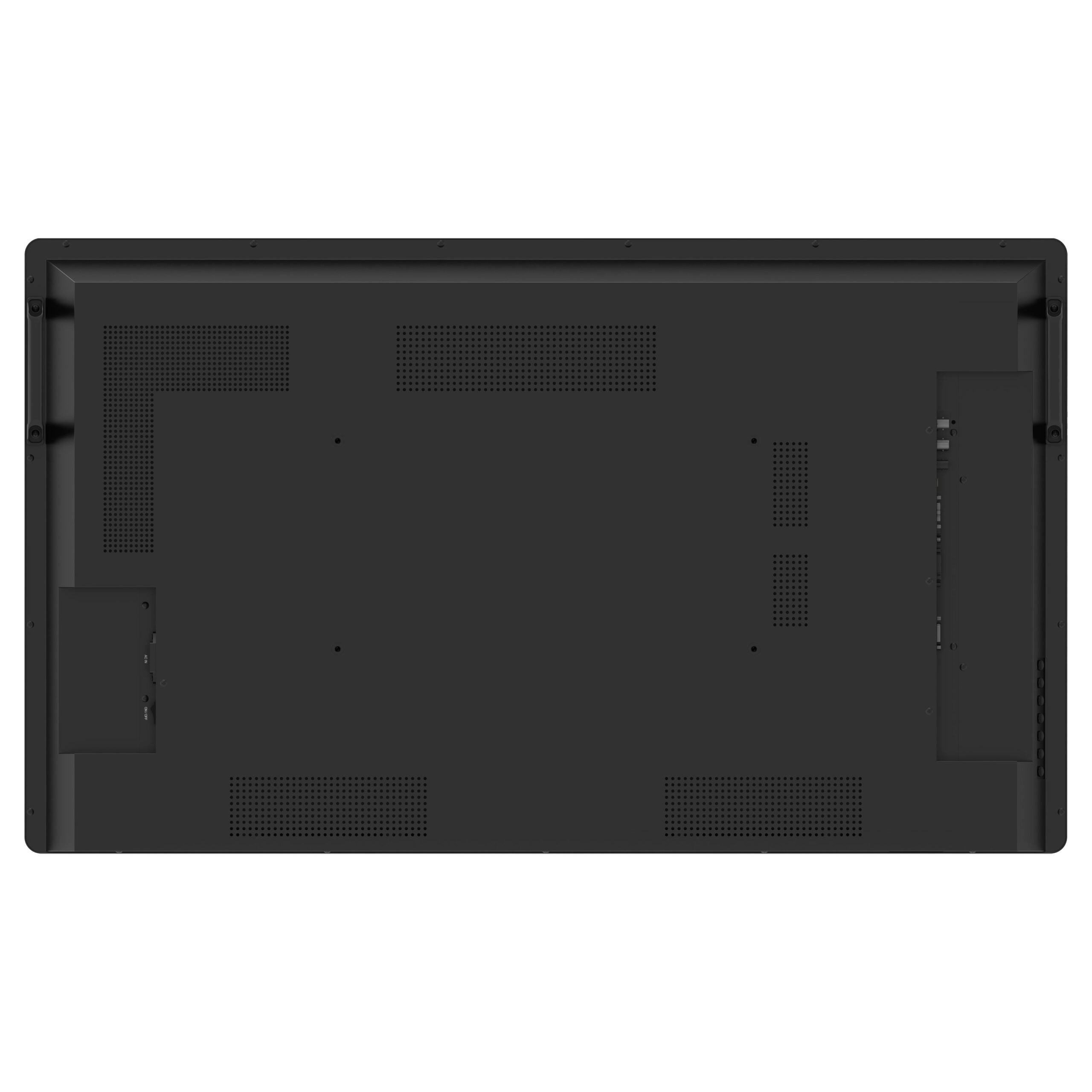

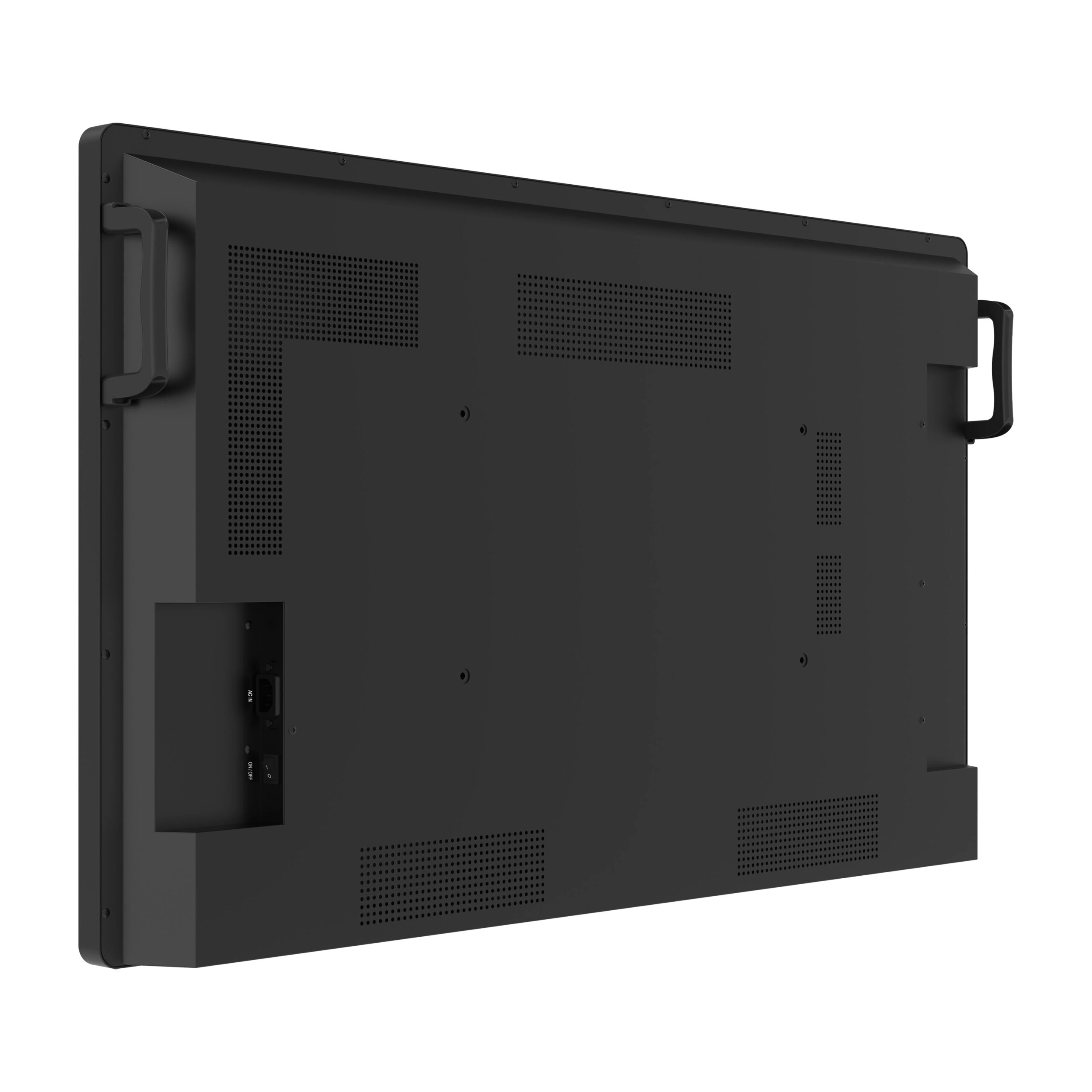

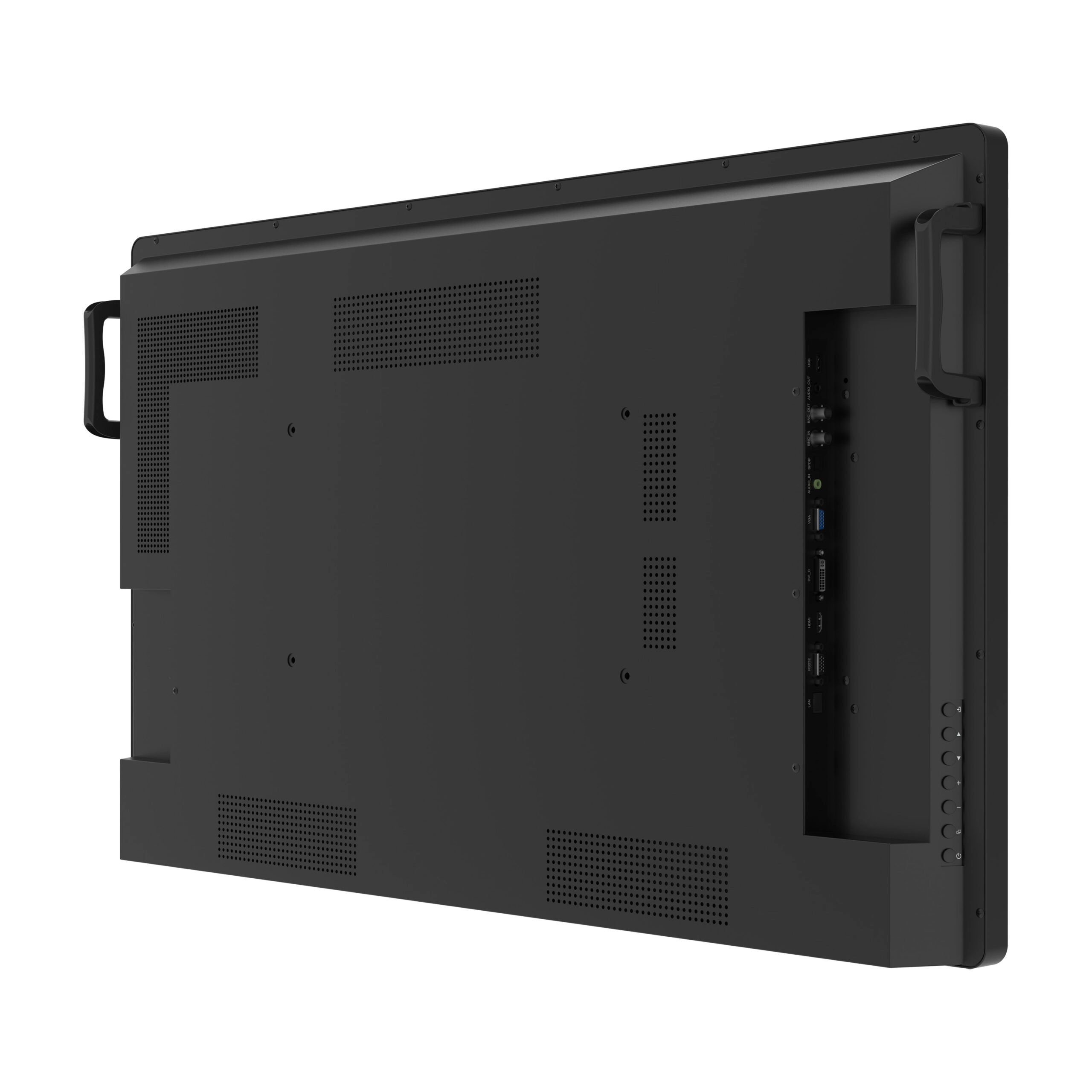

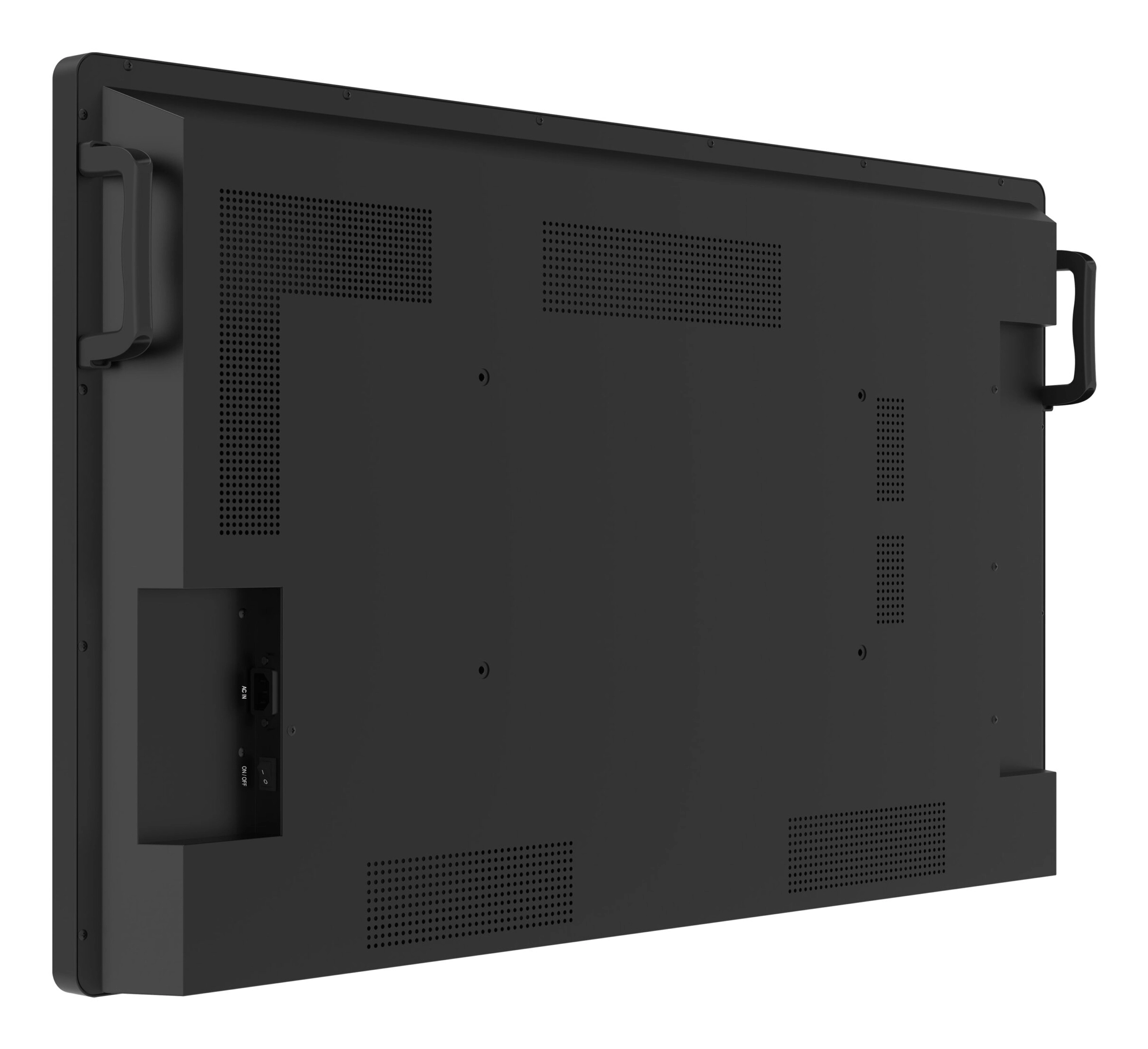

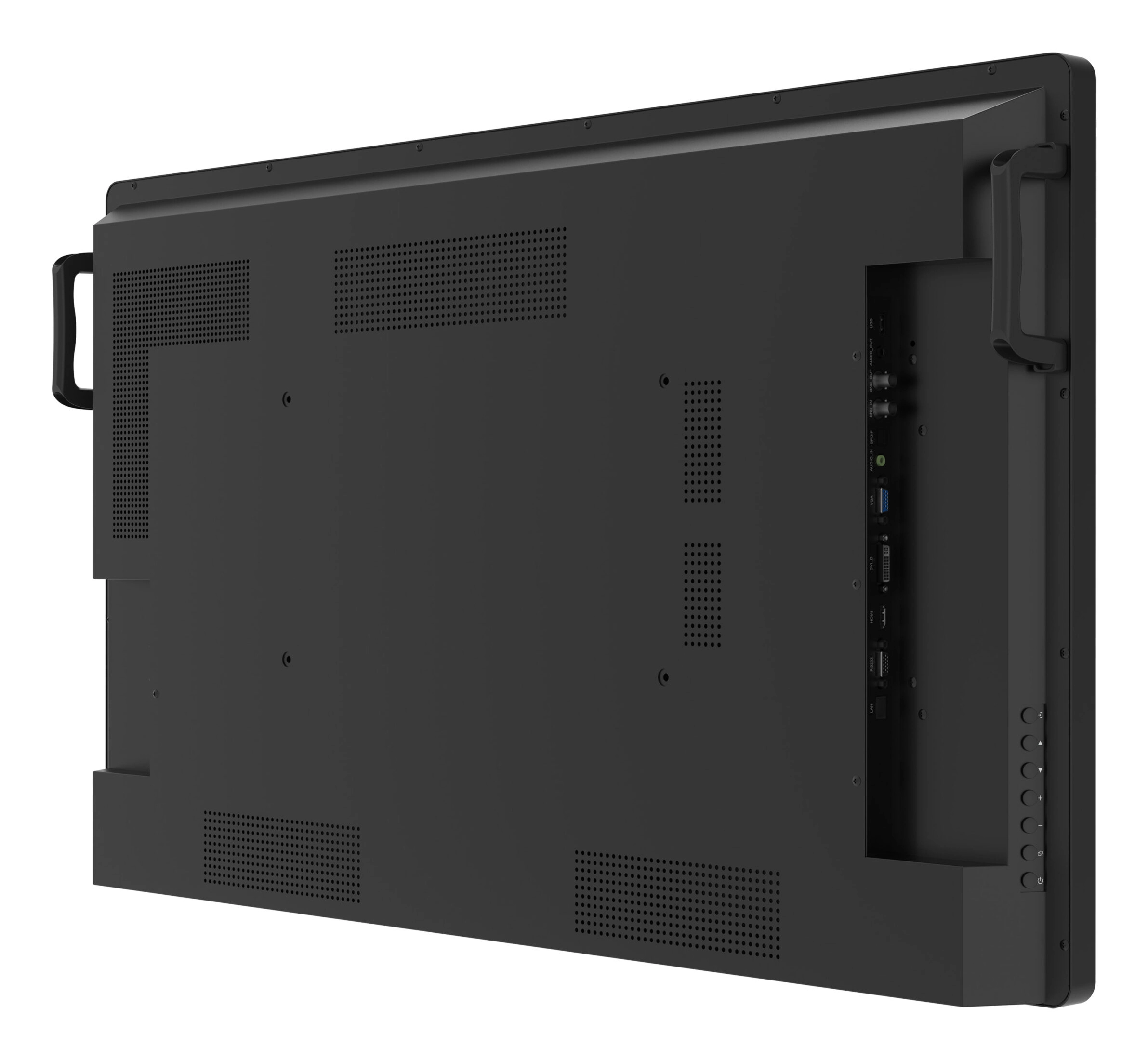

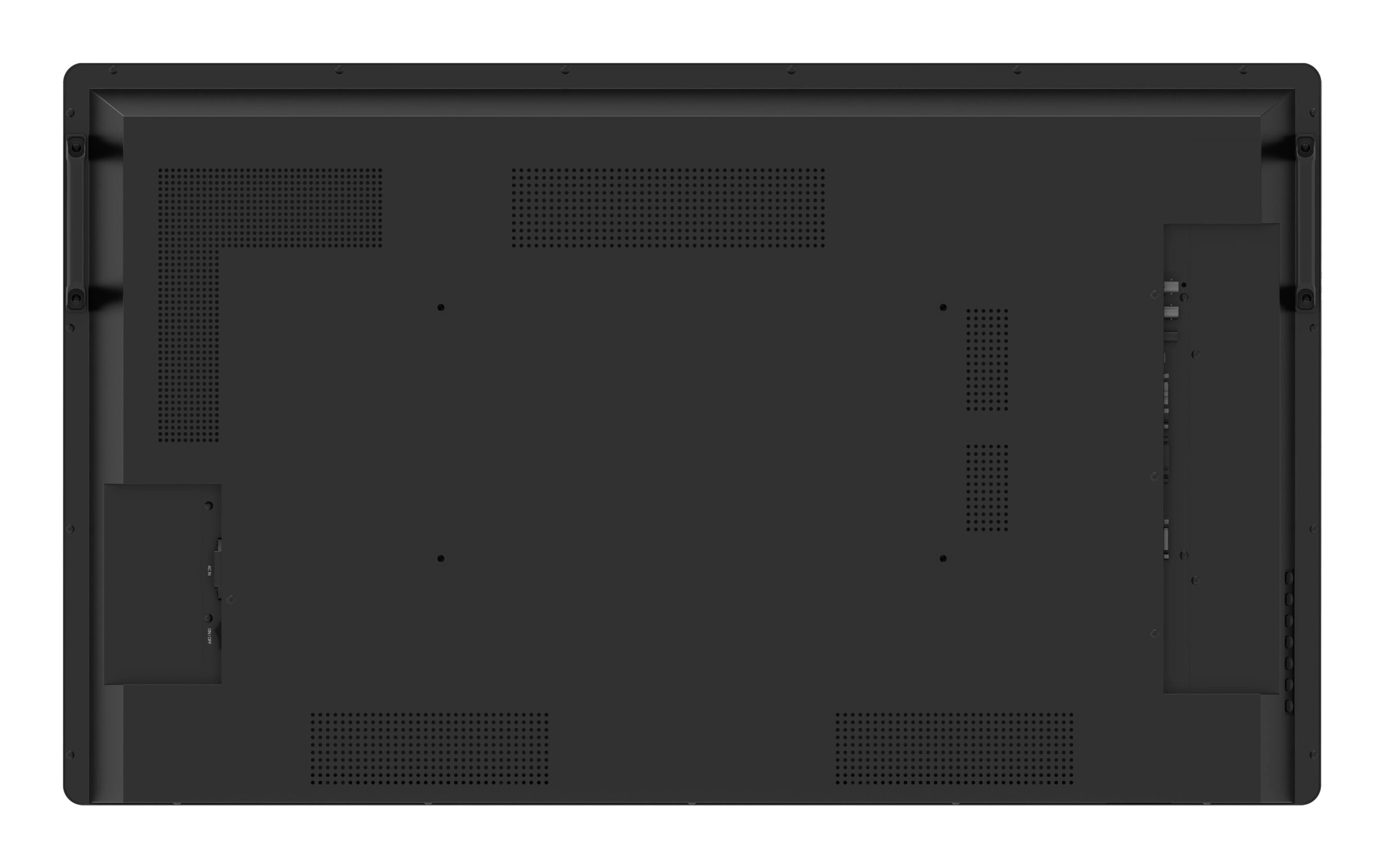

Superior Backside Endurance

Fortified with an IK10-rated housing, the LCD display offers unrivaled protection against vandalism, ideal for use in public spaces and areas without supervision. Its durable metal casing supports effective heat dissipation, ensuring consistent performance under continuous operation.

Craftsmanship and Quality

Proudly manufactured in Taiwan, the LCD display epitomizes top-tier production quality. This commitment guarantees a product that not only integrates advanced technology but also offers peerless durability and reliability, standing out in the most challenging situations.

Round-the-Clock Reliability

With specialised public information display panels, our LCD displays are engineered for 24/7 continuous operation, embodying resilience and ensuring your operations are uninterrupted.

Advanced Thermal Management

An innovative heat control sensor and a fan-based cooling system actively manage temperatures, maintaining reliability 24/7. Exceeding temperature thresholds triggers alarms, preventing overheating for consistent performance.

Energy Efficiency

EcoSmart Technology dynamically adjusts backlighting based on environmental lighting, reducing power consumption by 30-50%. This feature not only saves energy but also supports sustainable operation, essential for businesses aiming to minimise their ecological impact while maintaining constant surveillance.

Consistent Clarity & Extended Lifespan

Anti-burn-in technology prevents static image degradation, preserving image quality over time and maintaining the clarity and accuracy of surveillance footage, critical for security analysis and decision-making.

Specification

Product
Product id	953518
Brand	AG Neovo
Partnr	TTN4301
EAN/UPC code	4710739598216
Display
Display diagonal	43 inch
Display resolution	3840 x 2160 Pixels
Display brightness	450 cd/m²
HD type	4K Ultra HD
Touchscreen	N
Native aspect ratio	16:9
Response time	5 ms
Contrast ratio (typical)	1200:1
Viewing angle, horizontal	178 °
Viewing angle, vertical	178 °
Display number of colours	1.07 billion colours
Pixel pitch	0.245 x 0.245 mm
Surface hardness	3H
Haze rate	1 procent
Horizontal scan range	15 - 135 kHz
Panel type	IPS
Vertical scan range	24 - 86 Hz
Glass thickness	3.2 mm

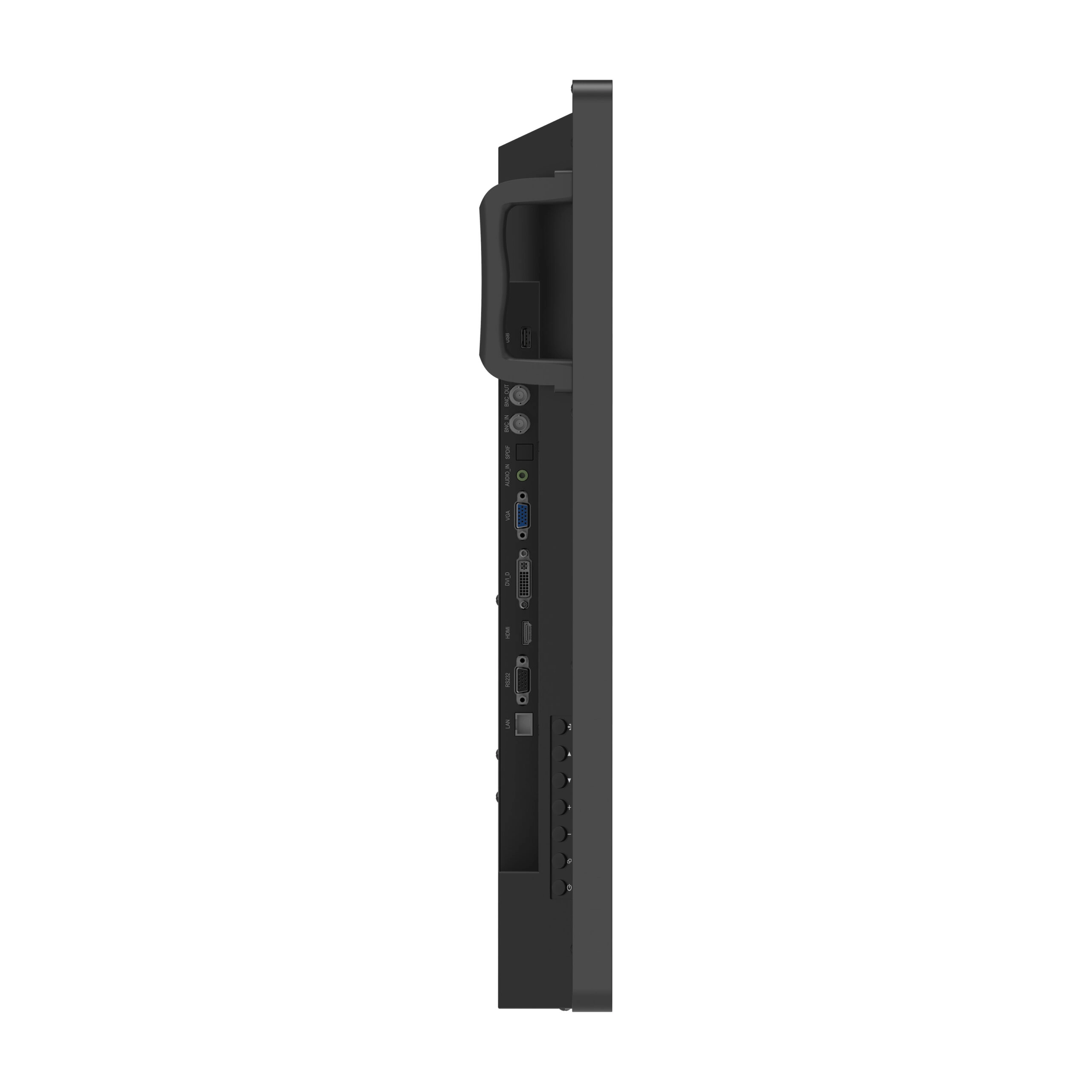

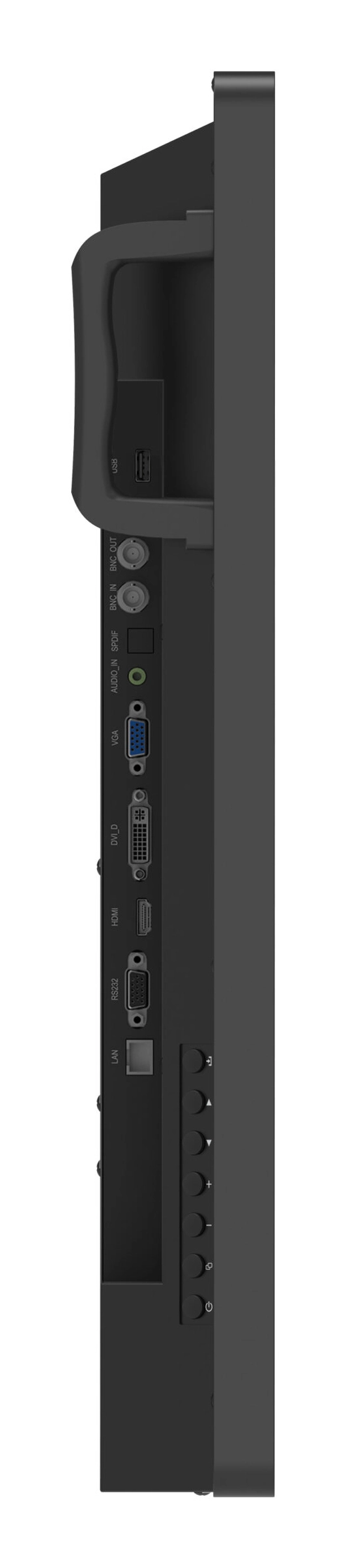

Ports & interfaces
HDMI ports quantity	1
HDMI version	2.0
HDMI input ports quantity	1
DVI port	Y
DVI-D ports quantity	1
VGA (D-Sub) input ports	1
USB port	Y
USB ports quantity	1
USB version	2.0
Ethernet LAN	Y
Ethernet LAN (RJ-45) ports	1
Wi-Fi	N
Composite video in	1
Composite video out	1
Number of speaker outputs	1
Audio
Built-in speaker(s)	Y
Number of built-in speakers	2
RMS rated power	24 W
Design
Design	Digital signage flat panel
Product colour	Black
Placement supported	Indoor
Orientation	Horizontal
VESA mounting	Y
Panel mounting interface	400 x 200 mm
Anti-glare screen	Y
Performance
Purpose	Retail
Operating hours (hours/days)	24/7
Power
Power consumption (typical)	82 W
Power consumption (standby)	0.5 W
Energy efficiency class (SDR)	G
AC input voltage	100-240 V
AC input frequency	50-60 Hz
Energy consumption (SDR) per 1000 hours	82 kWu
Energy efficiency scale	A to G
Weight & dimensions
Display width	1002 mm
Display depth	84.7 mm
Display height	591.6 mm
Display weight	19000 g
Packaging data
Package width	1120 mm
Package depth	180 mm
Package height	710 mm
Package weight	22400 g
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	20 - 80 procent
Storage temperature (T-T)	-10 - 60 °C
Storage relative humidity (H-H)	10 - 80 procent
Other features
Display technology	LCD
