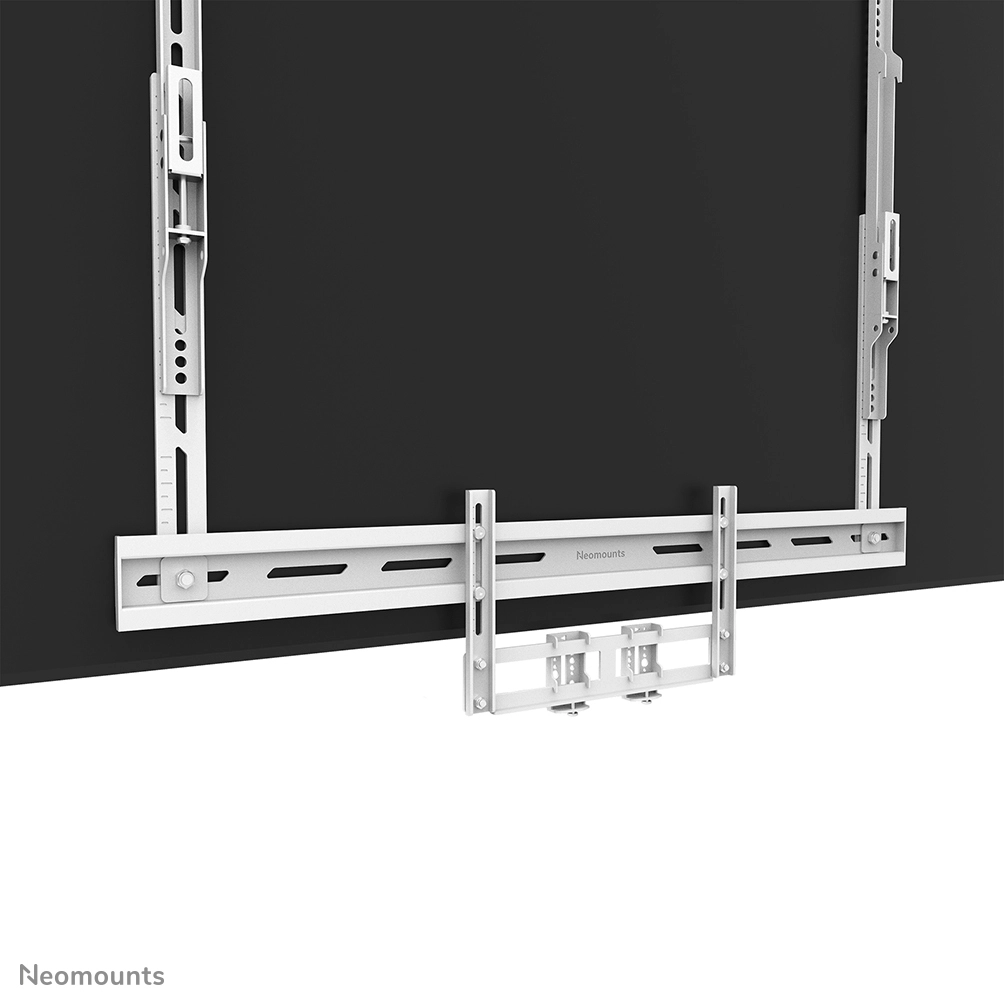

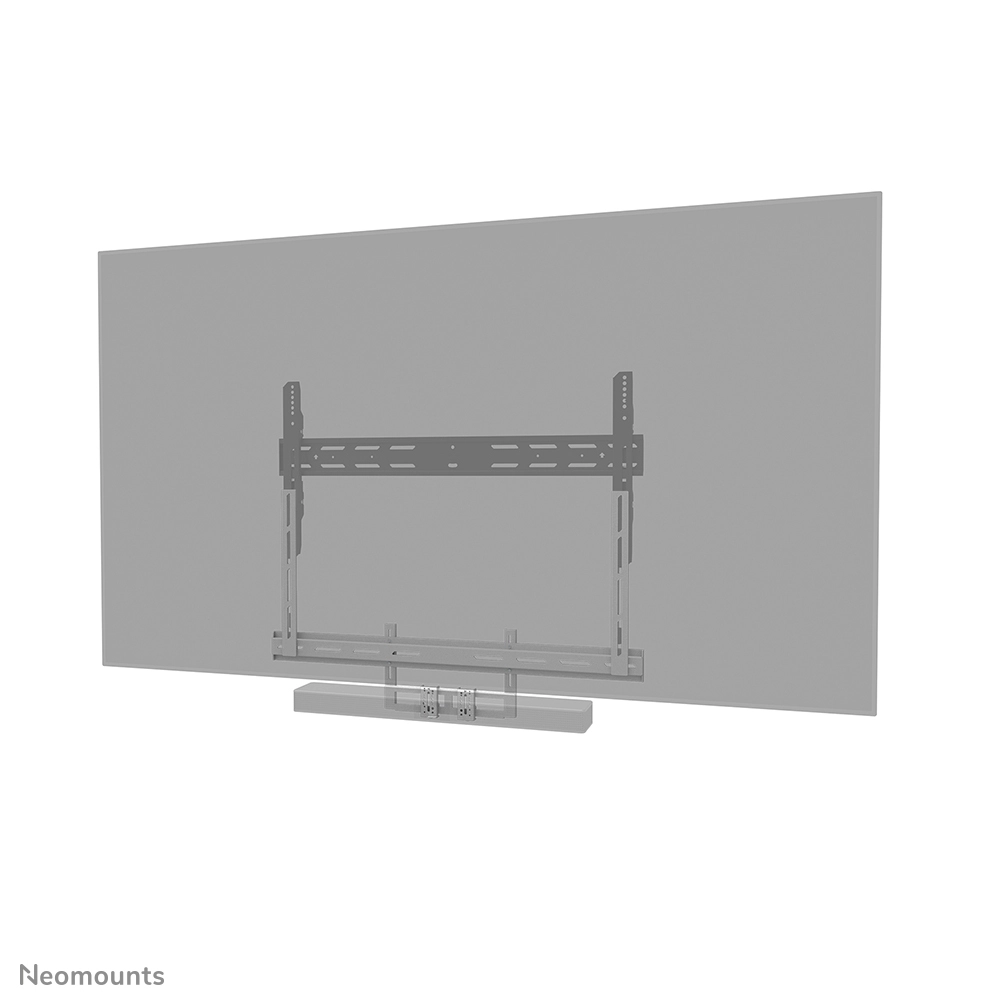

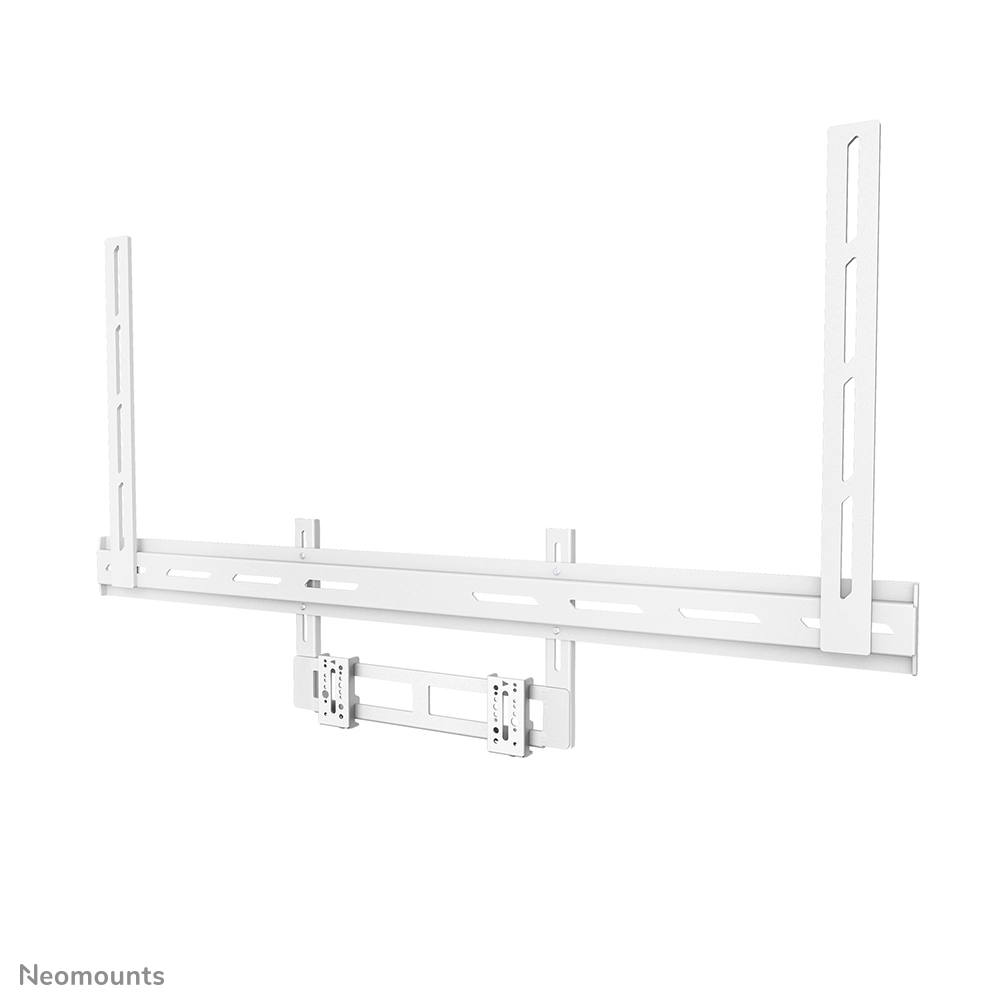

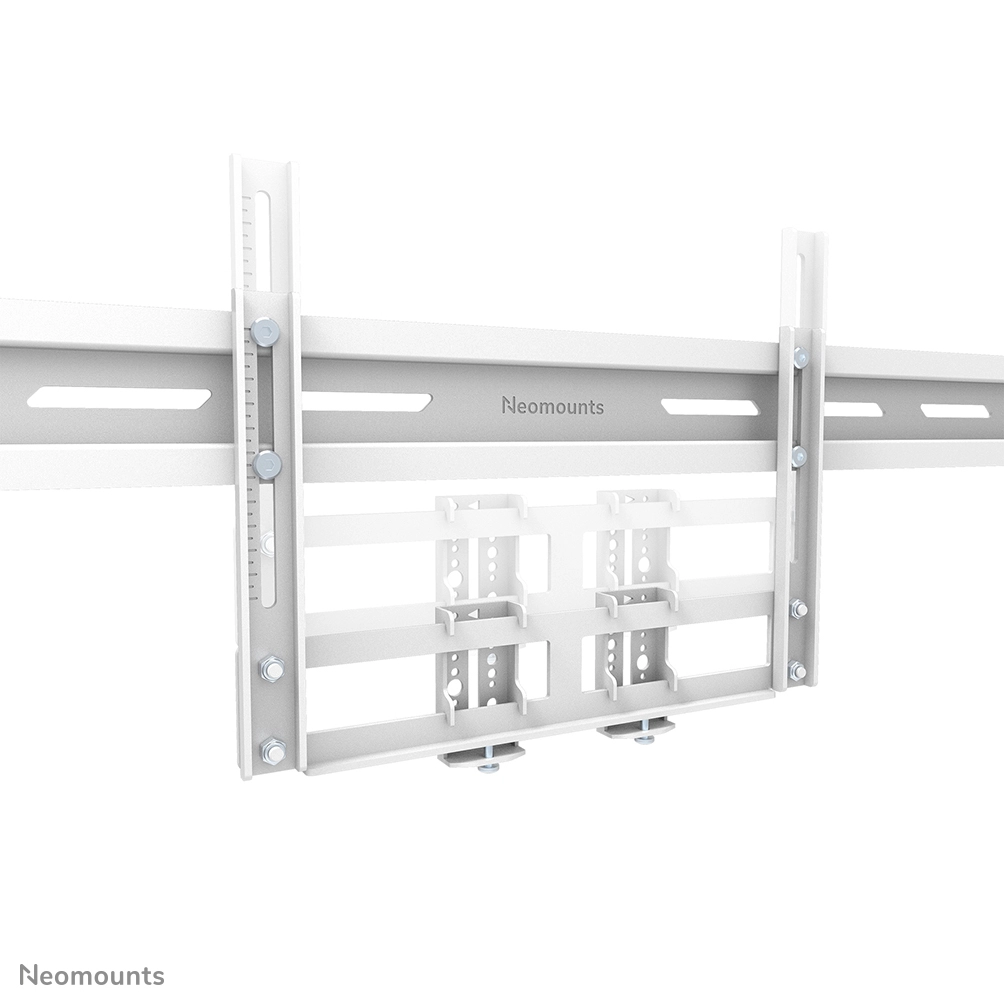

The Neomounts AV2-500WH is a universal videobar kit for screens with a minimal size of 43" and VESA hole pattern ranging from 200x200 to 800x600 mm. The very sturdy, stable and versatile kit has a maximum weight capacity of 10 kg and can be installed either above or below the screen. For maximum adaptability, both the videobar support and the backplate brackets can be independently adjusted in height.

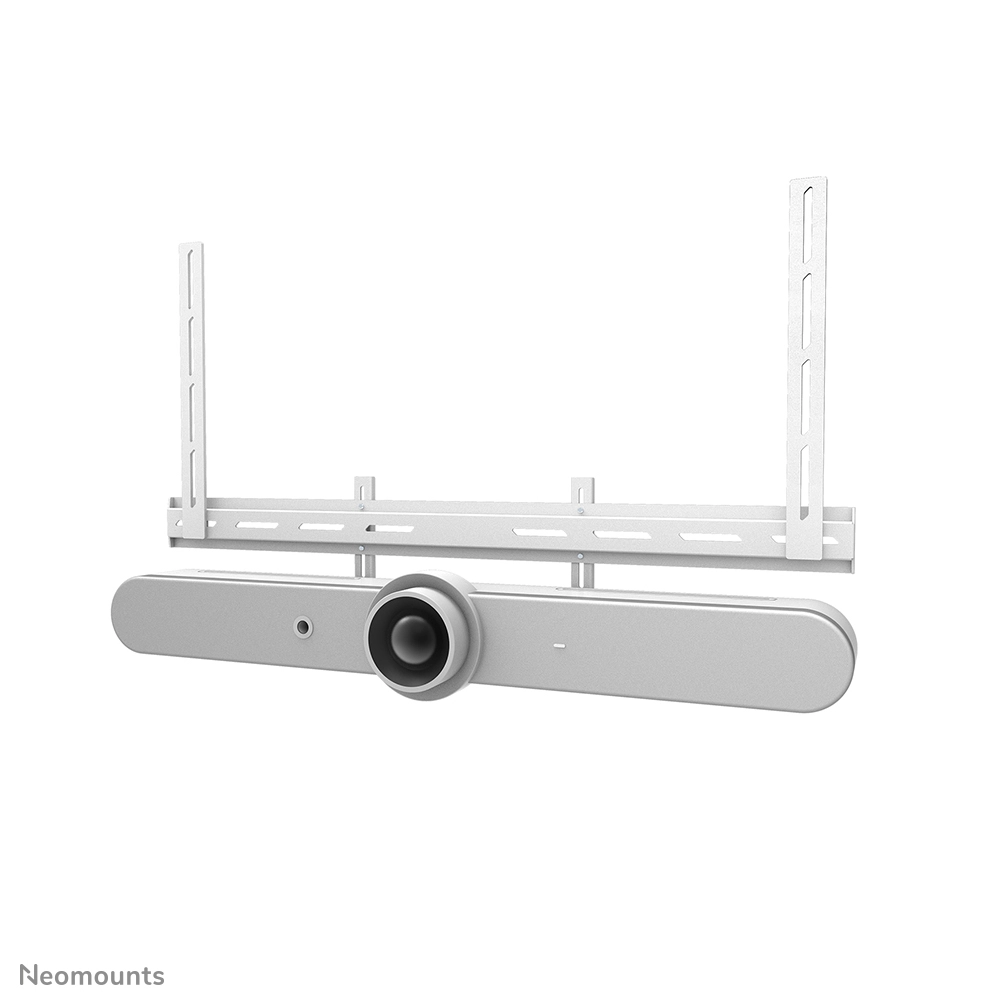

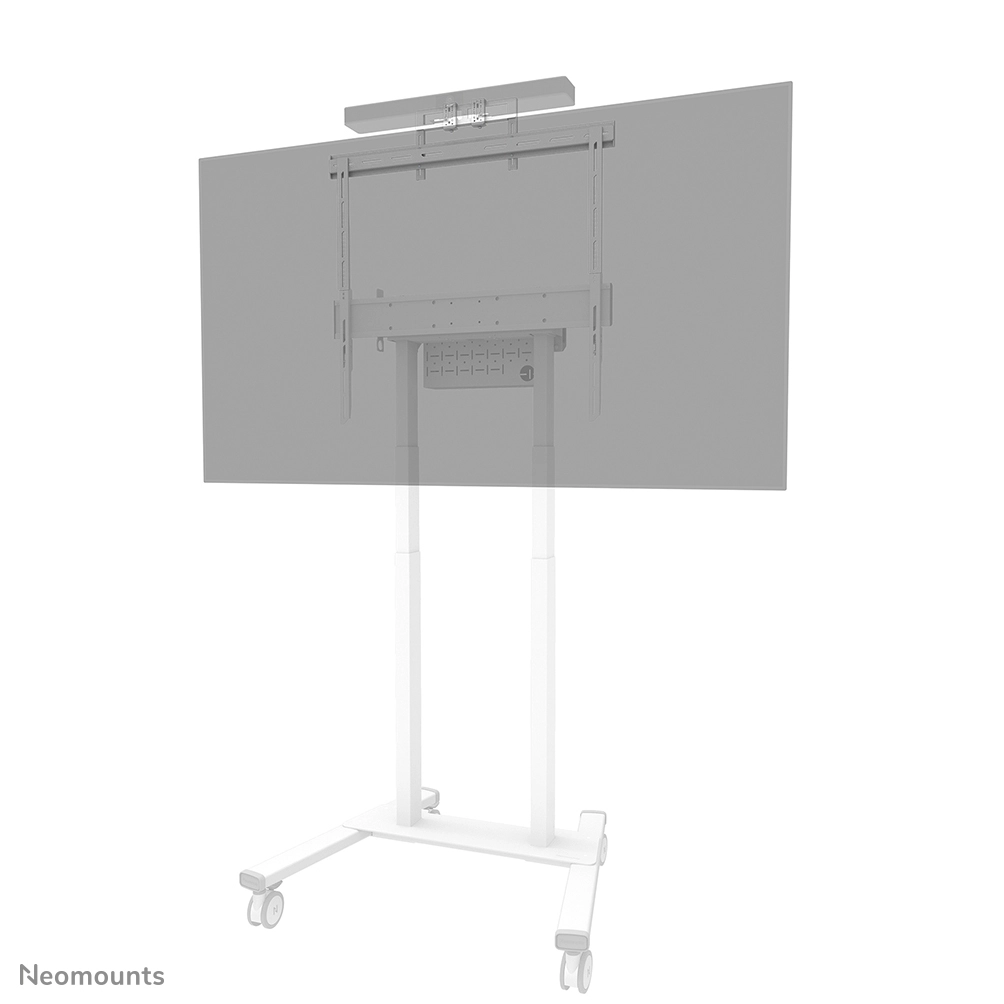

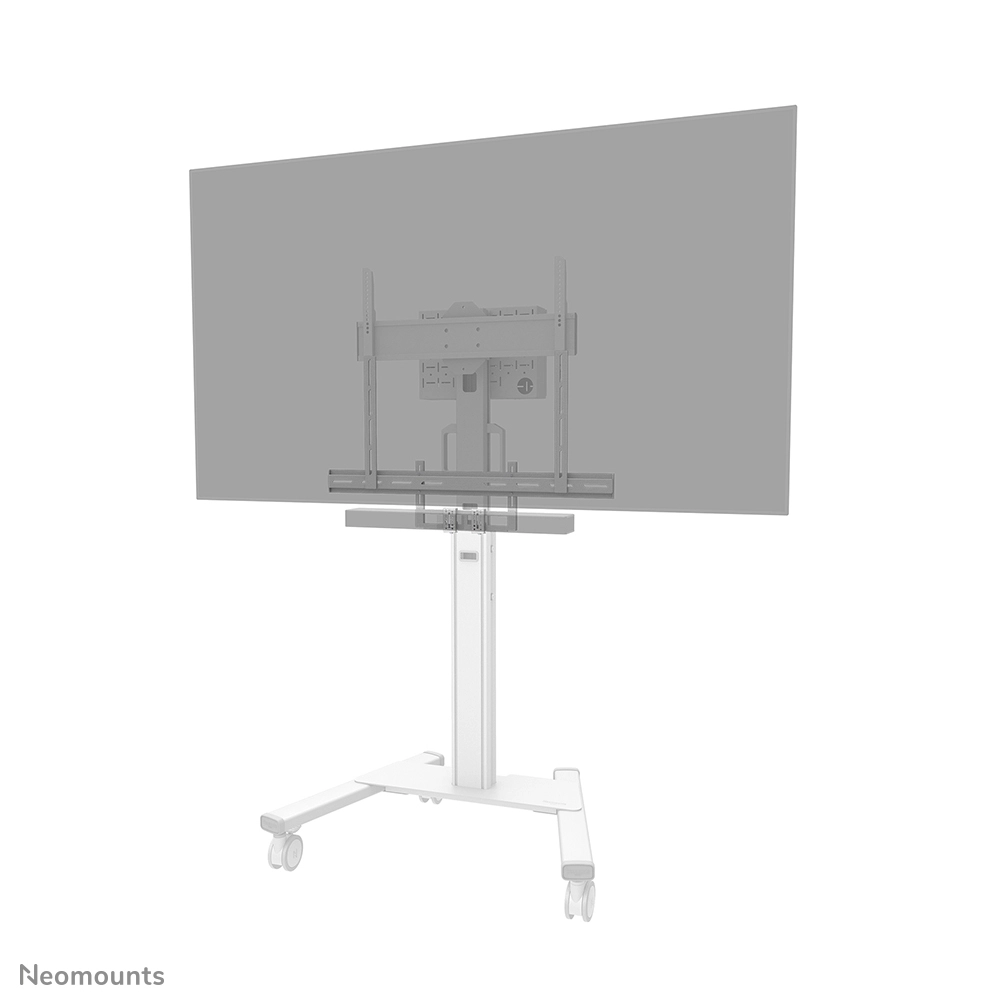

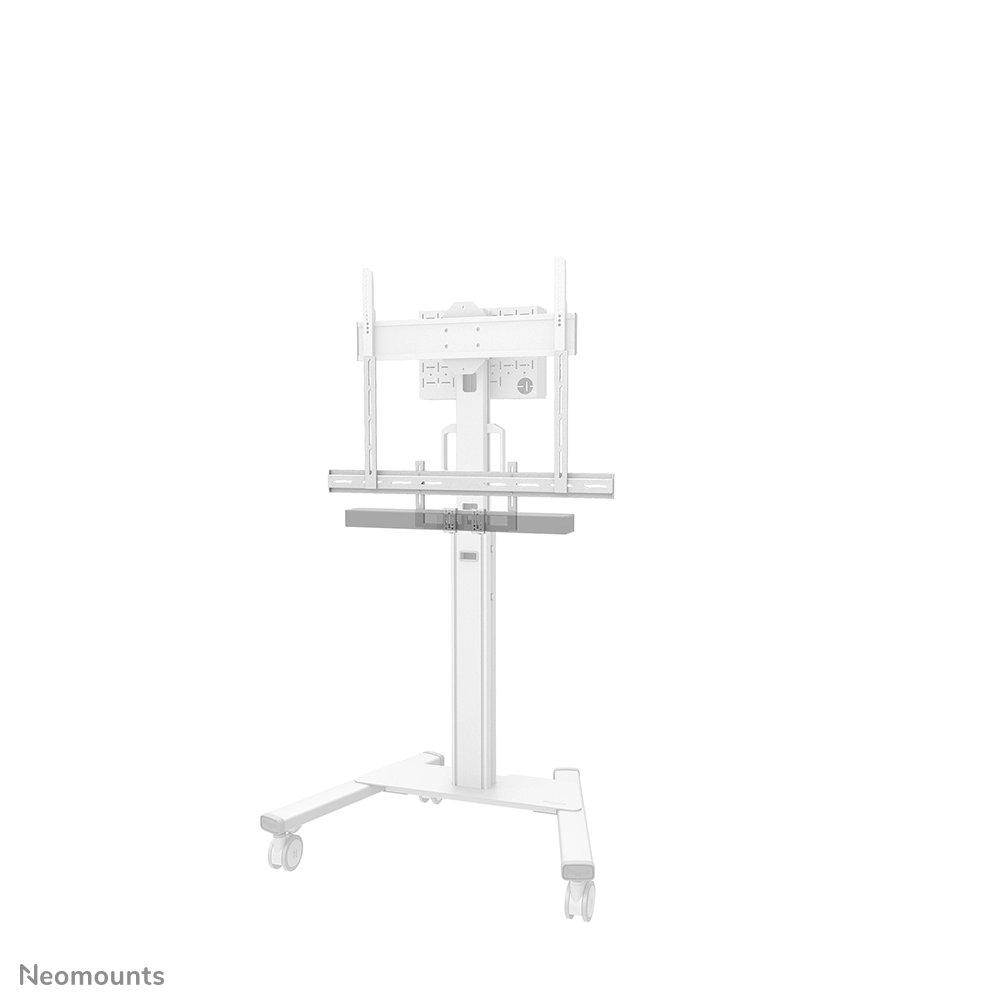

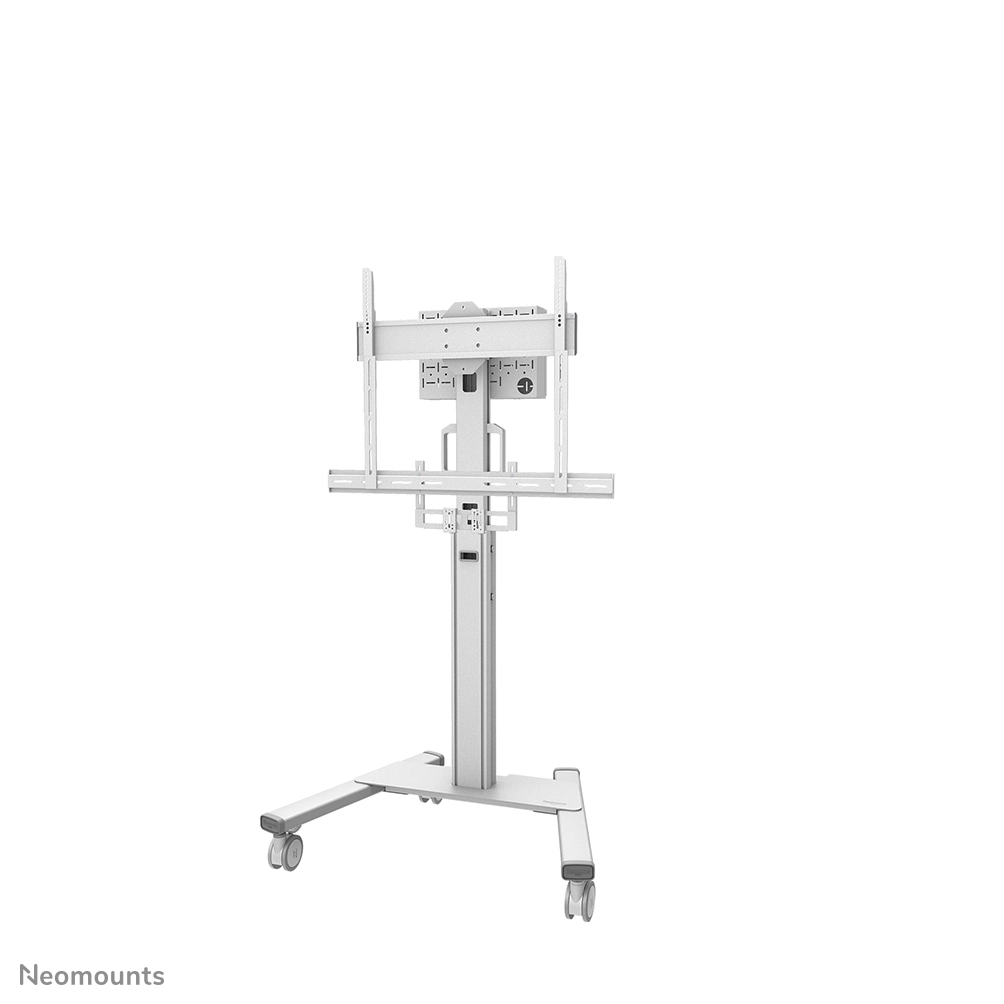

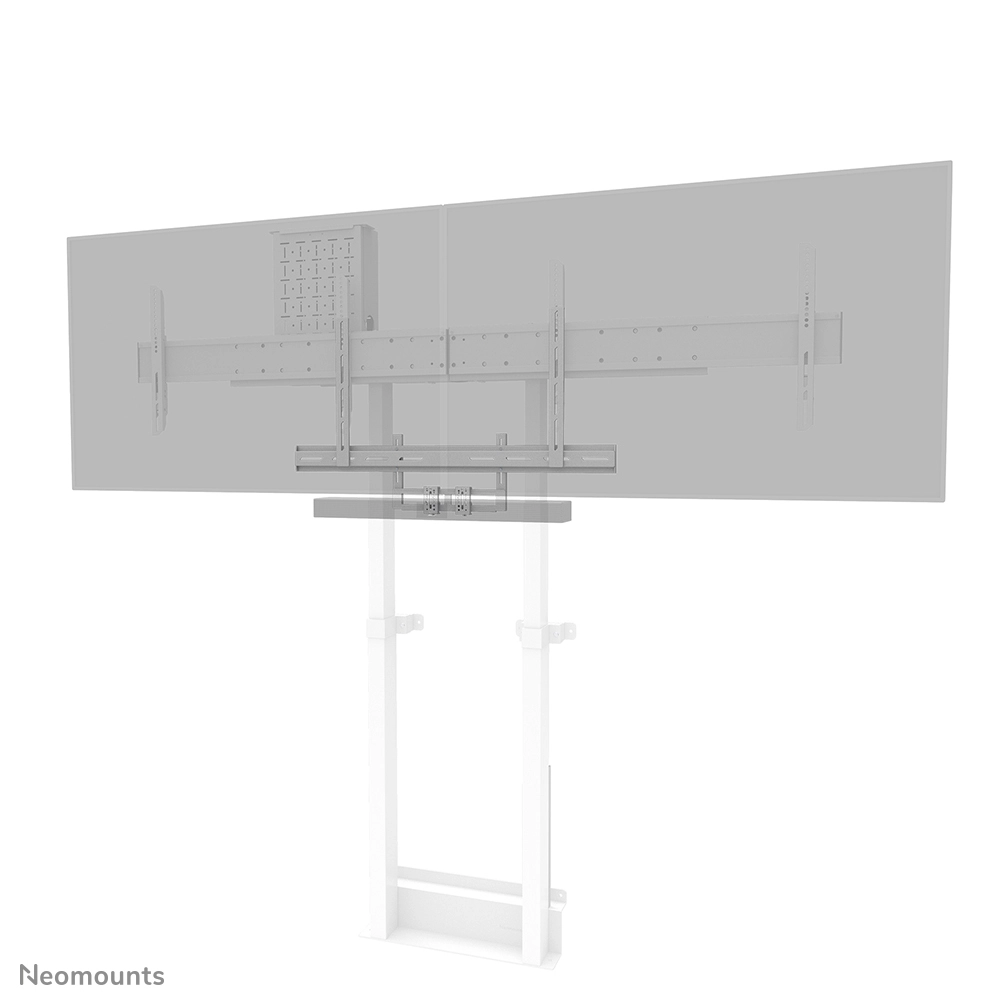

The AV2-500WH videobar kit is compatible with most videobars*, PTZ cams and soundbars, including Logitech Rally Plus speakers. To ensure a wide mounting applicability, the mounting holes can vary in width and height. The VESA frame can be adjusted both in height and width (200/400/600/800) and can be installed on wall, floor and even desk or ceiling mounts. Despite the numerous choices, installation is easy, aided by ruler-guided alignment for a seamless screen installation.

* The Neomounts AV2-500WH videobar kit is universal and suitable for any type of videobar, regardless of make or model, within the range of the mounting bracket (see line drawing). In addition, the AV2-500WH is optimised for the following specific videobars:

- Bose Professional VB1 and VB-S
- Neat Bar and Bar Pro
- Poly Studio, Studio X70 and Studio X30
- Jabra Panacast 50
- Logitech Meetup, Rally Bar, Rally Bar Mini, Rally Bar Huddle and Rally Plus
- Cisco Webex Room Kit Plus
- Yealink MSpeaker II, MeetingBar A30, MeetingEye 400 and MeetingEye 600

Refer to the online manual for specific model or mounting size compatibility.

Specification

Product
Product id	997083
Brand	Neomounts
Partnr	AV2-500WH
EAN/UPC code	8717371443757
Warranty (months)	5 year
Features
Product type	Camera mount
Product colour	White
Placement supported	Wall/Ceiling
Minimum screen size compatibility	43 "
Maximum screen size	110
Brand compatibility	Any brand
Compatible products	Bose Professional VB1 en VB-S Neat Bar en Bar Pro Poly Studio, Studio X70 en Studio X30 Jabra Panacast 50 Logitech Meetup, Rally Bar, Rally Bar Mini, Rally Bar Huddle en Rally Plus Cisco Webex Room Kit Plus Yealink MSpeaker II, MeetingBar A30, MeetingEye 400 en MeetingEye 600
Housing material	Steel
Panel mounting interface	200 x 200, 200 x 400, 400 x 400, 400 x 600, 200 x 300, 600 x 200, 600 x 300, 600 x 400, 800 x 200, 800 x 400, 400 x 300, 400 x 500, 600 x 500, 600 x 600, 800 x 500, 800 x 600, 400 x 200 mm
Weight & dimensions
Width	900 mm
Maximum weight capacity	10 kg
Depth	31 mm
Height	416 mm
Weight	5300 g
Technical details
Harmonized System (HS) code	7326909890
Warranty period	5 jaar
Total carbon footprint	20.05 kilogram CO2e
Logistics data
Country of origin	China
Quantity per master (outer) case	3 stuk(s)
Master (outer) case weight	18400 g
Master (outer) case length	238 mm
Master (outer) case width	263 mm
Master (outer) case height	944 mm
Master (outer) case net weight	17700 g
Quantity per EUR-pallet	45 stuk(s)
Packaging data
Package width	220 mm
Package depth	84 mm
Package height	926 mm
Package weight	7200 g
