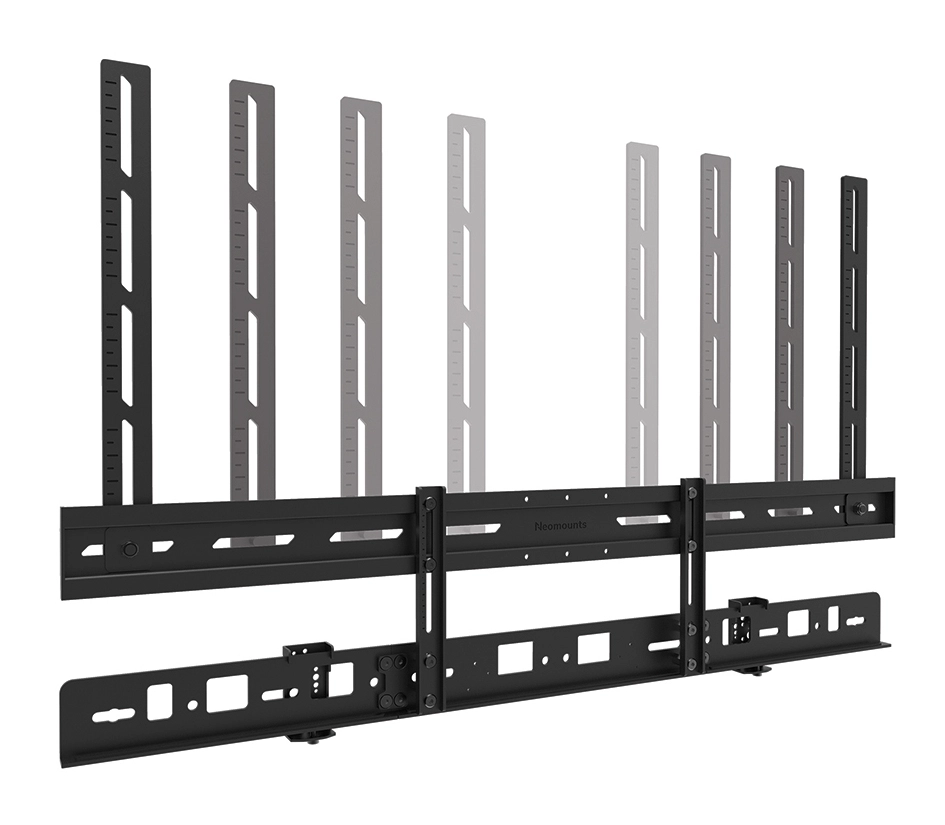

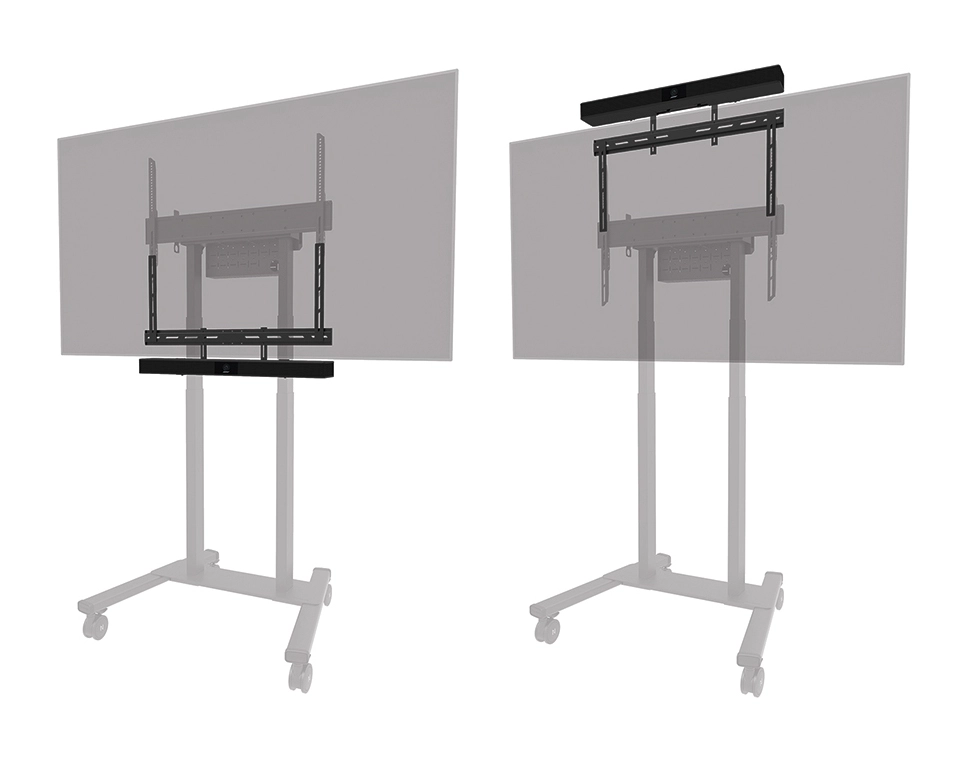

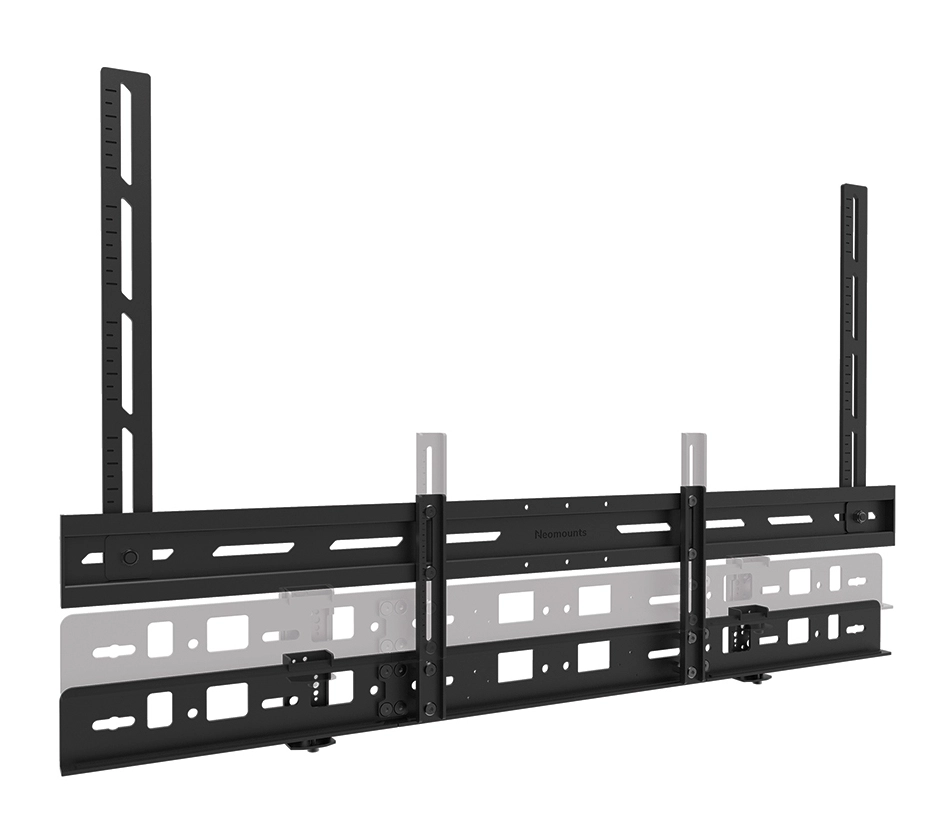

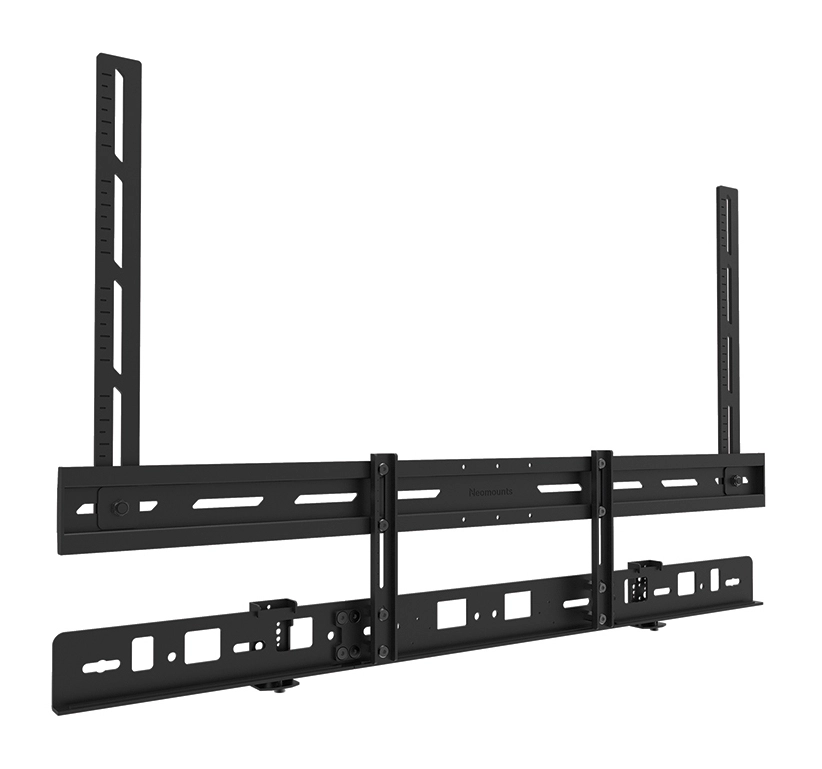

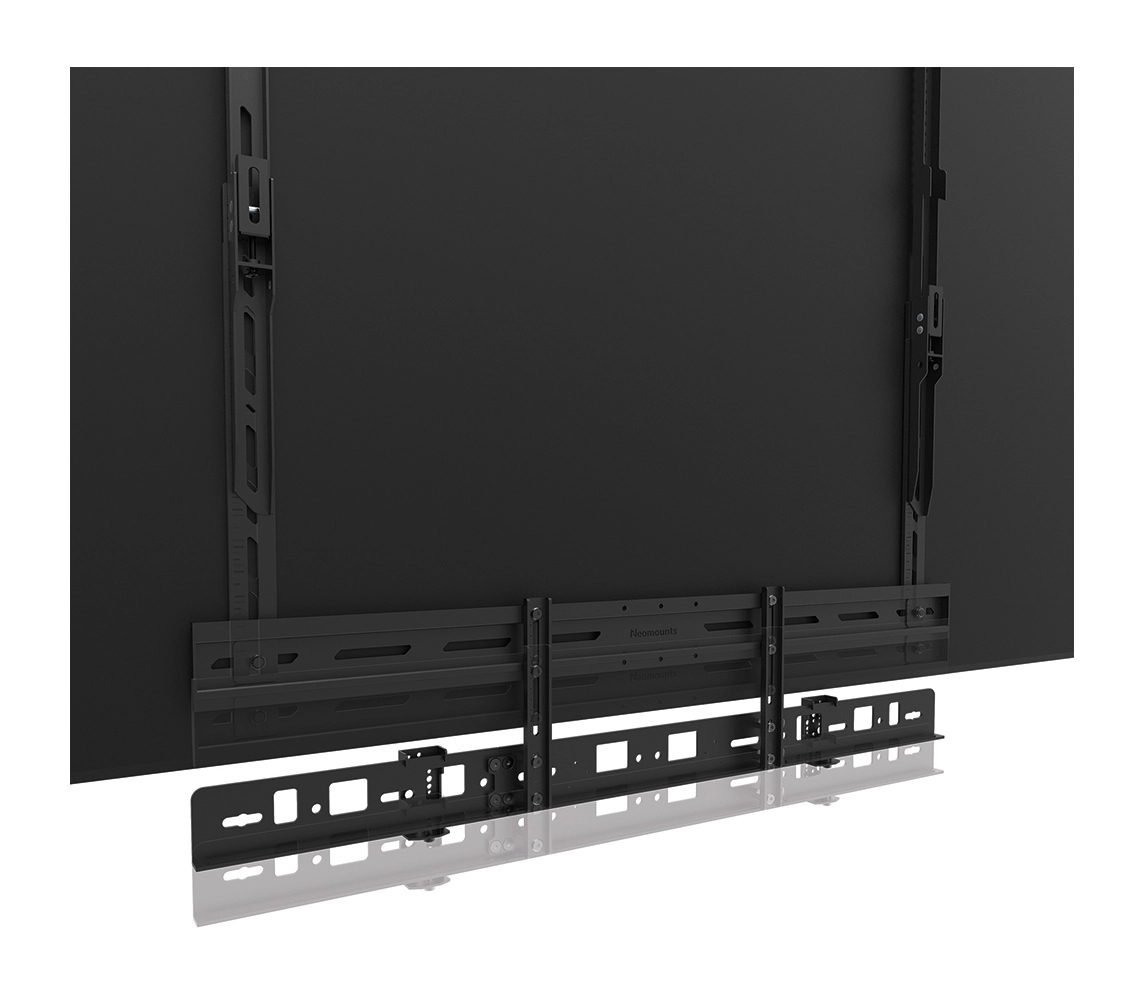

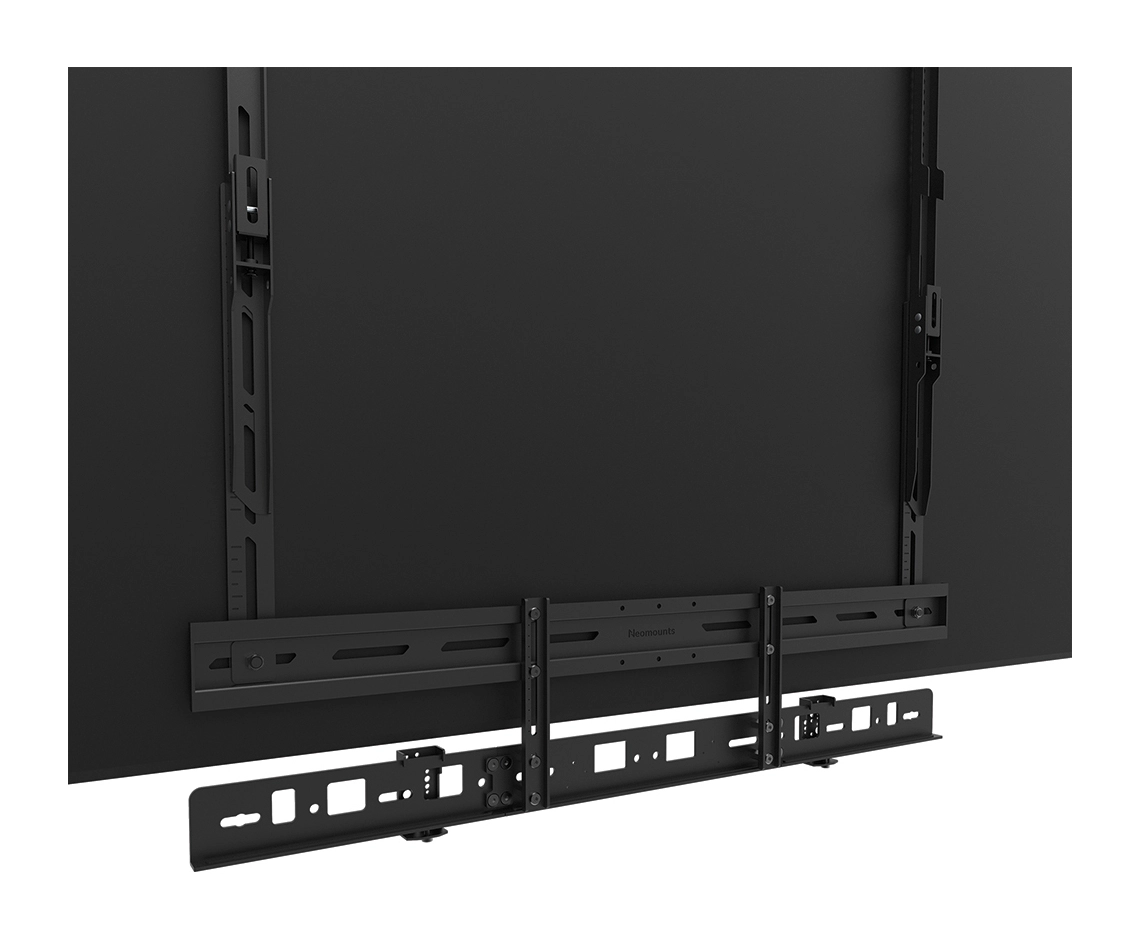

The Neomounts AV30-500BL is a universal videobar kit designed for displays from 43" and larger, with VESA hole patterns ranging from 200x200 up to 800x600 mm. Built for durability and versatility, the kit supports devices up to 10 kg and can be installed either above or below the screen. Both the videobar support and the backplate brackets are height-adjustable for maximum flexibility.

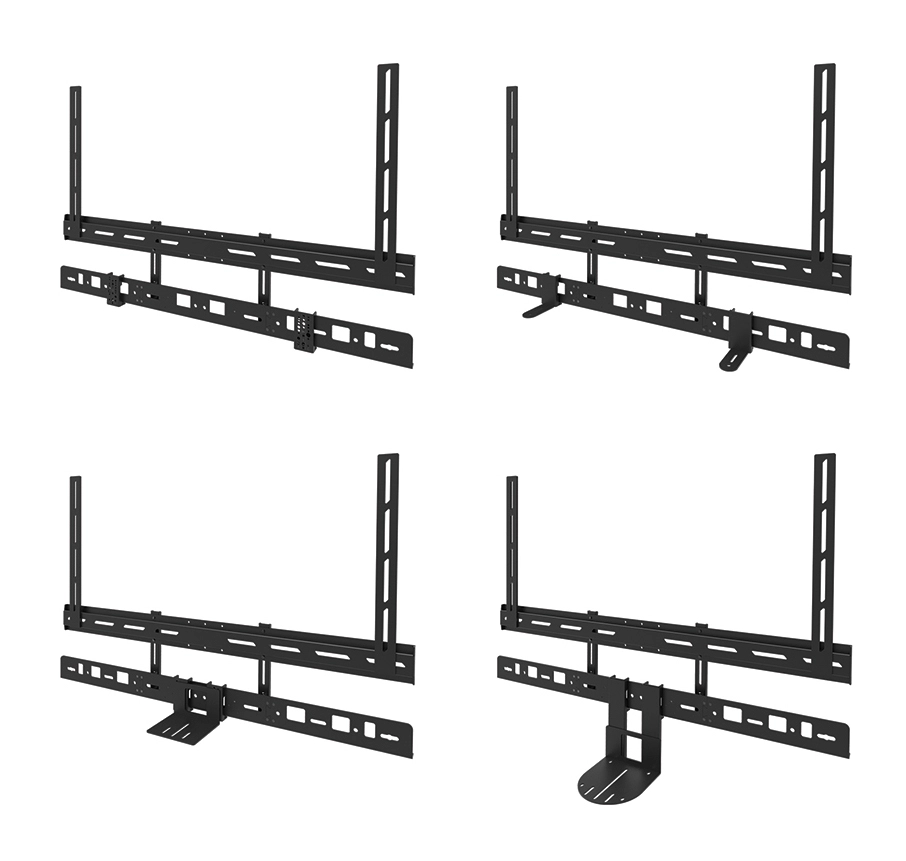

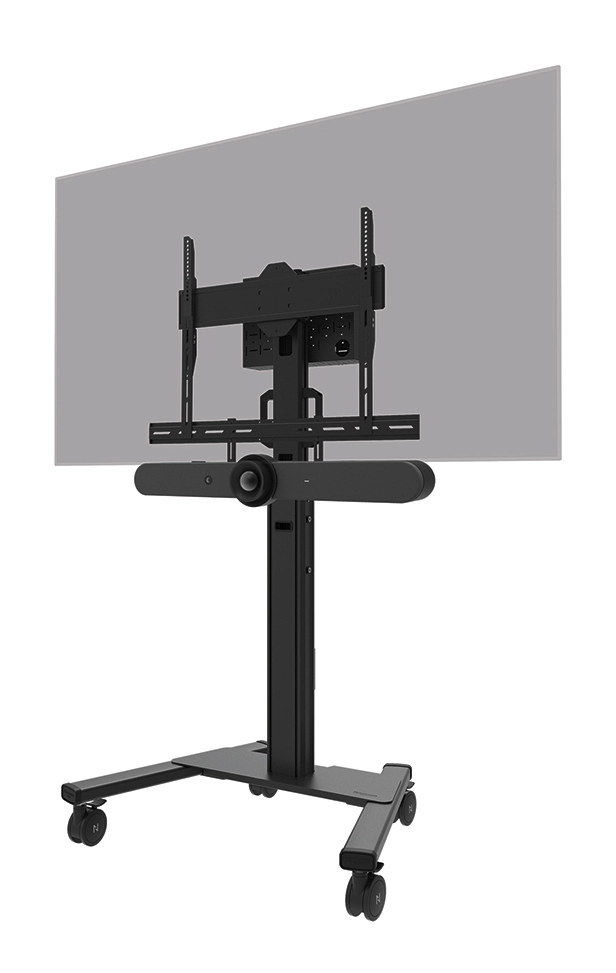

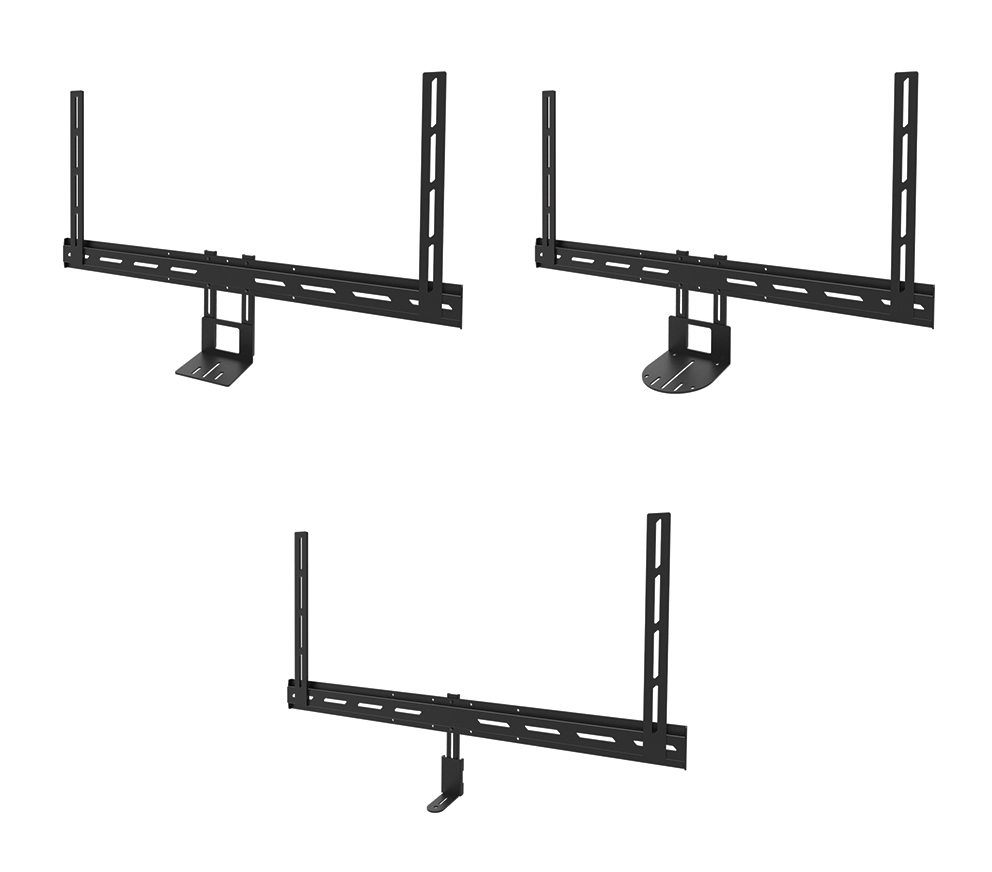

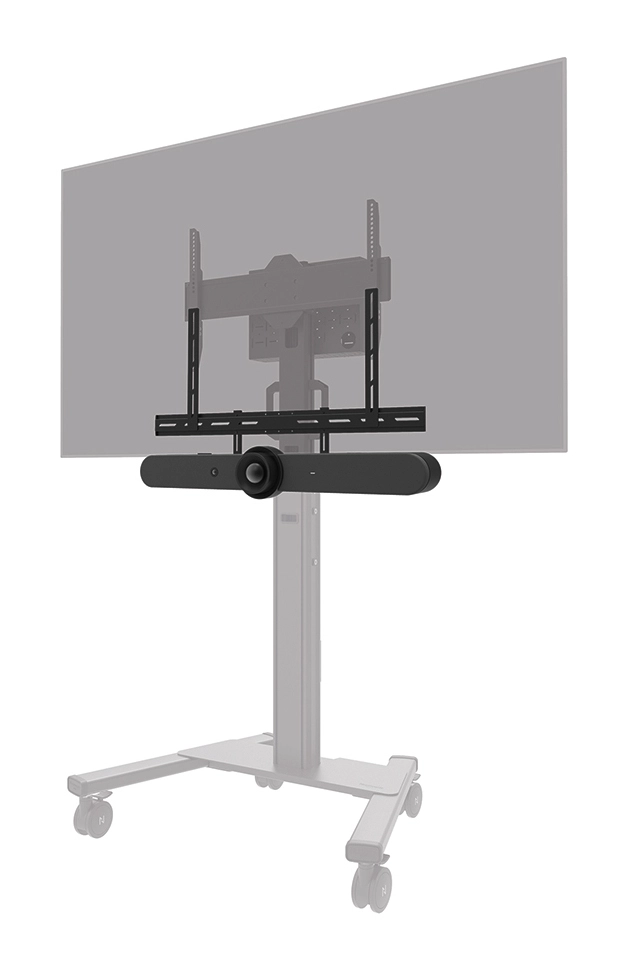

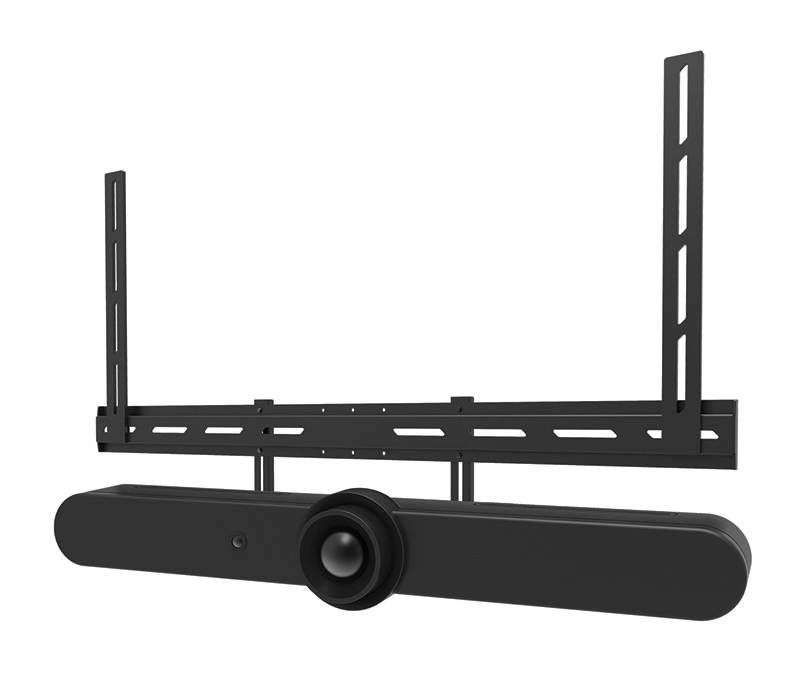

Compatible with most videobars*, PTZ cameras, and soundbars, including Logitech Rally speakers, the AV30-500BL ensures broad applicability. The mounting holes allow width and height variation, while the VESA frame adjusts in both height and width (200/400/600/800). The kit can be used on wall, floor, desk, or ceiling mounts. Despite its versatility, installation is straightforward, aided by ruler-guided alignment for a seamless fit.

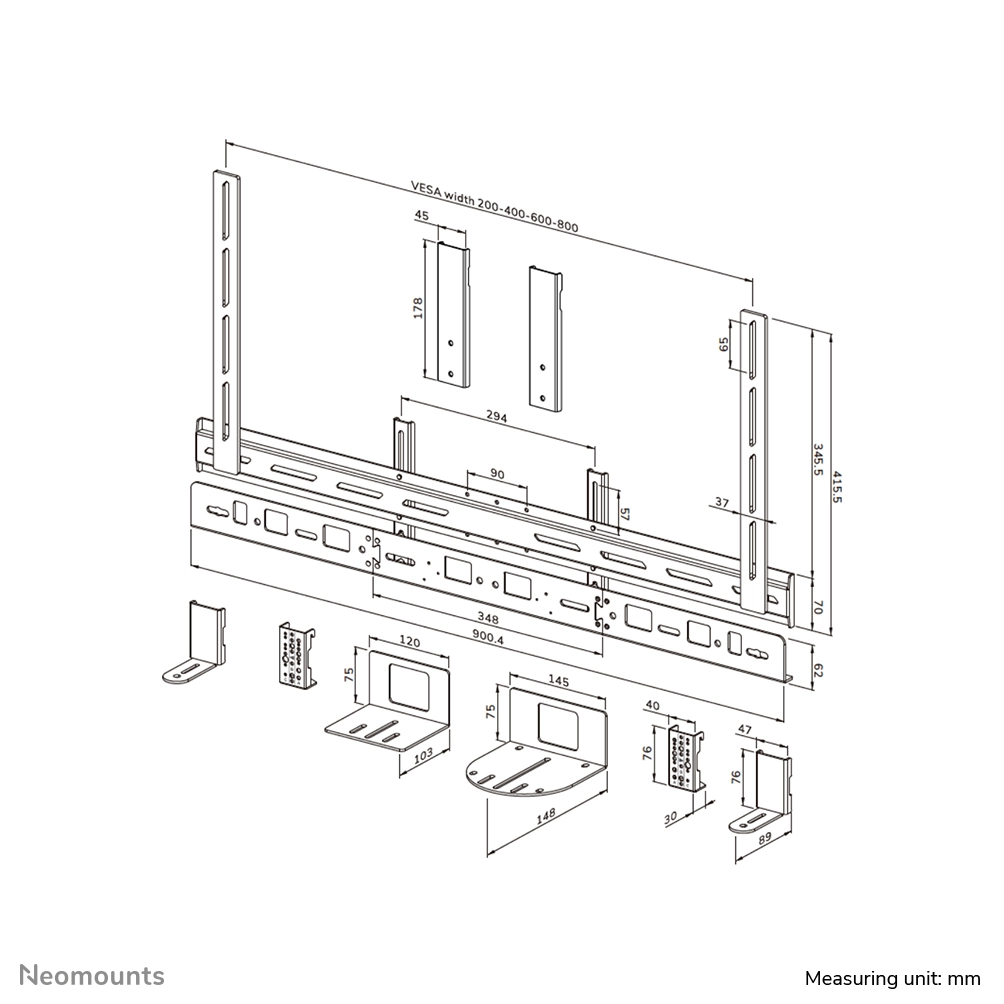

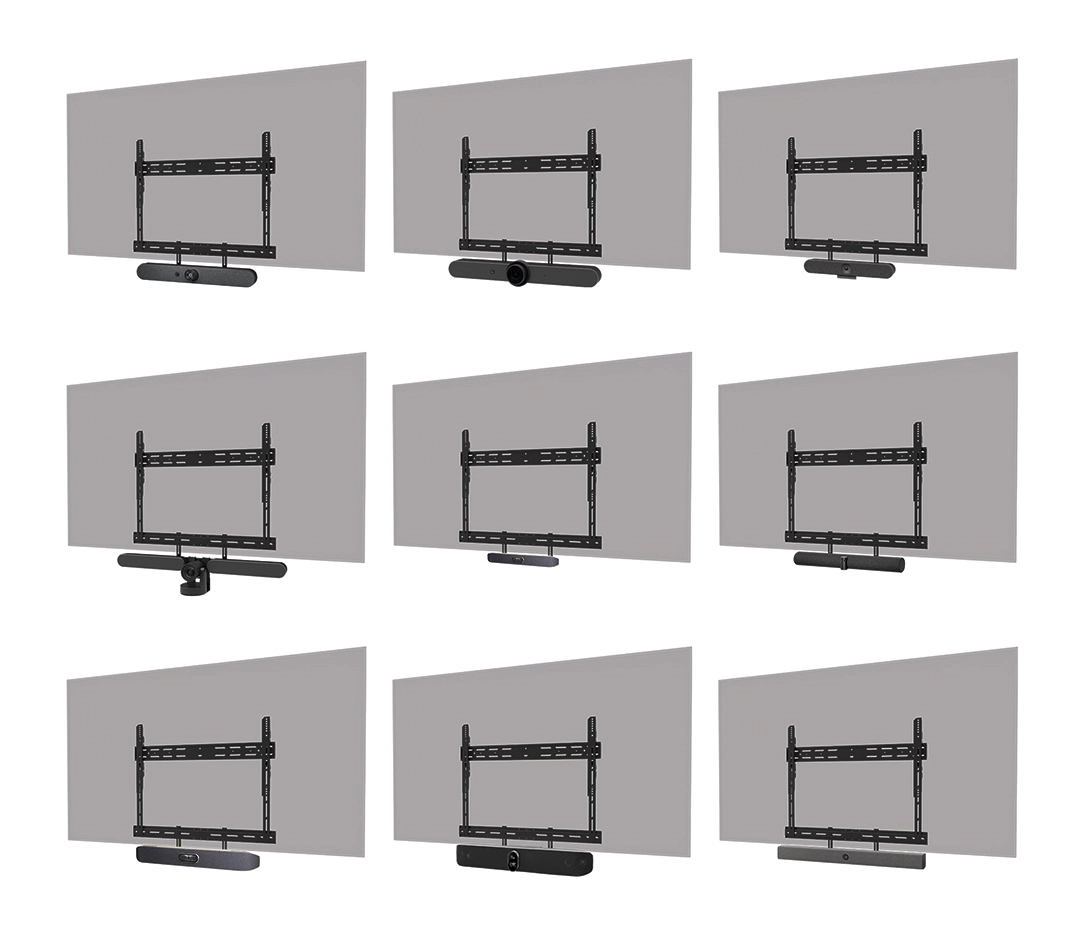

* The Neomounts AV30-500BL videobar kit is truly universal, compatible with any videobar regardless of brand or model, provided it fits within the bracket?s range (see line drawing). In addition, the kit is specially designed for the following videobars:

- Bose Professional VB1 and VB-S
- Neat Bar (gen 1) and Bar Pro
- Poly Studio USB, Studio R30/X30/X32, Studio X50/X52/V52, Studio X70/X72/V72 and Studio V12
- Jabra Panacast 50/40
- Logitech Meetup, Meetup 2, Rally Bar, Rally Bar Mini, Rally Bar Huddle and Rally Plus
- Cisco Webex Room Kit Plus
- Yealink MSpeaker II, MeetingBar A30/A40/A50, UVC20/UVC30 Room/UVC34/UVC40 and MeetingEye 400/600
- AVer VB350 and VB370A
- Barco ClickShare Bar (Pro)
- Maxhub Xbar U50/V50/W70 and UC S05/S07/S10/S10 Pro/S15
- Predia Connect Camera
- Biamp Parlé ABC 2500(a), VBC 2500(a)/2800 and SBC 2
- Lenovo ThinkSmart One

For detailed compatibility with specific models or mounting sizes, please refer to the online manual.

Specification

Product
Product id	1006406
Brand	Neomounts
Partnr	AV30-500BL
EAN/UPC code	8717371449377
Warranty (months)	5 year
Features
Product type	Videobar mount
Panel mounting interface	200 x 200, 200 x 300, 200 x 400, 400 x 200, 400 x 300, 400 x 400, 400 x 600, 600 x 300, 600 x 200, 600 x 400, 600 x 500, 600 x 600, 800 x 800, 800 x 200, 800 x 400, 800 x 450, 800 x 500, 800 x 600 mm
Minimum screen size compatibility	43 "
Product colour	Black
Maximum screen size	110
Maximum weight capacity	10 kg
Harmonized System (HS) code	7326909890
Number of displays supported	1
Height adjustment range	0 - 55 mm
Housing material	Steel
Minimum VESA mount	200 x 200 mm
Maximum VESA mount	800 x 600 mm
Technical details
Warranty period	5 jaar
Country of origin	China
Weight & dimensions
Width	900 mm
Depth	193 mm
Height	555 mm
Packaging data
Package width	276 mm
Package depth	958 mm
Package height	86 mm
Package weight	6900 g
Package type	Box
Logistics data
Master (outer) case net weight	17100 g
Master (outer) case width	276 mm
Master (outer) case length	978 mm
Master (outer) case height	195 mm
Quantity per master (outer) case	3 stuk(s)
Master (outer) case weight	21200 g
