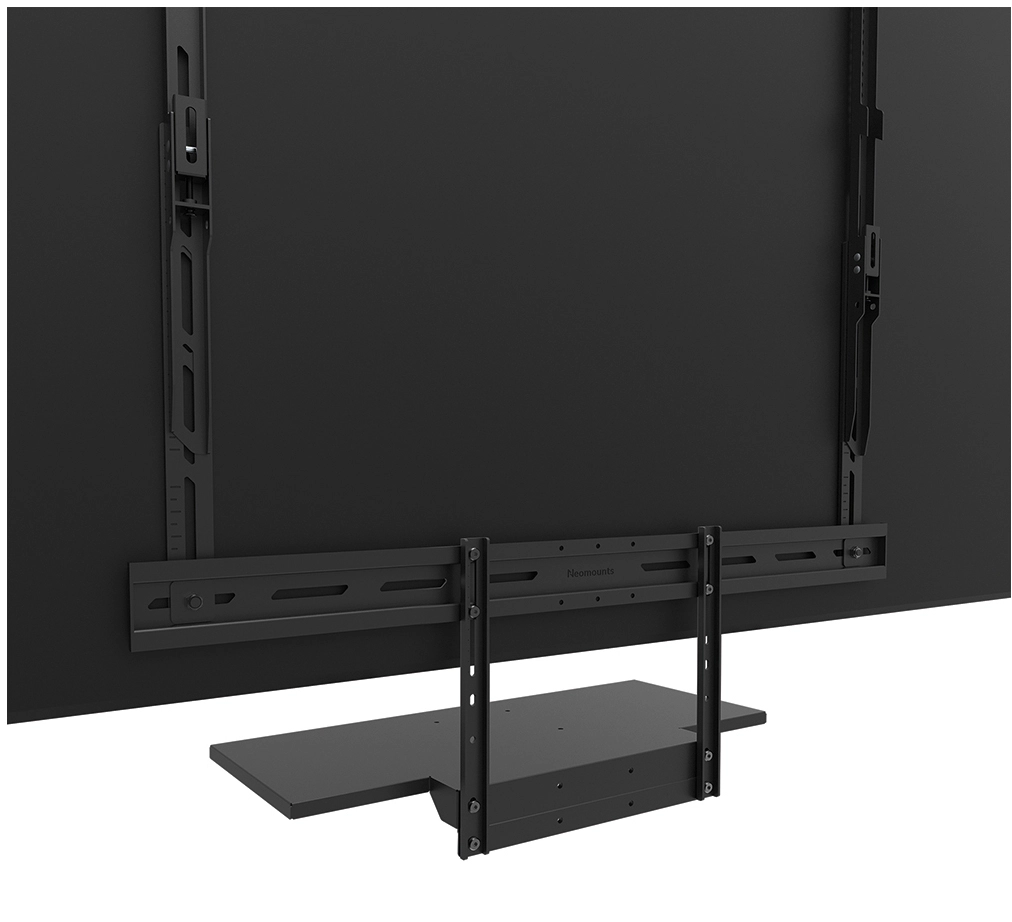

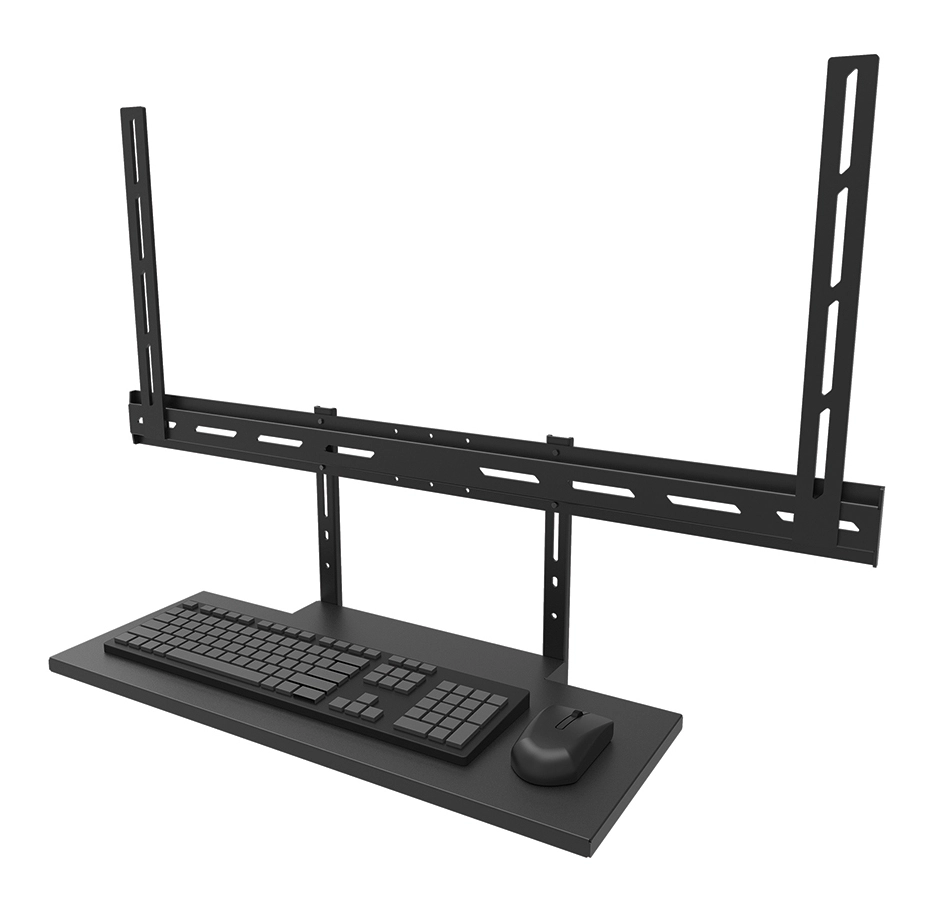

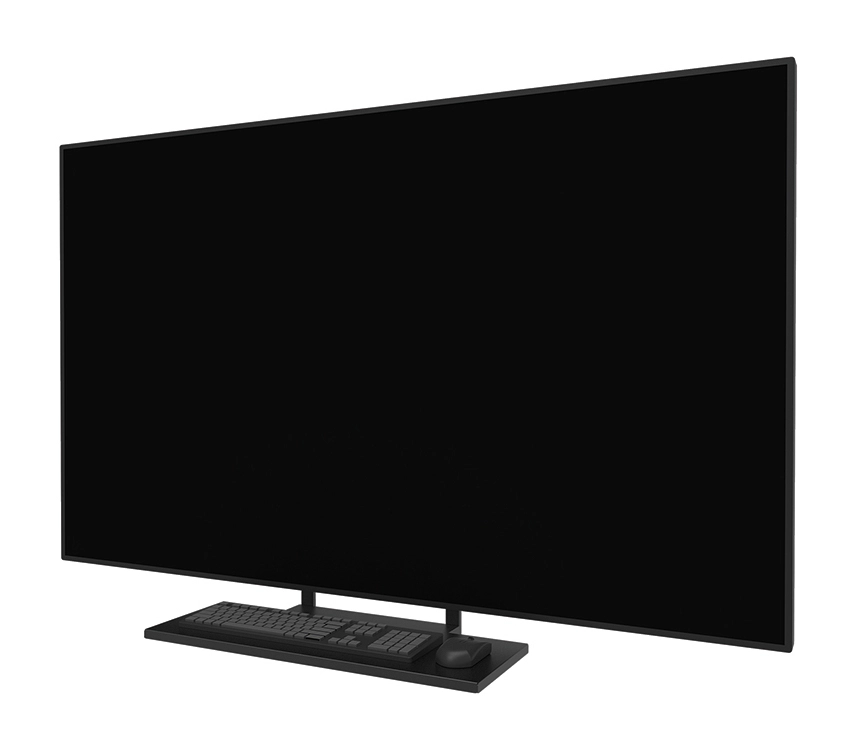

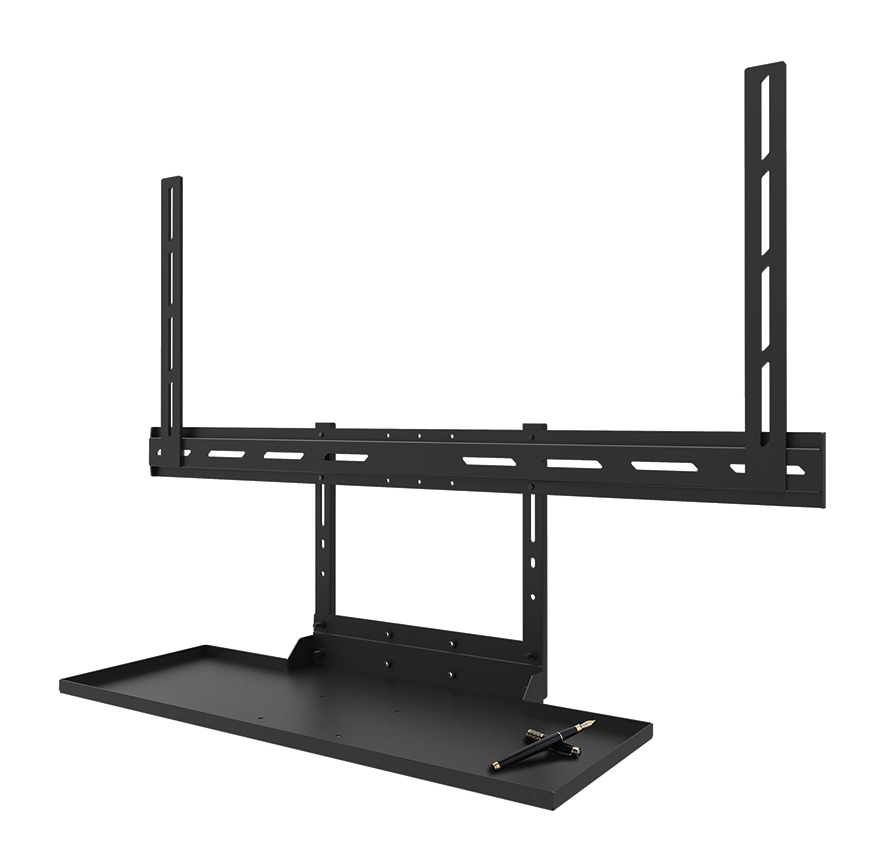

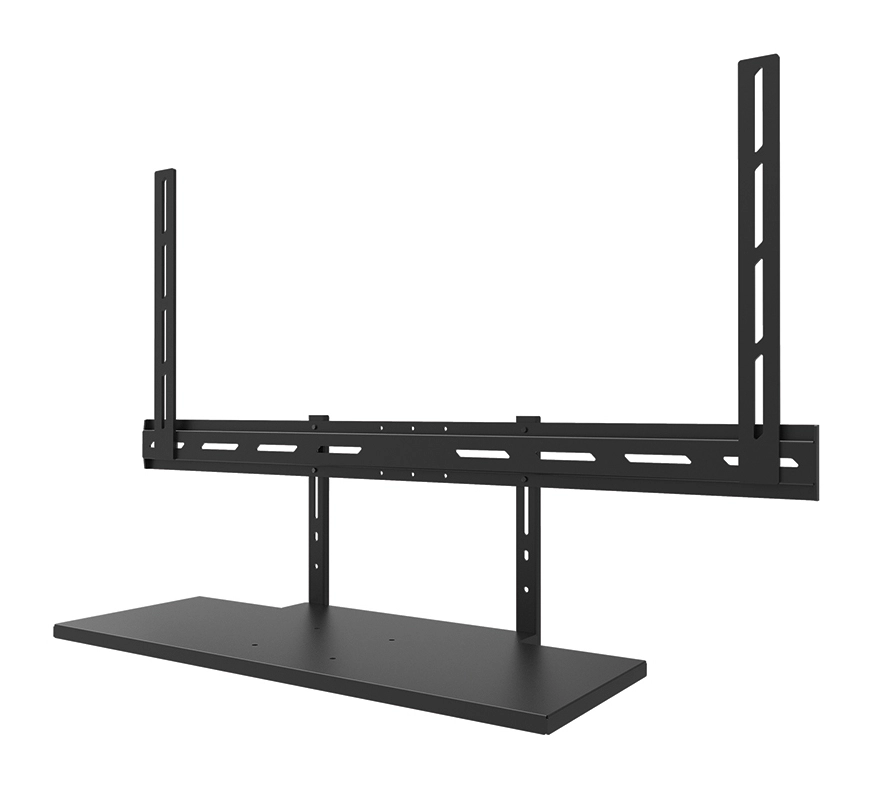

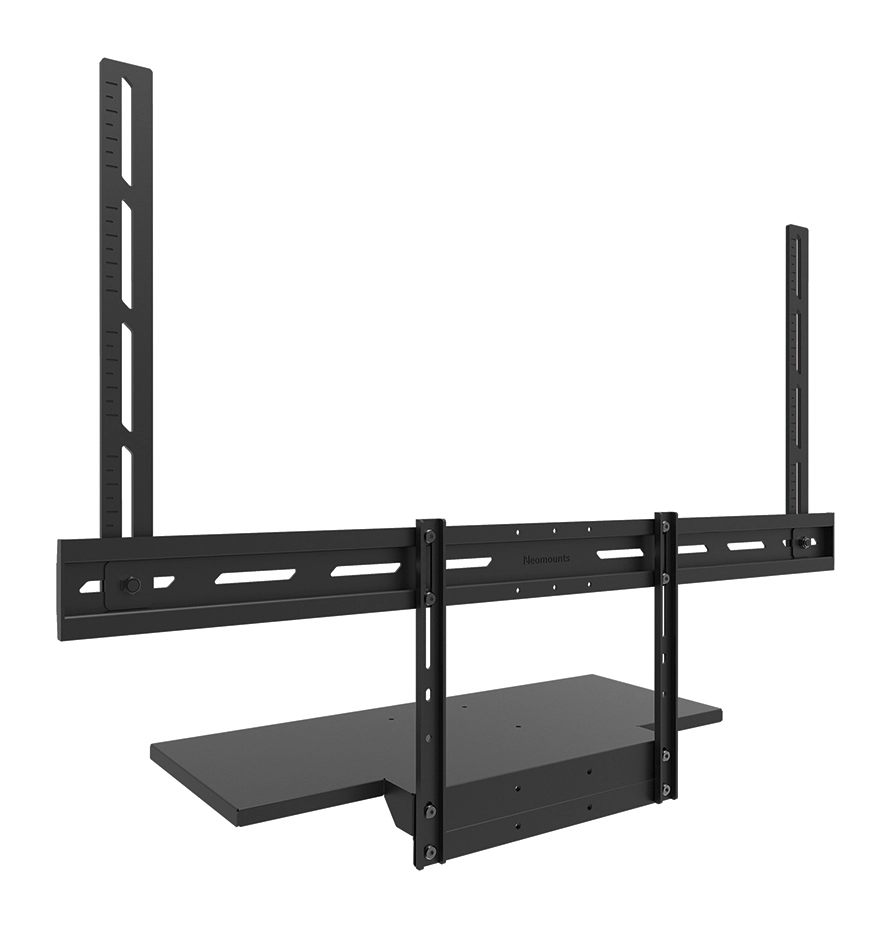

The Neomounts AV40-500BL is a universal keyboard shelf kit designed for installation beneath displays from 43" and larger, supporting VESA hole patterns from 200x200 up to 800x600 mm. Featuring a shelf size of 27x60, 3 cm and a maximum load capacity of 2, 5 kg, it offers ample space for both keyboard and mouse.

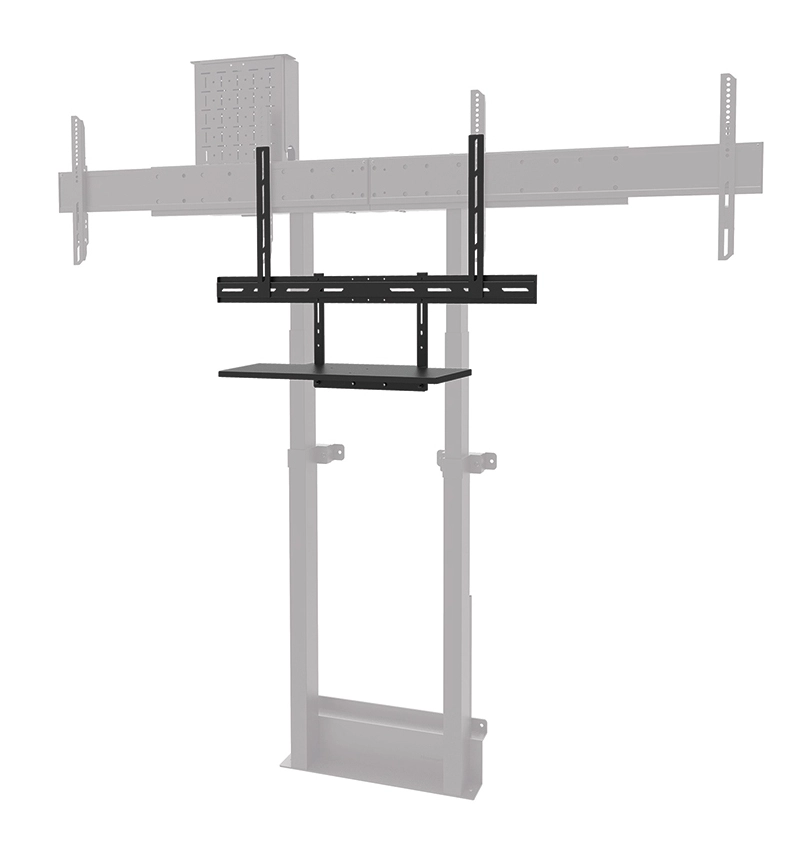

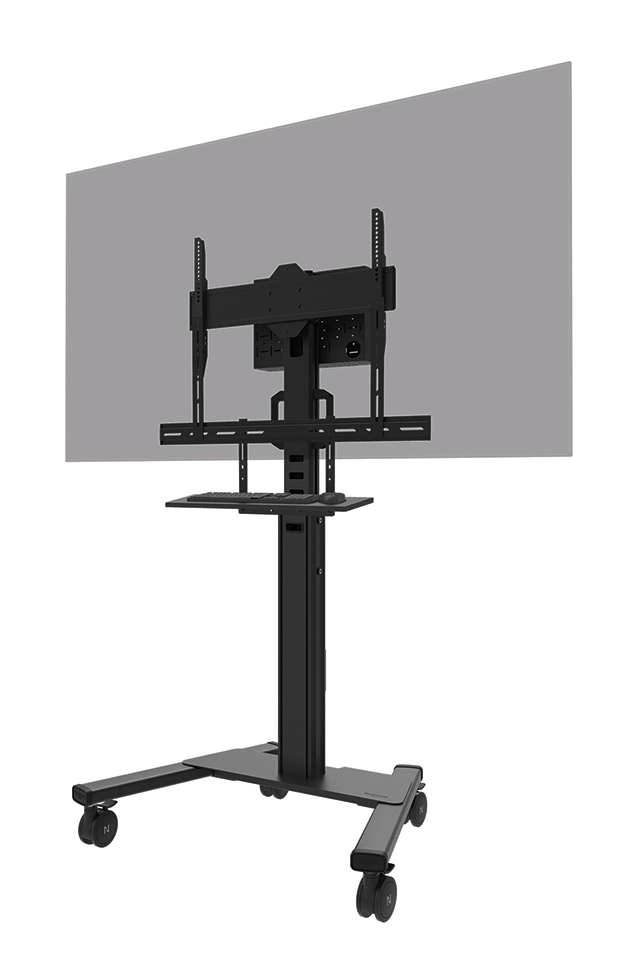

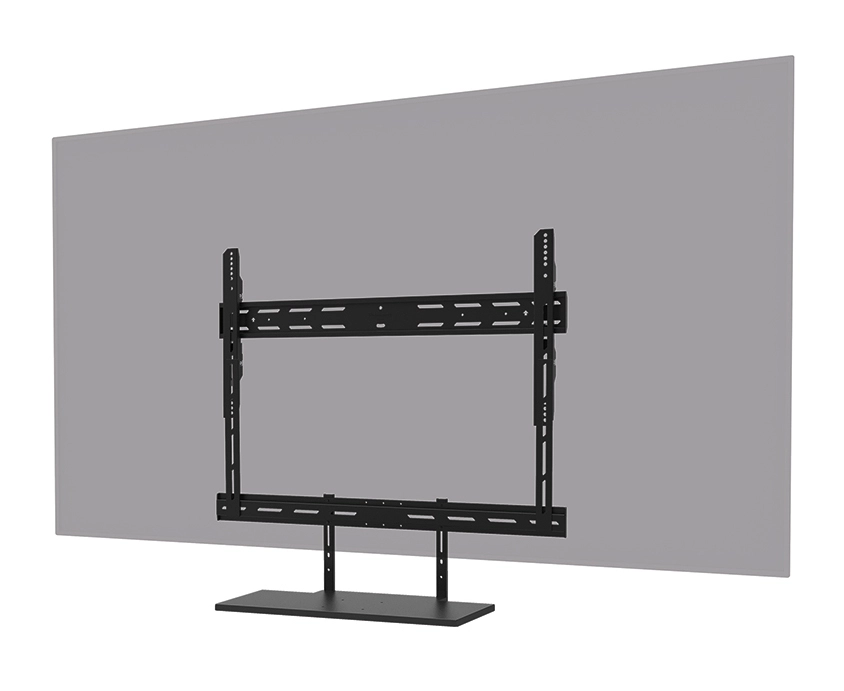

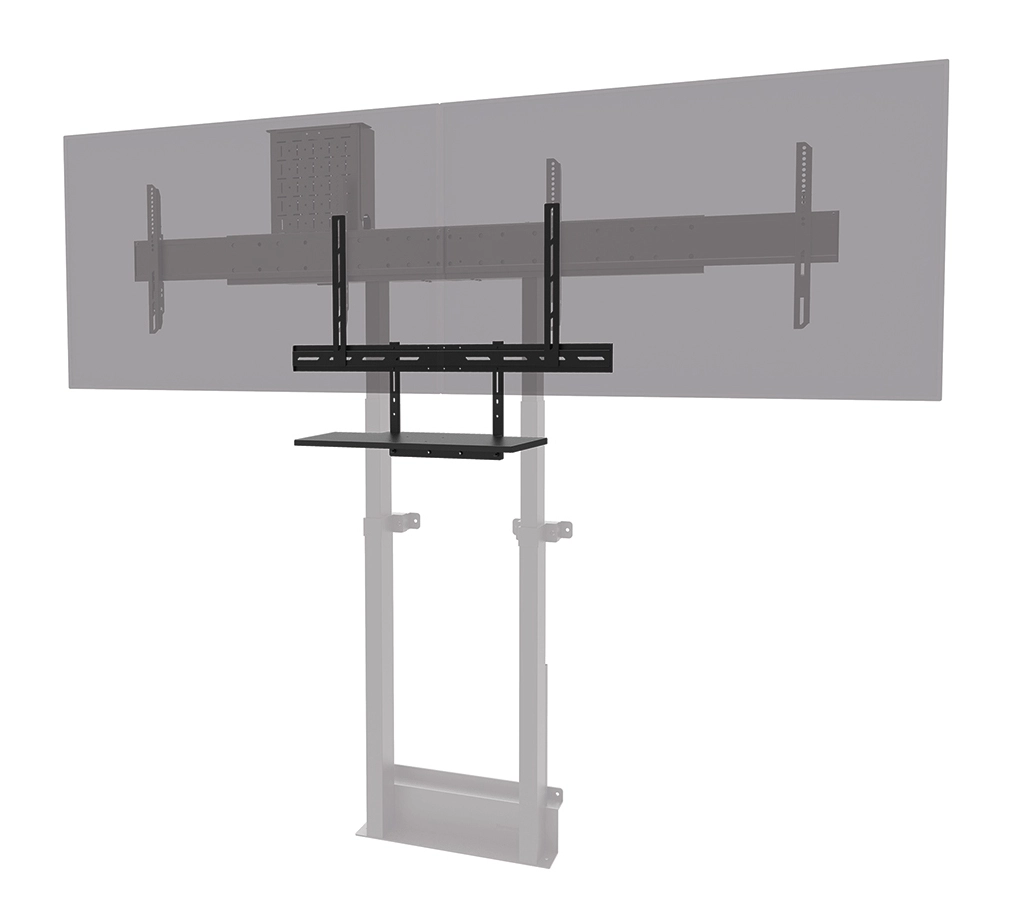

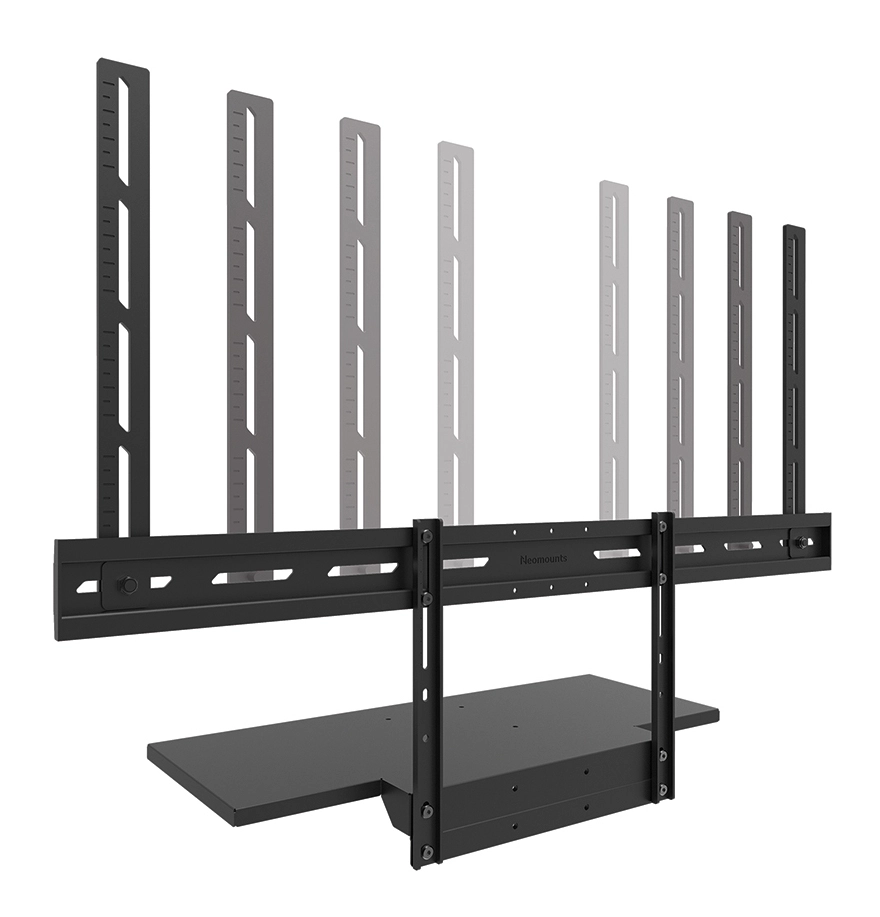

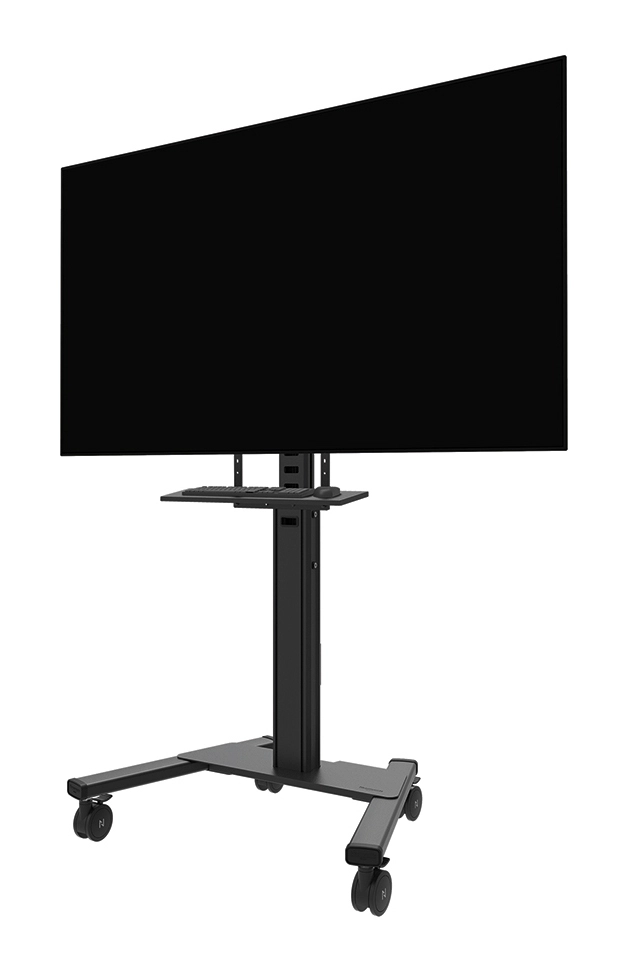

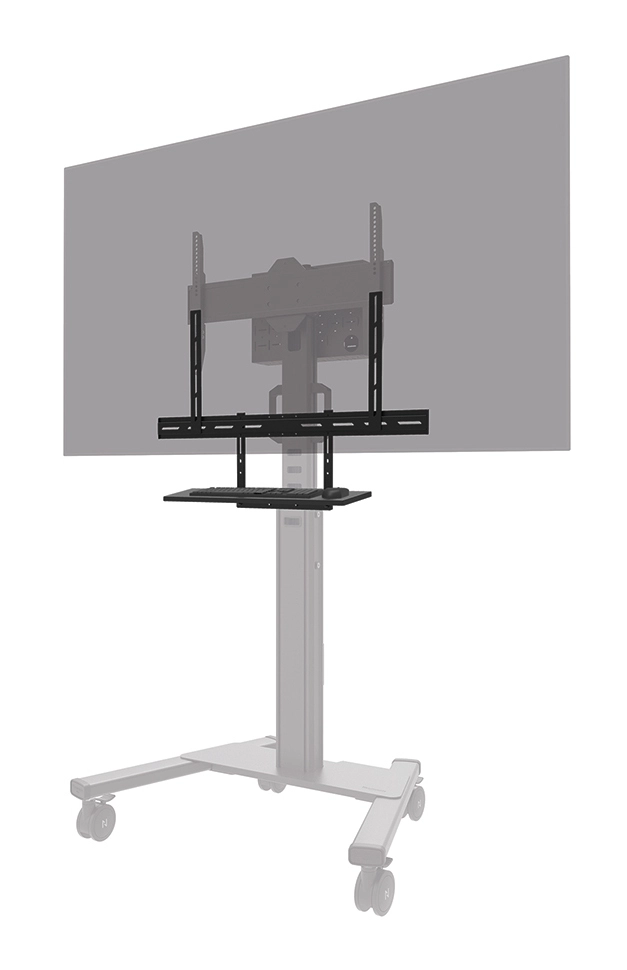

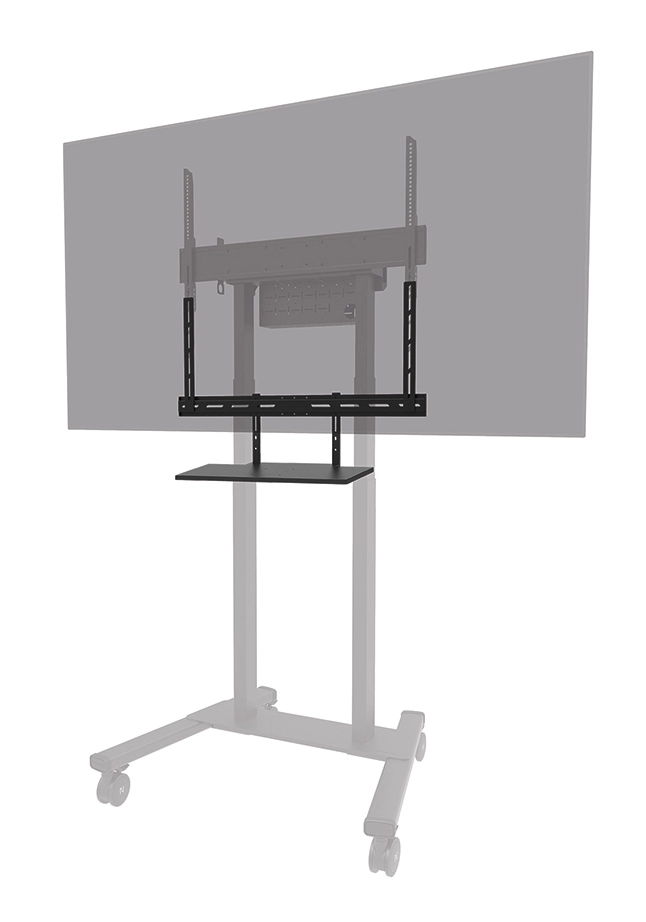

For optimal flexibility, both the shelf support and backplate brackets are height adjustable. The AV40-500BL mounting holes allow width and height variations, while the VESA frame adjusts in four positions (200/400/600/800). The kit is compatible with both wall and floor mounts. Installation is quick and straightforward, with ruler-guided alignment ensuring a precise and seamless fit.

For detailed compatibility with specific models and mounting sizes, please consult the online manual.

Specification

Product
Product id	1006407
Brand	Neomounts
Partnr	AV40-500BL
EAN/UPC code	8717371449407
Warranty (months)	5 year
Features
Product type	Shelf
Panel mounting interface	200 x 200, 200 x 300, 200 x 400, 400 x 200, 400 x 300, 400 x 400, 400 x 600, 600 x 300, 600 x 200, 600 x 400, 600 x 500, 600 x 600, 800 x 800, 800 x 200, 800 x 400, 800 x 450, 800 x 500, 800 x 600 mm
Minimum screen size compatibility	43 "
Product colour	Black
Maximum screen size	110
Maximum weight capacity	5.5 kg
Harmonized System (HS) code	7326909890
Number of displays supported	1
Height adjustment range	0 - 55 mm
Housing material	Steel
Minimum VESA mount	200 x 200 mm
Maximum VESA mount	800 x 600 mm
Technical details
Warranty period	5 jaar
Country of origin	China

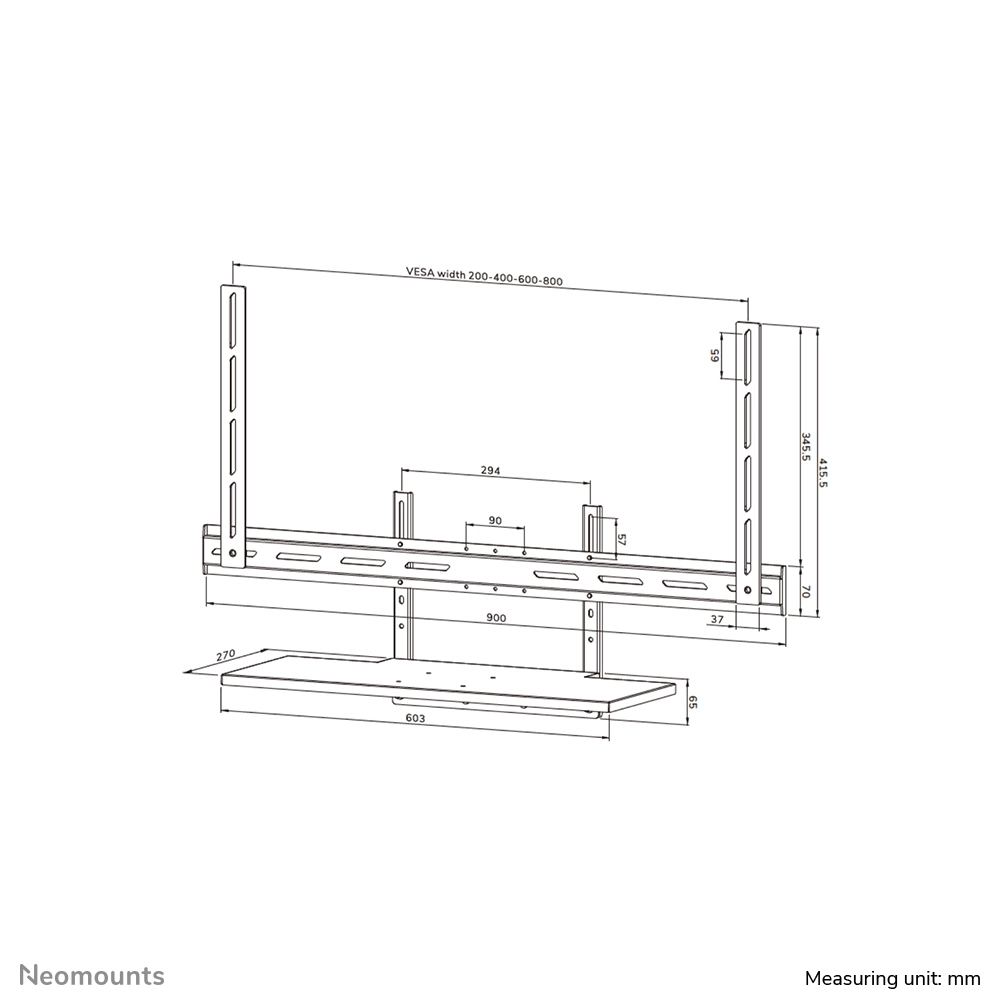

Weight & dimensions
Width	900 mm
Depth	279 mm
Height	640 mm
Packaging data
Package width	289 mm
Package depth	932 mm
Package height	79 mm
Logistics data
Master (outer) case net weight	15200 g
Master (outer) case width	255 mm
Master (outer) case length	952 mm
Master (outer) case height	309 mm
Quantity per master (outer) case	3 stuk(s)
Master (outer) case weight	19500 g
