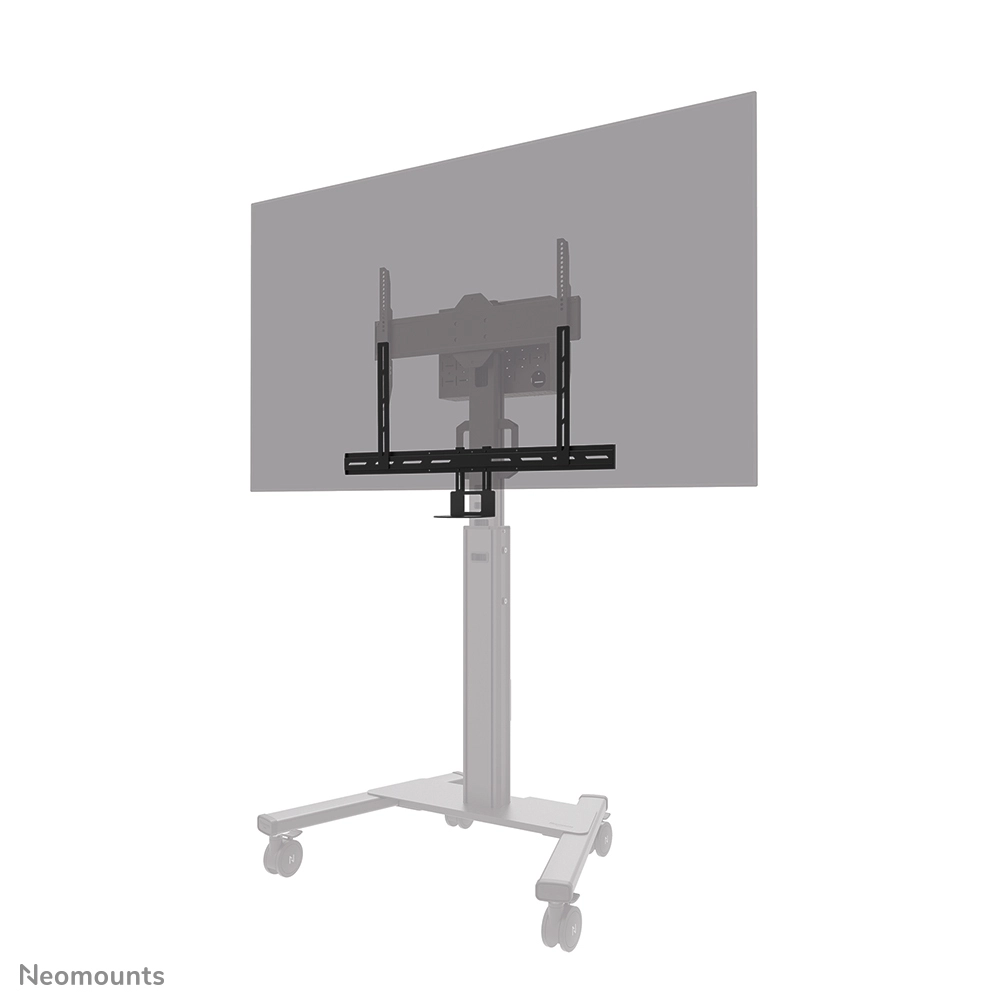

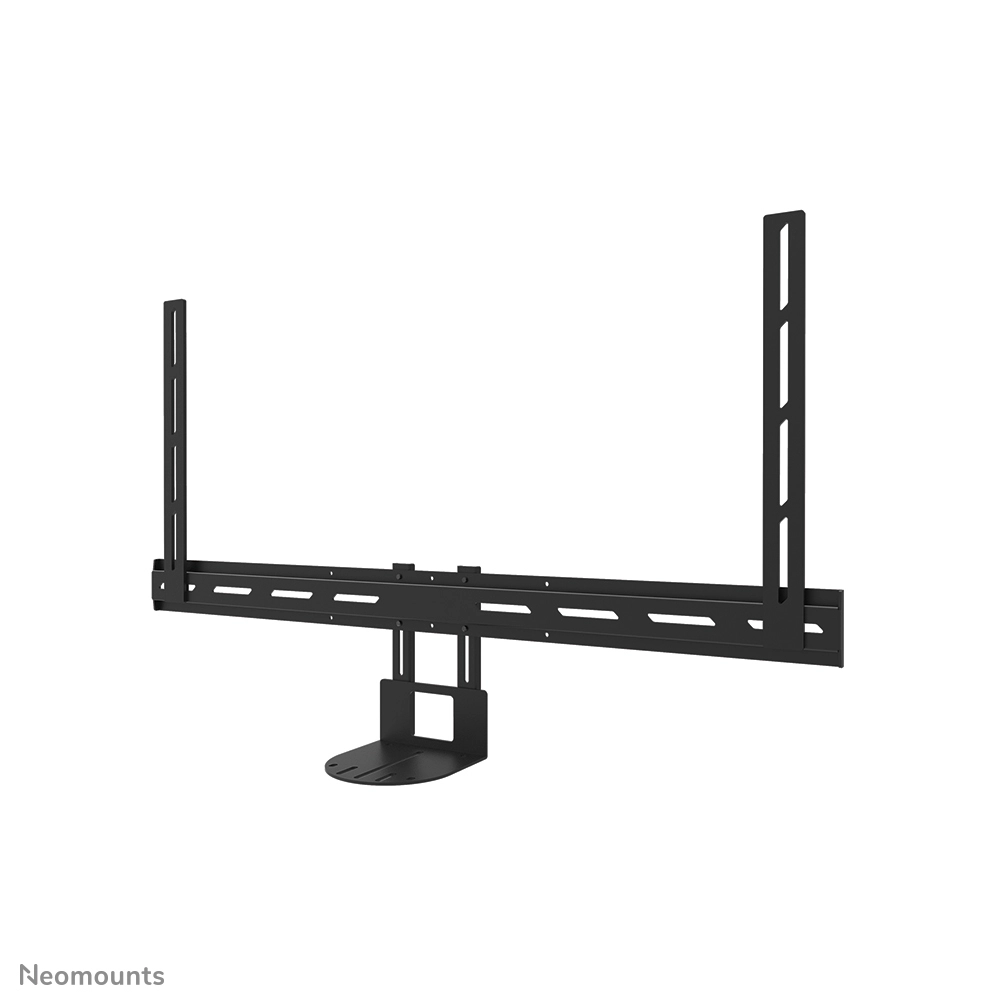

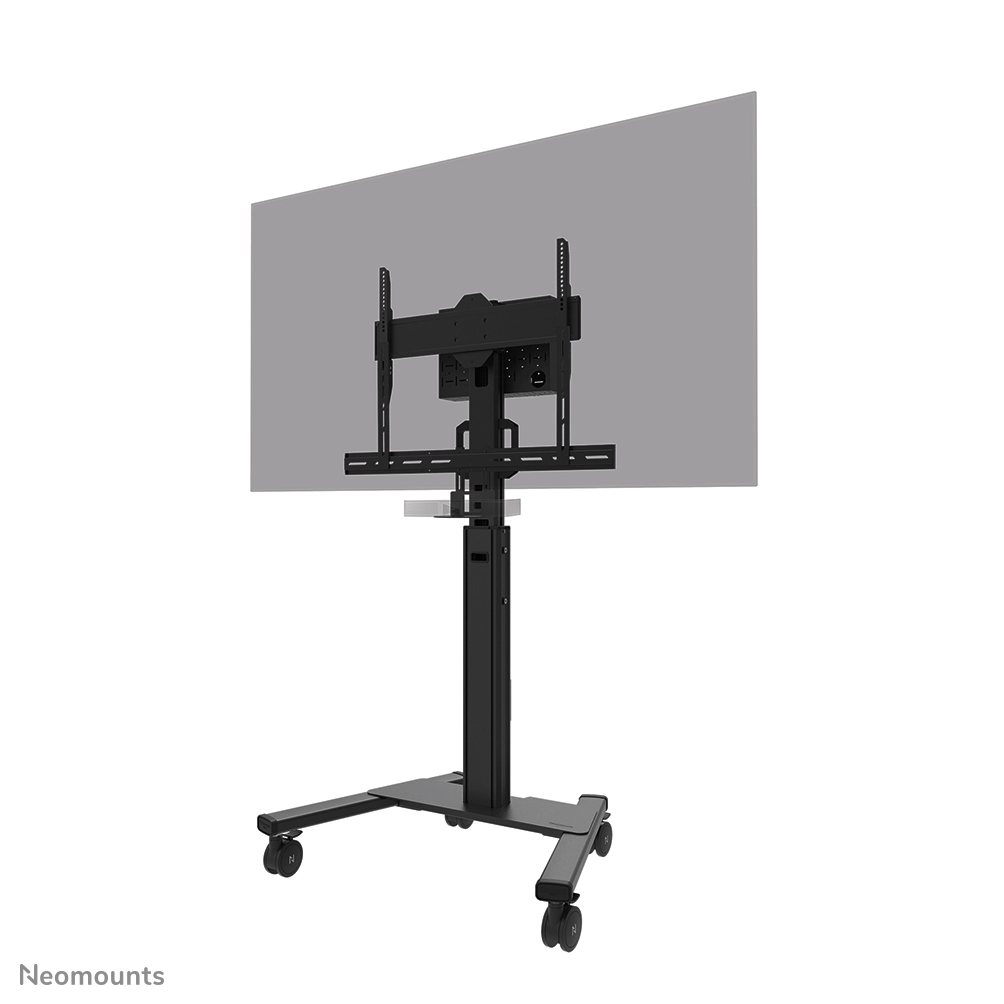

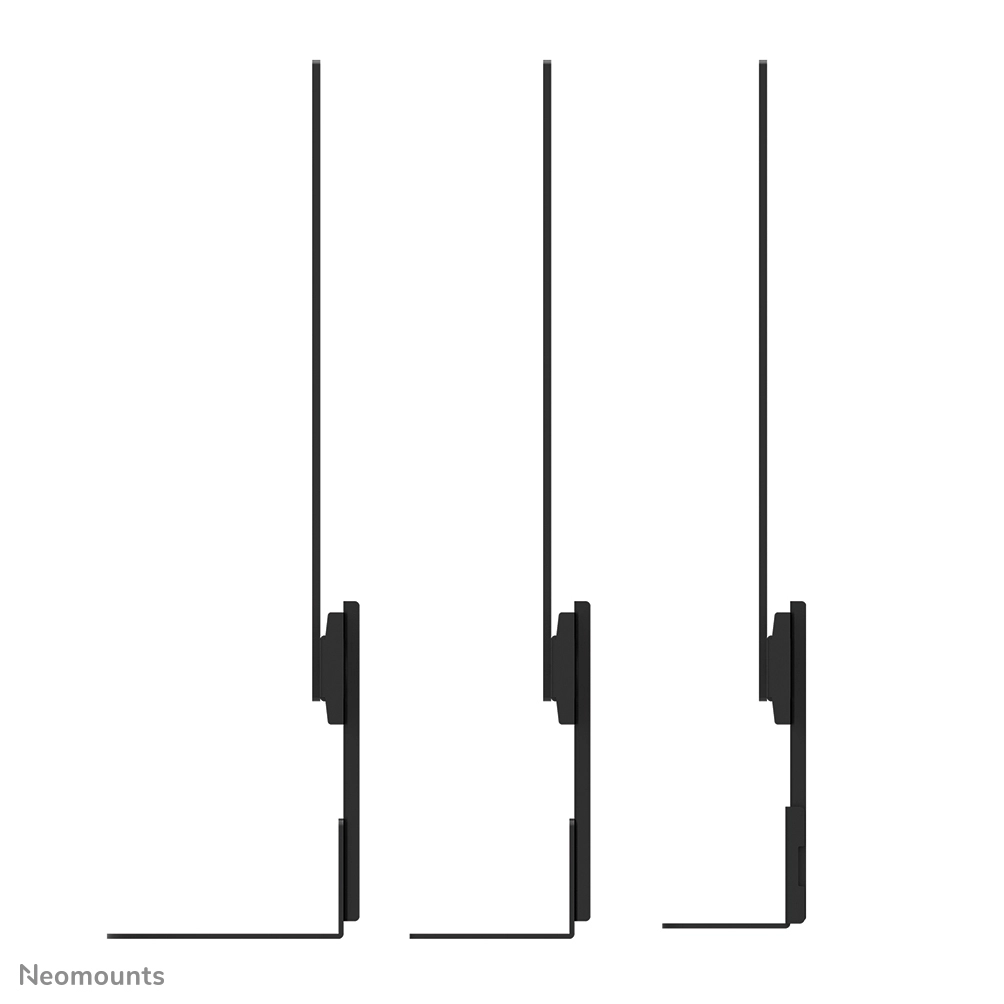

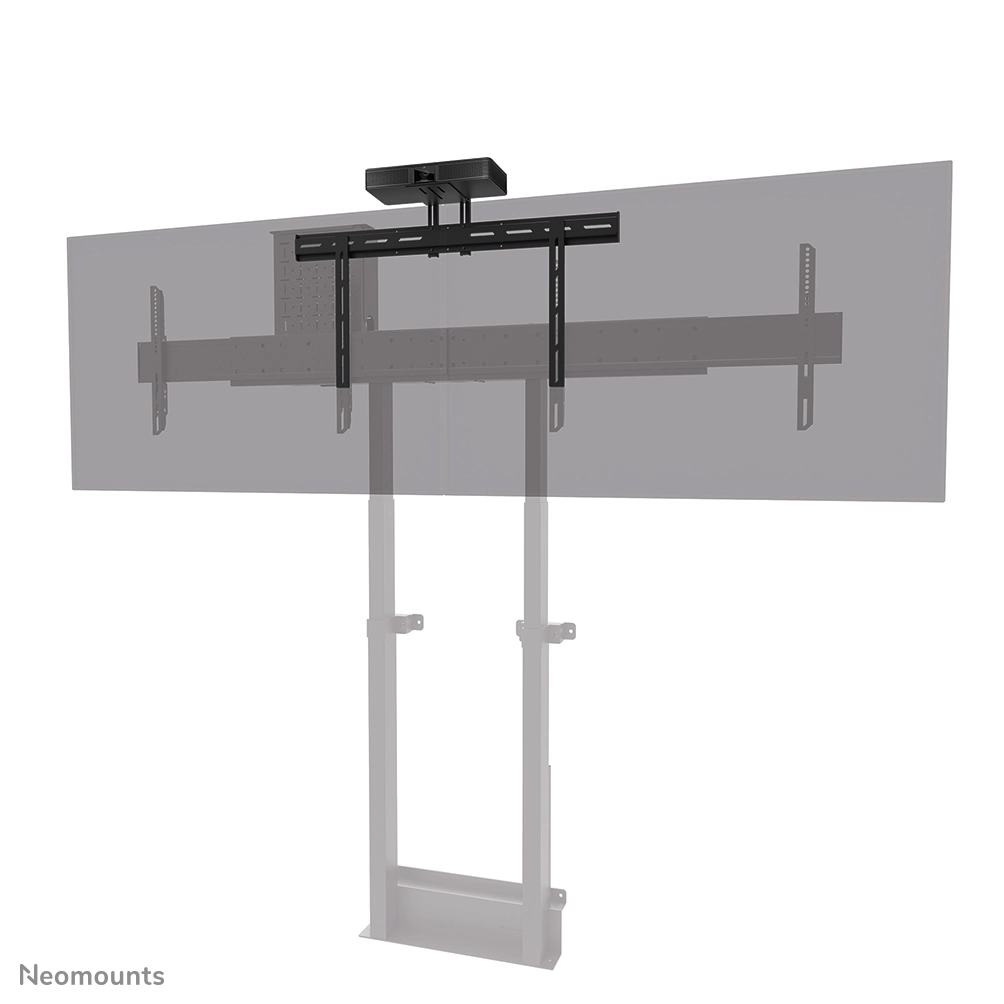

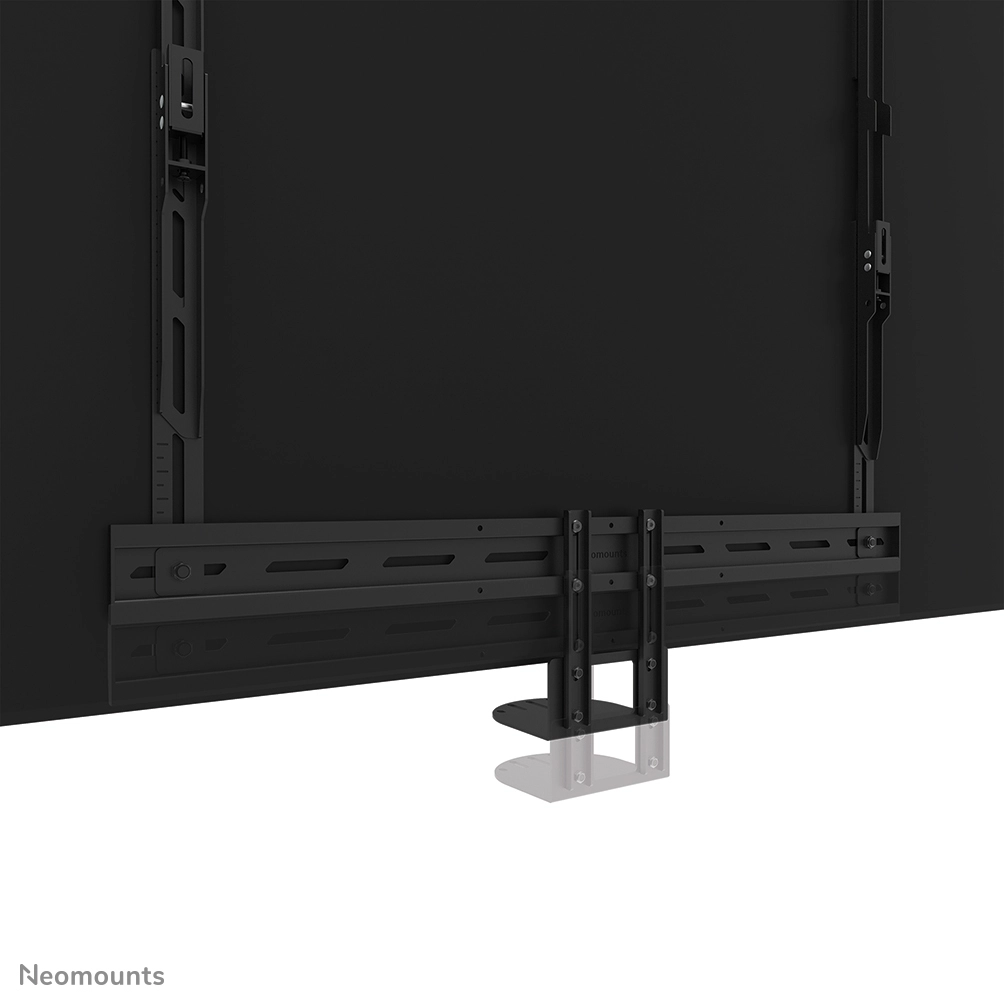

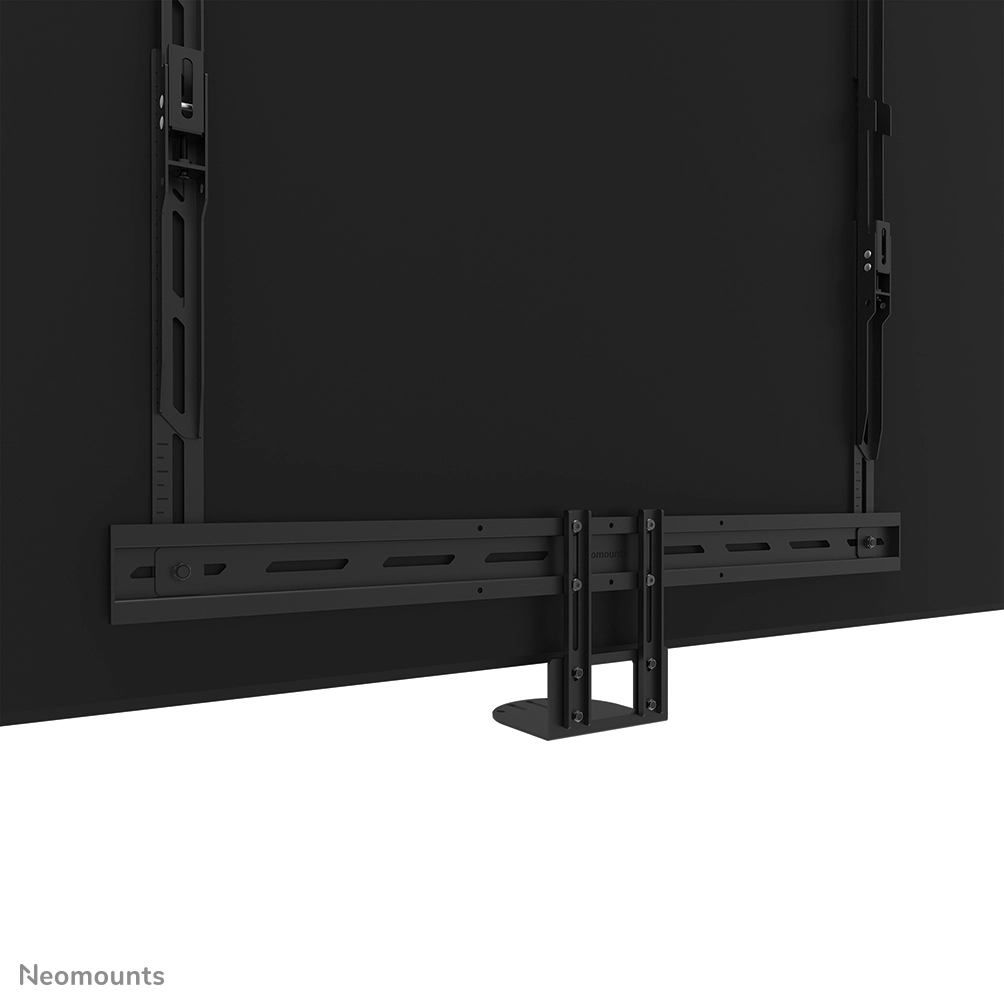

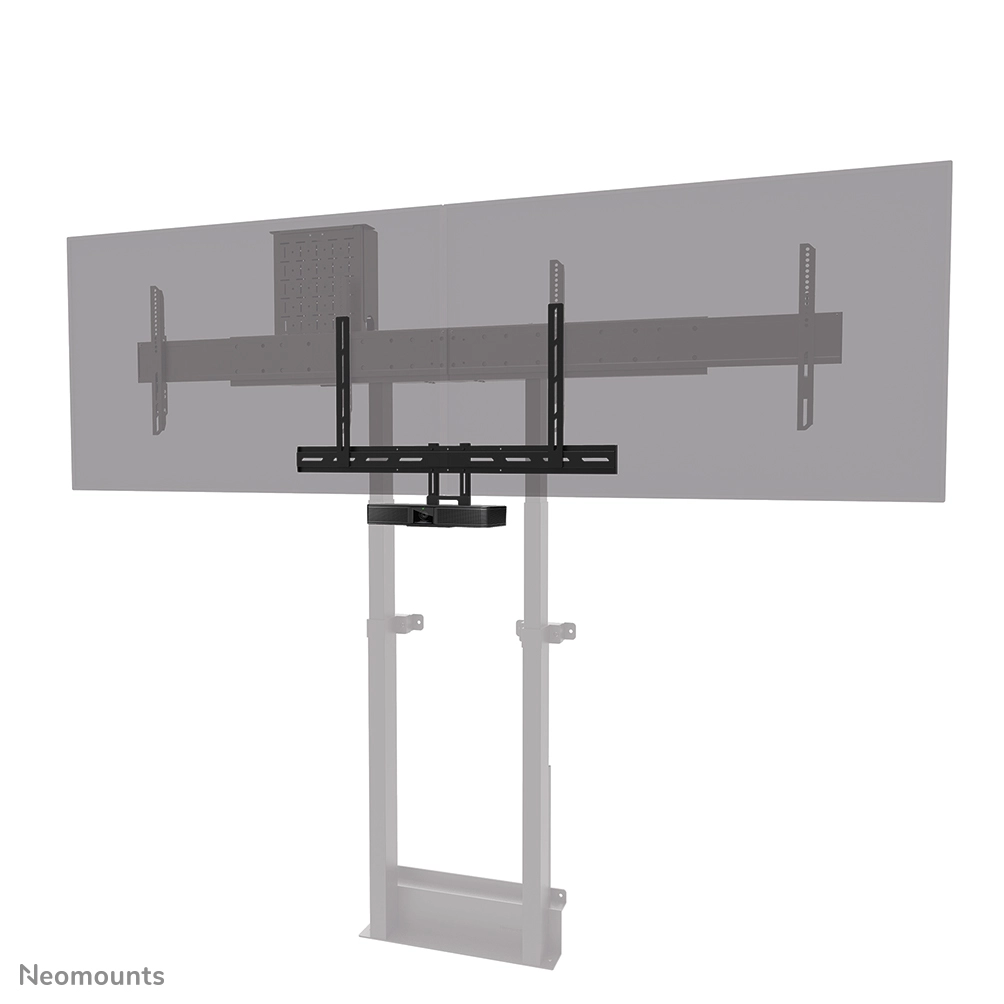

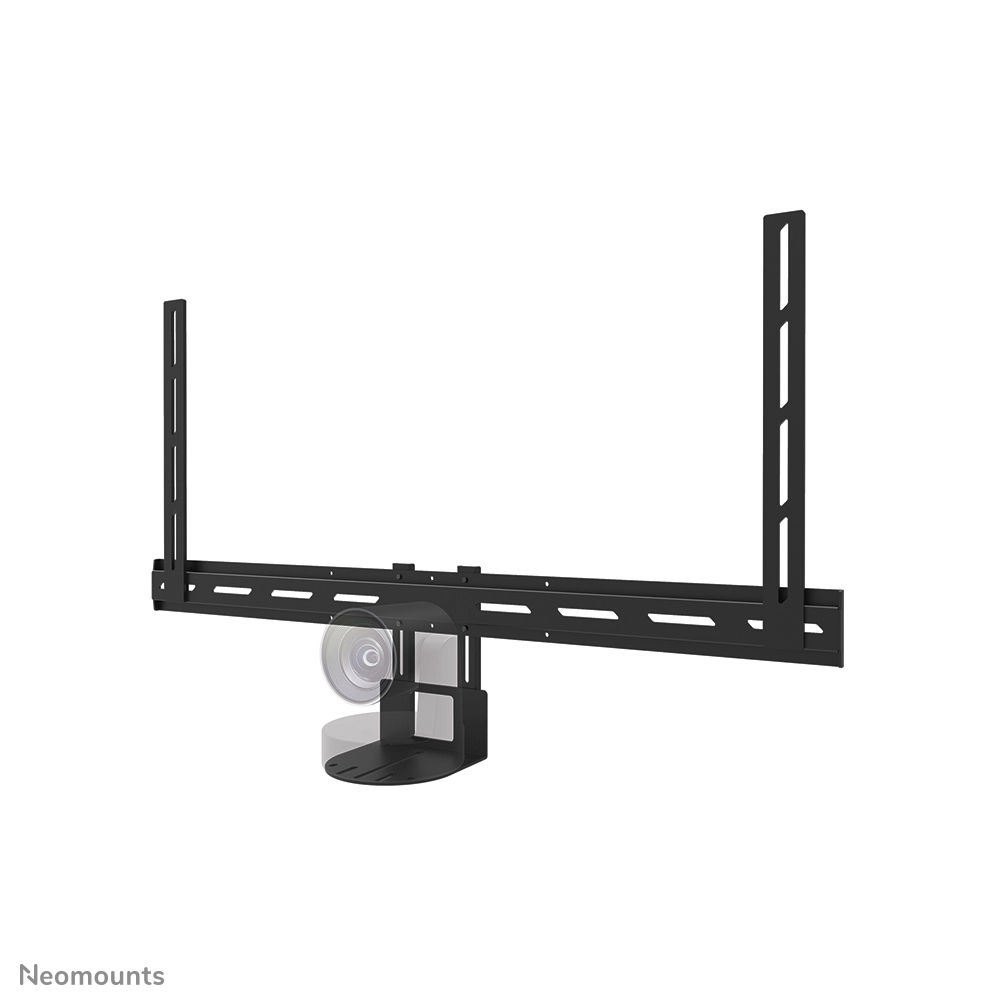

The Neomounts AV50-500BL is a universal PTZ/UC camera shelf kit designed for 43" displays and larger, with VESA hole patterns ranging from 200x200 up to 800x600 mm. Built for durability and versatility, the kit supports devices up to 5 kg and can be installed either above or below the display. Both the camera support and the backplate brackets are height-adjustable for maximum flexibility.

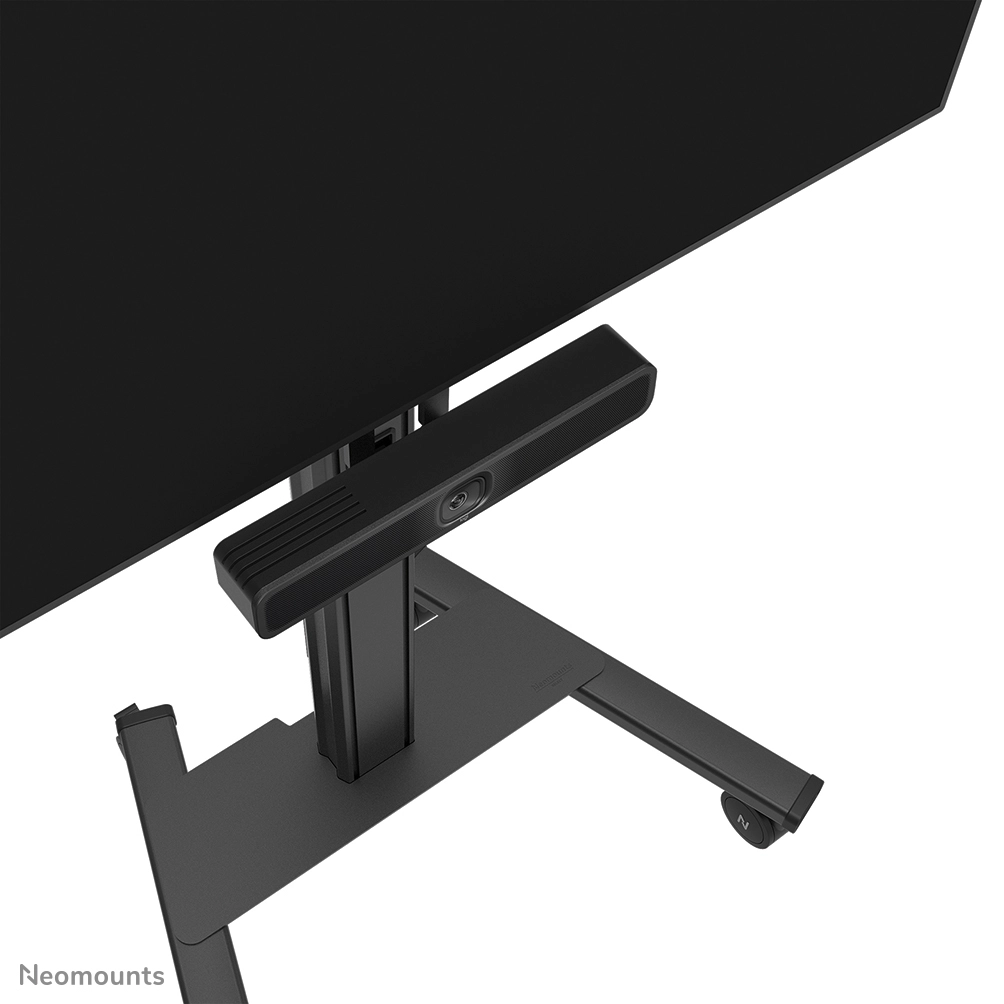

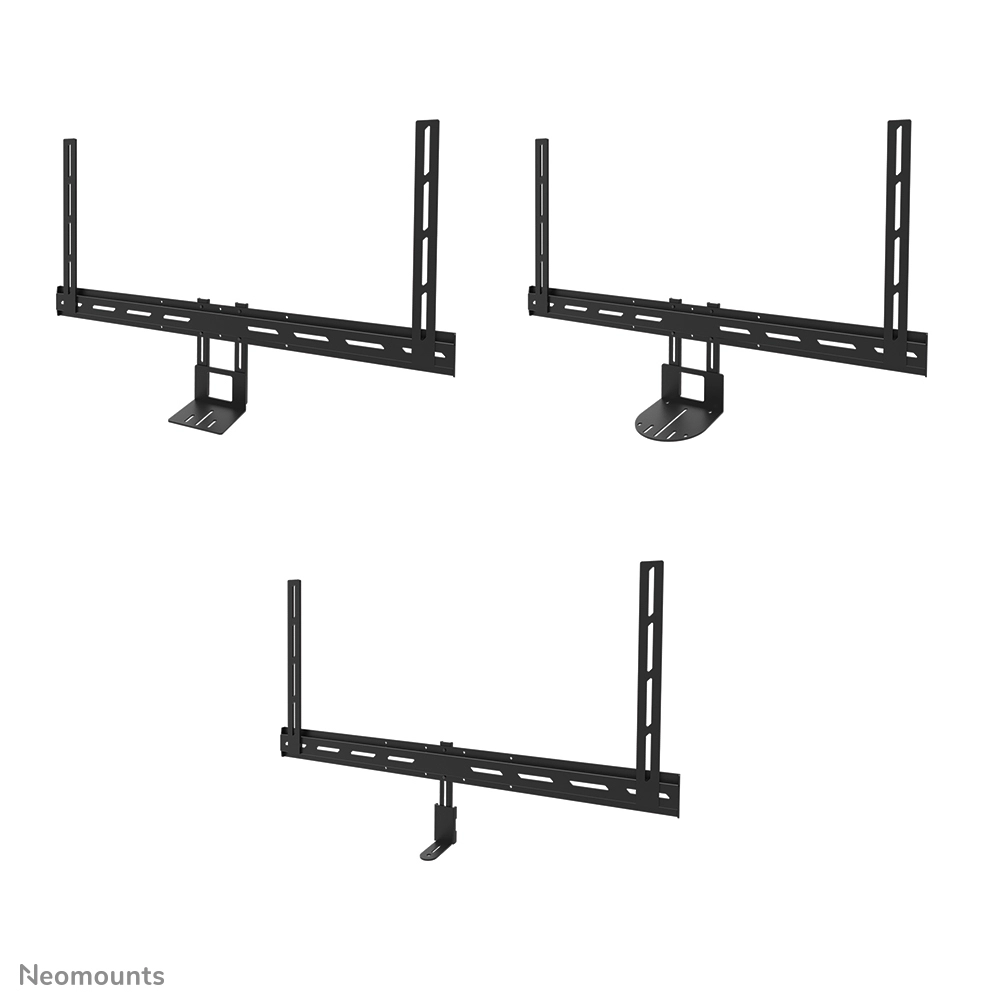

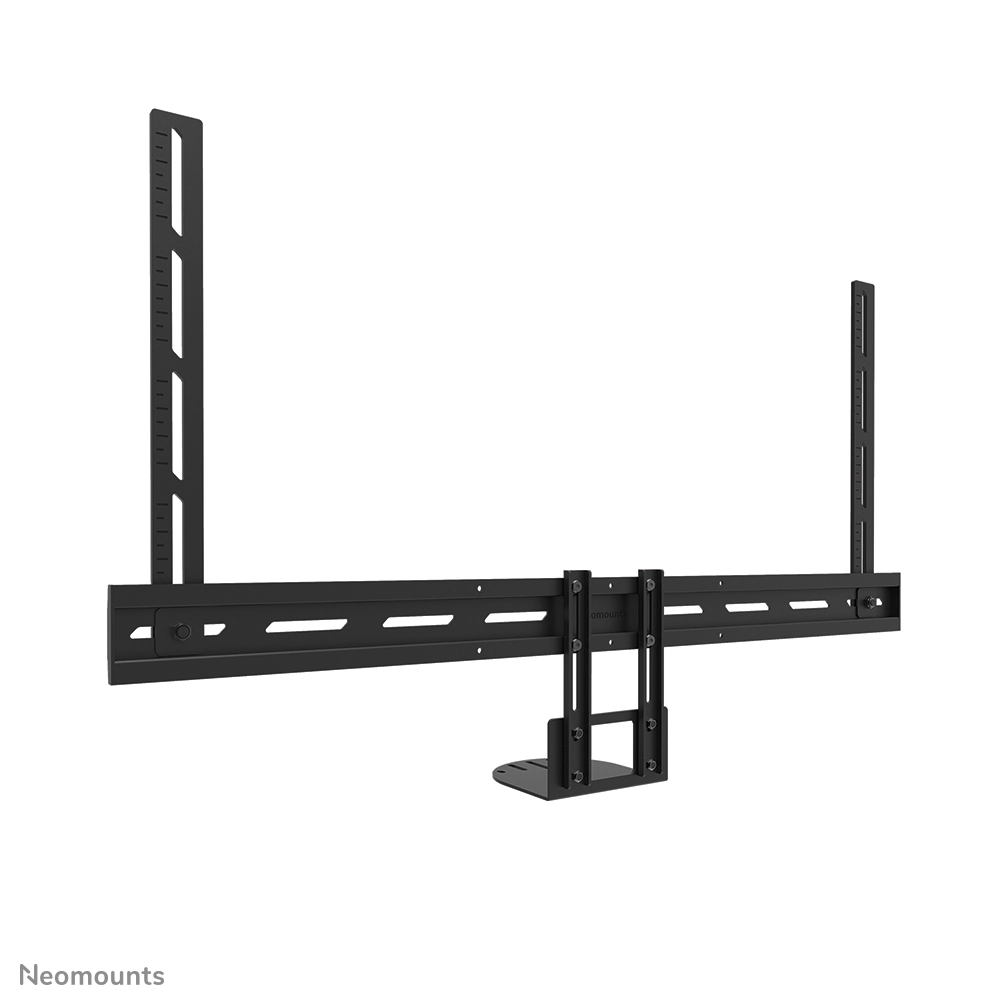

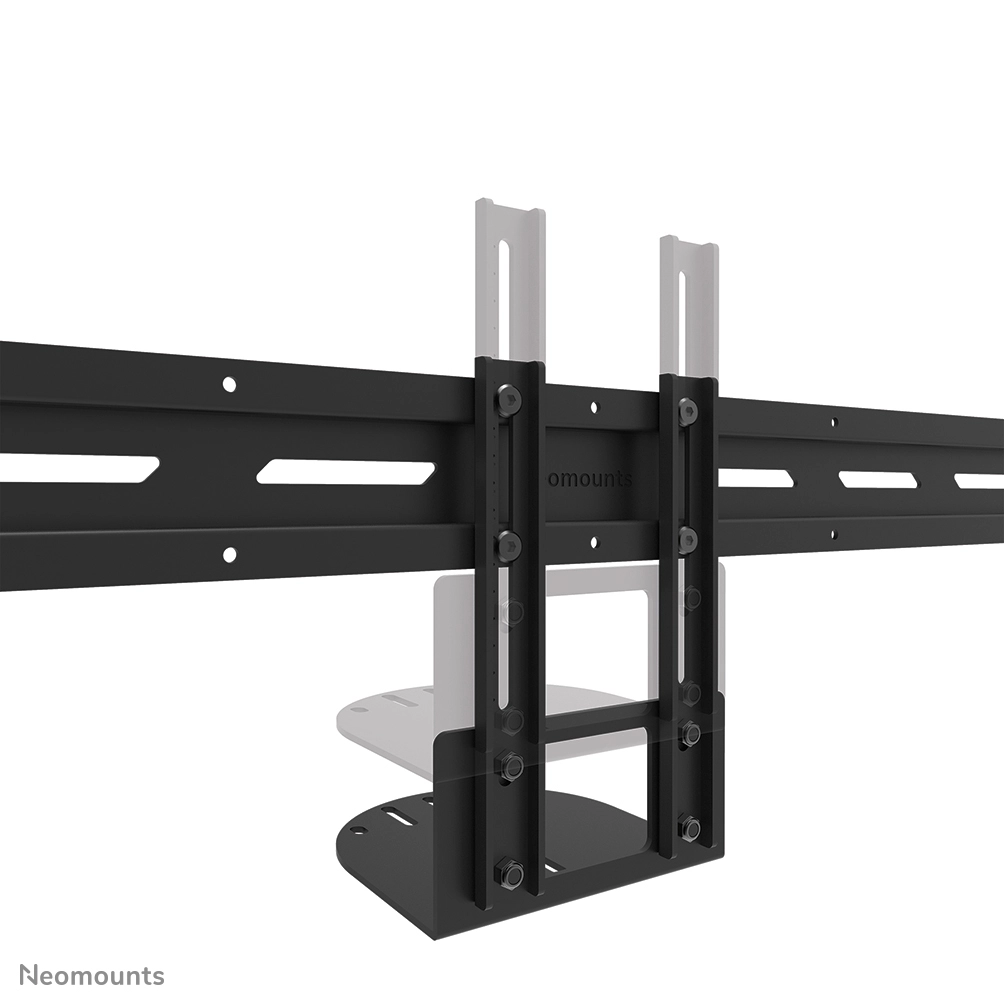

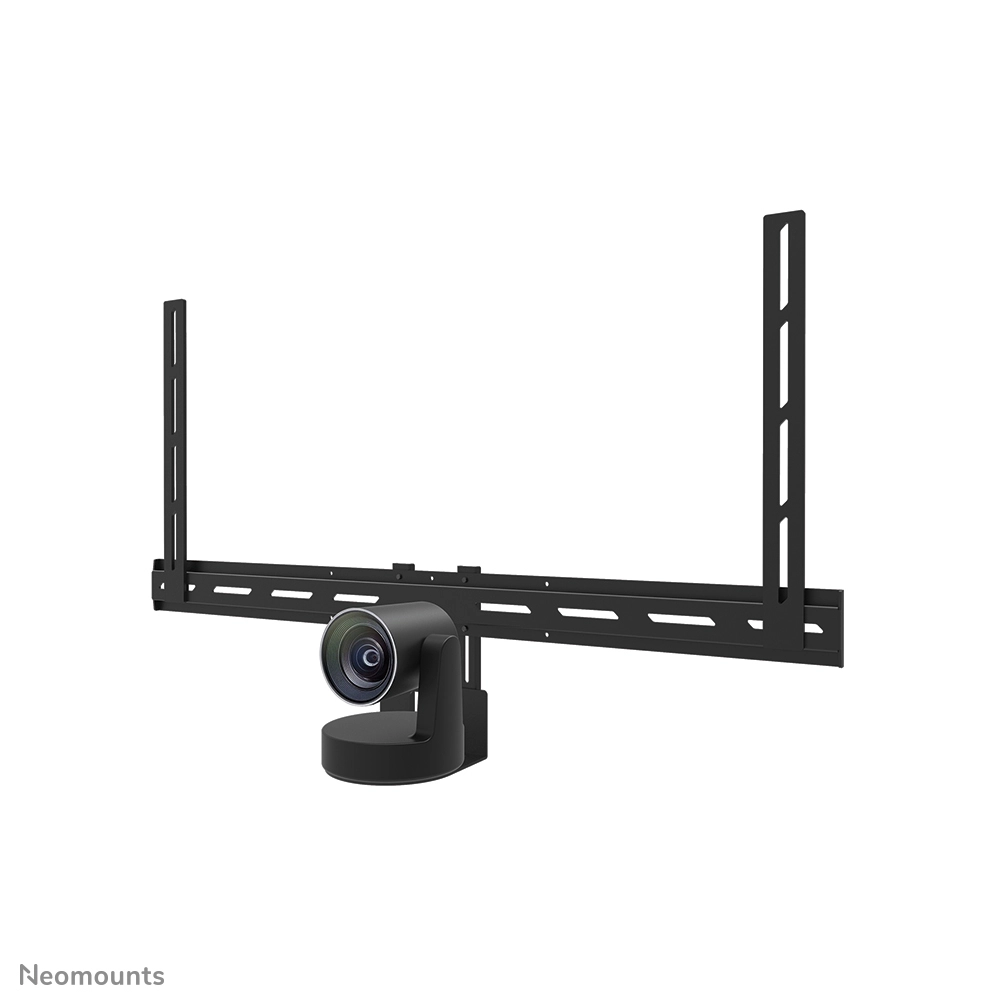

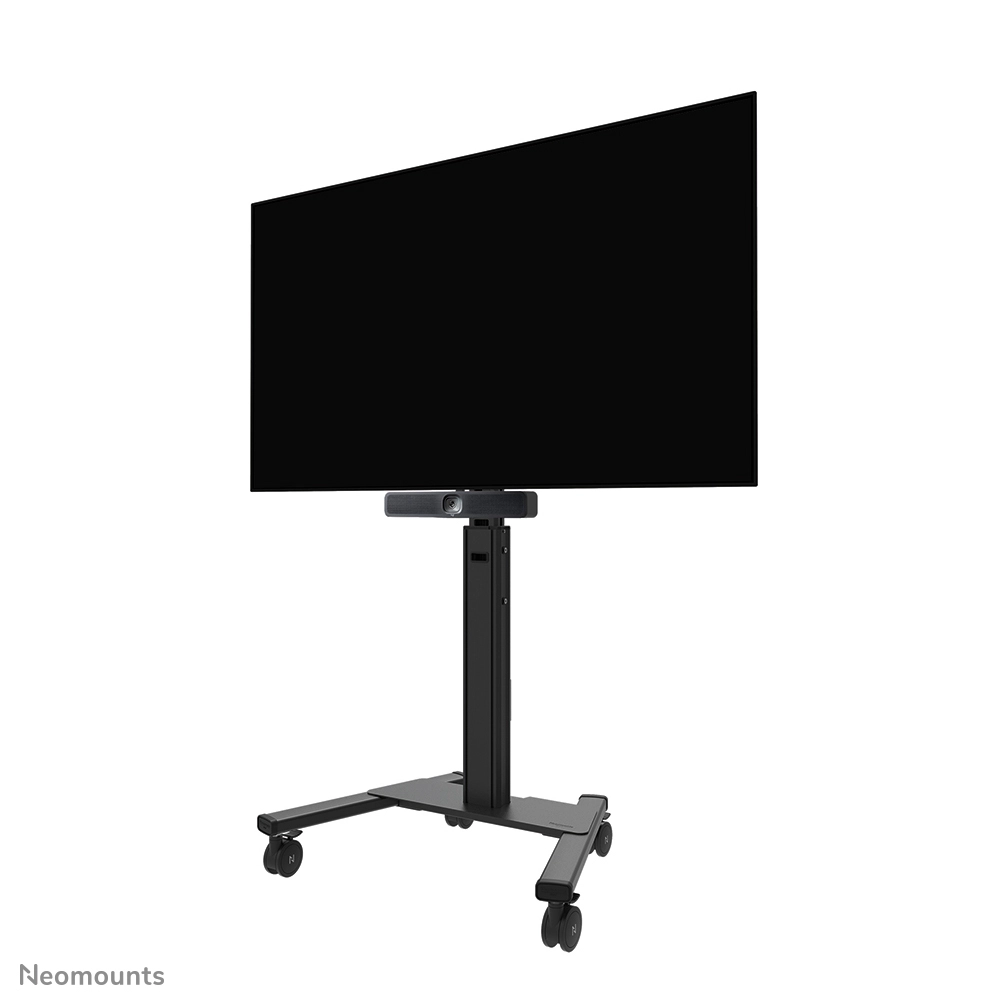

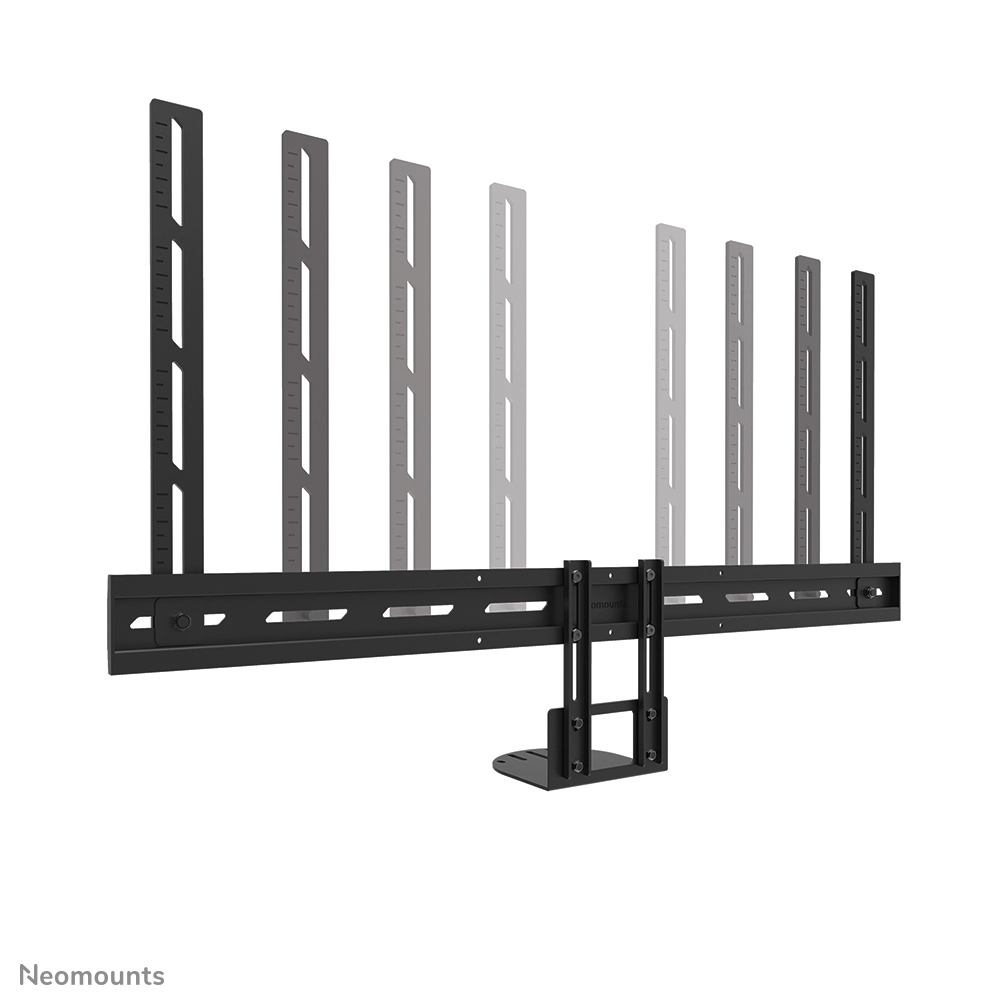

Compatible with virtually all* PTZ/UC cameras, the AV50-500BL guarantees broad applicability. The camera mounting allows both width and height variation, while the VESA frame adjusts in four positions (200/400/600/800). The kit is suitable for VESA orientated wall, floor, desk, and ceiling mounts. Despite its versatility, installation is simple and precise thanks to ruler-guided alignment.

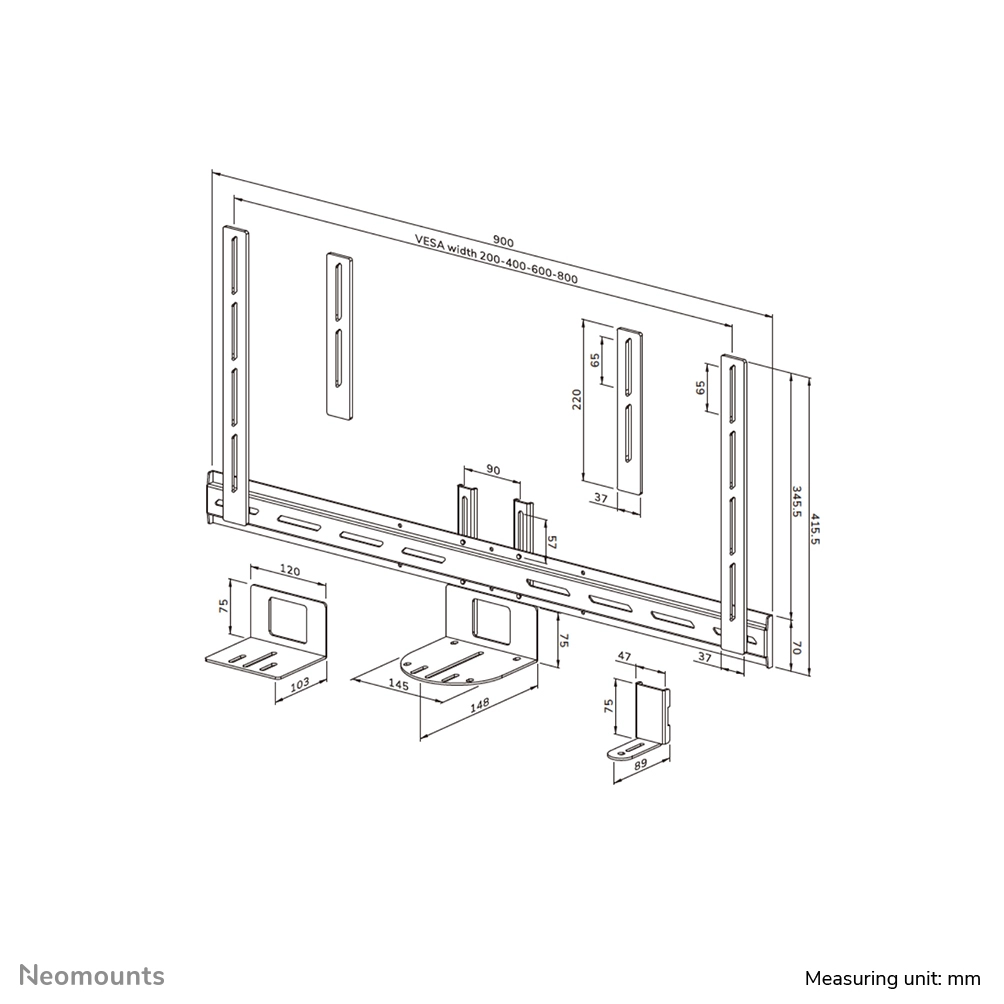

* The Neomounts AV50-500BL kit is truly universal, compatible with any PTZ/UC camera that fits within the bracket?s range (see line drawing). In addition, it is specifically designed for the following models:

- Bose Professional VB-S
- Poly Studio R30/X30/X32 and Studio V12
- Logitech Meetup 2 and Rally Camera
- Yealink MeetingBar A30, UVC20/UVC30 Room/UVC34/UVC40 and MeetingEye 400/600
- Maxhub UC S05/S07/S10/S10 Pro/S15
- Predia Connect Camera

For detailed compatibility with specific models or mounting sizes, please refer to the online manual.

Specification

Product
Product id	1006409
Brand	Neomounts
Partnr	AV50-500BL
EAN/UPC code	8717371449414
Warranty (months)	5 year
Features
Product type	Camera mount
Panel mounting interface	200 x 200, 200 x 300, 200 x 400, 400 x 200, 400 x 300, 400 x 400, 400 x 600, 600 x 300, 600 x 200, 600 x 400, 600 x 500, 600 x 600, 800 x 800, 800 x 200, 800 x 400, 800 x 450, 800 x 500, 800 x 600 mm
Minimum screen size compatibility	43 "
Product colour	Black
Maximum screen size	110
Maximum weight capacity	5 kg
Harmonized System (HS) code	7326909890
Number of displays supported	1
Height adjustment range	0 - 55 mm
Housing material	Steel
Minimum VESA mount	200 x 200 mm
Maximum VESA mount	800 x 600 mm
Technical details
Warranty period	5 jaar
Country of origin	China
Weight & dimensions
Width	900 mm
Depth	158 mm
Height	552 mm
Packaging data
Package width	175 mm
Package depth	958 mm
Package height	86 mm
Logistics data
Master (outer) case net weight	13500 g
Master (outer) case width	276 mm
Master (outer) case length	978 mm
Master (outer) case height	195 mm
Quantity per master (outer) case	3 stuk(s)
Master (outer) case weight	17500 g
