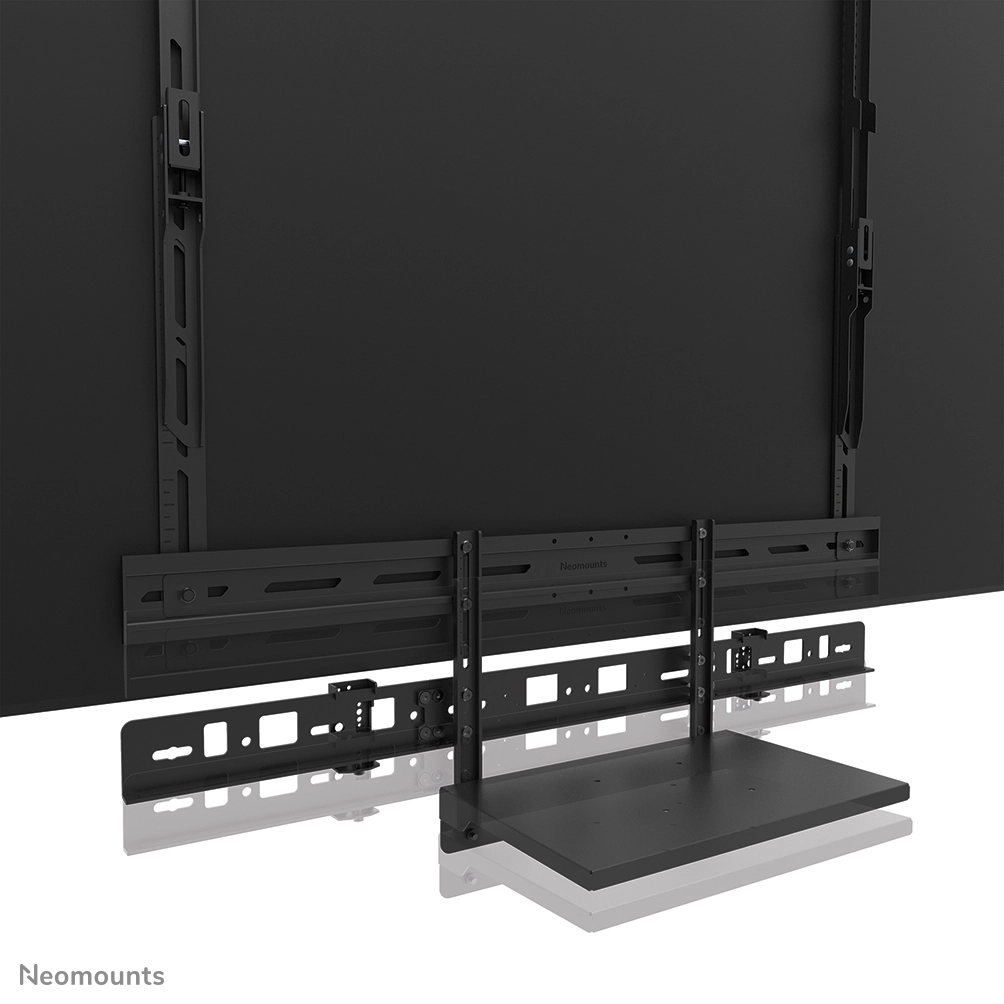

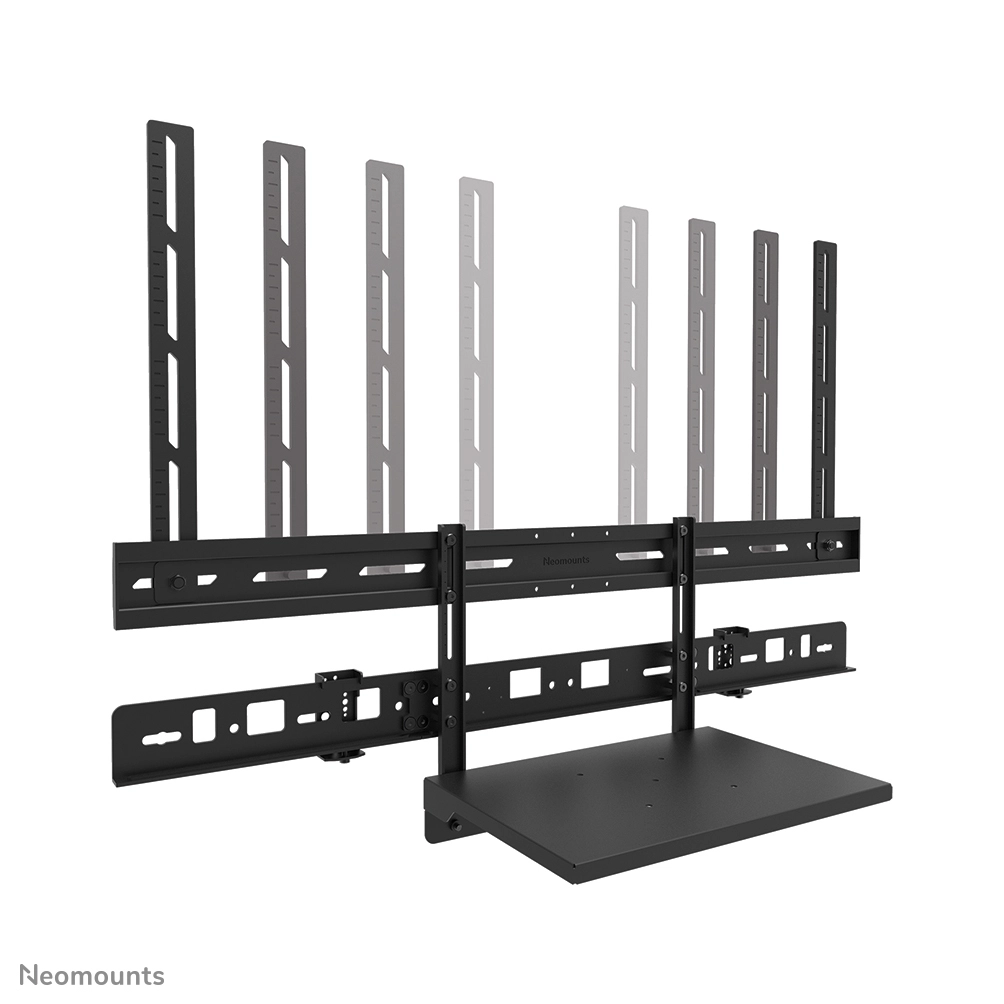

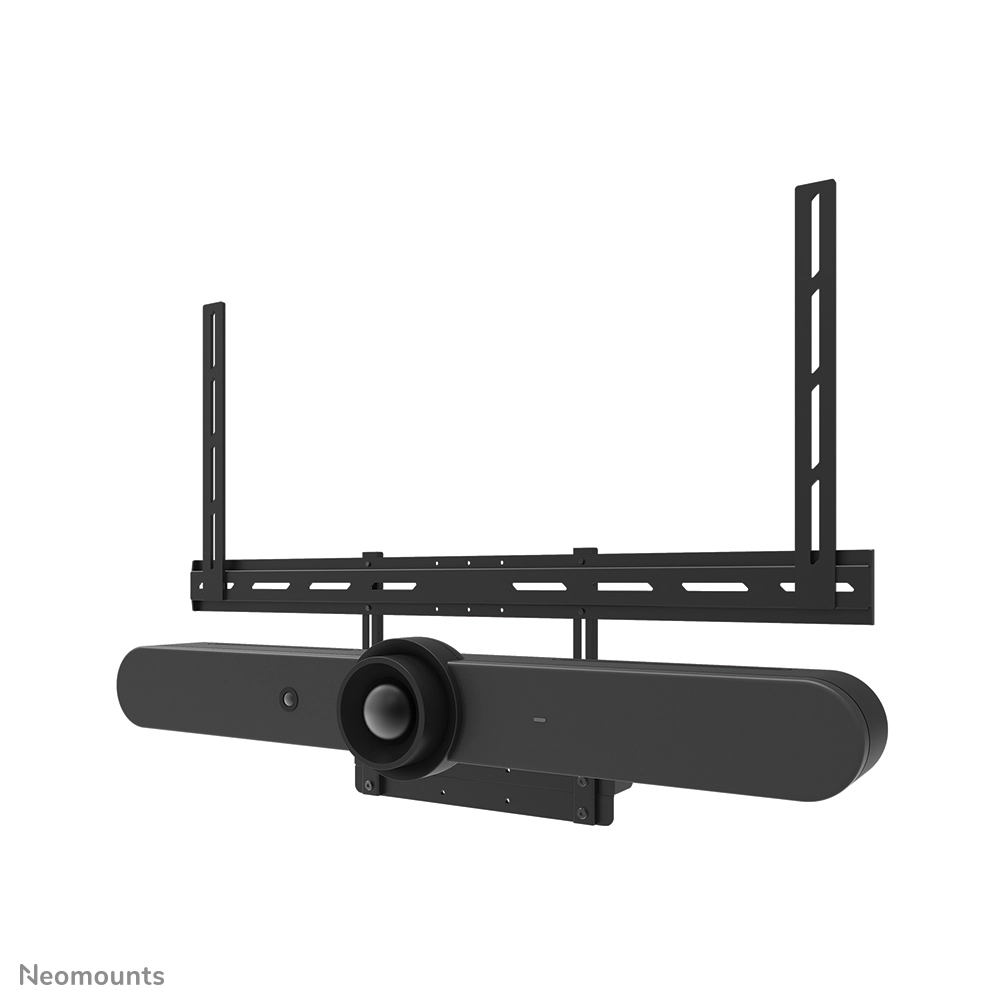

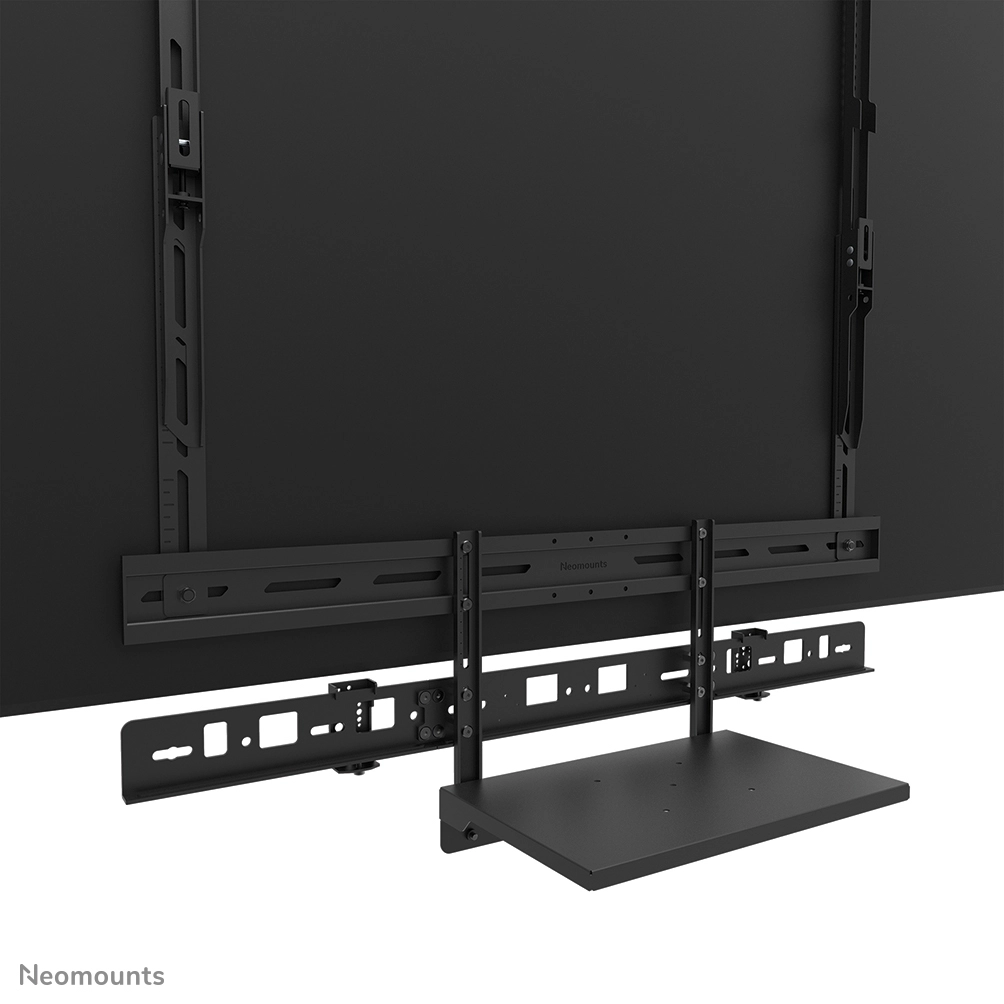

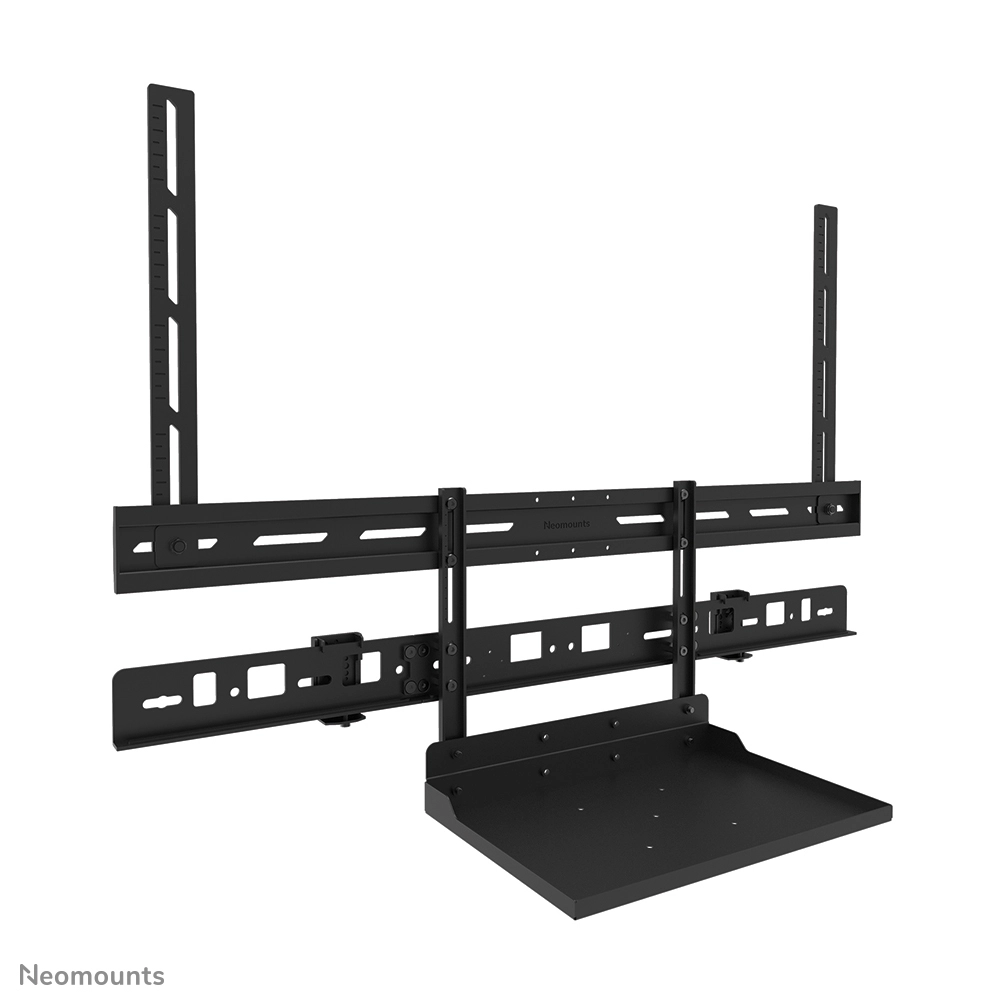

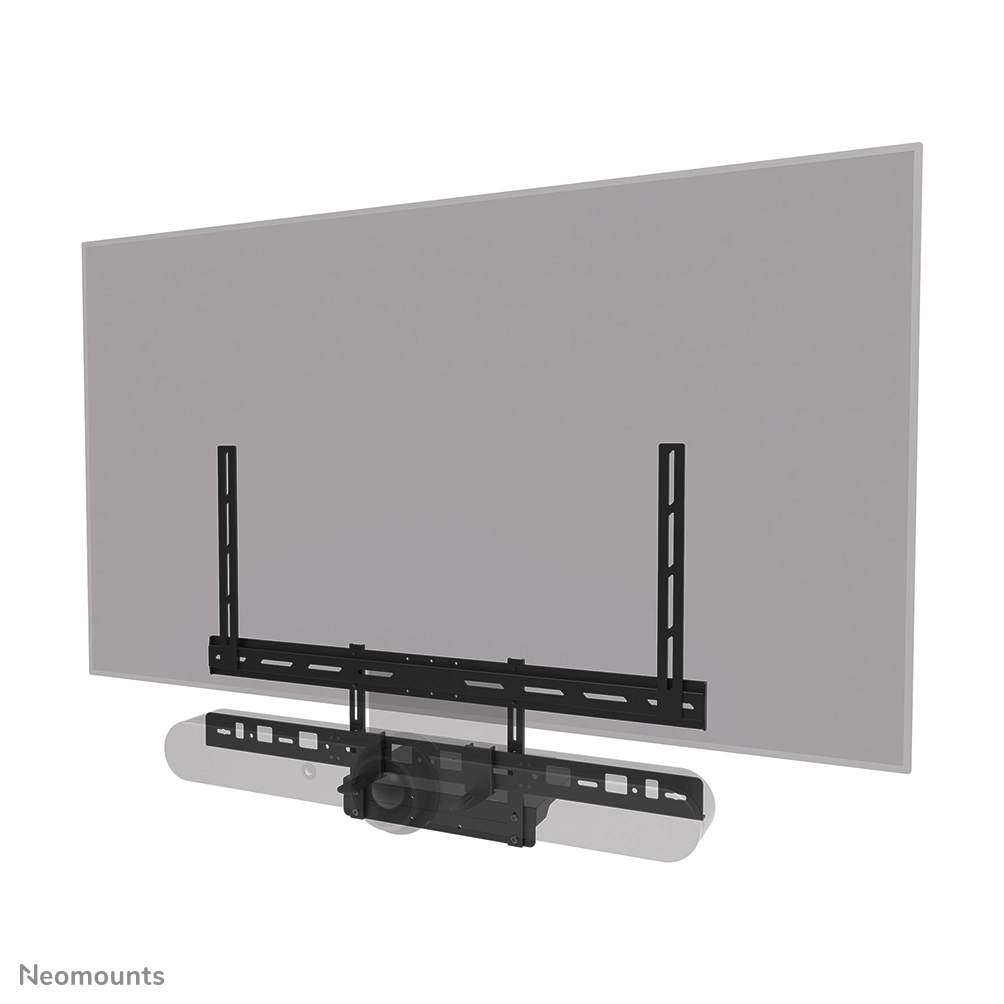

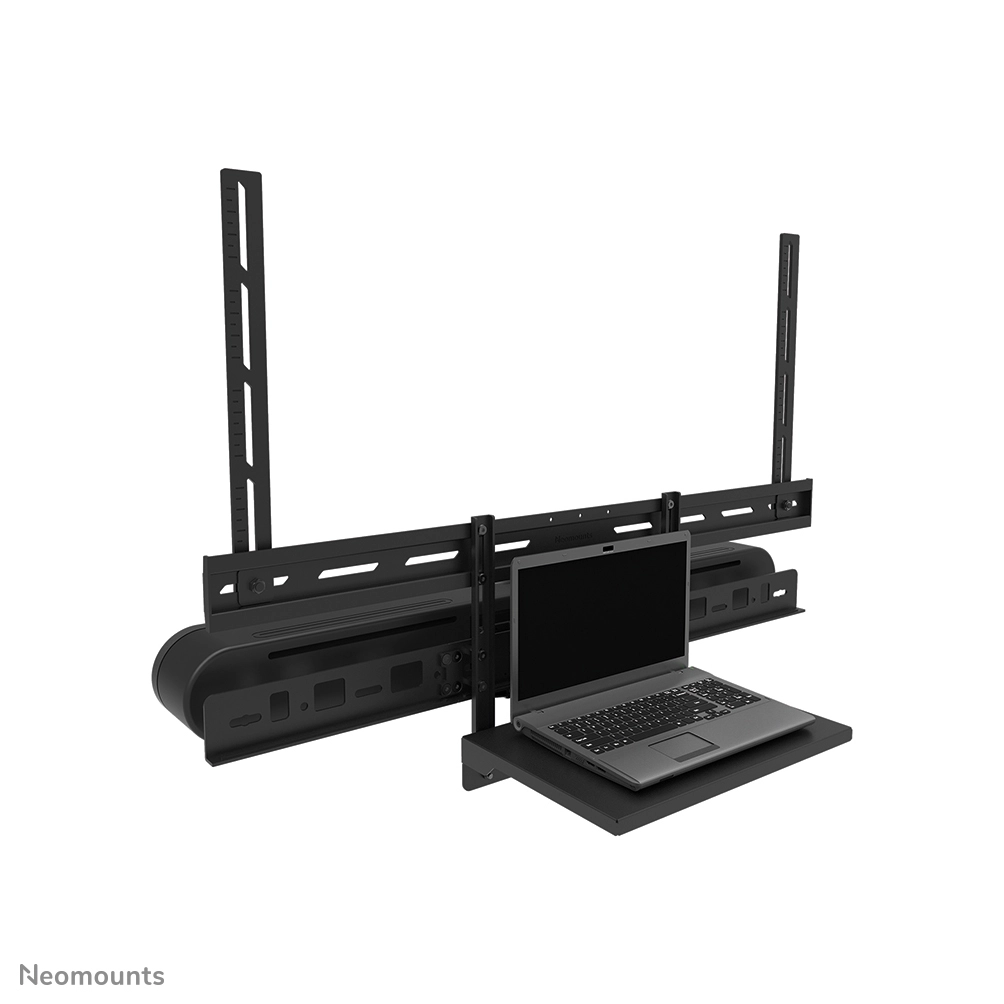

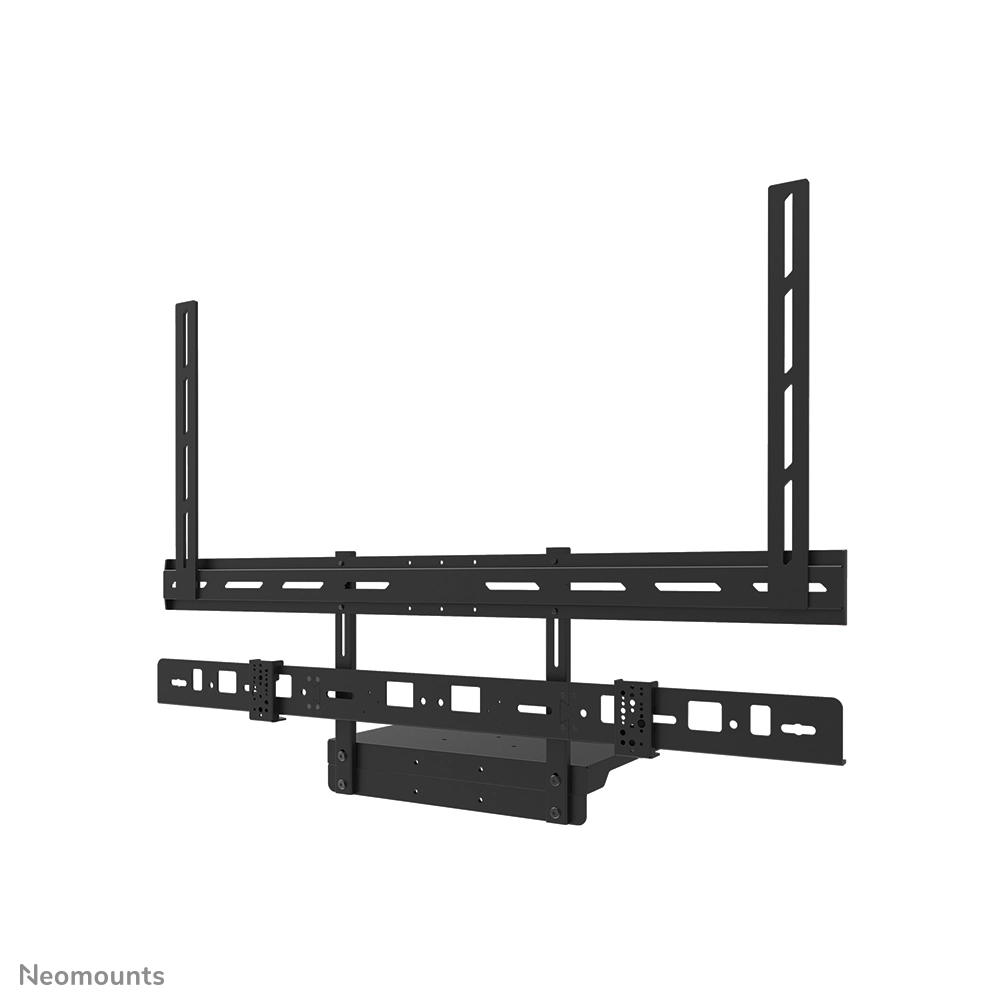

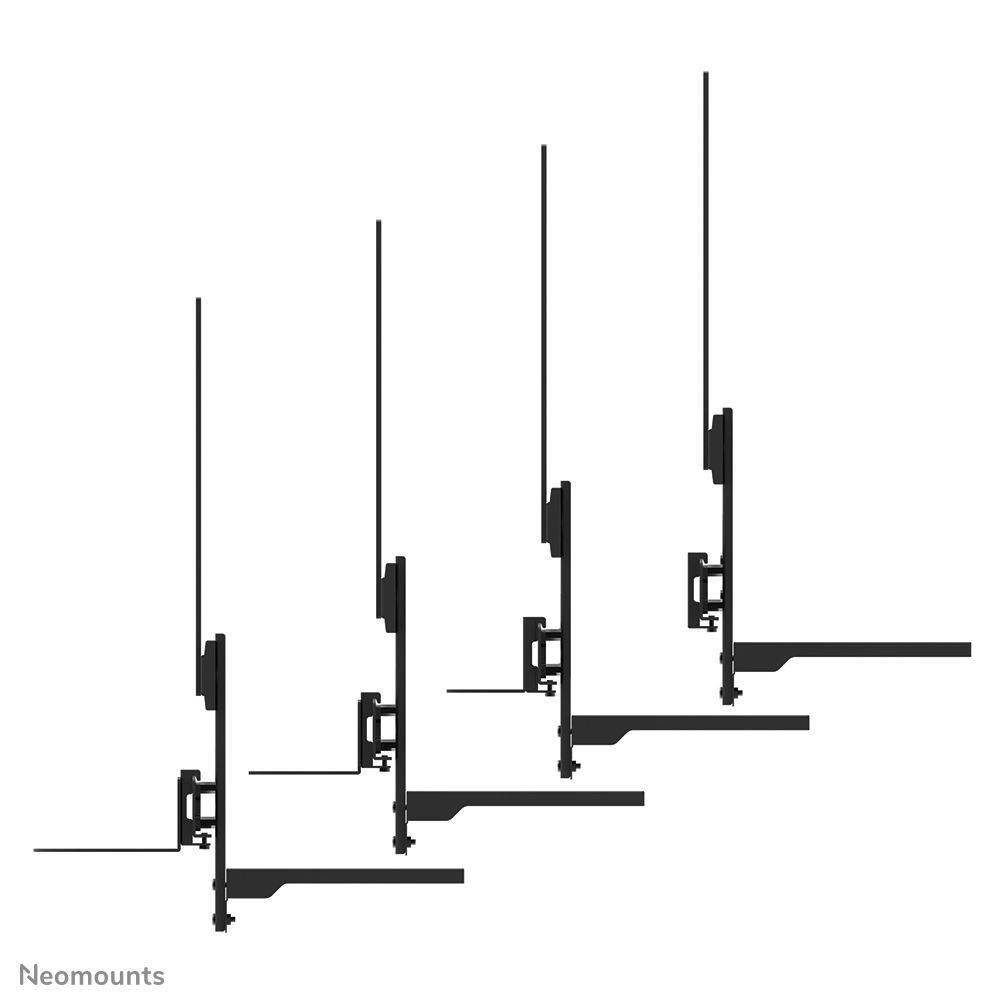

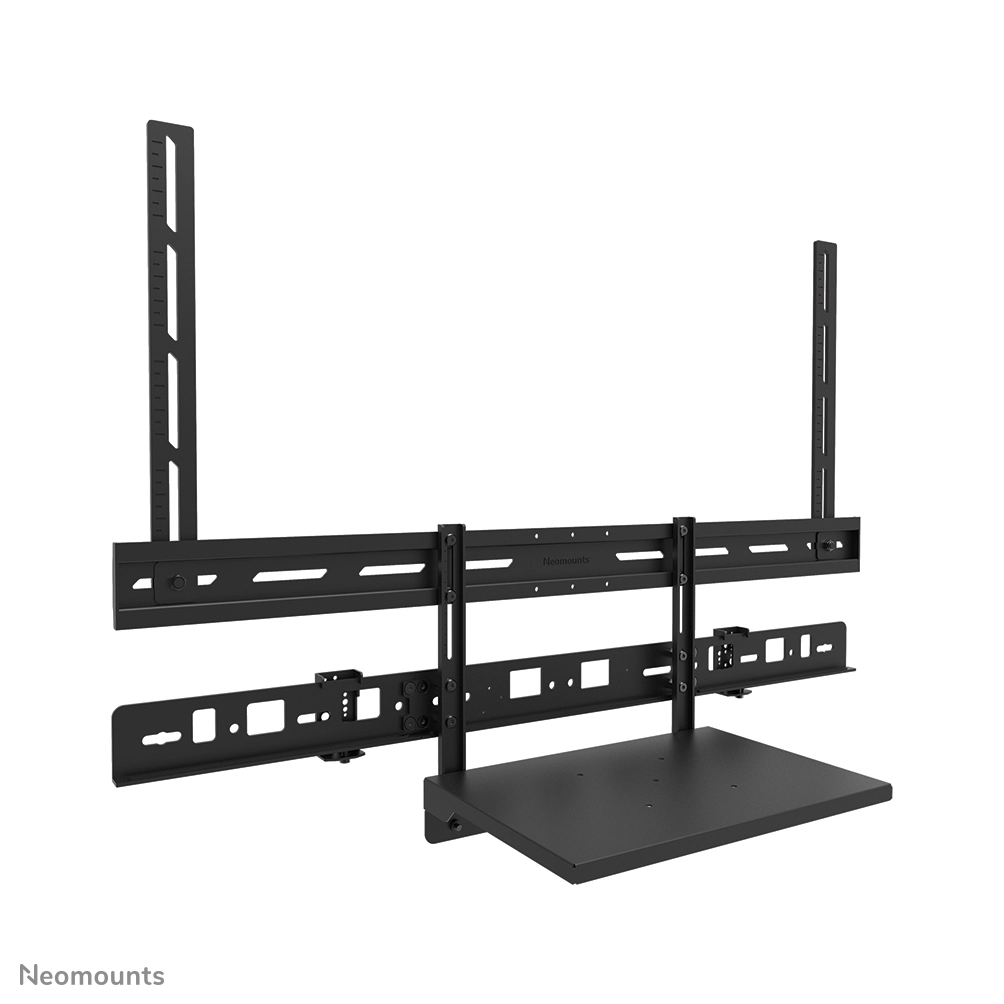

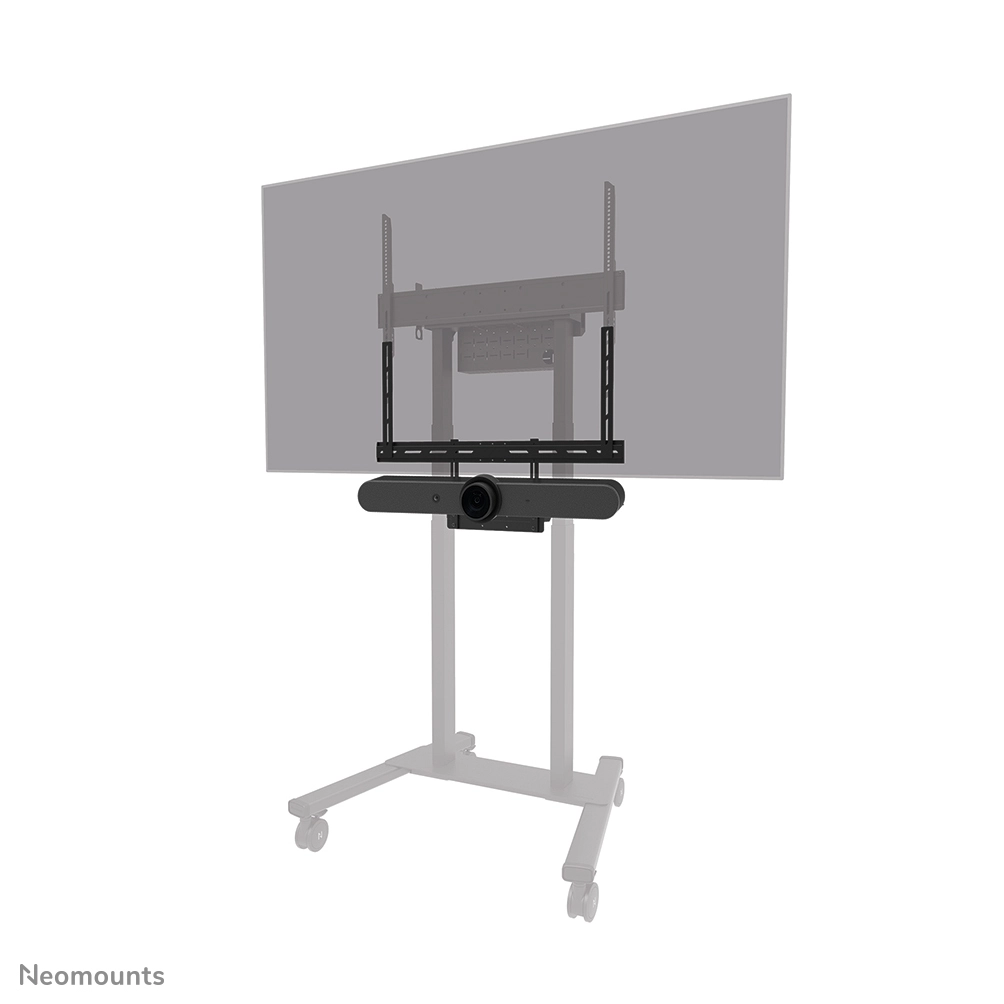

The Neomounts AV60-500BL is a universal videobar and laptop shelf kit designed for 43" displays and larger, supporting VESA hole patterns from 200x200 up to 800x600 mm. Built for durability and versatility, the kit supports devices up to 8 kg and can be installed either above or below the screen. The included laptop shelf carries up to 2, 5 kg providing a smart solution for laptops, notebooks, tablets or extra equipment. Both the videobar/laptop support and the backplate brackets are height-adjustable, offering maximum flexibility.

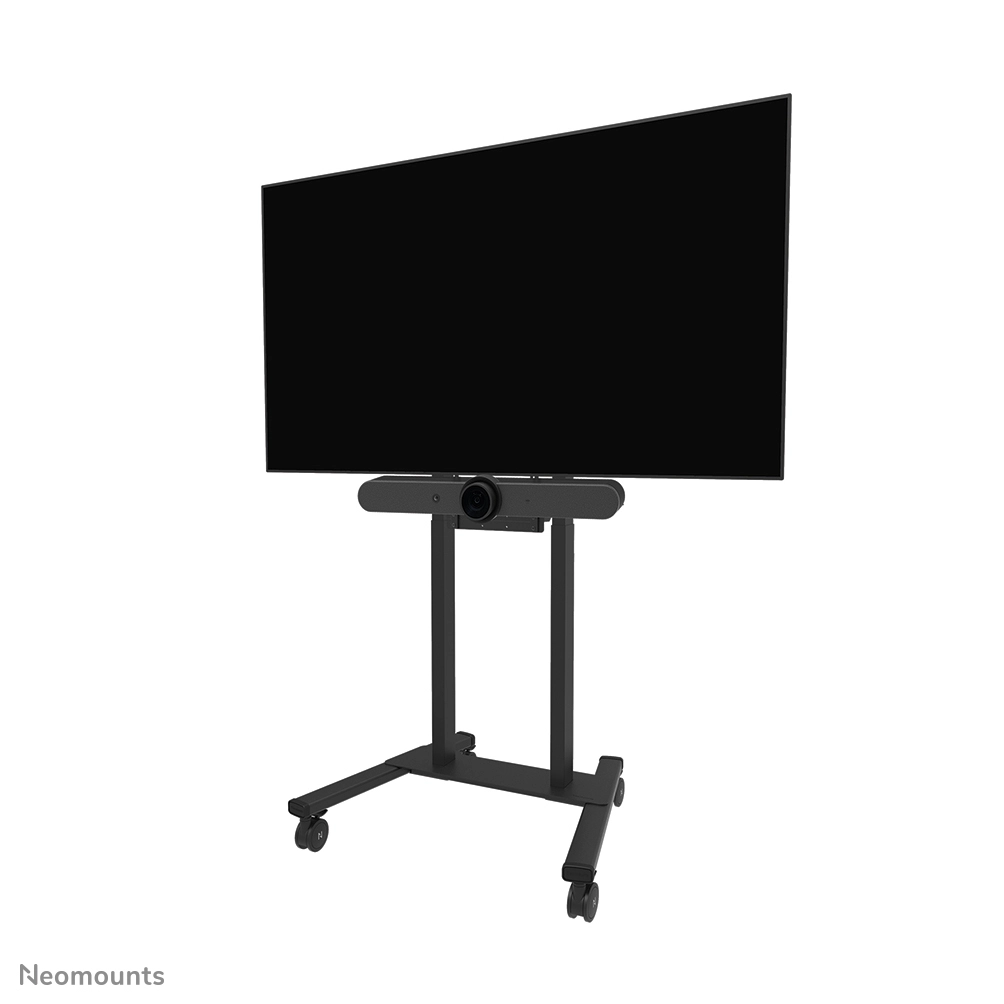

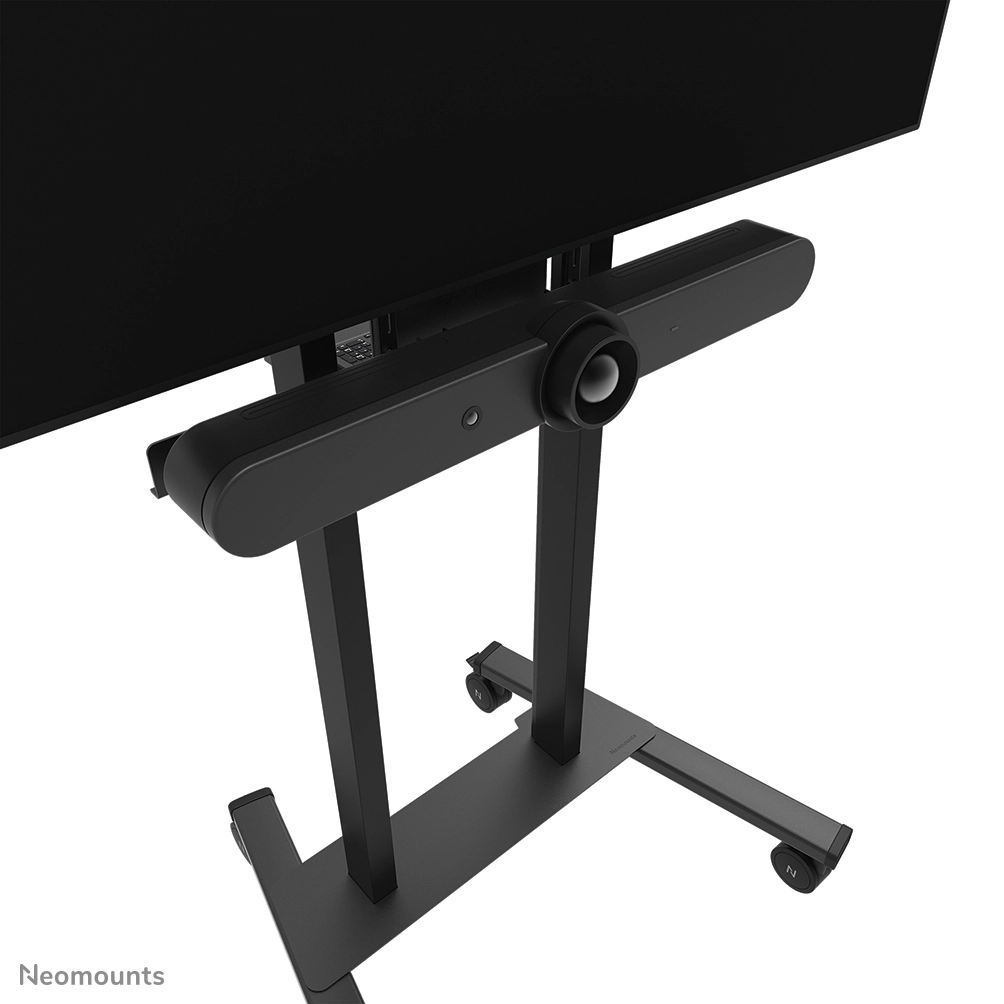

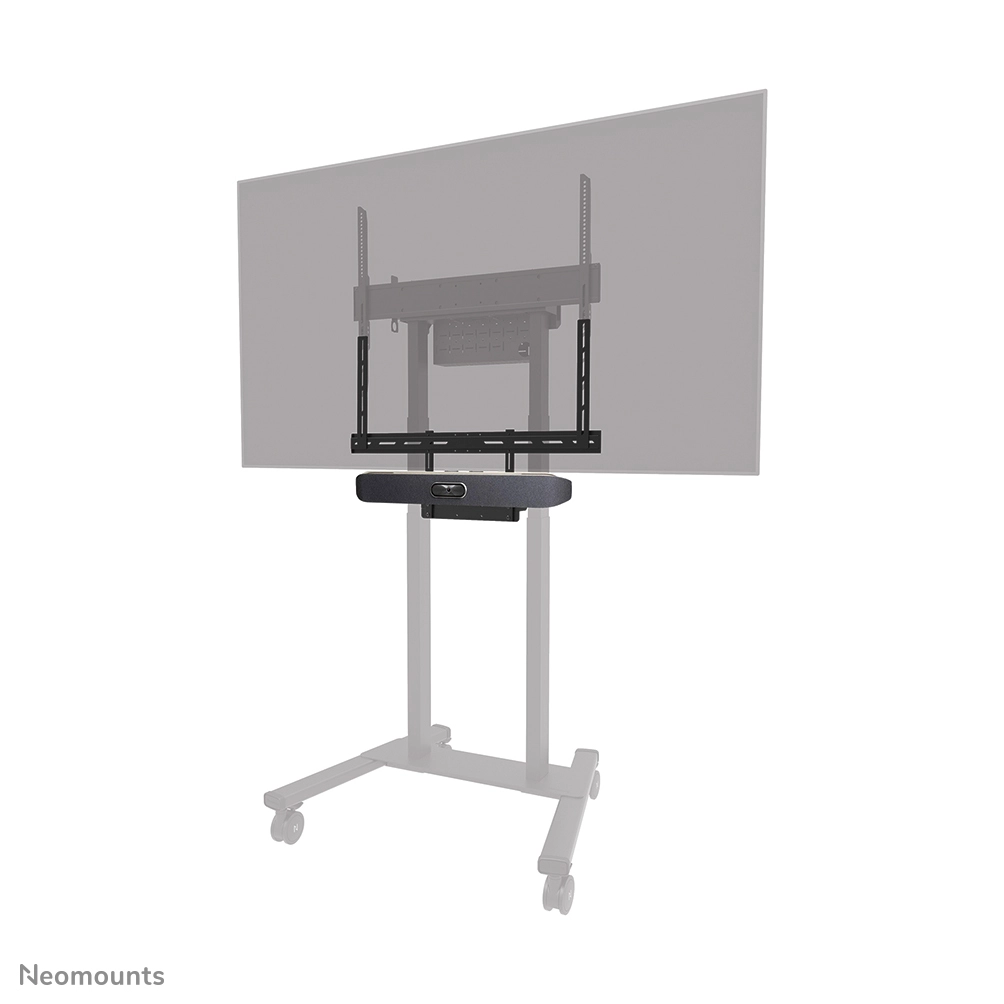

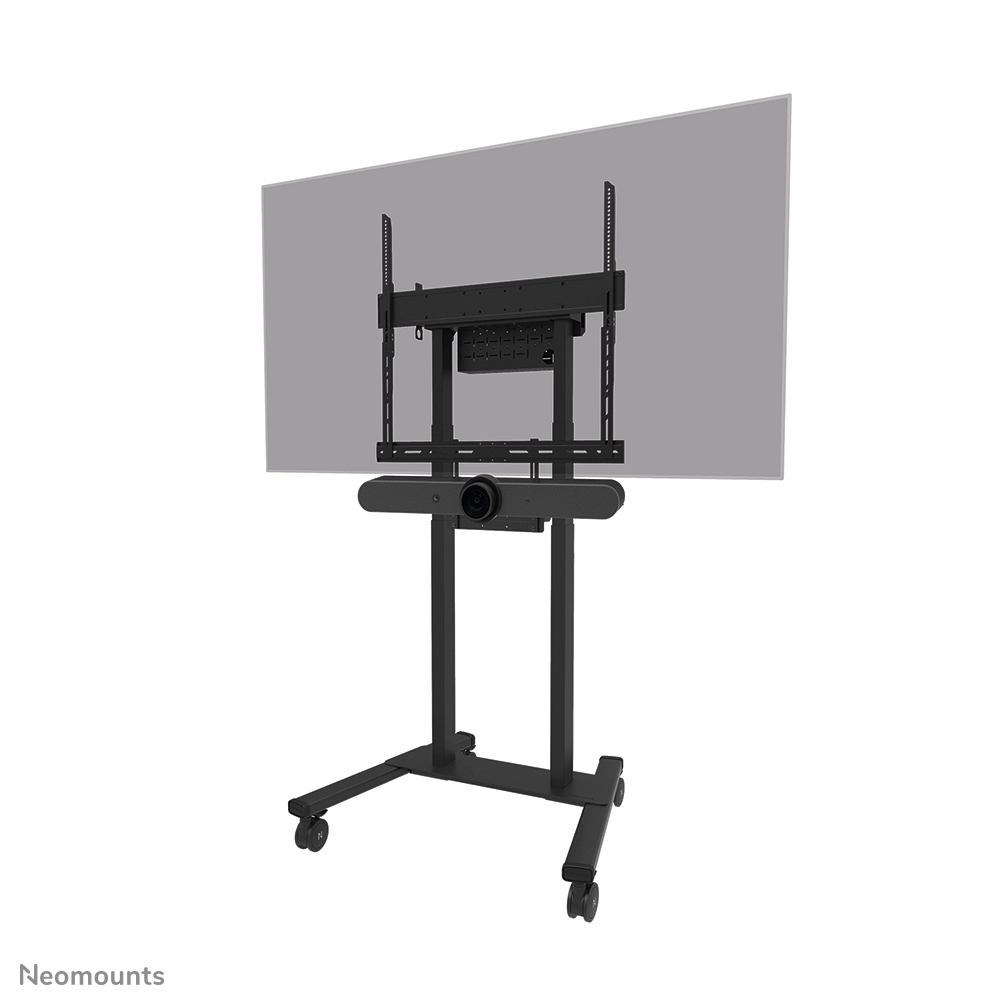

Compatible with most* videobars, PTZ cameras, and soundbars, including Logitech Rally speakers, the AV60-500BL ensures broad applicability. The mounting holes allow width and height variation, while the VESA frame adjusts in both height and width (200/400/600/800). The kit is compatible with both wall and floor mounts. Despite its versatility, installation is straightforward, aided by ruler-guided alignment for a seamless fit.

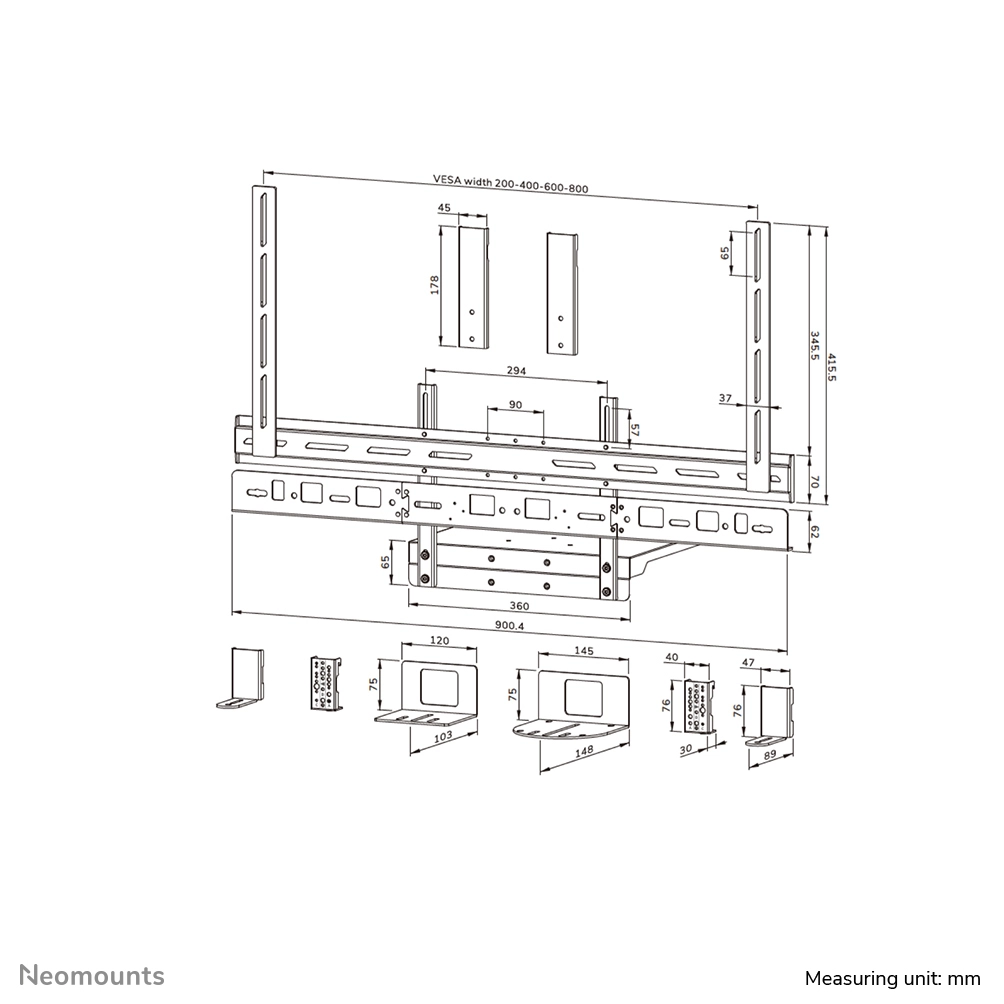

* The AV60-500BL is truly universal, compatible with any videobar that fits within the bracket?s range (see line drawing). It is also specially designed for the following models:

- Bose Professional VB1 and VB-S
- Neat Bar (gen 1) and Bar Pro
- Poly Studio USB, Studio R30/X30/X32, Studio X50/X52/V52, Studio X70/X72/V72 and Studio V12
- Jabra Panacast 40/50
- Logitech Meetup, Meetup 2, Rally Bar, Rally Bar Mini, Rally Bar Huddle and Rally Plus
- Cisco Webex Room Kit Plus
- Yealink MSpeaker II, MeetingBar A30/A40/A50, UVC20/UVC30 Room/UVC34/UVC40 and MeetingEye 400/600
- AVer VB350 and VB370A
- Barco ClickShare Bar (Pro)
- Maxhub Xbar U50/V50/W70 and UC S05/S07/S10/S10 Pro/S15
- Predia Connect Camera
- Biamp Parlé ABC 2500(a), VBC 2500(a)/2800 and SBC 2
- Lenovo ThinkSmart One

For detailed compatibility with specific models or mounting sizes, please refer to the online manual.

Specification

Product
Product id	1006410
Brand	Neomounts
Partnr	AV60-500BL
EAN/UPC code	8717371449421
Warranty (months)	5 year
Features
Product type	Videobar mount
Panel mounting interface	200 x 200, 200 x 300, 200 x 400, 400 x 200, 400 x 300, 400 x 400, 400 x 600, 600 x 300, 600 x 200, 600 x 400, 600 x 500, 600 x 600, 800 x 800, 800 x 200, 800 x 400, 800 x 450, 800 x 500, 800 x 600 mm
Minimum screen size compatibility	43 "
Product colour	Black
Maximum screen size	110
Maximum weight capacity	8 kg
Harmonized System (HS) code	7326909890
Number of displays supported	1
Height adjustment range	0 - 55 mm
Housing material	Steel
Minimum VESA mount	200 x 200 mm
Maximum VESA mount	800 x 600 mm
Technical details
Warranty period	5 jaar
Country of origin	China
Weight & dimensions
Width	900 mm
Depth	434 mm
Height	640 mm
Packaging data
Package width	260 mm
Package depth	958 mm
Package height	86 mm
Logistics data
Master (outer) case net weight	14800 g
Master (outer) case width	276 mm
Master (outer) case length	978 mm
Master (outer) case height	280 mm
Quantity per master (outer) case	2 stuk(s)
Master (outer) case weight	18400 g
