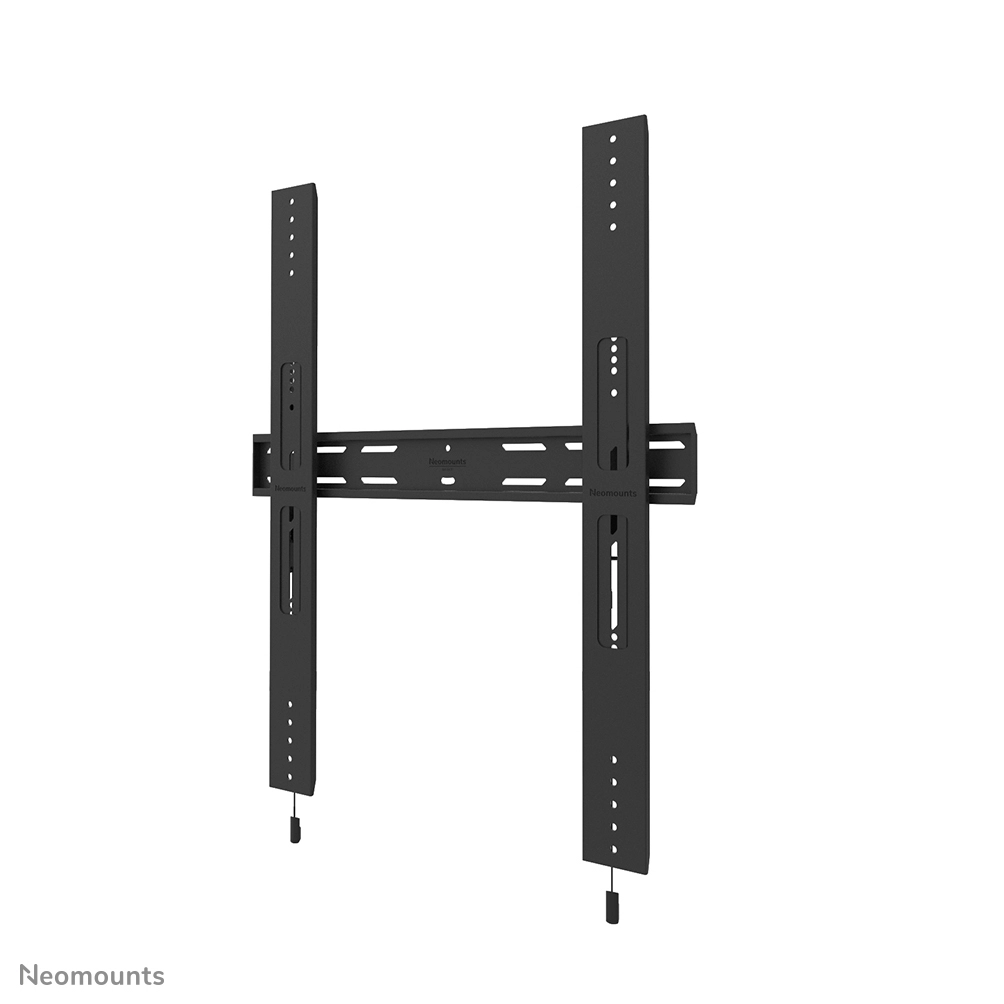

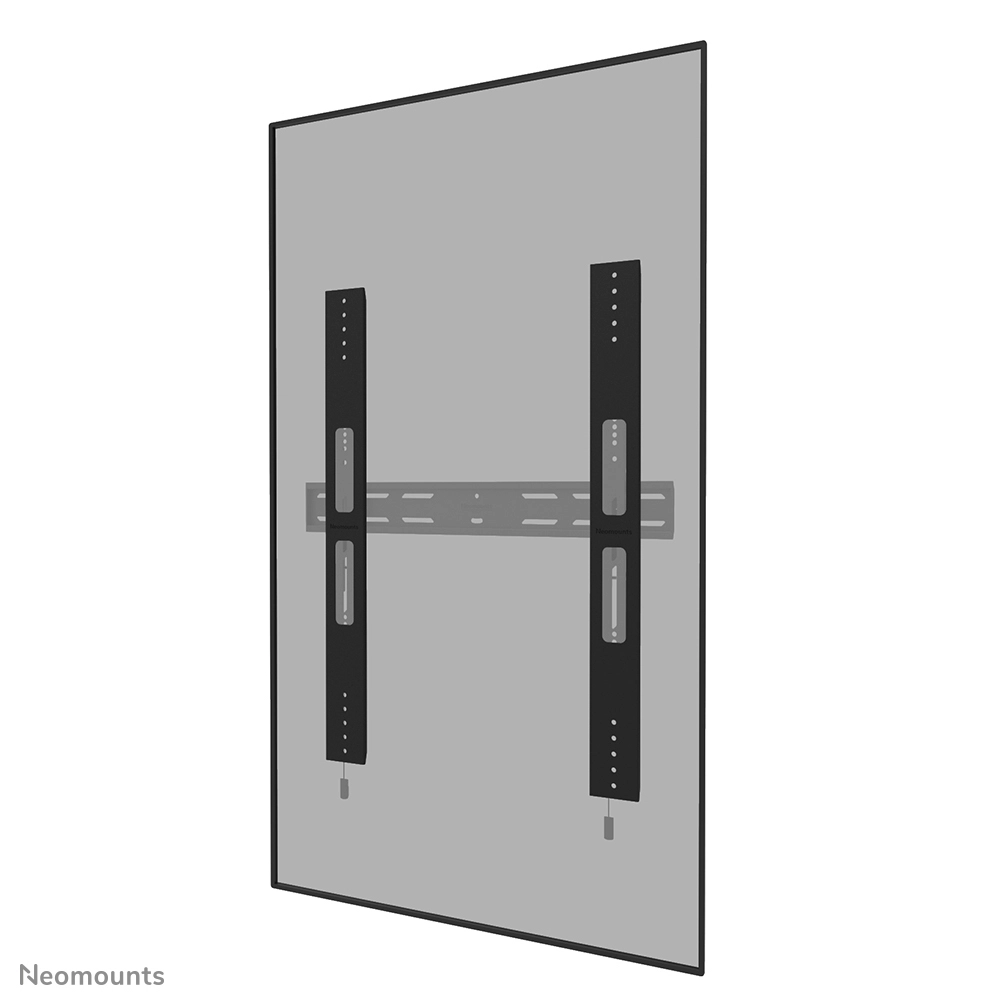

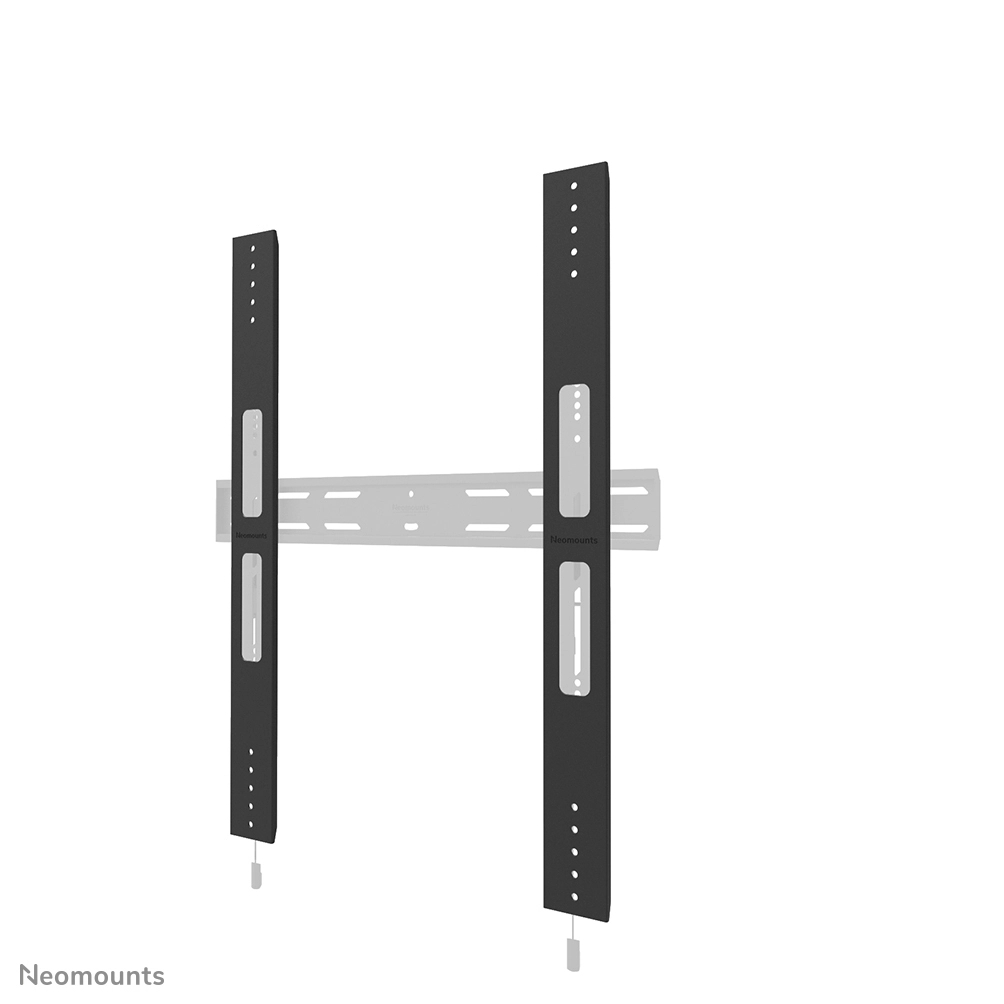

The Neomounts by Newstar AWL-250BL18 is a universally applicable VESA extension kit for wall mounts with a maximum weight capacity of 75 kg. With the extension kit, the VESA can be extended from 400 mm to 600, 700 or 800 mm. The kit is installed on top of the existing brackets of the wall mount and is usable for both landscape and portrait mounting.

Specification

Product
Product id	861382
Brand	Neomounts
Partnr	AWL-250BL18
EAN/UPC code	8717371449605
Warranty (months)	5 year
Technical details
Product colour	Black
Mounting type	Wall
Warranty period	5 jaar
Number of displays supported	1
Country of origin	China
Minimum VESA mount	600 x 600 mm
Maximum VESA mount	800 x 800 mm
Maximum weight capacity	75 kg
Panel mounting interface	400 x 600, 600 x 600, 800 x 600, 800 x 800, 900 x 600, 1000 x 600, 1000 x 700, 1000 x 800, 1200 x 600, 1200 x 800, 1400 x 800, 1600 x 600 mm
Weight & dimensions
Weight	2130 g
Width	80 mm
Depth	10 mm
Height	840 mm
Packaging data
Package width	86 mm
Package depth	34 mm
Package height	855 mm
Package weight	2200 g
Logistics data
Master (outer) case width	187 mm
Master (outer) case length	194 mm
Master (outer) case height	875 mm
Master (outer) case weight	22400 g
Quantity per master (outer) case	10 stuk(s)
Master (outer) case net weight	21300 g
Harmonized System (HS) code	7326 90 98 90
Quantity per EUR-pallet	360 stuk(s)
Rotating	Y
Housing material	Steel
Minimum screen size compatibility	-1 "
Maximum screen size	-1
Swivelling	Y
Tilt adjustment	Y
Product type	Extension kit
Fixed	Y
Full motion	Y
