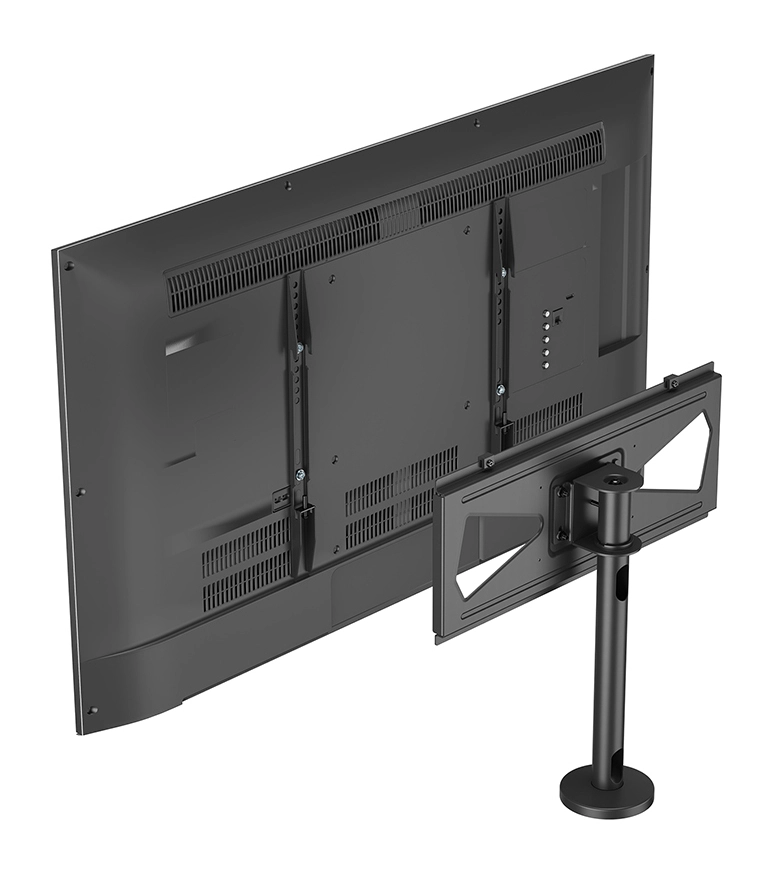

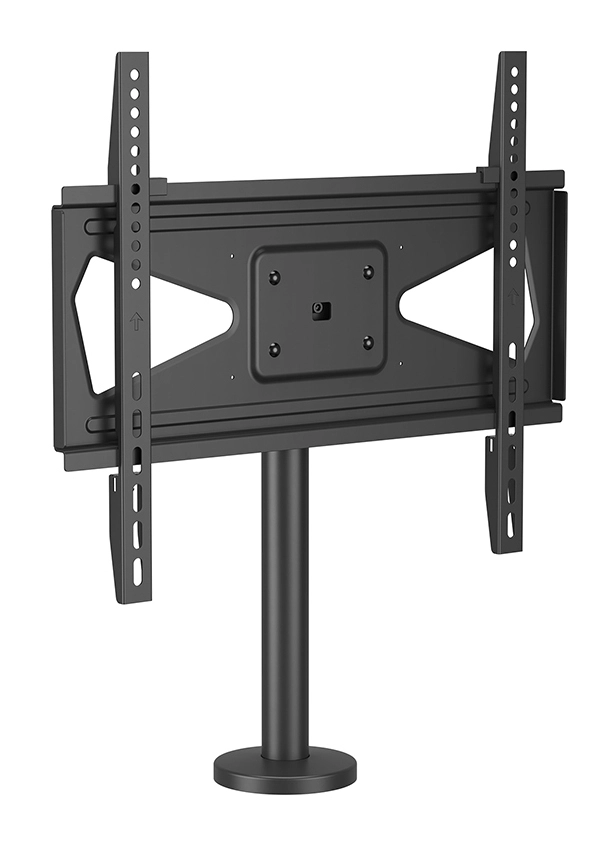

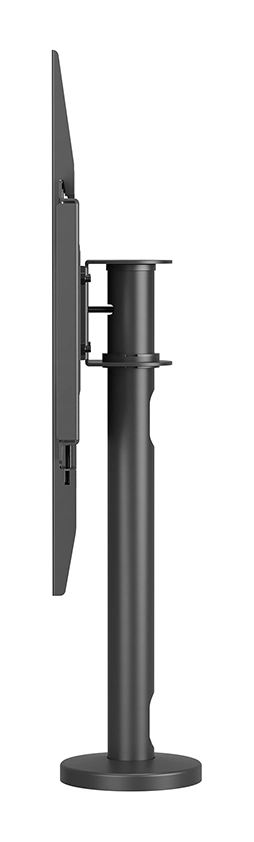

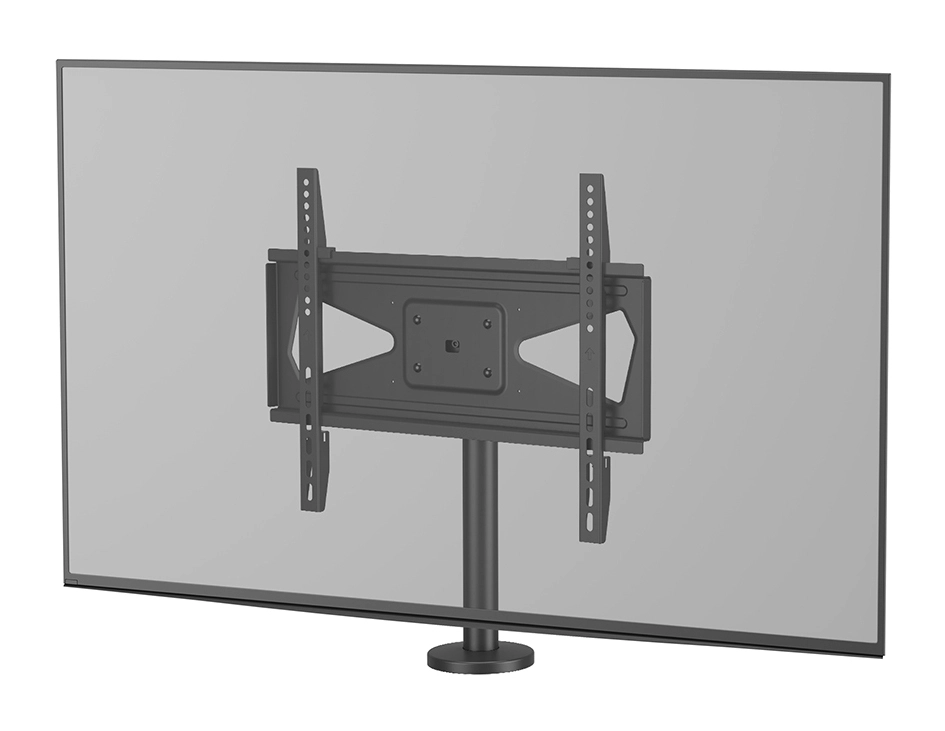

The Neomounts DS42-430BL14 is a bolt-down TV desk mount for screens up to 55" with a weight capacity of 50 kg. The TV mount features a practical swivel option (60°) to easily position the TV in the optimum viewing angle.

The DS42-430BL14 is suitable for screens that meet pattern 100x100 to 400x400 mm. For non-standard hole patterns, Neomounts has various VESA optional adapter plates available. Cables can be routed neatly through the rod and table top thanks to the internal cable management. The bolt down base ensures solid installation of the mount to the desk.

Specification

Product
Product id	997107
Brand	Neomounts
Partnr	DS42-430BL14
EAN/UPC code	8717371445355
Warranty (months)	5 year
Mounting
Maximum weight capacity	50 kg
Mounting type	Desk
Minimum screen size compatibility	32 "
Maximum screen size	55
Minimum VESA mount	100 x 100 mm
Maximum VESA mount	400 x 400 mm
Panel mounting interface	100 x 100, 100 x 200, 200 x 200, 200 x 400, 400 x 400, 200 x 300, 300 x 300, 300 x 200, 400 x 300, 200 x 100, 300 x 100, 100 x 150, 120 x 120, 350 x 350, 400 x 200, 150 x 200, 200 x 150 mm
Ergonomics
Swivelling	Y
Swivel angle range	-30 - 30 °
Technical details
Product colour	Black
Warranty period	5 jaar
Number of displays supported	1
Design
Housing material	Steel
Weight & dimensions
Width	534 mm
Depth (min)	125 mm
Depth (max)	627 mm
Weight	3930 g
Packaging data
Package width	230 mm
Package depth	138 mm
Package height	560 mm
Package weight	4600 g
Other features
Country of origin	China
Mounting	Bolt-down
Logistics data
Master (outer) case width	480 mm
Master (outer) case length	295 mm
Master (outer) case height	580 mm
Master (outer) case weight	19700 g
Master (outer) case net weight	18400 g
Quantity per master (outer) case	4 stuk(s)
Harmonized System (HS) code	7326909890
Quantity per EUR-pallet	64 stuk(s)
