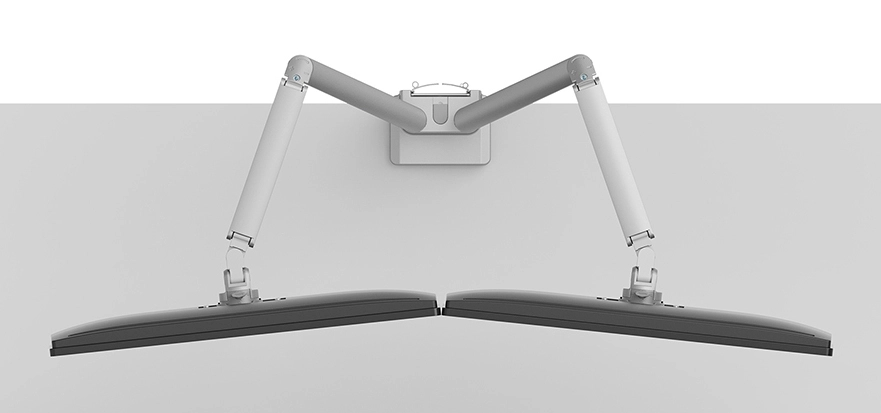

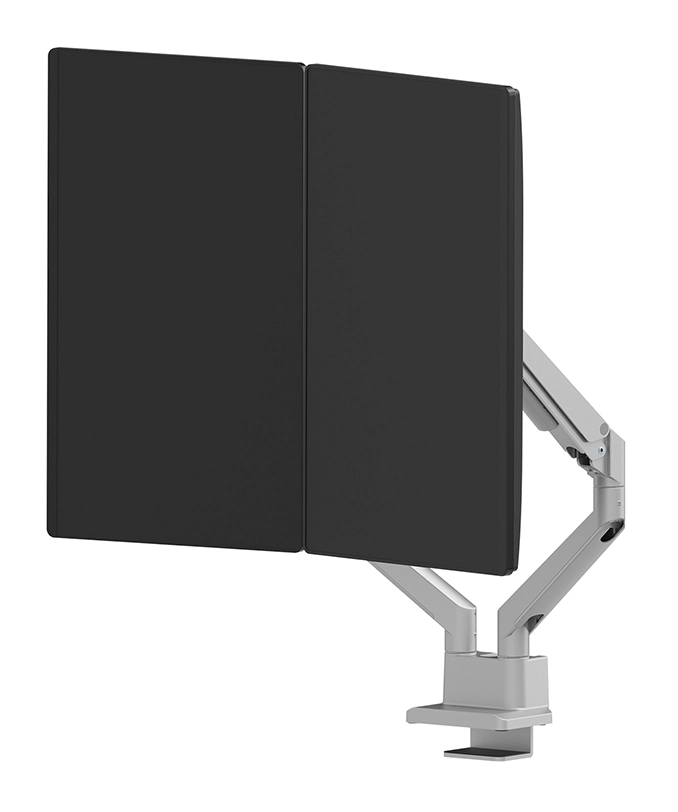

The Neomounts DS70-250SL2 NEXT Slim is a full motion desk mount designed for two screens up to 32", boasting a maximum weight capacity of 9 kg per screen. The versatile tilt (90°), rotate (360°) and swivel (180°) technology enables seamless adjustment to any desired viewing angle to fully optimize the screen's capabilities. With the gas spring height adjustment (21, 5-49, 5 cm) and depth adjustment (7-52, 5 cm) you can effortlessly adjust the mount to suit your ergonomic needs.

The DS70-250SL2 monitor arm features a nifty 180° stop mechanism, that prevents the mount from making contact with wall or separation panel when installed near it, while the integrated cable management system maintains a clutter-free desk.

The elegant black VESA plates of the NEXT Slim provide a perfect match with your screen, accommodating standard 75x75 or 100x100 mm VESA patterns. For non-standard hole patterns, Neomounts has various VESA optional adapter plates available. The Quick-release VESA system enables easy setup, while the topfix clamp or grommet ensures a quick and straightforward installation.

Committed to sustainability, the packaging of NEXT Slim desk mounts is 100% plastic-free and entirely made from recyclable cardboard and paper.

Specification

Product
Product id	997089
Brand	Neomounts
Partnr	DS70-250SL2
EAN/UPC code	8717371443061
Warranty (months)	5 year
Mounting
Maximum weight capacity (per display)	9 kg
Minimum screen size compatibility	17 "
Maximum screen size	32
Mounting type	Desk
Mounting	Clamp/Grommet
Maximum weight capacity (per curved/ultra-wide display)	8 kg
Minimum VESA mount	75 x 75 mm
Maximum VESA mount	100 x 100 mm
Panel mounting interface	75 x 75, 100 x 100 mm
Number of displays supported	2
Desk thickness (min)	10 mm
Desk thickness (max)	50 mm
Distance to the wall (min)	120 mm
Distance to the wall (max)	404 mm
Ergonomics
Height adjustment	Y
Height adjustment type	Gas spring
Height adjustment range	215 - 495 mm
Adjustable depth	Y
Depth adjustment range	70 - 525 mm
Tilt angle range	-45 - 45 °
Swivelling	Y
Swivel angle	90 °
Swivel angle range	-90 - 90 °
Angle of rotation	360 °
Cable management	Y
Rotating	Y
Tilt adjustment	Y
Design
Product colour	Silver
Housing material	Aluminium
Orientation	Landscape/Portrait
Accepts padlock	N
Technical details
Warranty period	5 jaar
Weight & dimensions
Width	114 mm
Depth	580 mm
Height	552 mm
Weight	4350 g
Package width	192 mm
Package depth	147 mm
Package height	430 mm
Package weight	4900 g
Logistics data
Master (outer) case width	405 mm
Master (outer) case length	310 mm
Master (outer) case height	445 mm
Master (outer) case weight	20700 g
Quantity per master (outer) case	4 stuk(s)
Master (outer) case net weight	17400 g
Harmonized System (HS) code	7326909890
Quantity per EUR-pallet	80 stuk(s)
Other features
Width adjustment range	0 - 984 mm
Minimum weight	1 kg
Country of origin	China
