The Neomounts Select WL30S-910BL16 is a fixed pillar mount for screens up to 75" with a maximum weight capacity of 50 kg. The mount is suitable for Ø25-100 cm cylinder, square and rectangular pillars. Individual bracket height and level adjustment are available for the perfect installation.

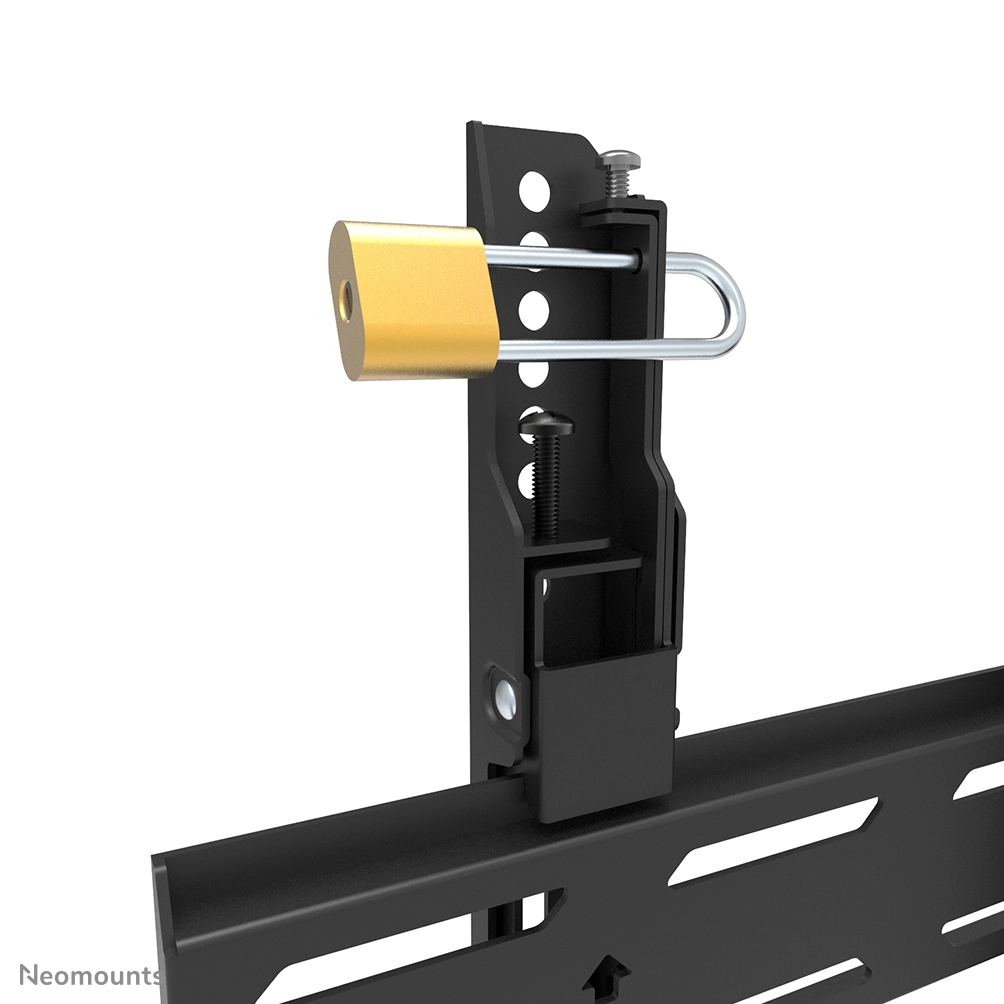

The WL30S-910BL16 has a depth of 6, 7 cm and is suitable for screens that meet VESA hole pattern 100x100 to 600x400 mm. It is possible to lock the mount using the included anti-theft screw or a padlock (not included).

The mount features a nifty magnetic pull & release system, that allows you to attach the TV in a wink of an eye and secure the TV in safe and solid manner. Afterwards, the pull & release straps can be easily hidden behind the screen by clicking the magnet to the mount. The ratchet clamp ensures easy installation, as well as the separate magnetic spirit level tool that is included.

Specification

Product
Product id	859108
Brand	Neomounts
Partnr	WL30S-910BL16
EAN/UPC code	8717371449520
Warranty (months)	5 year
Mounting
Maximum weight capacity	50 kg
Mounting type	Pole
Minimum screen size compatibility	40 "
Maximum screen size	75
Minimum VESA mount	100 x 100 mm
Maximum VESA mount	600 x 400 mm
Panel mounting interface	100 x 100, 100 x 150, 100 x 200, 120 x 120, 200 x 100, 200 x 200, 200 x 300, 200 x 400, 300 x 100, 300 x 200, 300 x 300, 350 x 350, 400 x 200, 400 x 400, 400 x 300, 440 x 400, 500 x 400, 600 x 200, 600 x 300, 600 x 400 mm
Ergonomics
Pivot angle	-3 - 3 °
Cable management	N
Type	Fixed
Technical details
Product colour	Black
Warranty period	5 jaar
Angle of rotation	6 °
Number of displays supported	1
Compatible pole diameter (max)	1000 mm
Compatible pole diameter (min)	250 mm
Distance to the wall (max)	67 mm
Package net weight	5300 g
Lockable	Security screw included
Design
Housing material	Steel
Accepts padlock	Y
Weight & dimensions

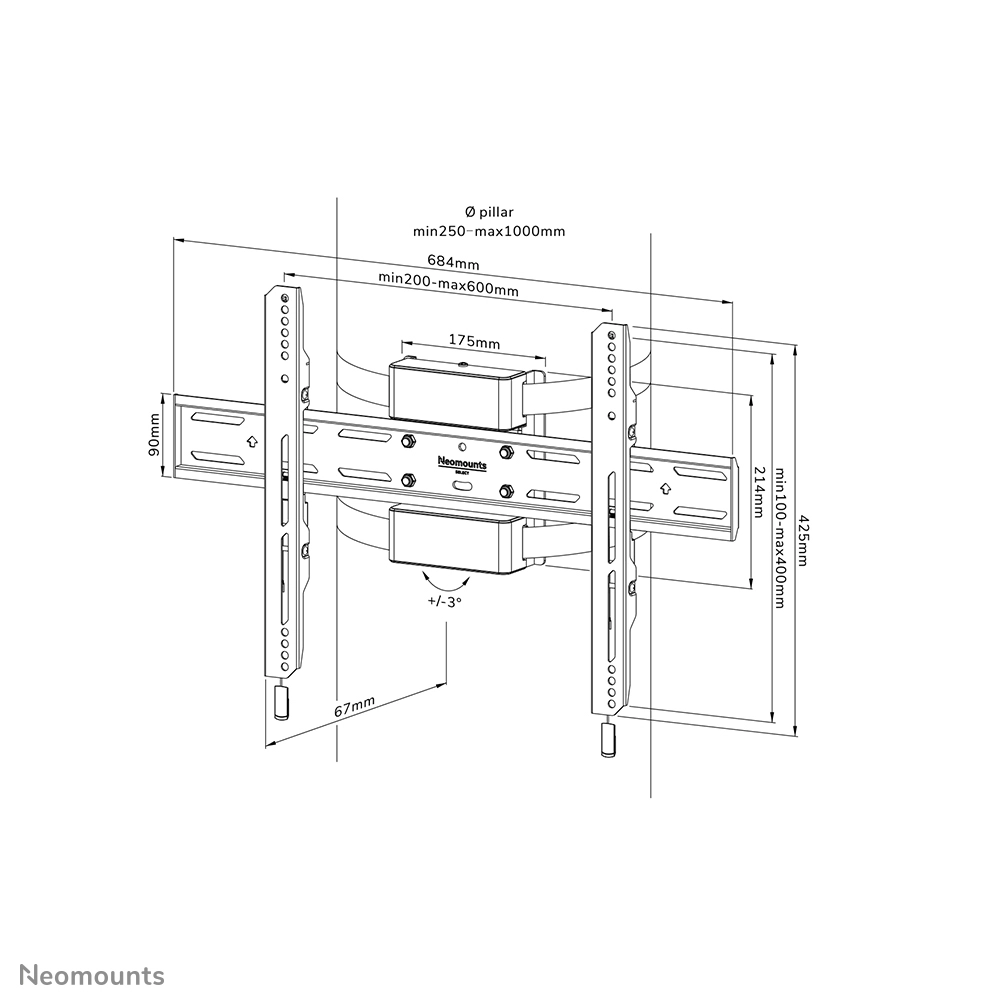

Width	684 mm
Depth	67 mm
Height	425 mm
Weight	4200 g
Packaging data
Package width	238 mm
Package depth	74 mm
Package height	900 mm
Package weight	5300 g
Other features
Country of origin	China
Logistics data
Master (outer) case width	315 mm
Master (outer) case length	258 mm
Master (outer) case height	920 mm
Master (outer) case weight	21700 g
Master (outer) case net weight	16800 g
Quantity per master (outer) case	4 stuk(s)
Harmonized System (HS) code	7326 90 98 90
Quantity per EUR-pallet	48 stuk(s)
