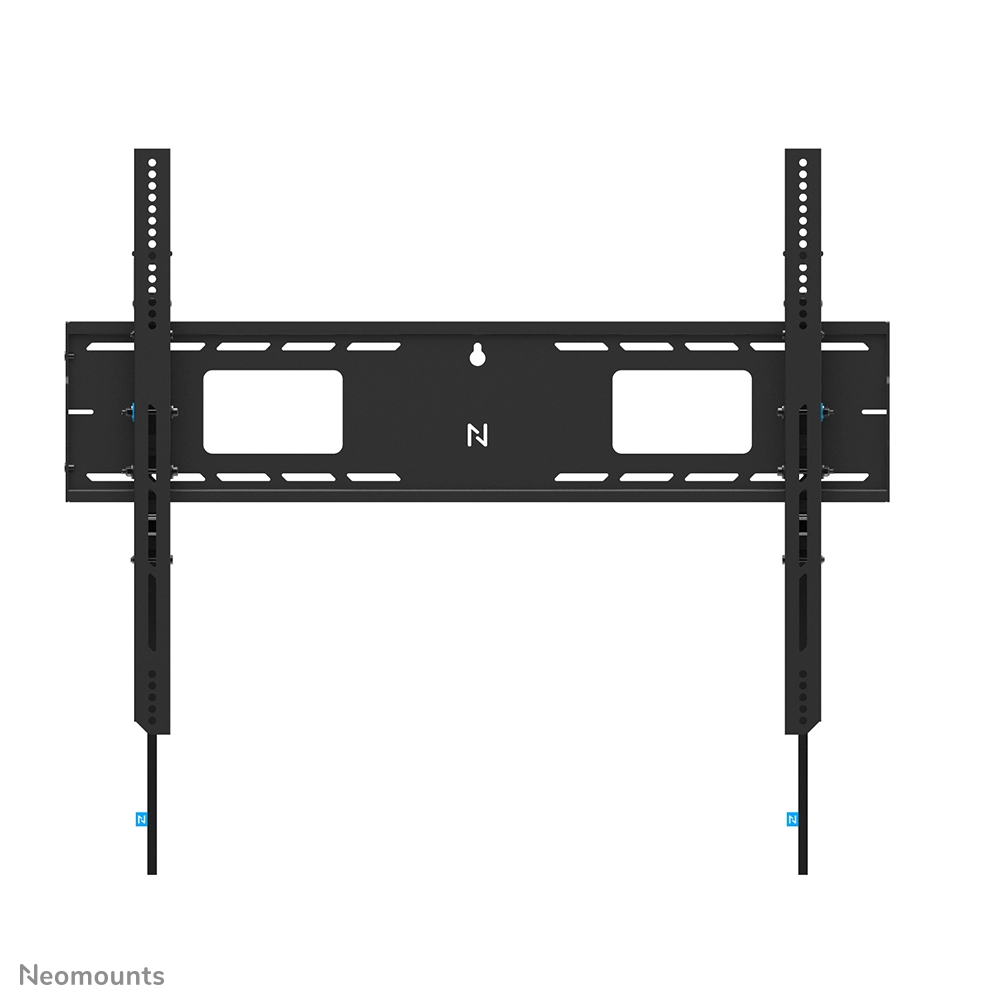

The Neomounts WL35-750BL18 LEVEL is the ultimate tiltable solution for securely mounting an interactive or heavy weight display up to 98" with a maximum capacity of 125 kg. The toolless tilt adjustment (+15°/-15°) allows you to create the optimum viewing angle. This heavy-duty wall mount features a sturdy high profile wall plate and is engineered for stability and precision, ensuring your screen is securely mounted even on uneven surfaces. The mount features individual adjustable brackets (10 mm) for securely adjusting the display height or levelling it.

The LEVEL-750 wall mount has a profile of 9, 3 cm and is suitable for screens that meet VESA hole pattern 100x100 to 800x600 mm. Its quickly connectable wall plate allows for multiple screen mounting. Additionally, the wall plate is designed with specific cut-outs for wall sockets and securing devices and cables. It features various perforated holes for easy tie-wrap cable fixing and provides space for cable storage, ensuring a clean and tidy finishing.

The WL35-750BL18 includes a safe and practical pull & release system, allowing you to quickly attach and detach the display in a safe and secure manner. The tilt-lock prevents the display from tilting upwards when attaching it on or detaching it from the mount to enable a safe install. It is possible to lock the bracket using a padlock (not included) for extra screen security.

For a simple and effective storage, an optionally available, AV-rack can be installed to the left or right side of the mount.

Specification

Product
Product id	997100
Brand	Neomounts
Partnr	WL35-750BL18
EAN/UPC code	8717371443375
Warranty (months)	5 year
Mounting
Maximum weight capacity	125 kg
Mounting type	Wall
Minimum screen size compatibility	43 "
Maximum screen size	98
Minimum VESA mount	100 x 100 mm
Maximum VESA mount	800 x 600 mm
Ergonomics
Tilt adjustment	Y
Height adjustment	Y
Height adjustment range	0 - 10 mm
Cable management	Y
Tilt angle range	-15 - 15 °
Technical details
Product colour	Black
Number of displays supported	1
Distance to the wall (max)	93 mm
Lockable	Padlock not included
Design
Housing material	Steel
Weight & dimensions
Width	886 mm
Depth	93 mm
Height	684 mm
Weight	6800 g
Packaging data
Package width	928 mm
Package depth	102 mm
Package height	209 mm
Package weight	8400 g
Other features
Country of origin	China
Logistics data
Master (outer) case width	946 mm
Master (outer) case length	227 mm
Master (outer) case height	324 mm
Master (outer) case weight	26300 g
Master (outer) case net weight	20400 g
Quantity per master (outer) case	3 stuk(s)
Harmonized System (HS) code	7326909890
Quantity per EUR-pallet	39 stuk(s)
