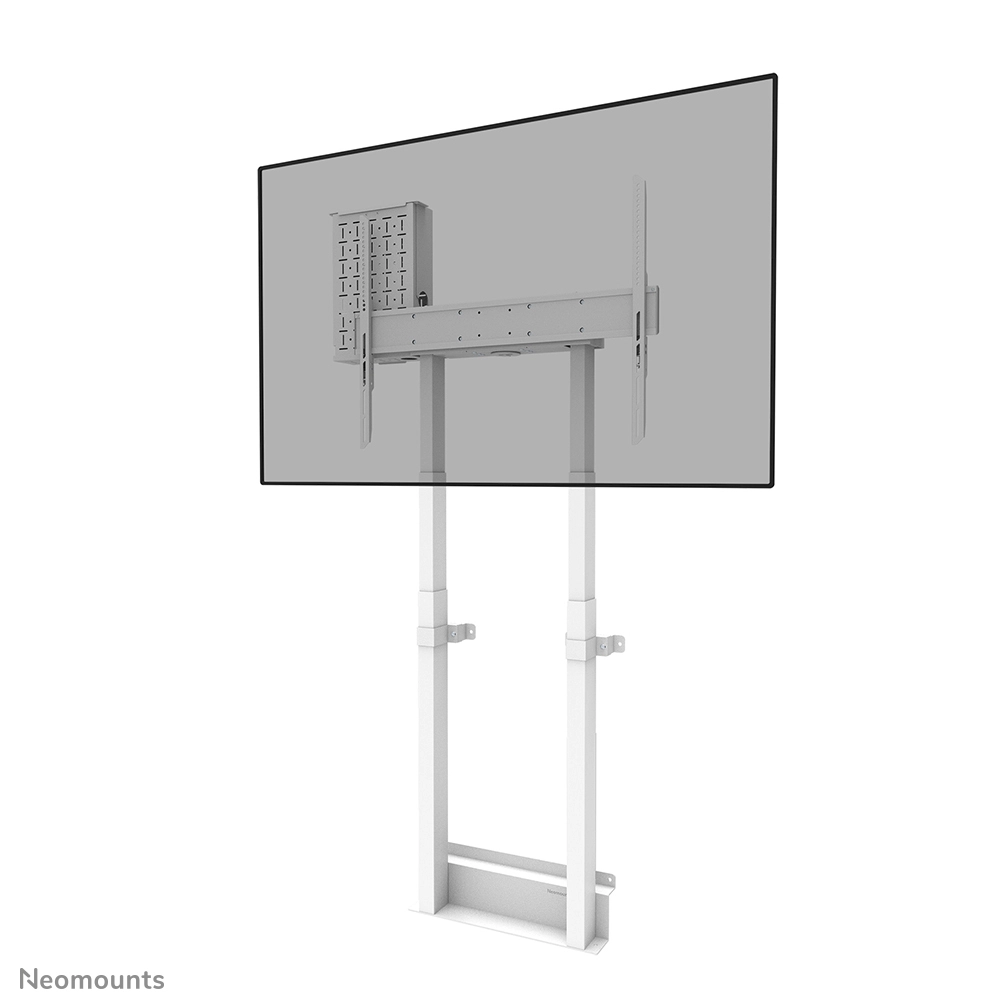

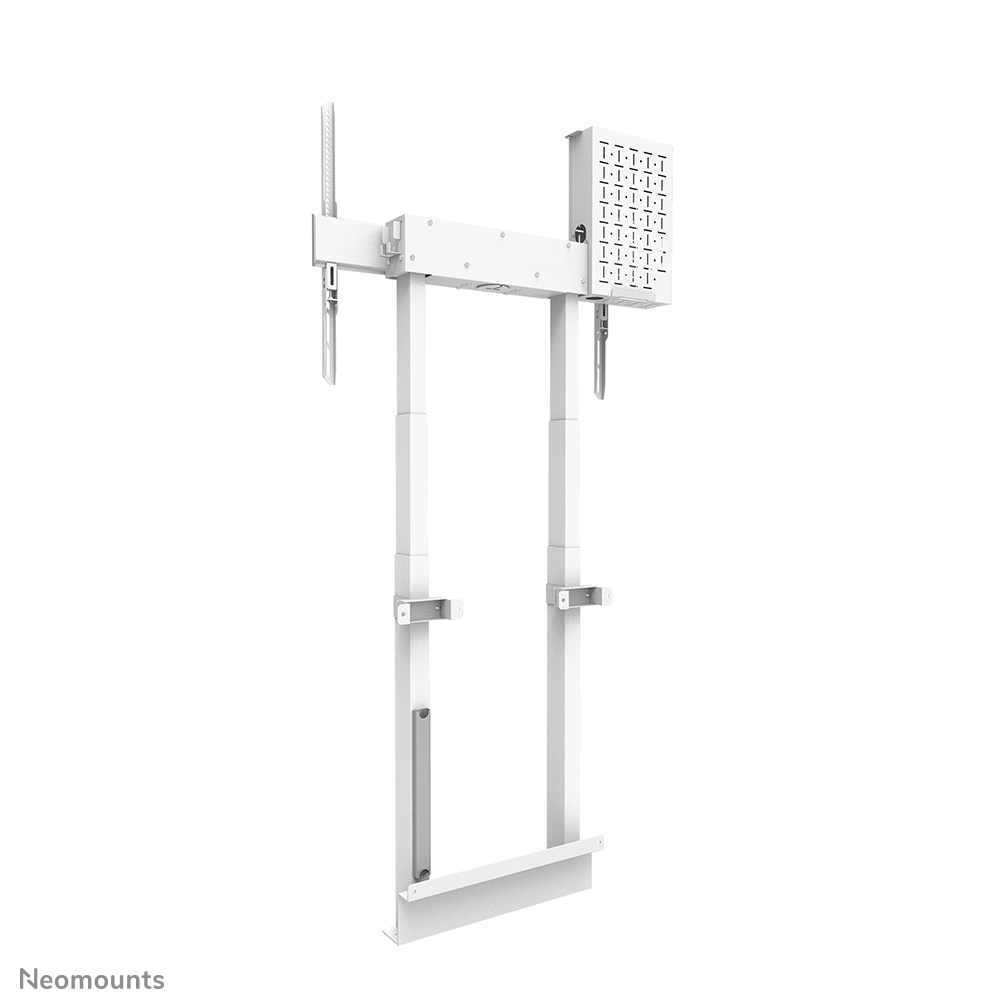

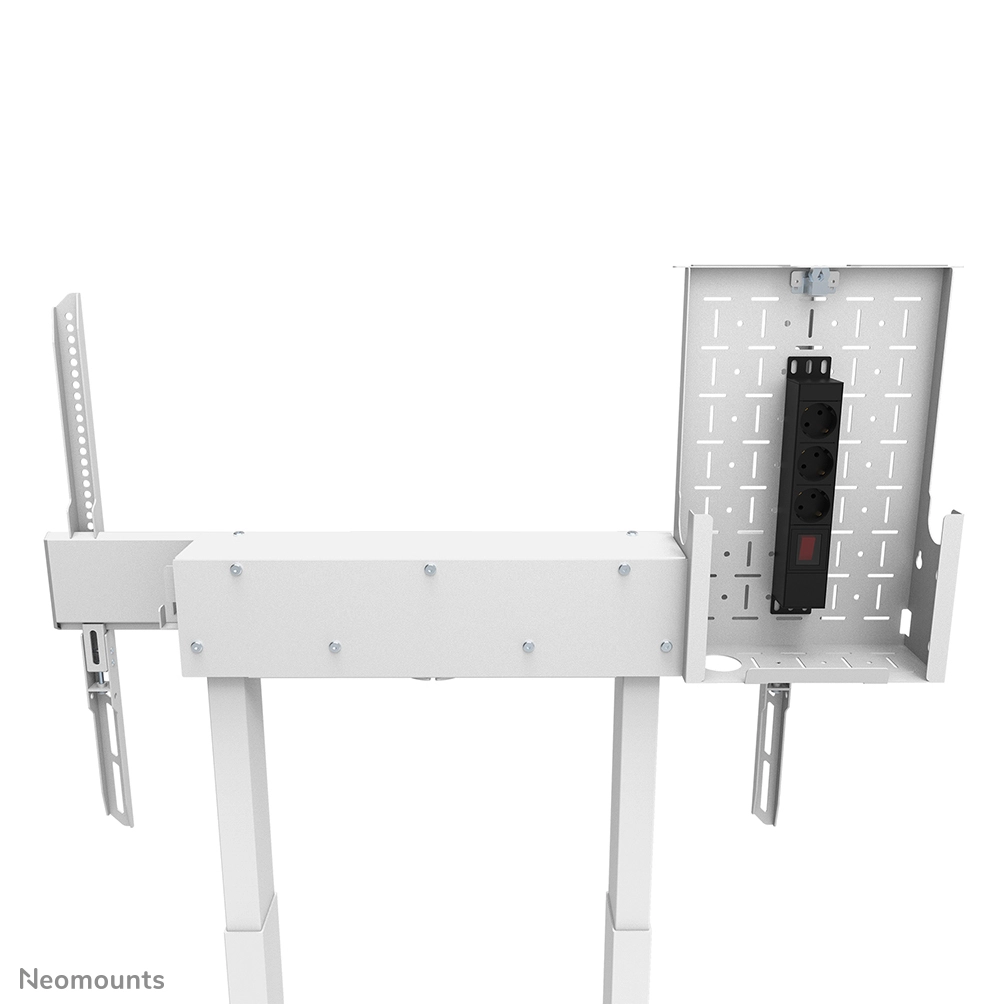

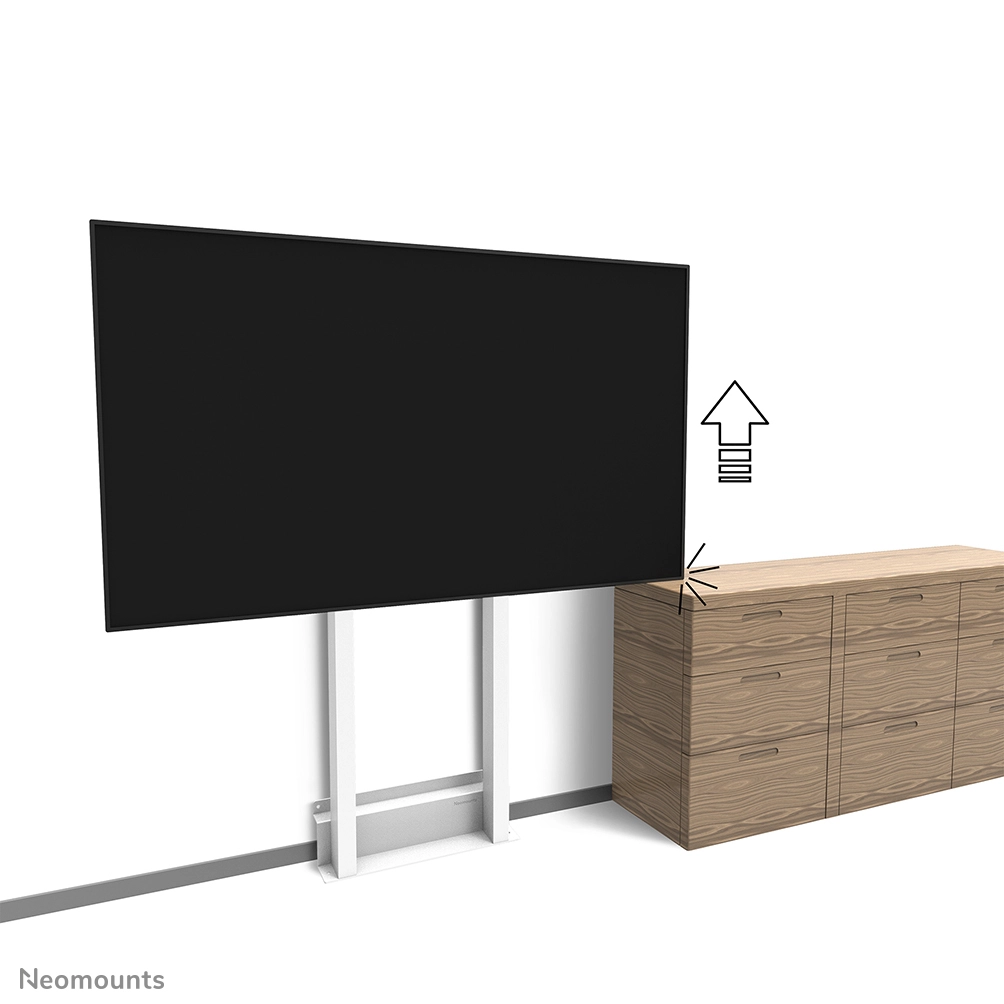

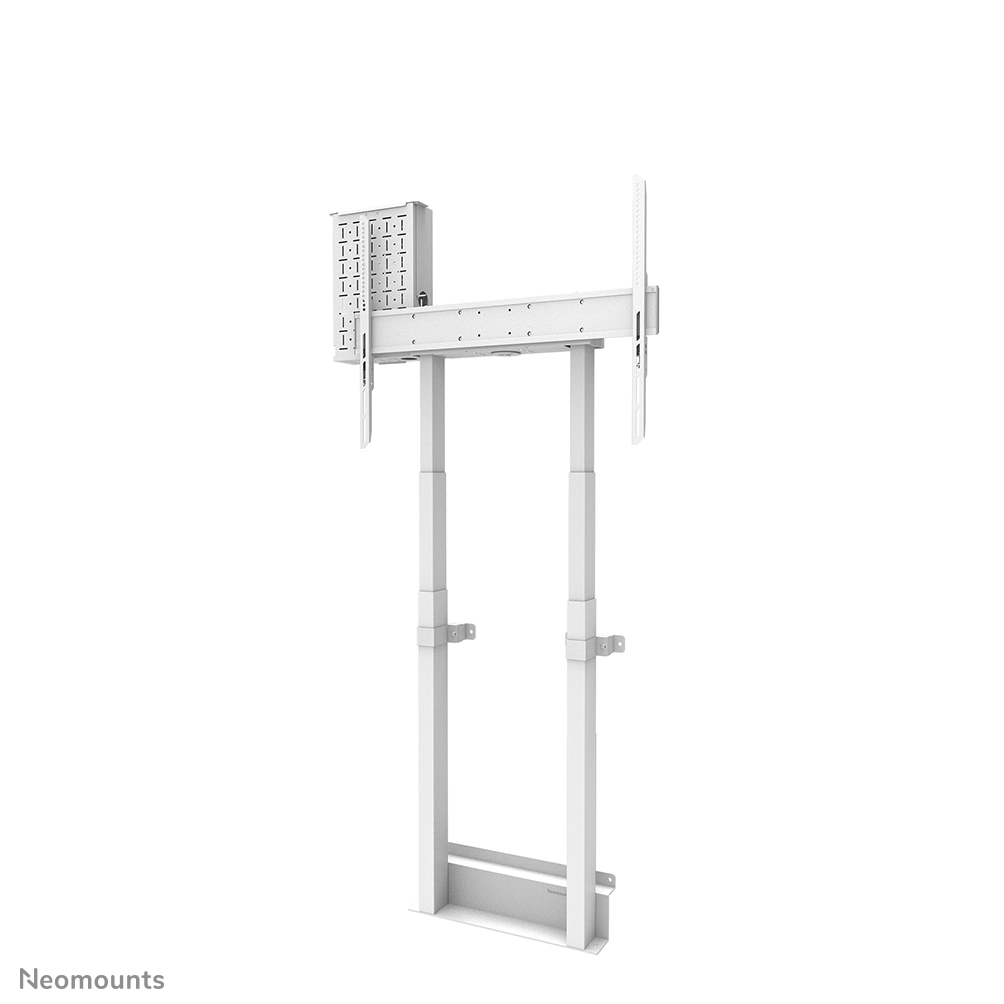

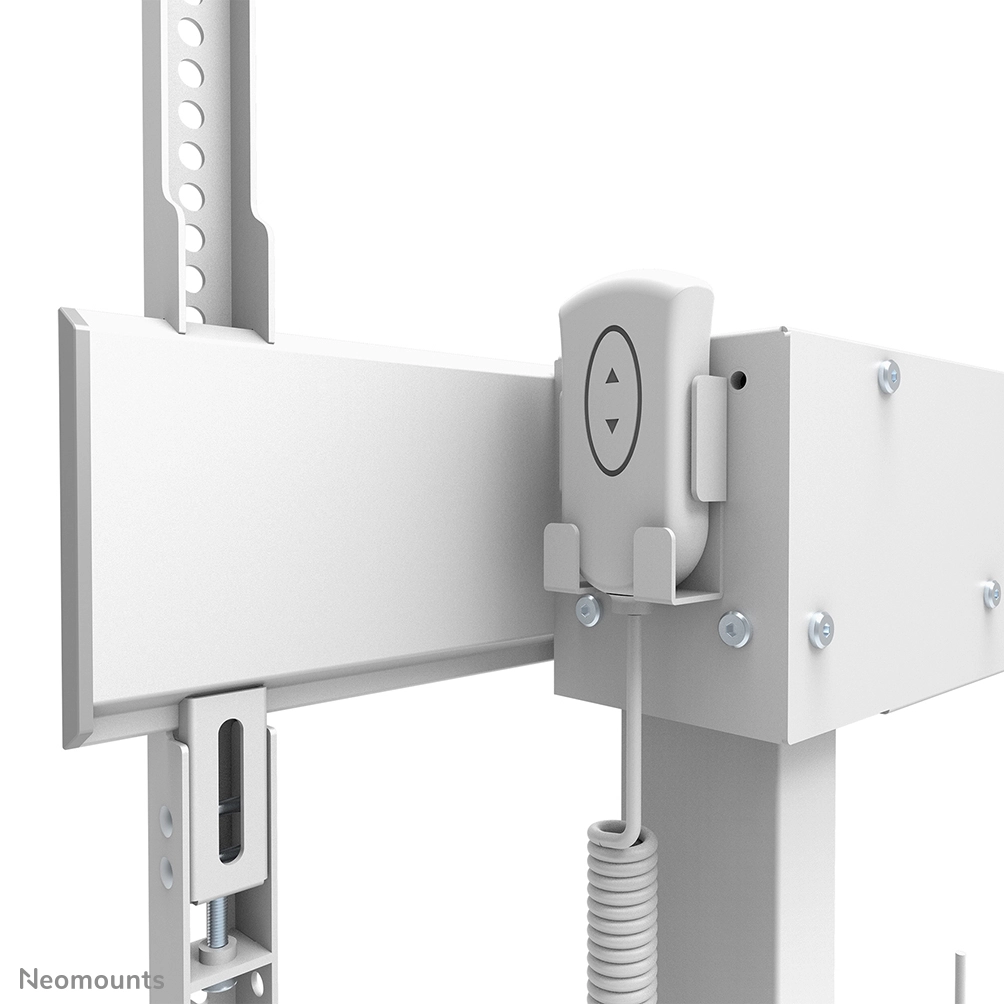

The Neomounts by Newstar WL55-875WH1 is a wall mount for displays up to 100" with a maximum weight capacity of 110 kg. The mount has 65 cm motorized height adjustment (35 mm/second), is operated with a wired remote control and features an anti-collision system for extra safety. A lockable, ventilated hardware compartment with cable opening is included and optional for installation.

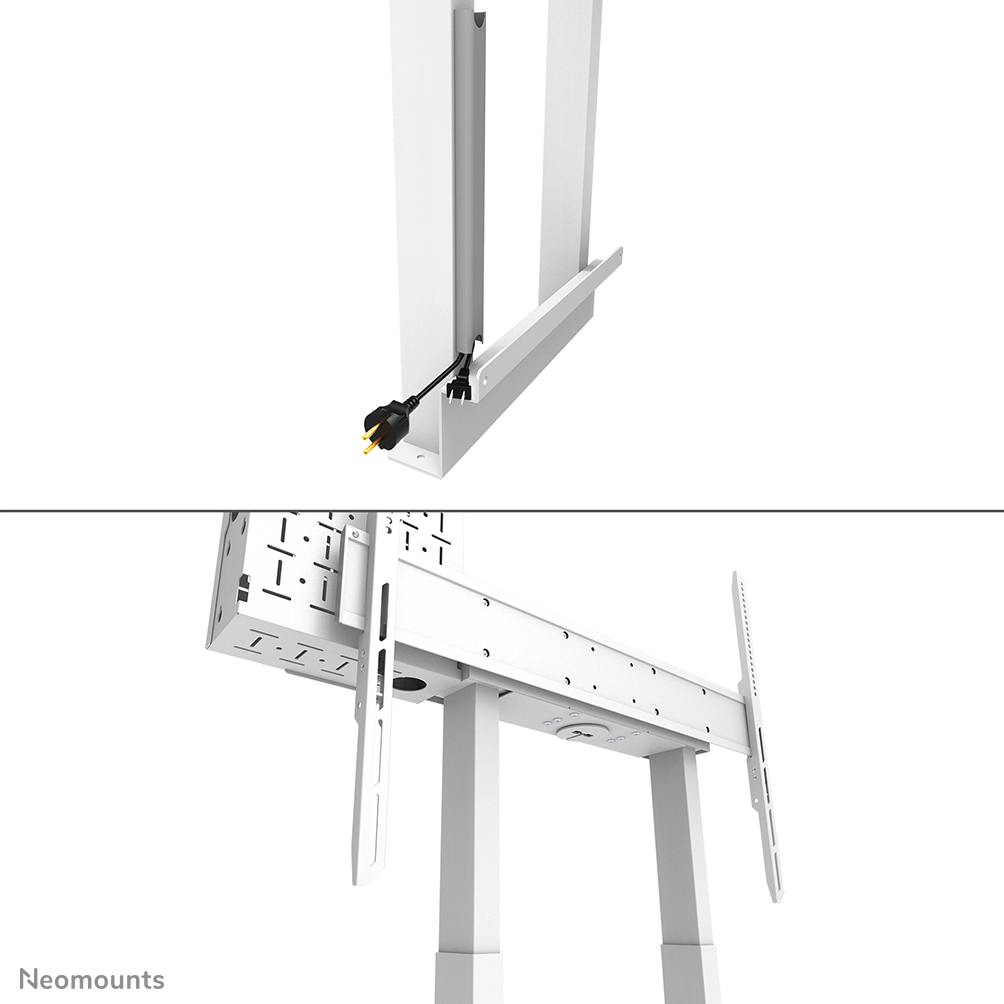

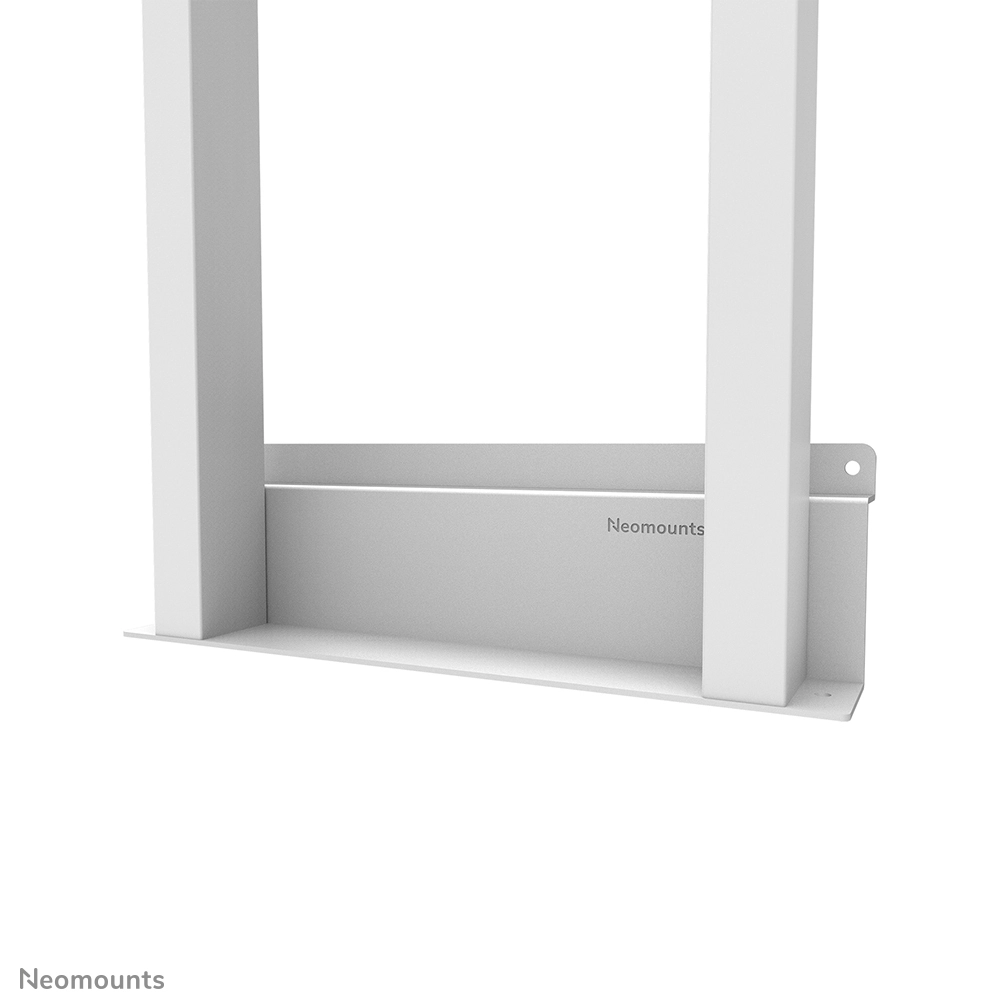

The floor plate of the mount, with space for floor baseboards, ensures solid and secure installation. The included cable duct, optional to install, conceal and route cables from wall mount to screen.

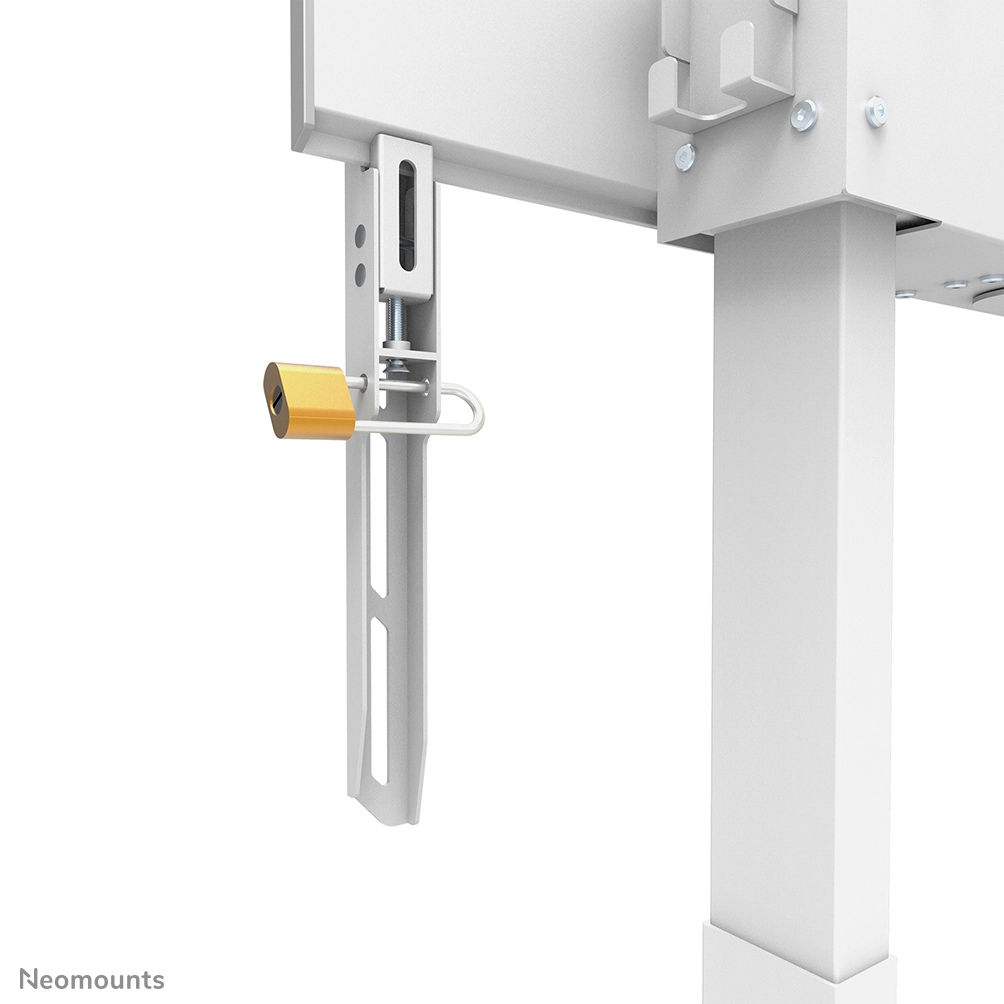

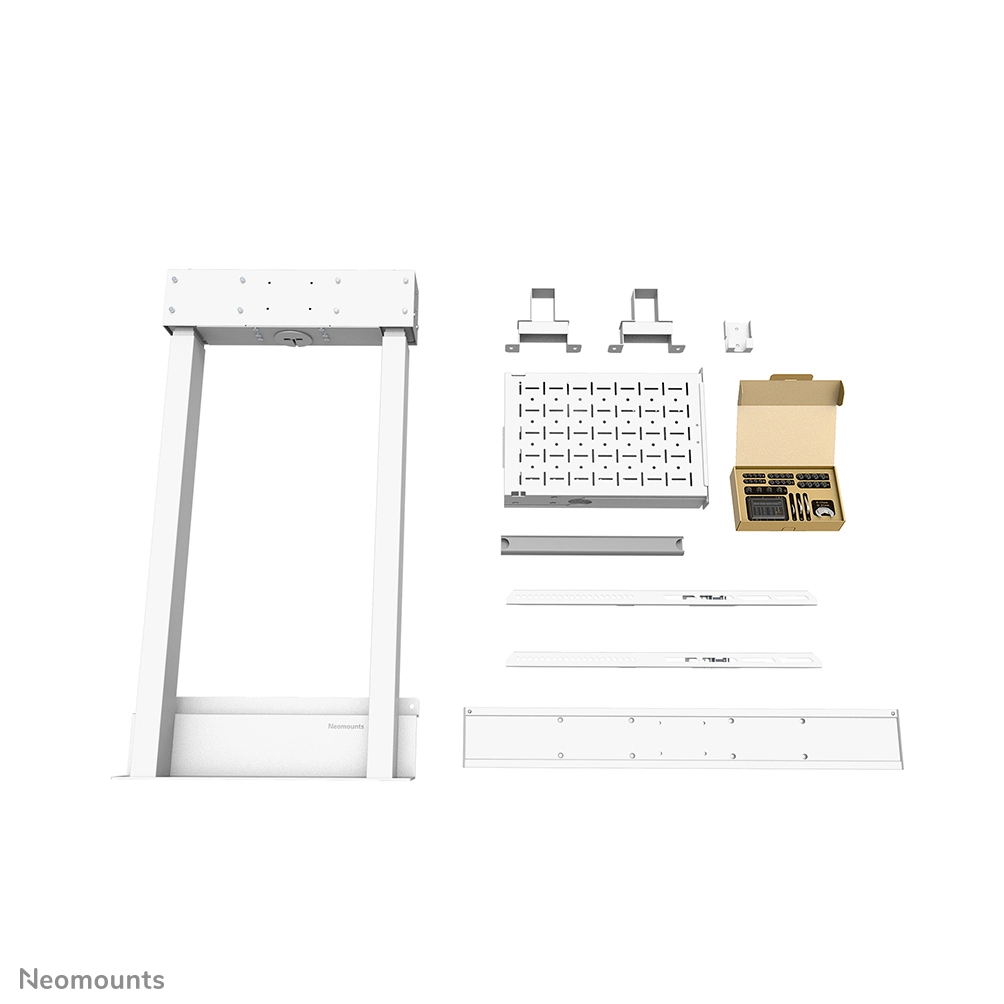

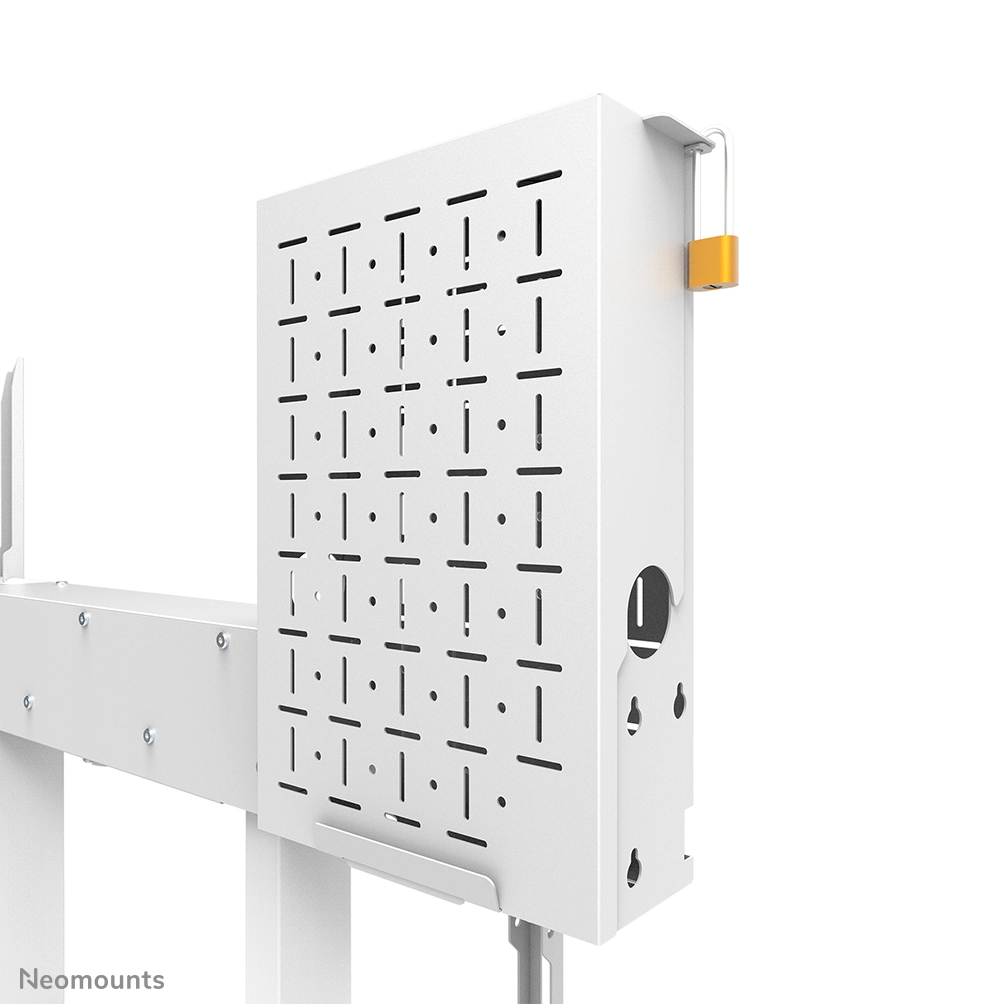

The wall mount is packed partially pre-assembled, to ensure fast and easy installation and can be locked using a padlock (not included). Additionally, the WL55-875WH1 is compactly packed for optimized transportation and storage.

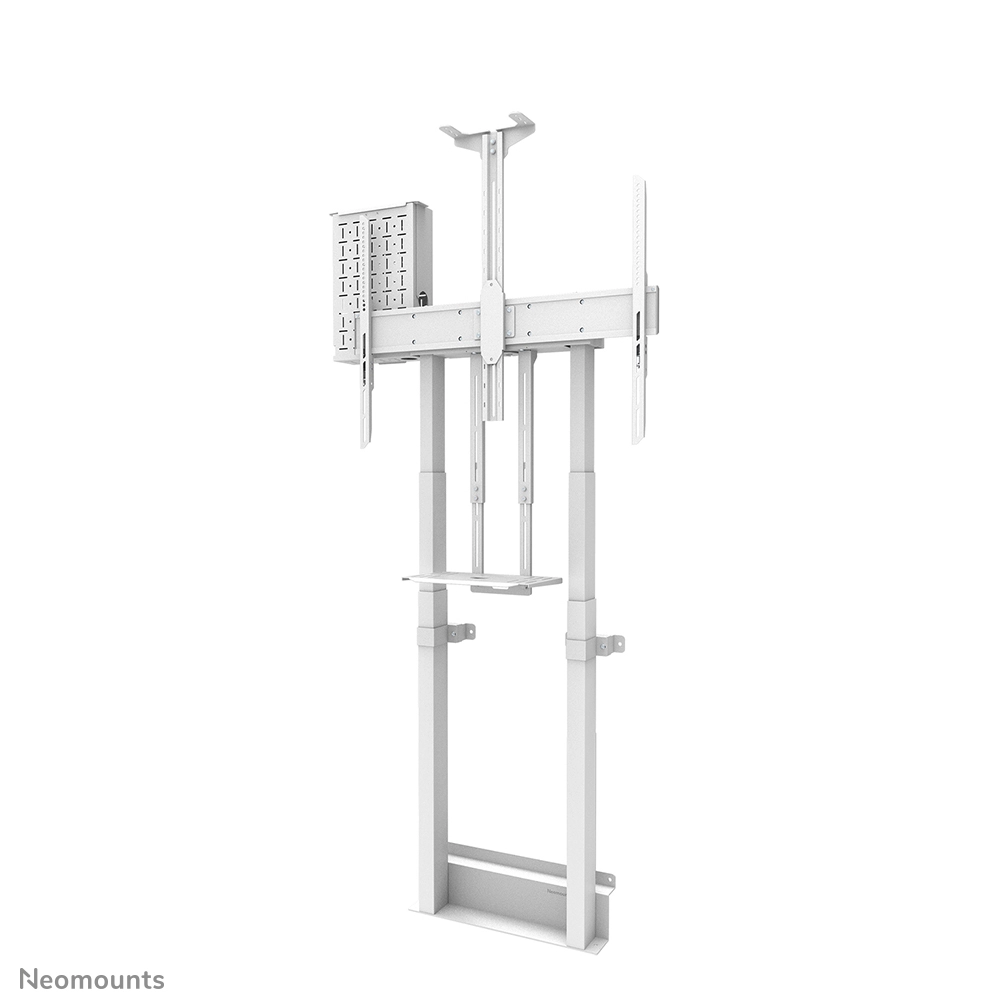

The AFL-875WH1 videobar & multimedia kit is optionally available and enables the installation of a separate cam shelf and multimedia device shelf to the trolley. Included to the kit is an adapter for the Logitech Rally Bar (Mini). In addition, the multimedia shelf is suitable for installation of i. a. the Logitech Tap.

Specification

Product
Product id	864155
Brand	Neomounts
Partnr	WL55-875WH1
EAN/UPC code	8717371449742
Warranty (months)	5 year
Network
Remotely operated	Y
Technical details
Warranty period	5 jaar
Design
Product colour	White
Housing material	Steel
Country of origin	China
Ergonomics
Panel mounting interface	800 x 600 mm
Cable management	Y
Height adjustment	Y
Packaging data
Package width	604 mm
Package depth	166 mm
Package height	1104 mm
Package weight	38000 g
Weight & dimensions
Width	888 mm
Depth	172 mm
Height	2004 mm
Weight	33900 g
Logistics data
Master (outer) case width	604 mm
Master (outer) case length	166 mm
Master (outer) case height	1104 mm
Master (outer) case weight	38000 g
Master (outer) case net weight	33900 g
Quantity per master (outer) case	1 stuk(s)
Quantity per EUR-pallet	9 stuk(s)
Harmonized System (HS) code	HS7326909890
Other features
Package net weight	38000 g
Type	Fixed floor stand
Maximum weight capacity	110 kg
Mounting type	Wall
Minimum screen size compatibility	55 "
Maximum screen size	100
Distance to the wall (max)	172 mm
Number of displays supported	1

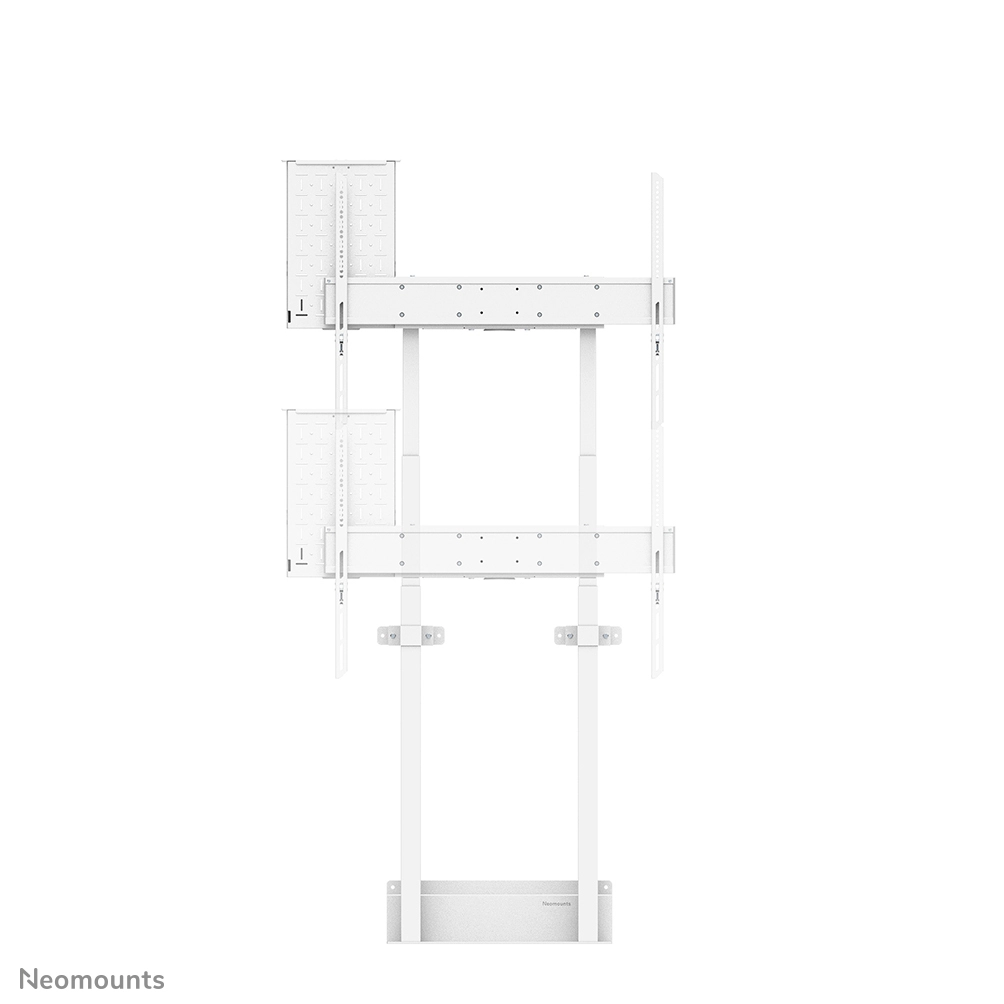

Height adjustment range	980 - 1630 mm
Minimum VESA mount	100 x 100 mm
Maximum VESA mount	800 x 600 mm
Motorized	Y
Accepts padlock	Y
Height adjustment type	Electric
Quantity per master (outer) case	1 stuk(s)
