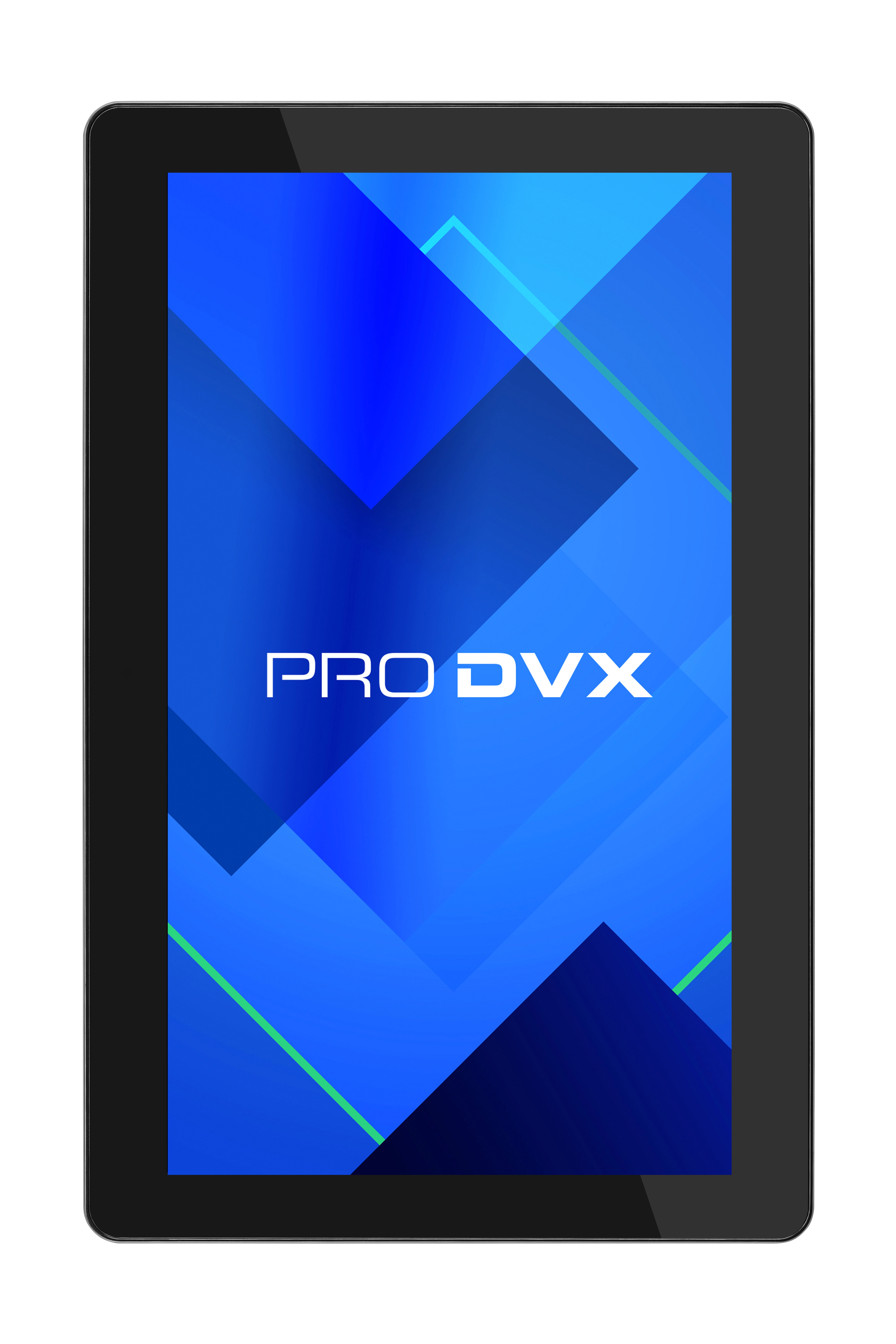

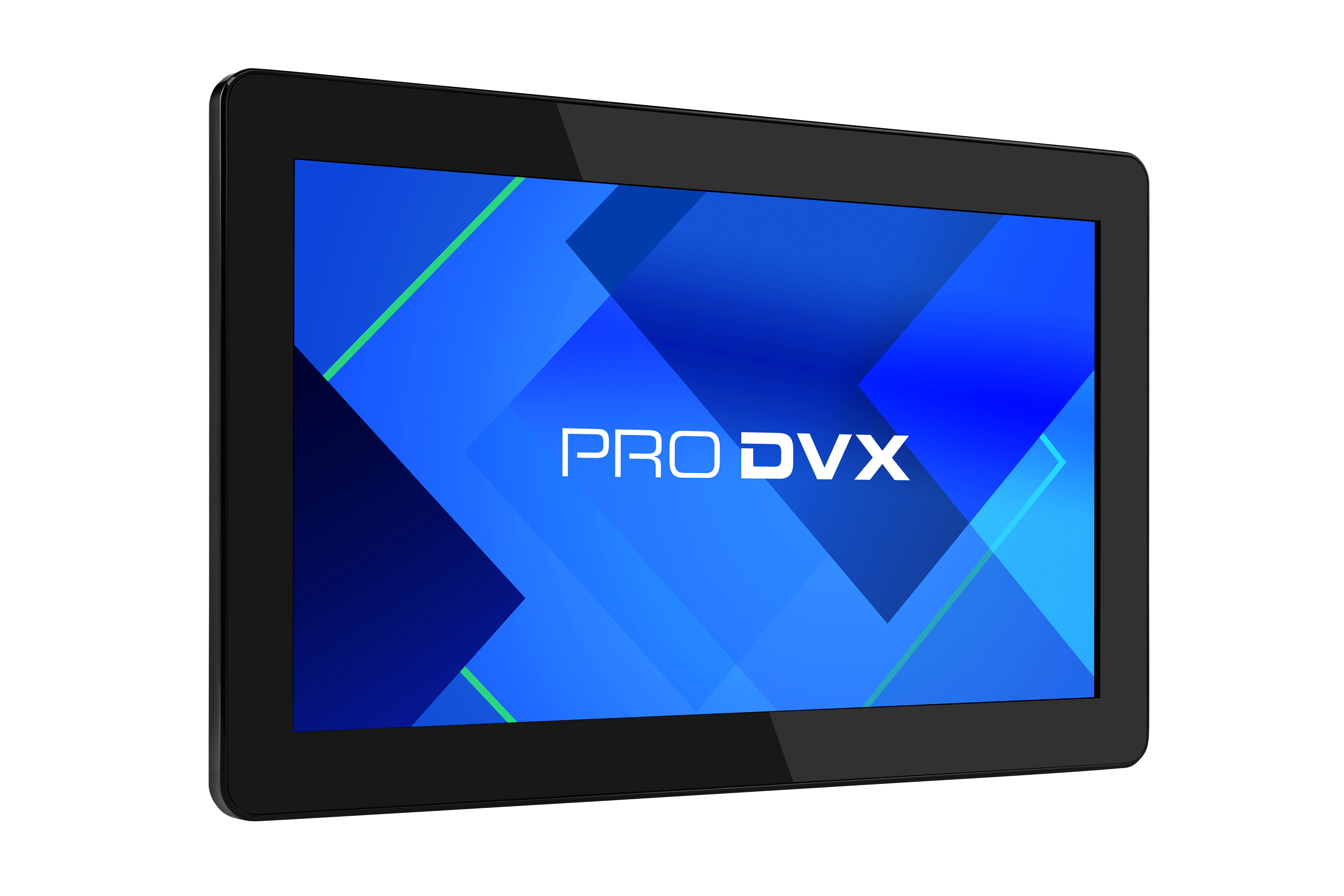

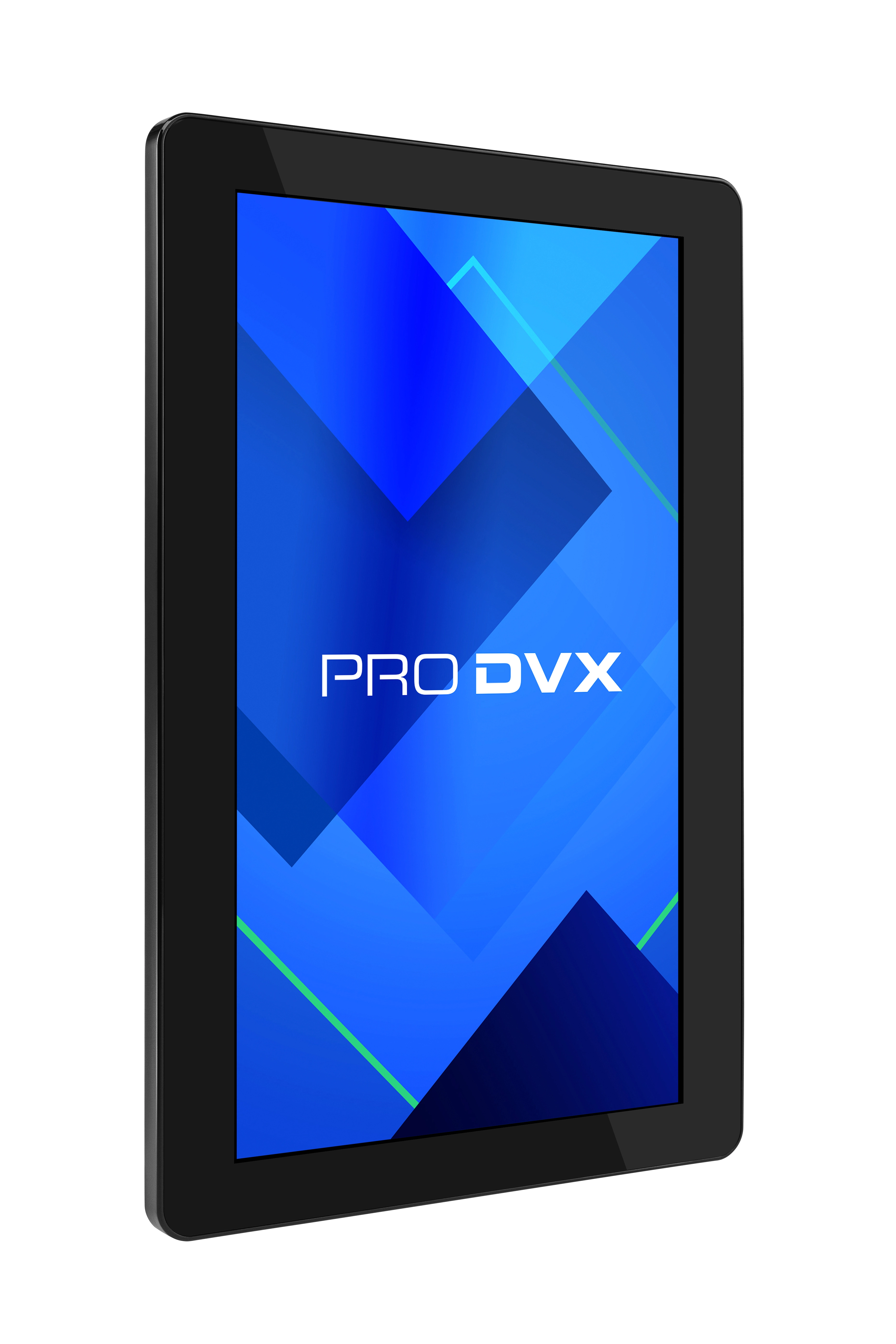

Explore our cutting-edge 13-inch Android Panel PC, the APPC-13XP-R23. Running on Android 12 and equipped with a quad-core Cortex-A55 CPU and Mali-G52 GPU (RK3568), this device ensures seamless operation and delivers advanced graphics capabilities. Boasting 4GB RAM and 16GB storage, it facilitates efficient multitasking. The inclusion of IEEE 802.3at PoE+ support simplifies power and connectivity, eliminating the need for intricate wiring plans. This Android Panel PC provides a range of I/O ports for peripheral devices, making it an ideal solution for various applications, including retail, corporate, healthcare, and industrial settings. The APPC-13XP-R23 supports 10-point PCAP touch functionality and has undergone anti-glare treatment for improved visibility. Additionally, it supports 300cd/m2 brightness. With its innovative features, the APPC-13XP-R23 stands as the ultimate device to elevate your solution to new heights.

Specification

Product
Product id	949634
Brand	ProDVX
Partnr	5013200
EAN/UPC code	PDX-5013200
Display
Display diagonal	13.3 inch
Display resolution	1920 x 1080 Pixels
Touchscreen	Y
HD type	Full HD
Touch technology	Multi-touch
Native aspect ratio	16:9
Display brightness	300 cd/m²
Display surface	Matt
Panel type	IPS
Anti-glare screen	Y
Contrast ratio (typical)	800:1
Multi-touch	Y
Viewing angle, vertical	170 °
Viewing angle, horizontal	170 °
Processor
Processor manufacturer	Rockchip
Processor family	Rockchip
Processor model	RK3568
Processor frequency	2 GHz
Processor cores	4
Memory
Internal memory	4 GB
Internal memory type	DDR4-SDRAM
Storage
Total storage capacity	16 GB
Storage media	eMMC
Optical drive type	N
Card reader integrated	Y
Compatible memory cards	SD
Graphics
Discrete graphics adapter	N
Discrete graphics adapter model	Not available
On-board graphics adapter	Y
On-board GPU manufacturer	ARM
On-board graphics adapter model	ARM Mali-G52 2EE MC2
Audio
Built-in speaker(s)	Y
Number of speakers	2
RMS rated power	4 W
Built-in microphone	Y
Network
Wi-Fi	Y
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Ethernet LAN	Y
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Bluetooth	Y
Bluetooth version	5.2
Ports & interfaces
Ethernet LAN (RJ-45) ports	1
USB 2.0 ports quantity	1
HDMI ports quantity	1
Audio output	Y
DC-in jack	Y
Micro-USB ports quantity	1
Design
Product colour	Black
Wall mountable	Y
Housing material	ABS synthetics
VESA mounting	Y
Panel mounting interface	75 x 75 mm
Performance
Product type	All-in-One tablet PC
Software
Operating system installed	Android 12
Power
AC adapter output voltage	12 V
Weight & dimensions
Width (without stand)	337.1 mm
Depth (without stand)	26.2 mm
Height (without stand)	214.5 mm
Weight (without stand)	900 g
Weight	900 g
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 procent
Storage relative humidity (H-H)	10 - 90 procent
Certificates
Certification	FCC, CE, RoHS
Packaging content
Cables included	No
Technical details
Sustainability certificates	Federal Communications Commission (FCC), UKCA, CE, REACH, RoHS
Other features
Mean time between failures (MTBF)	45000 uur
Backlight	Y
Backlight type	Direct LED
Harmonized System (HS) code	84713000
