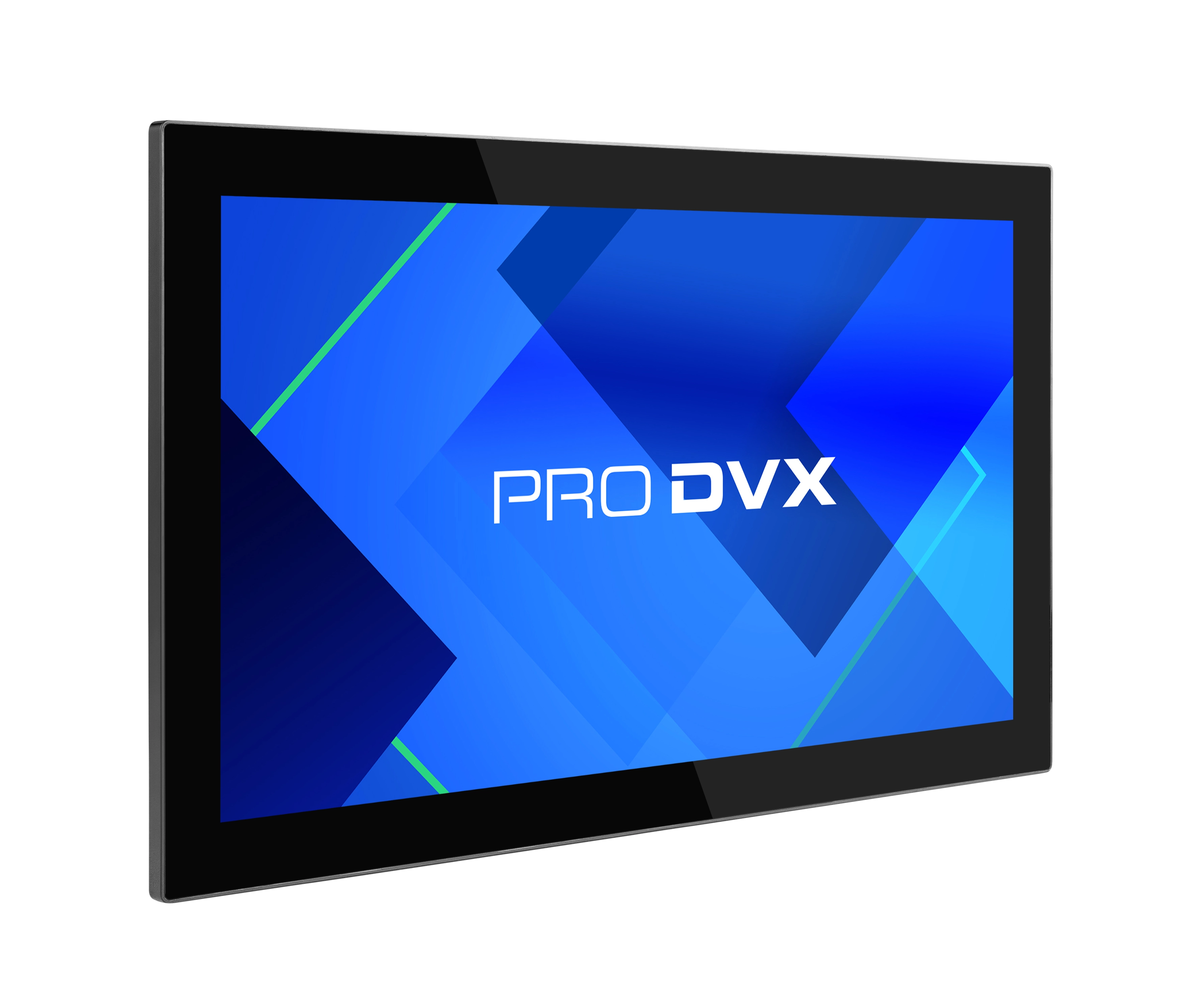

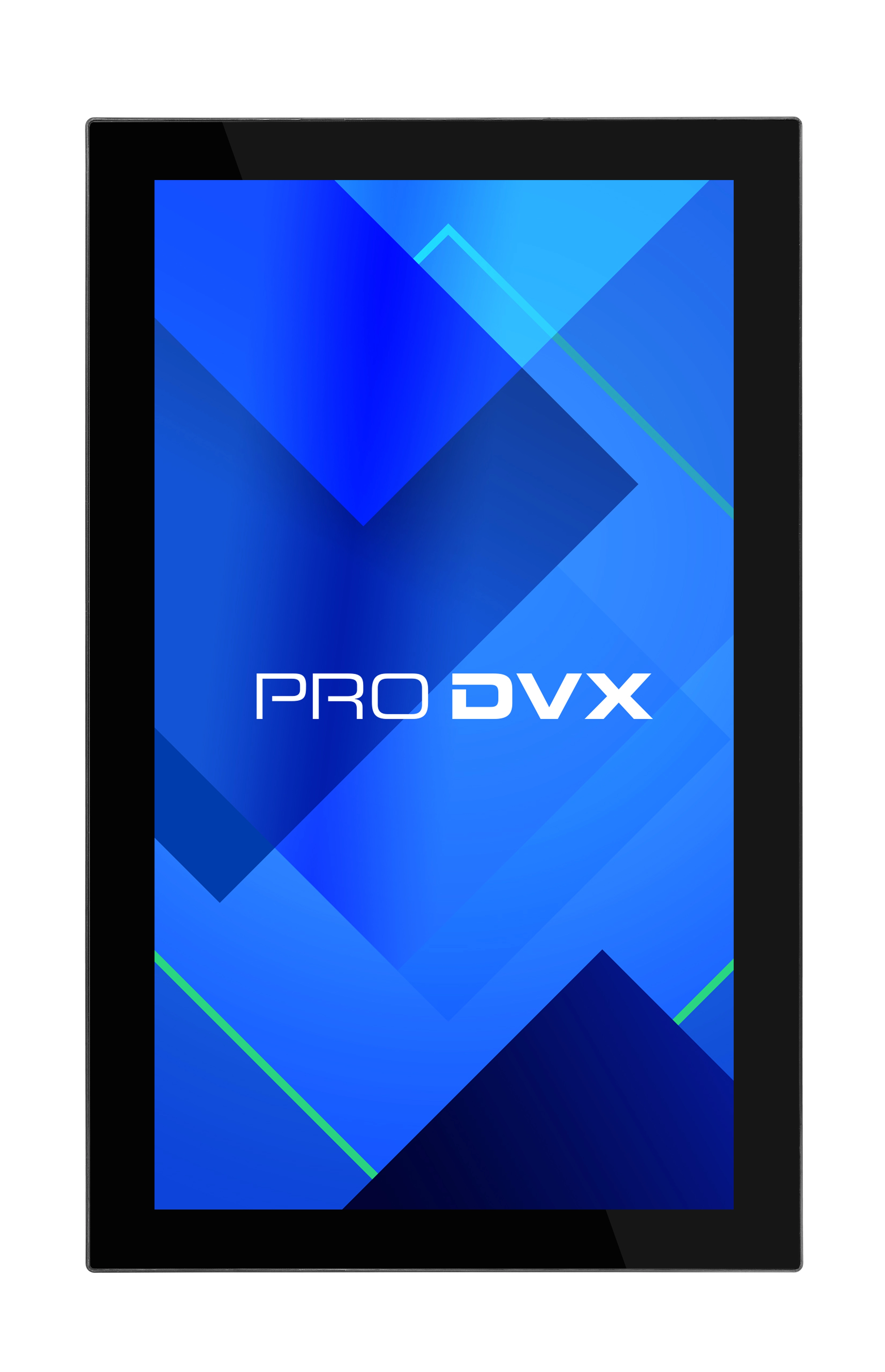

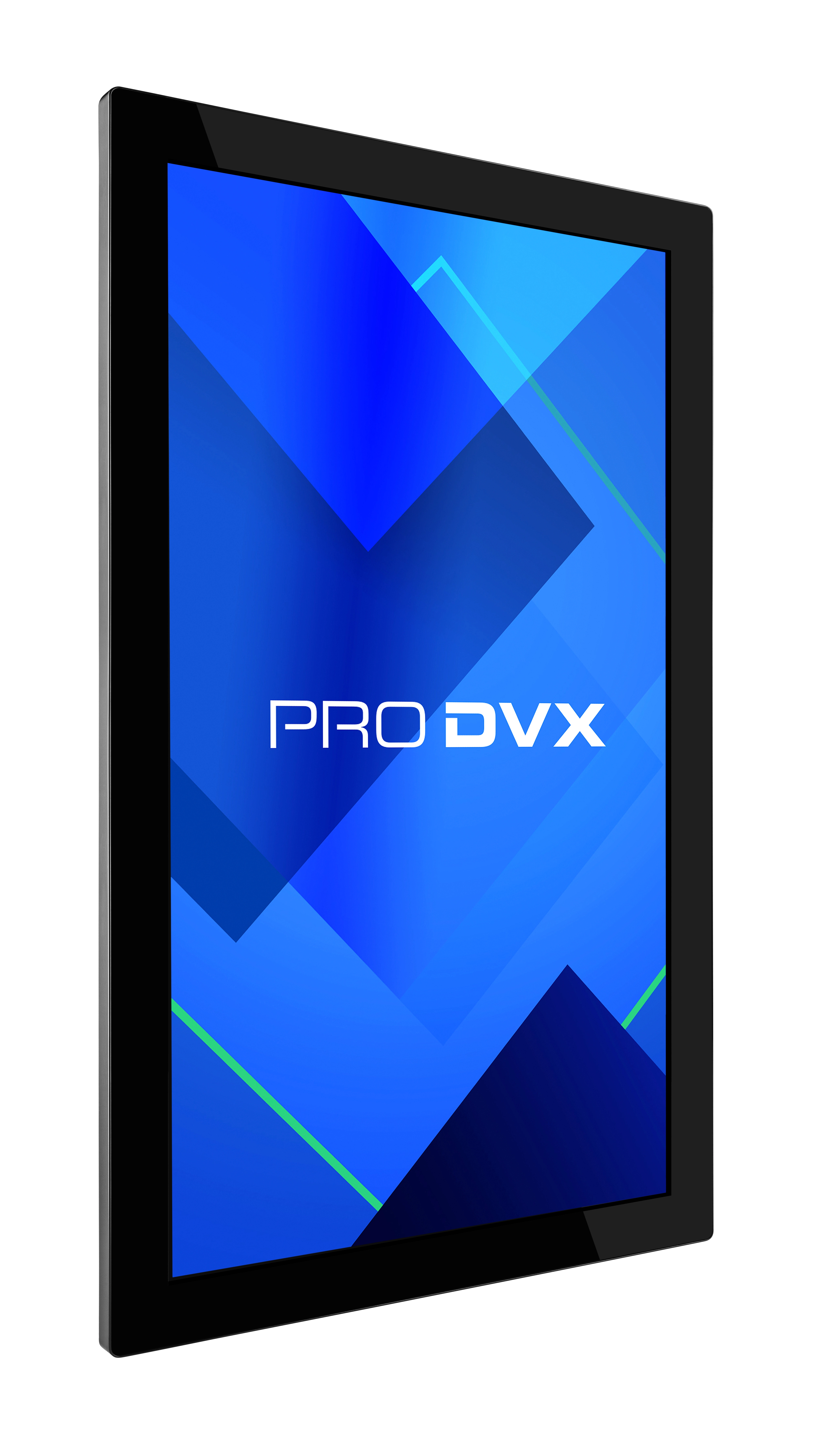

The APPC-15XP-R23 is a highly versatile 15.6-inch Android Panel Panel PC designed to improve any solution. With its powerful RK3399 CPU and Android 11 operating system, this device offers high performance and seamless user experience. Equipped with Power over Ethernet technology, the APPC-15XP-R23 allows for simple and flexible installation, eliminating the need for additional power cables. The device also features Pogo pin ports, enabling easy and secure connectivity with a wide range of peripherals, such as cameras, barcode scanners or LED modules. The APPC-15XP-R23 boasts an extensive array of I/O ports, providing unparalleled flexibility for any application. Whether it's for digital signage, interactive kiosks, or point-of-sale, the APPC-15XP-R23 can handle it all with ease. Upgrade your solution with the APPC-15XP-R23 and enjoy the benefits of a highly versatile device that offers unmatched performance, flexibility, and durability.

Specification

Product
Product id	949635
Brand	ProDVX
Partnr	5015210
EAN/UPC code	5015210
Display
Display diagonal	15.6 inch
Display resolution	1920 x 1080 Pixels
Touchscreen	Y
HD type	Full HD
Full HD	Y
LED backlight	Y
Touch technology	Multi-touch
Native aspect ratio	16:9
Display brightness	300 cd/m²
Display surface	Matt
Panel type	IPS
Anti-glare screen	Y
Contrast ratio (typical)	800:1
Viewing angle, vertical	170 °
Viewing angle, horizontal	170 °
Processor
Processor manufacturer	Rockchip
Processor family	Rockchip
Processor model	RK3399
Processor frequency	1.8 GHz
Memory
Internal memory	4 GB
Internal memory type	DDR3-SDRAM
Storage
Total storage capacity	32 GB
Storage media	Flash
Optical drive type	N
Card reader integrated	Y
Compatible memory cards	SD
Graphics
Discrete graphics adapter	N
Discrete graphics adapter model	Not available
On-board graphics adapter	Y
On-board graphics adapter model	ARM Mali-T860 MP4
Audio
Built-in speaker(s)	Y
Number of speakers	2
RMS rated power	6 W
Built-in microphone	Y
Network
Wi-Fi	Y
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Ethernet LAN	Y
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Bluetooth	Y
Bluetooth version	4.2
Ports & interfaces
Ethernet LAN (RJ-45) ports	1
USB 2.0 ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
Audio output	Y
DC-in jack	Y
S/PDIF out port	Y
Design
Product colour	Black
Wall mountable	Y
Housing material	Plastic
VESA mounting	Y
Panel mounting interface	100 x 100 mm
Performance
Product type	All-in-One tablet PC
Software
Operating system installed	Android 11
Power
AC adapter output voltage	12 V
Weight & dimensions
Width (without stand)	387.3 mm
Depth (without stand)	27.2 mm
Height (without stand)	240.3 mm
Weight (without stand)	1300 g
Weight	1300 g
Certificates
Certification	FCC, CE, RoHS
Packaging content
Cables included	No
Technical details
Sustainability certificates	Federal Communications Commission (FCC), UKCA, CE, REACH, RoHS
Warranty period	3 jaar
Other features
Mean time between failures (MTBF)	50000 uur
Backlight	Y
Backlight type	Edge LED
Mini HDMI ports quantity	1
COM ports quantity	2
