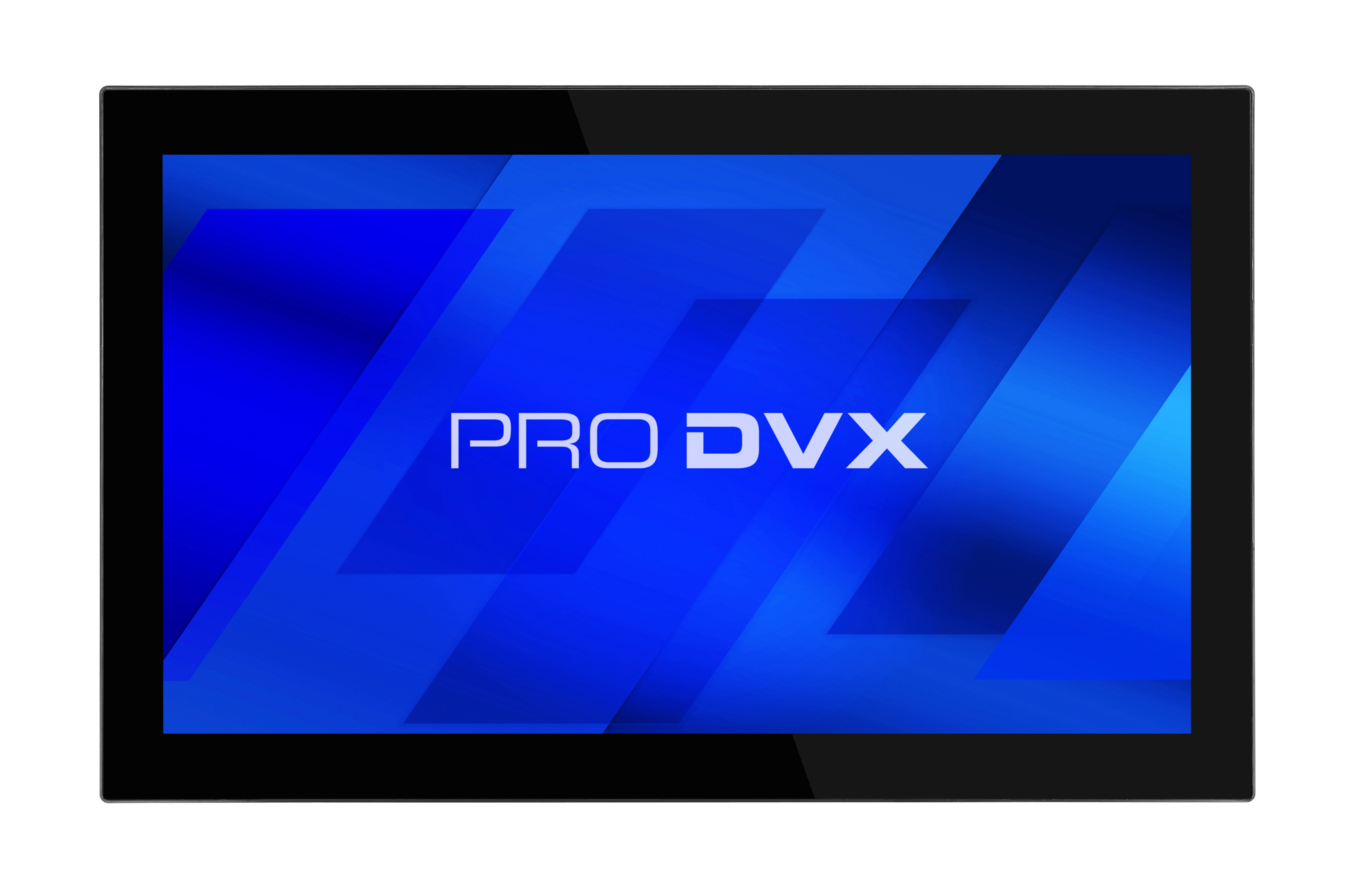

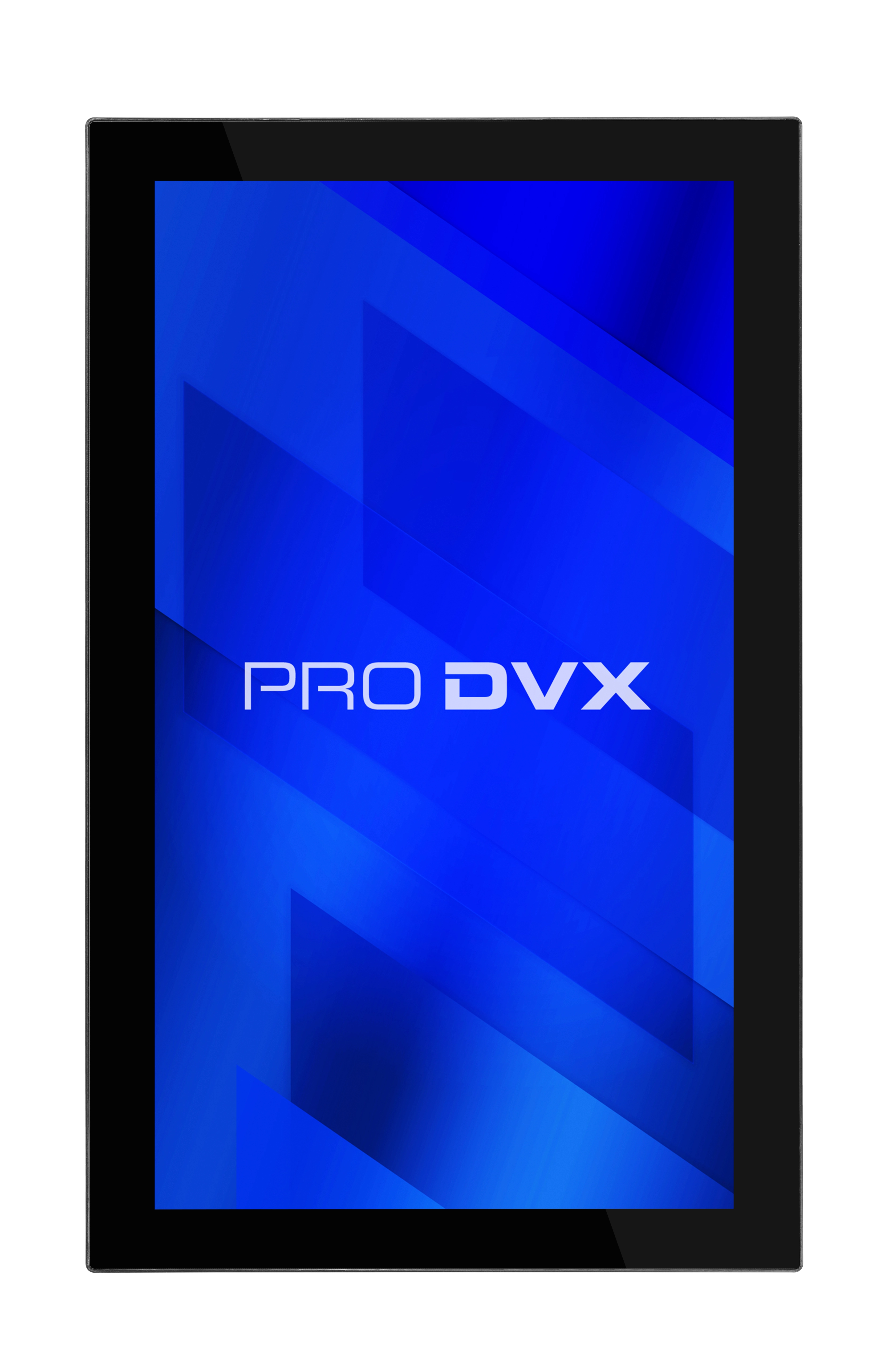

The ProDVX IPPC-22-6300 is an Intel Panel PC with a 21.5" Touch Display. The ProDVX IPPC-22-6300 standard comes with an Intel N150 (up to 3.6 GHz). This device can be connected through RJ45 LAN, WiFi (optional), Bluetooth (optional) and is fanless due to passive cooling. This Intel SOC Touch Display has a projected capacitive touch display in plastic housing. Optional accessories for the Pogo Pins are a 1D/2D Barcode Scanner, NFC Module or VESA brackets. This product requires an additional Windows 11 IoT Enterprise LTSC license.

Specification

Product
Product id	1025060
Brand	ProDVX
Partnr	6022200
EAN/UPC code	6022200
Warranty (months)	3 years
Display
Display diagonal	21.5 inch
Display resolution	1920 x 1080 Pixels
Touchscreen	Y
HD type	Full HD
LED backlight	Y
Touch technology	Multi-touch
Native aspect ratio	16:9
Display brightness	250 cd/m²
Panel type	IPS
Anti-glare screen	N
Contrast ratio (typical)	3000:1
Viewing angle, vertical	178 °
Viewing angle, horizontal	178 °
Processor
Processor manufacturer	Intel
Processor model	N150
Processor boost frequency	3.6 GHz
Processor cores	4
Processor cache	6 MB
Processor cache type	Smart Cache
Memory
Internal memory	8 GB
Internal memory type	DDR5-SDRAM
Storage
Total storage capacity	128 GB
Storage media	SSD
SSD form factor	M.2
Graphics
Discrete graphics adapter	N
Discrete graphics adapter model	Not available
On-board graphics adapter	Y
On-board GPU manufacturer	Intel
Audio
Built-in speaker(s)	Y
Number of speakers	2
RMS rated power	6 W
Audio formats supported	AAC, MP3, WMA
Camera
Built-in camera	N
Network
Ethernet LAN	Y
Ethernet LAN data rates	1000, 100, 10 Mbit/s
Ports & interfaces
Ethernet LAN (RJ-45) ports	1
USB 2.0 ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
DisplayPorts quantity	1
Audio output	Y
DC-in jack	Y
Design
Product colour	Black
Wall mountable	Y
Housing material	ABS synthetics
VESA mounting	Y
Panel mounting interface	100 x 100 mm
Performance
Product type	All-in-One PC
Software
Operating system installed	Windows 11 IoT Enterprise LTSC
Power
AC adapter output voltage	12 V
Power consumption (typical)	70 W

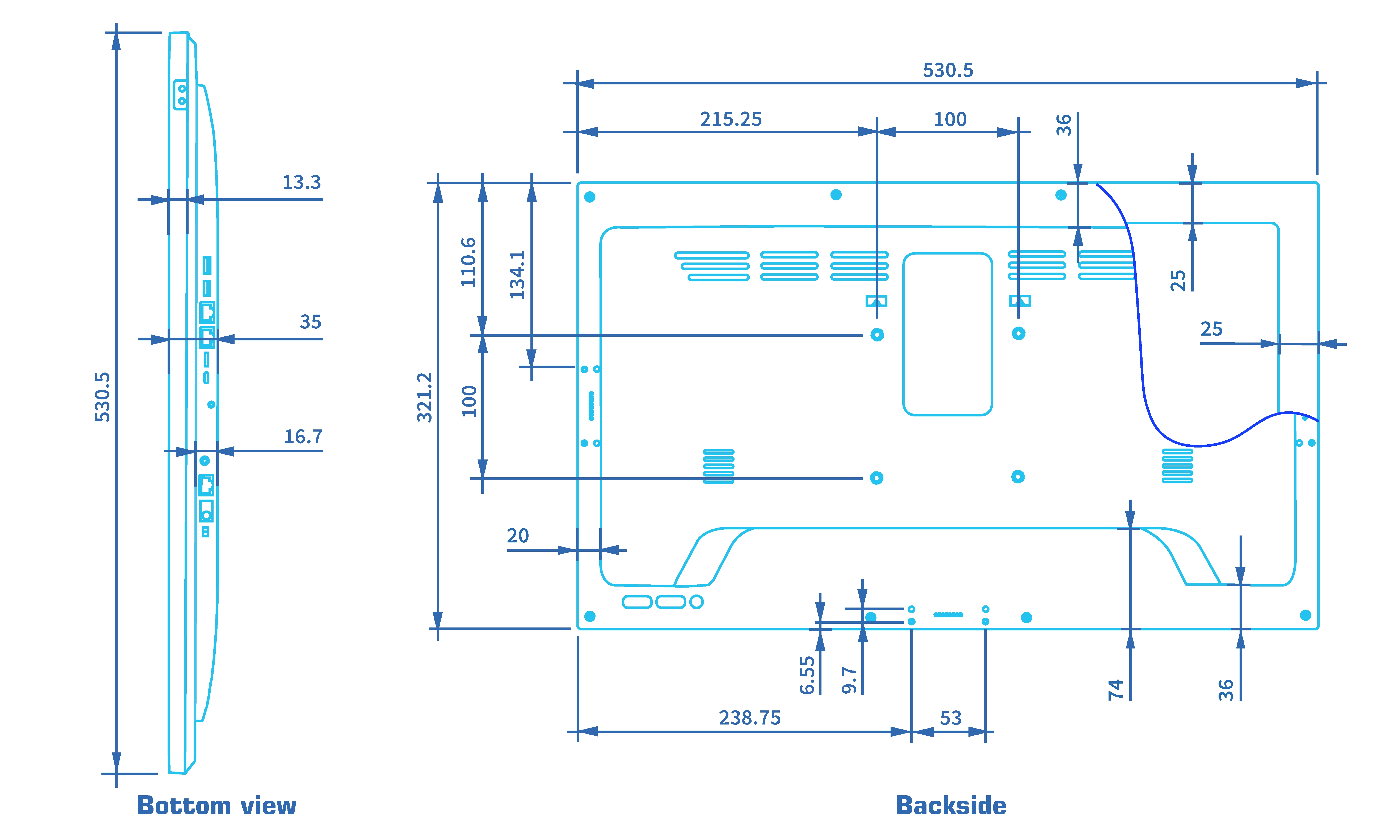

Weight & dimensions
Width (without stand)	530.5 mm
Depth (without stand)	35 mm
Height (without stand)	321.22 mm
Weight (without stand)	4200 g
Weight	4200 g
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 procent
Storage relative humidity (H-H)	10 - 90 procent
Certificates
Certification	UKCA, CE, FCC, RoHS, REACH
Compliance certificates	Federal Communications Commission (FCC), CE, RoHS, REACH, UKCA
Packaging content
AC adapter included	Y
Other features
AC adapter output current	5 A
Mean time between failures (MTBF)	50000 uur
Video formats supported	AVI, MKV, MP4
Backlight type	Edge LED
Mini HDMI ports quantity	1
Battery type	CR2032 Lithium metal, non rechargeable
Audio input	3.5 mm
