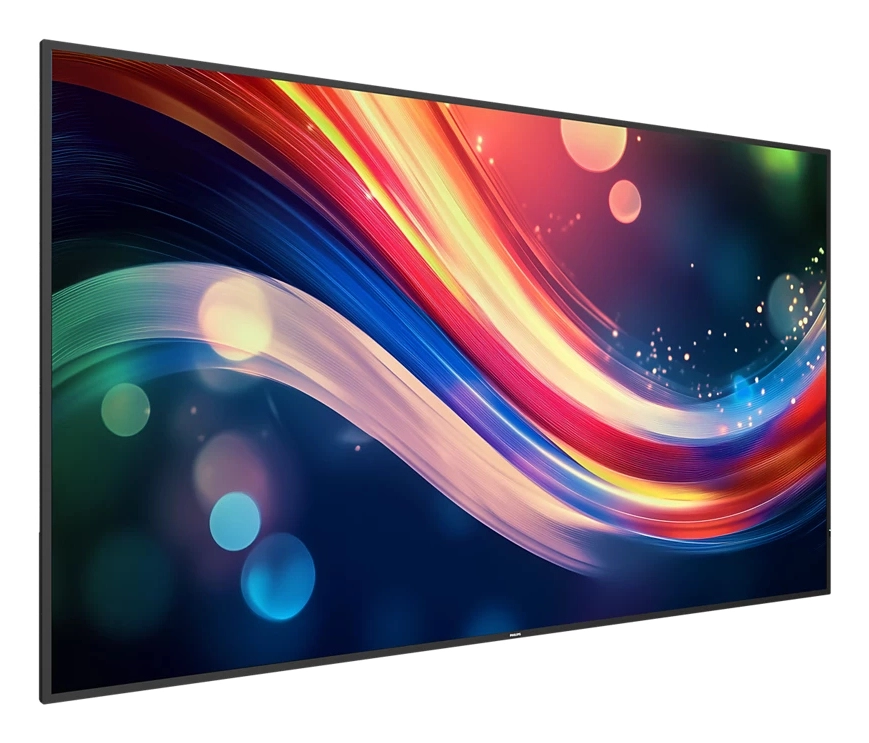

Inform and enthral with Philips Signage 4050. UHD resolution is matched with enhanced brightness and high haze, and the efficiency of the tried and tested Android 10 SoC. Wave-ready for remote management, putting you in full control.

500 cd/m2 brightness
With 500 cd/m2 brightness for better visibility, the Philips Signage 4050 display is designed to be used 24/7, making it a great selection for travel and transportation hubs, retail centres, food and beverage locations, and more. FailOver is also included enabling your display to switch automatically between primary and secondary inputs should an outage occur.

Easily mounted in landscape or portrait.
Install in portrait or landscape orientations, with size variants to suit a range of installation purposes across the range of settings and industries.

Proven reliability. No need for external media player.
Tried, tested, and proven intuitive user experience, with a professional Android 10 SoC built in for easy apps and solutions integrations and no need for an external media player.

Remote management with Philips Wave
Manage your display and control content remotely with Philips Wave Controller – your evolutionary ecosystem designed to support time, energy and cost efficiencies. Discover software applications to support your interactive vision from our network of proven partners on the PPDS ProStore.

Add optional Philips ScreenShare
Add in the fully secure and GDPR-compliant optional Philips ScreenShare presentation software for instant and effortless content sharing, using any device, on any network, and without additional hardware.

Supporting business sustainability and energy savings.
Supporting business sustainability and energy savings, with power saving features and using more environmentally friendly materials on the product and in the packaging.

Add optional CRD22 module for easy Wifi
With a range of input options for easy content control, simply add in a CRD22 module to bring the power of Wifi into the mix.

OPS slot allows for PC embedding without cabling
Advanced quality brings stunning contrast for the richest colours and the clearest picture to captivate passers by and draw customers in.

Specification

Product
Product id	993696
Brand	Philips
Partnr	86BDL4050Q/00
EAN/UPC code	8721038101768
Warranty (months)	3 years
Display
Display diagonal	85.6 inch
LED backlight	Y
Display resolution	3840 x 2160 Pixels
Display brightness	500 cd/m²
HD type	4K Ultra HD
Touchscreen	N
Native aspect ratio	16:9
Response time	8 ms
Contrast ratio (typical)	1200:1
Contrast ratio (dynamic)	500000:1
Viewing angle, horizontal	178 °
Viewing angle, vertical	178 °
Display number of colours	1.07 billion colours
Pixel pitch	0.4935 x 0.4935 mm
Display diagonal (metric)	217.4 cm
Native refresh rate	60 Hz
Haze rate	25 procent
Panel type	ADS
Ports & interfaces
HDMI ports quantity	2
HDMI version	2.0
HDMI input ports quantity	2
DVI port	Y
DVI-I ports quantity	1
USB port	Y
USB ports quantity	2
USB version	2.0
Ethernet LAN	Y
Ethernet LAN (RJ-45) ports	1
RS-232 interface	Y
Infrared data port	Y
Card reader integrated	Y
Compatible memory cards	MicroSD (TransFlash)
OPS module slot	Y
Audio
Built-in speaker(s)	Y
Number of built-in speakers	2
RMS rated power	20 W
Design
Design	Digital signage flat panel
Product colour	Black
Placement supported	Indoor
Wall mountable	Y
VESA mounting	Y
Panel mounting interface	600 x 400 mm
Performance
Purpose	Commercial
On Screen Display (OSD)	Y
Number of OSD languages	12
On Screen Display (OSD) languages	ARA, CHI (SIMPL), CHI (TR), DEU, ENG, ESP, FRE, ITA, JPN, POL, RUS, TUR
Operating hours (hours/days)	24/7
Over the Air Updates (OTA)	Y
Open Pluggable Specification (OPS)	Y
Power
Power consumption (standby)	0.5 W
Energy efficiency class (SDR)	D
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Energy consumption (SDR) per 1000 hours	100 kWu
Energy efficiency scale	A to G
Computer system
Computer system	Y
Built-in processor	Y
Processor manufacturer	ARM
Processor architecture	ARM Cortex-A55
Processor cores	4
Internal memory	3 GB
Internal storage capacity	16 GB
On-board graphics adapter model	Mali-G52 MC1
Operating system installed	Android 10
Video formats supported	H.263, H.264, H.265, MPEG1, MPEG2, MPEG4, VP8, VP9
Audio formats supported	AAC, HE-AAC, MPEG-1, MPEG-2
Image formats supported	BMP, JPEG, PNG, WEBP
Weight & dimensions
Display width	1929 mm
Display depth	69.5 mm
Display height	1100 mm
Display weight	49060 g
Base width	15.5 mm
Packaging content
Handheld remote control	Y
Batteries included	Y
Cables included	AC, RS-232
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	20 - 80 procent
Storage temperature (T-T)	-20 - 60 °C
Storage relative humidity (H-H)	5 - 95 procent
Technical details
Warranty period	3 jaar
Compliance certificates	CB, CE, Federal Communications Commission (FCC), RoHS, UL, VCCI
Other features
Display technology	LCD
