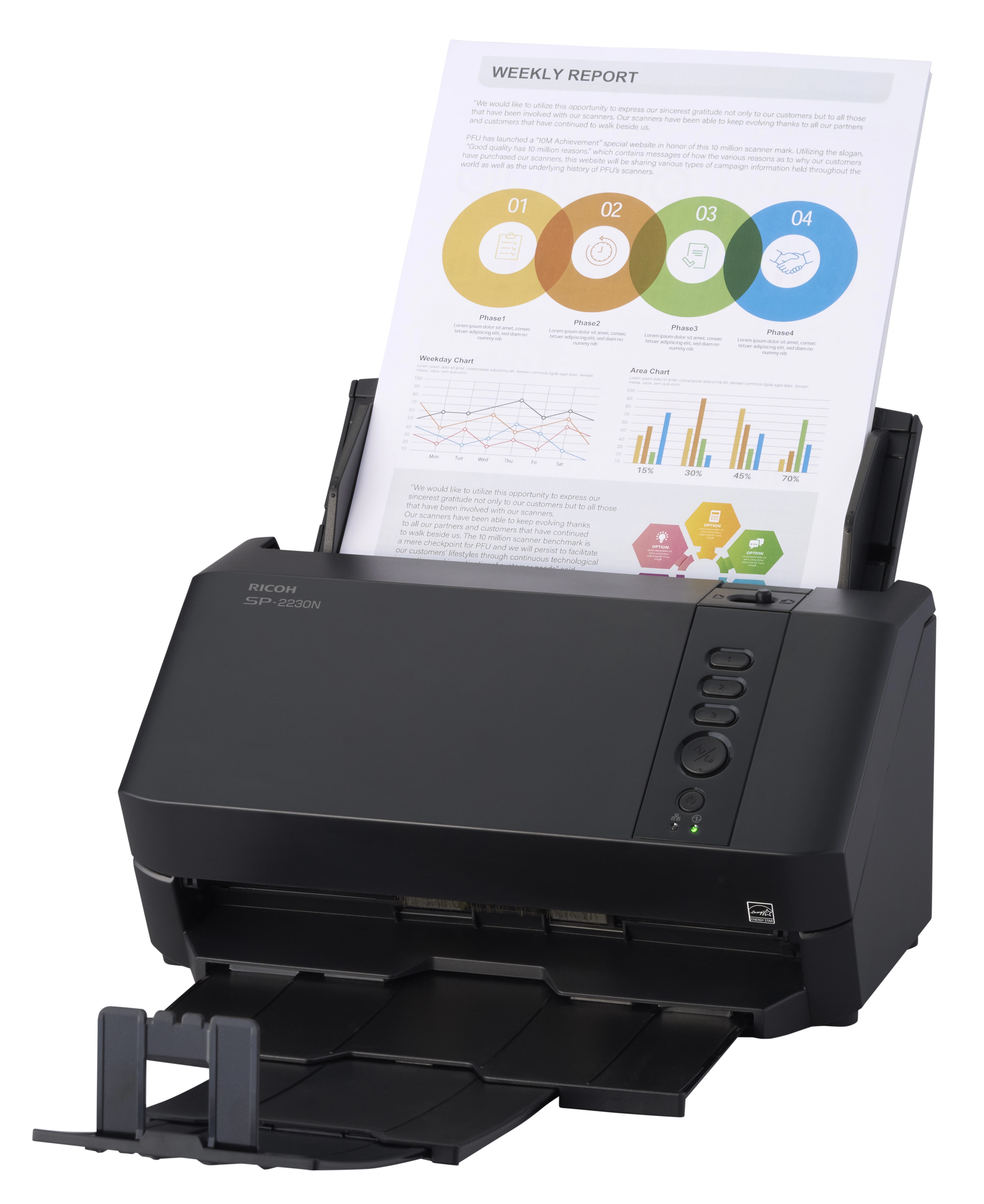

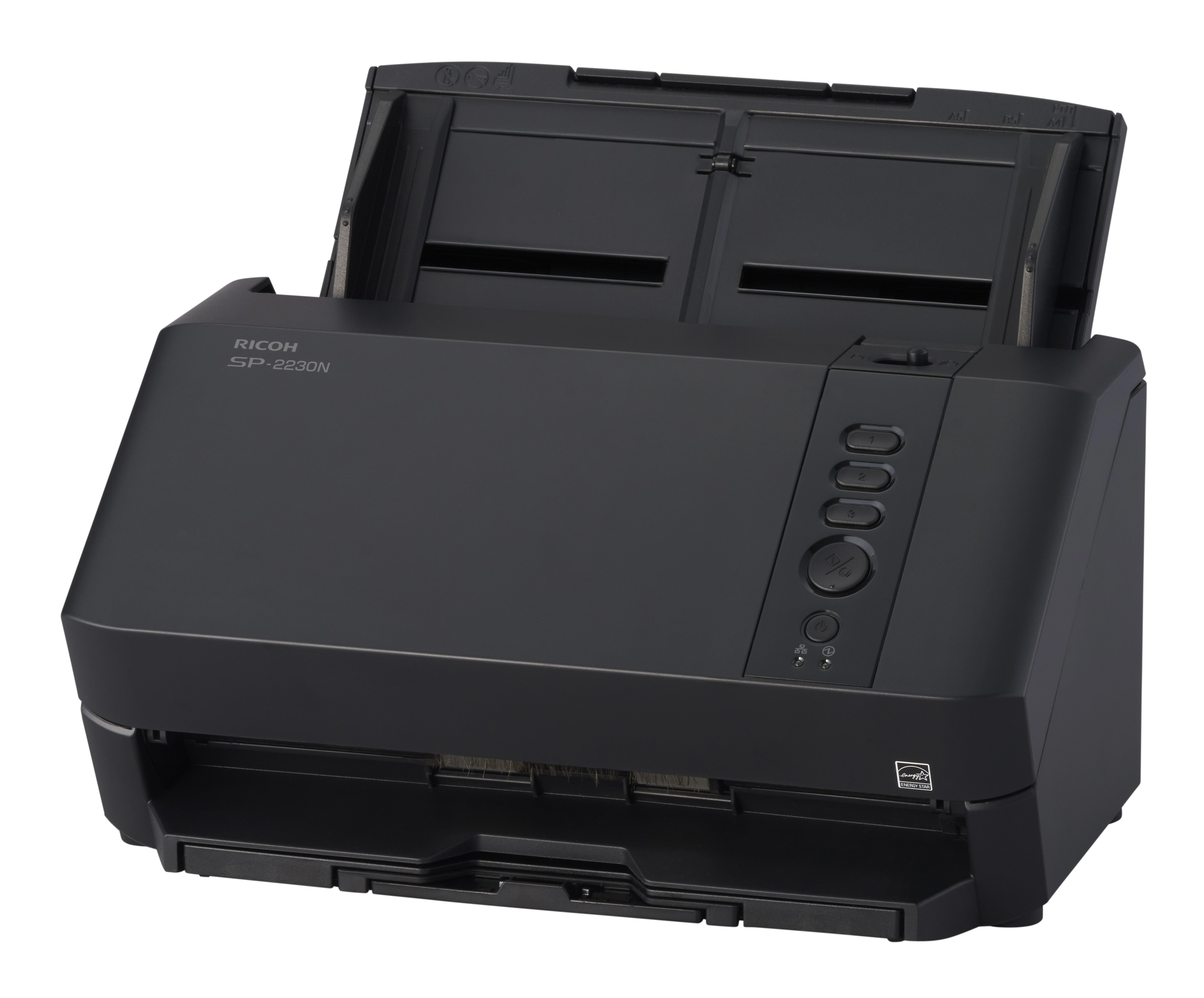

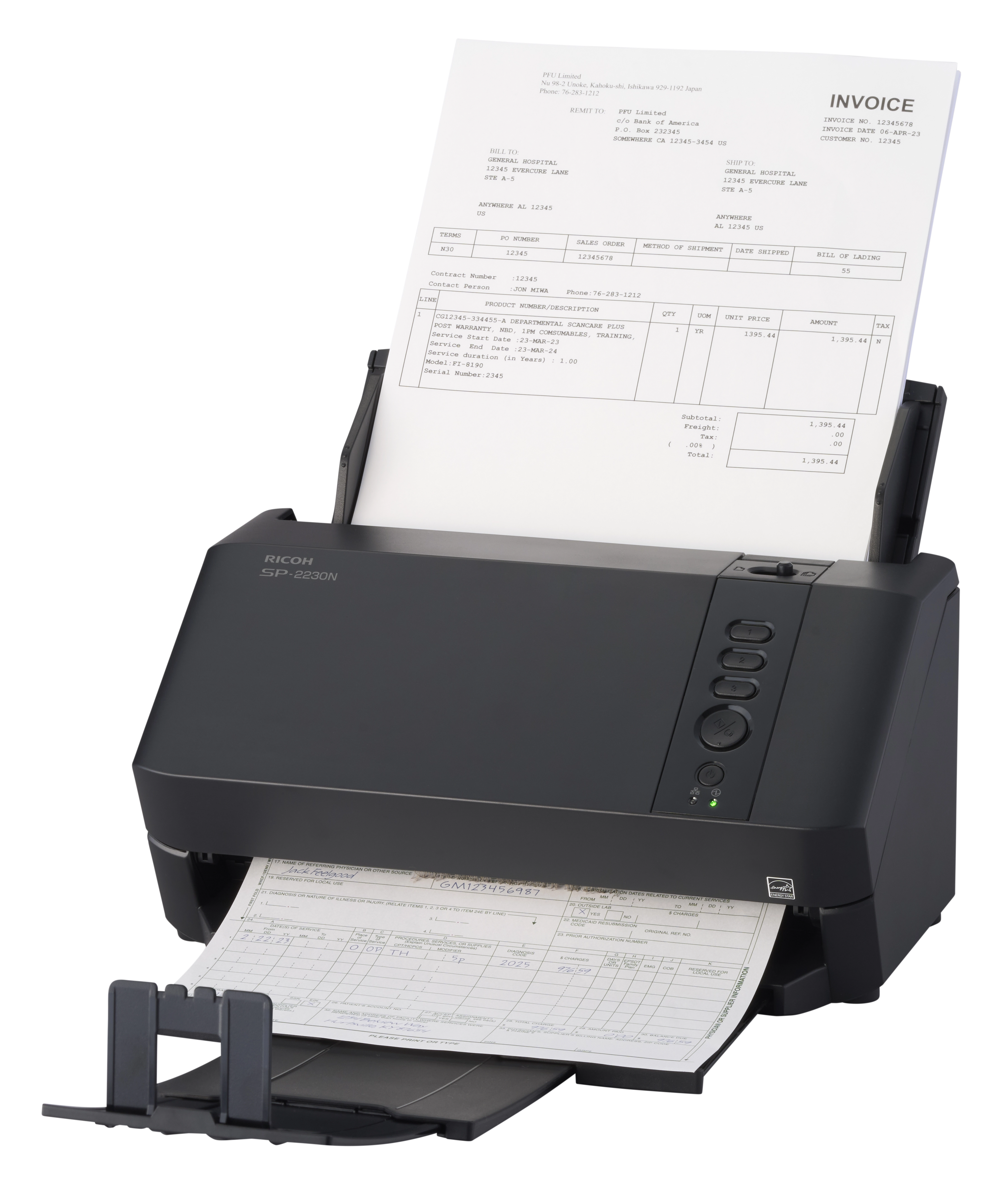

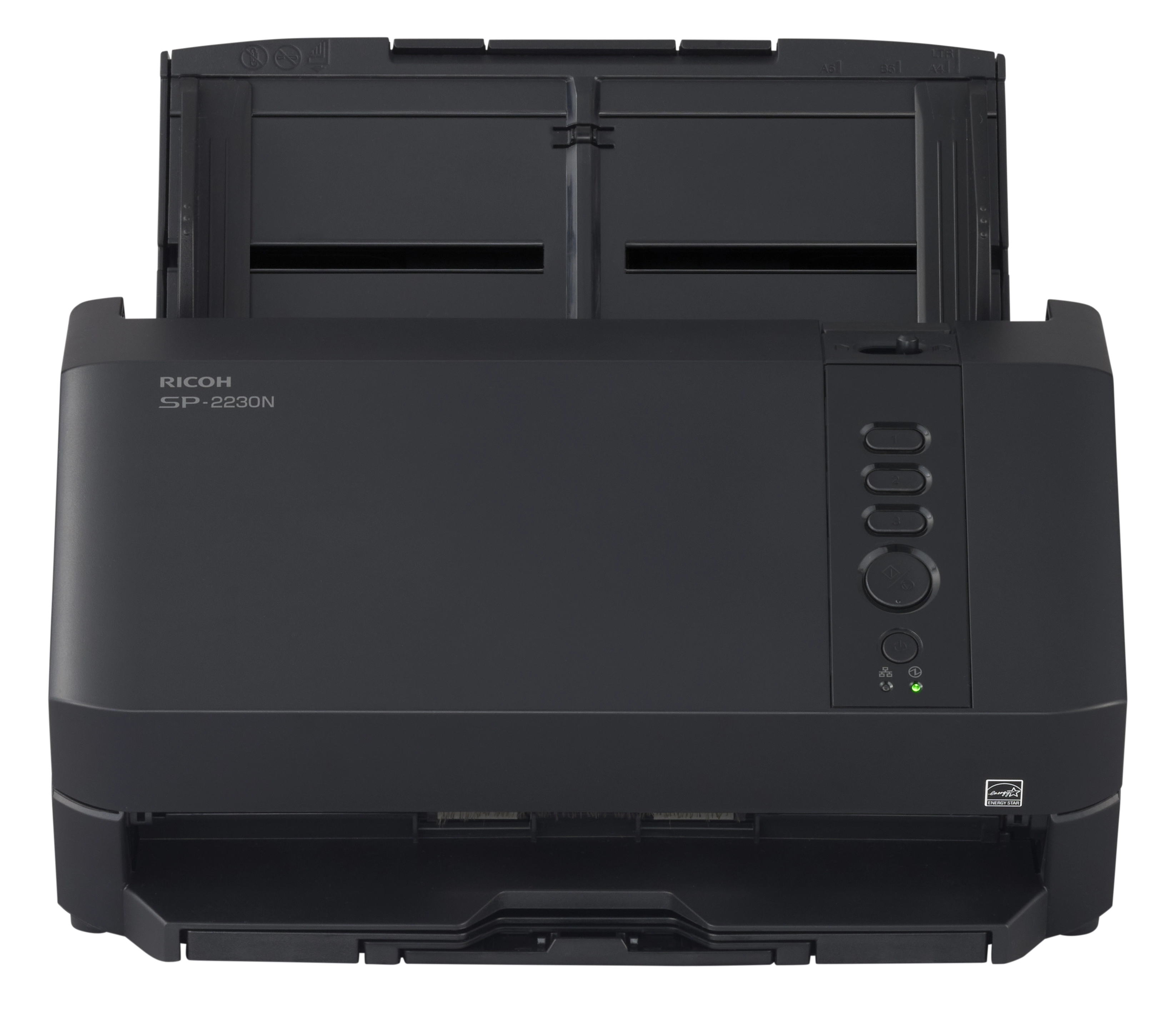

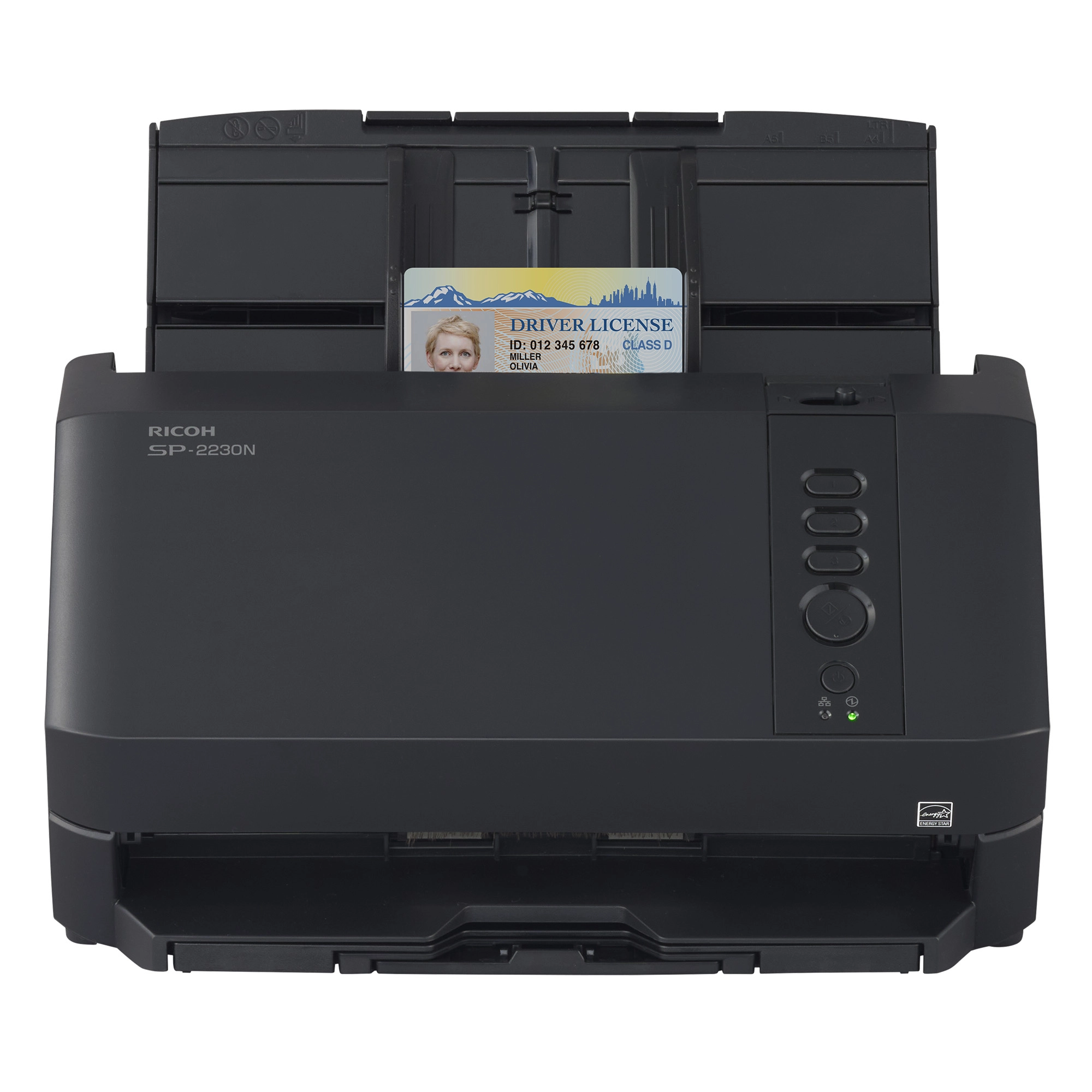

Whether scanning to cloud, network or PC, the RICOH SP-2230N Scanner combines affordability and class-leading performance. State-of-the-art image quality leads to top-rated OCR accuracy. This model also boasts image-monitoring paper protection and the ability to handle a wide range of document types. The RICOH SP-2230N delivers compact, efficient and reliable PC-based or PC-free scanning at 30 ppm.

Specification

Product
Product id	1024084
Brand	Ricoh
Partnr	PA03880-B101
EAN/UPC code	4939761316609
Scanning
Maximum scan size	215.9 x 6096 mm
Optical scanning resolution	600 x 600 DPI
Colour scanning	Y
Duplex scanning	Y
Output colour depth	24 Bit
Output greyscale depth	8 Bit
Output monochrome depth	1 Bit
ADF scan speed (b/w, A4)	30 ppm
Duplex ADF scan speed (b/w, A4)	60 ipm
Background colours	White
Design
Scanner type	ADF scanner
Built-in display	N
Product colour	Black
Performance
Sensor type	Dual CIS
Light source	RGB LED
Ultrasonic sensor	Y
Input capacity
Auto document feeder (ADF) input capacity	80 vel
Paper handling
Maximum ISO A-series paper size	A4
Card thickness (max)	1.4 mm
Scanning media types supported	Plain paper, Business Card, Post Card(JPN)
Long-paper mode	Y
ISO B-series sizes (B0. . . B9)	B5, B6
Paper tray media weight	27 - 413 g/m²
Legal	Y
Letter	Y
ISO A-series sizes (A0. . . A9)	A4, A5, A6
Maximum scan length	6096 mm
Ports & interfaces
USB port	Y
USB version	3.2 Gen 1 (3.1 Gen 1)
Power
Power supply type	AC
Power consumption (typical)	15 W
Power consumption (standby)	0.1 W
AC input frequency	50/60 Hz
Input voltage	100 - 240 V
Packaging data
Quantity per pack	1 stuk(s)
Package weight	4700 g
Network
Ethernet LAN	Y
Technical details
Sustainability certificates	ENERGY STAR
System requirements
Server operating systems supported	Windows Server 2022, Windows Server 2016, Windows Server 2019
Windows operating systems supported	Windows 11 x64
Operational conditions
Operating temperature (T-T)	5 - 35 °C
Operating relative humidity (H-H)	15 - 80 procent
Weight & dimensions
Width	292 mm
Depth	163 mm
Height	150 mm
Weight	3300 g
Packaging content
Cables included	USB
Bundled software	PaperStream IP, PaperStream Capture, PaperStream ClickScan, PaperStream Central Admin, PaperStream Central Admin Agent, Software Operation Panel, Error Recovery Guide
