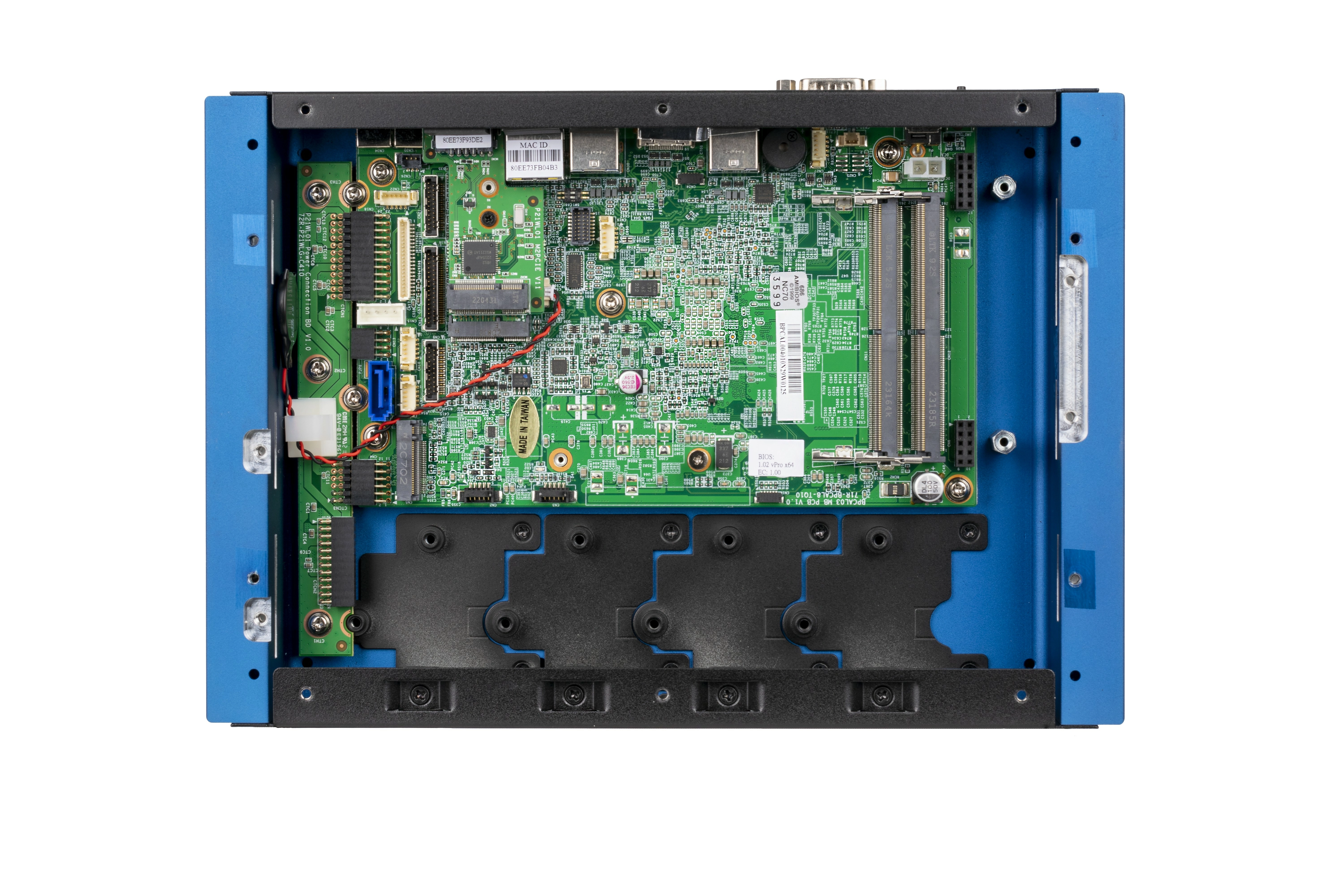

Fanless Box-PC with Intel Core processor in a robust chassis
Shuttle's BPCAL02 fanless Box-PC Series is fueled by Intels 12th Generation (Alder Lake) Core processors in a ruggedized box design for high durability. It comes with modular I/O expansion capabilities and various mounting options. With advanced technology and highly flexible design, this industrial PC offers a reliable solution for a wide range of customized requirements in industrial environments.

Specification

Product
Product id	970349
Brand	Shuttle
Partnr	BPCAL02-I3
EAN/UPC code	887993006666
Processor
Built-in processor	Y
Processor manufacturer	Intel
Processor family	Intel Core i3
Performance-core Max Turbo Frequency	4.4 GHz
Processor model	i3-1215U
Processor generation	Intel Core i3-12xxx
Efficient-core Max Turbo Frequency	3.3 GHz
Processor cores	6
Processor threads	8
Processor boost frequency	4.4 GHz
Processor cache	10 MB
Performance cores	2
Efficient cores	4
Thermal Design Power (TDP)	15 W
ECC supported by processor	N
Memory
Memory slots type	SO-DIMM
Number of memory slots	2
Memory channels	Dual-channel
Memory voltage	1.1 V
Supported memory clock speeds	4800 MHz
Supported memory types	DDR5-SDRAM
Maximum internal memory	64 GB
Storage
Supported storage drive types	SSD
Storage drive sizes supported	M.2 "
SSD form factor	M.2
Storage drive interface	PCI Express, Serial ATA III
Number of storage drives supported	1
NVMe	Y
Graphics
On-board graphics adapter	Y
Graphics adapter family	Intel
On-board graphics adapter model	Intel UHD Graphics
Maximum resolution	3840 x 2160 Pixels
Audio
Built-in speaker(s)	N
Network
Ethernet LAN	Y
Wi-Fi	N
LAN controller	Intel I226-V
Ports & interfaces
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	4
HDMI ports quantity	1
HDMI version	2.0b
Microphone in	Y
Headphone outputs	1
Ethernet LAN (RJ-45) ports	2
Serial ports quantity	1
DC-in jack	Y
Expansion slots
Number of M.2 (M) slots	1
Design
Chassis type	2.6L sized PC
Product colour	Black, Blue
Cooling type	Passive
Housing material	Aluminium, Steel
VESA mounting	Y
Panel mounting interface	75 x 75 mm
Product type	Mini PC (<= 3L) barebone
Performance
BIOS type	UEFI AMI
Trusted Platform Module (TPM)	Y
Trusted Platform Module (TPM) version	2.0
Audio chip	Realtek ALC888S
Harmonized System (HS) code	84733080
Technical details
Sustainability certificates	Certified Enviro Cranberries (CEC), ErP
Compliance certificates	BSMI, CB, CE, Federal Communications Commission (FCC), RCM, RoHS, VCCI, cTUVus
Power
Power supply type	External AC adapter
Power supply	90 W
Number of power supply units	1
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
AC adapter output voltage	19 V
AC adapter output current	4.74 A
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	20 - 80 procent
Weight & dimensions
Width	245 mm
Depth	169 mm
Height	57 mm
Weight	2850 g
Packaging content
AC adapter included	Y
