The multi-purpose AI powerhouse: desktop performance & elite signage in 1.3 litres
The Shuttle XPC slim DB860 is a professional-grade, ultra-compact solution engineered for the intersection of high-end productivity and advanced visual communication. Powered by the Intel Core Ultra 200 series (Arrow Lake-S) with an integrated Neural Processing Unit (NPU), it delivers up to 36 TOPS of AI performance. This makes it equally adept at accelerating local workstation workflows - such as data analysis and creative automation - as it is at powering intelligent signage solutions with real-time audience analytics and interactive content.

Designed for maximum visual impact and multitasking efficiency, the DB860 supports up to four independent displays, including stunning 8K@60Hz resolution via HDMI 2.1. Whether managing a complex financial trading desk, professional engineering projects, or high-fidelity video walls and interactive retail kiosks, this system provides the expansive screen real estate required for modern professional environments. Connectivity is enterprise-ready, featuring ultra-fast USB4 (20Gbps), dual Intel LAN (2.5GbE + 1GbE), and dual serial ports for seamless integration with both office peripherals and industrial hardware.

Combining mission-critical stability with a discreet 1.3-litre form factor, the DB860 is built for 24/7 operation in temperatures up to 50°C. Supporting up to 96GB of DDR5 memory and rapid PCIe Gen 5 storage, it offers a future-proof platform for healthcare, industrial automation, and premium retail signage. It is the definitive choice for those who refuse to compromise on power, reliability, and versatility.

Specification

Product
Product id	1020931
Brand	Shuttle
Partnr	SHU-DB860
EAN/UPC code	887993008196
Processor
Built-in processor	N
Memory
Memory slots type	SO-DIMM
Internal memory installed	N
Number of memory slots	2
Memory channels	Dual-channel
Memory voltage	1.1 V
Supported memory clock speeds	5600 MHz
Supported memory types	DDR5-SDRAM
Maximum internal memory	96 GB
ECC	N
Non-ECC	Y
Storage
Storage drives installed	N
Supported storage drive types	HDD & SSD
Storage drive sizes supported	2.5 "
SSD form factor	M.2
Storage drive interface	M.2, PCI Express, Serial ATA
Number of storage drives supported	2
NVMe	Y
Graphics
On-board graphics adapter	Y
Audio
Built-in speaker(s)	N
Network
Ethernet LAN	Y
Wi-Fi	N
LAN controller	Intel I219, Intel I226

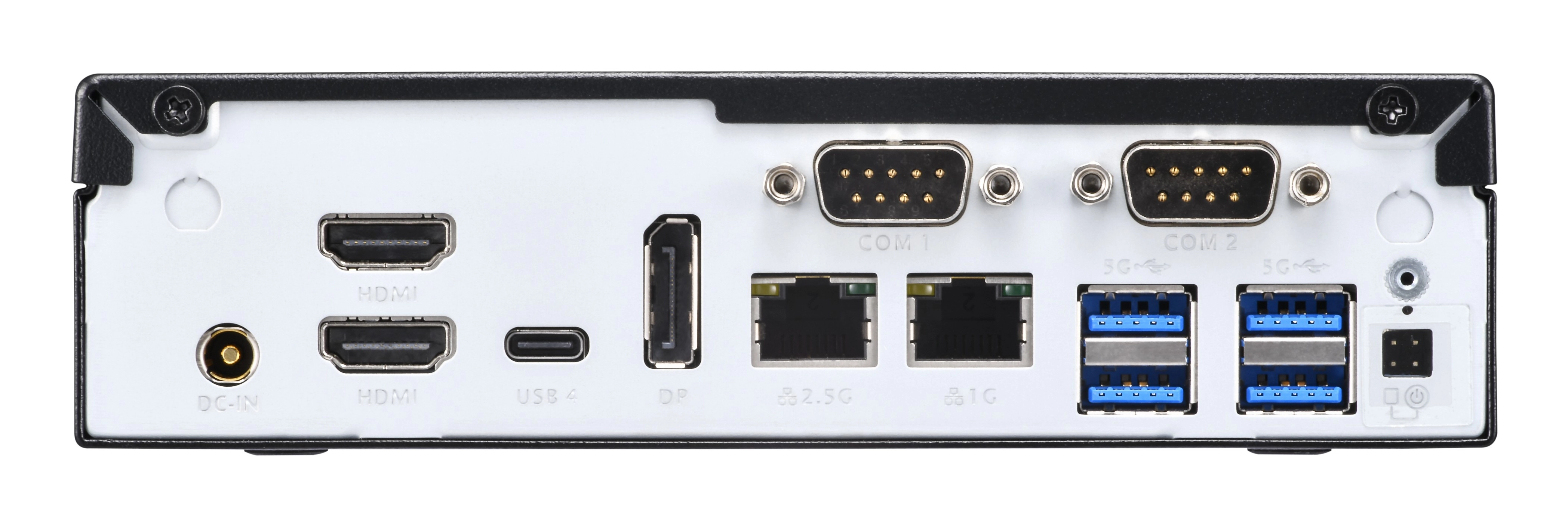

Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
HDMI ports quantity	2
USB4 Gen 2x2 ports quantity	1
HDMI version	2.0/2.1
DisplayPorts quantity	1
DisplayPort version	1.4a
Microphone in	Y
Headphone outputs	1
Ethernet LAN (RJ-45) ports	2
Serial ports quantity	2
DC-in jack	Y
Design
Chassis type	1.35L sized PC
Product colour	Black

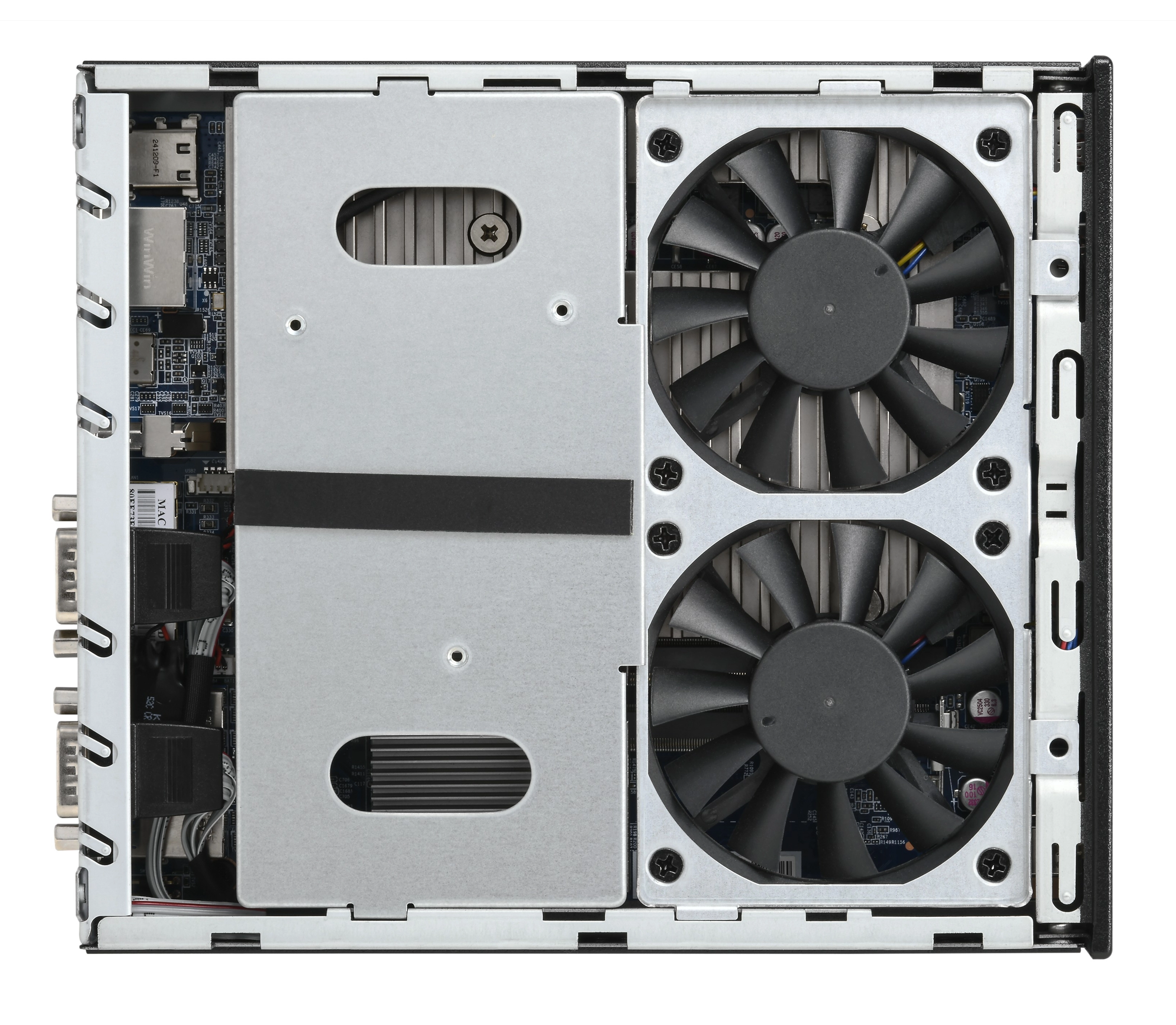

Cooling type	Active
LED indicators	HDD, Power
Housing material	Metal
Cable lock slot	Y
Cable lock slot type	Kensington
VESA mounting	Y
Product type	Mini PC (<= 3L) barebone
Performance
Motherboard chipset	Intel B860
Processor socket	LGA 1851 (Socket V1)
Number of processors supported	1
BIOS type	EFI AMI
Trusted Platform Module (TPM)	Y
Trusted Platform Module (TPM) version	2.0
Audio output channels	2.0 kanalen
Audio chip	Realtek ALC888S
Windows operating systems supported	Windows 11
Linux operating systems supported	Y
Harmonized System (HS) code	84733080
Technical details
Sustainability certificates	ENERGY STAR, ErP
Compliance certificates	BSMI, CB, CE, ETL, Federal Communications Commission (FCC), RCM, RoHS, VCCI
Power
Power supply type	External AC adapter
Power supply	180 W
Number of power supply units	1
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
AC adapter output voltage	19 V
AC adapter output current	9.23 A
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	10 - 90 procent
Weight & dimensions
Width	165 mm
Depth	190 mm
Height	43 mm
Weight	1300 g
Package weight	2100 g
Packaging content
Power cord included	Y
AC adapter included	Y
Quick start guide	Y
Drivers included	Y
