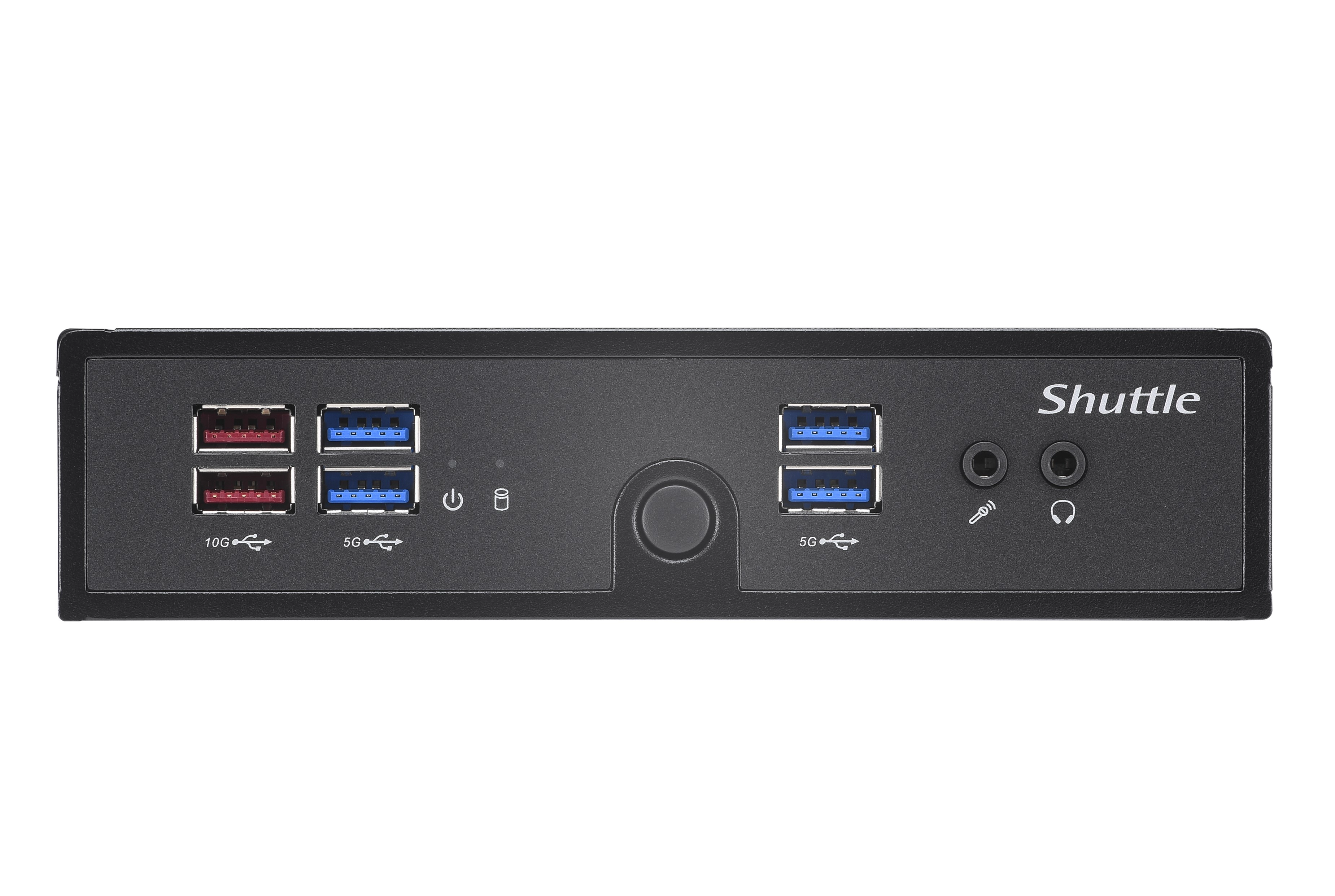

Fanless Slim PC with integrated ULV processor in industrial design
The DS50U-series is a fanless slim PC with a robust 1.3-litre metal chassis and exceptional connectivity. It supports two digital video outputs for UHD/4K displays and one traditional D-Sub/VGA connector. The built-in Intel Gen 12/13 processor provides ample performance for playback of 2160p/60 videos. Installation of components goes straight forward, as there is plenty of interior space for two DDR5 memory modules, one 2.5" drive and two M.2-2280 SSD cards.

Optionally, an 4G/5G module can be fitted in the second M.2 slot using the optional WWN04 accessory. Thanks to its passive cooling, the system is virtually maintenance-free and is approved for 24/7 nonstop operation. It is big on performance, yet extremely energy-efficient. The Shuttle XPC slim Barebone DS50U5 series is an ideal platform for professional applications such as digital signage, POS, Kiosk, Thin Client, Office PC and Multimedia.

Specification

Product
Product id	951861
Brand	Shuttle
Partnr	DS50U5
EAN/UPC code	887993006185
Processor
Built-in processor	Y
Processor manufacturer	Intel
Processor family	Intel Core i5
Processor model	i5-1335U
Processor generation	Intel Core i5-13xxx
Processor cores	10
Processor threads	12
Processor boost frequency	4.6 GHz
Processor cache	12 MB
Performance cores	2
Efficient cores	8
Performance-core boost frequency	4.6 GHz
Thermal Design Power (TDP)	15 W
Efficient-core boost frequency	3.4 GHz
ECC supported by processor	N
Memory
Memory slots type	SO-DIMM
Number of memory slots	2
Memory channels	Dual-channel
Memory voltage	1.1 V
Supported memory clock speeds	5200 MHz
Supported memory types	DDR5-SDRAM
Maximum internal memory	64 GB
Storage
Supported storage drive types	HDD & SSD
Storage drive sizes supported	2.5, M.2 "
Storage drive interface	PCI Express, Serial ATA III
Number of storage drives supported	3
NVMe	Y
Graphics
On-board graphics adapter	Y
Graphics adapter family	Intel
On-board graphics adapter model	Intel UHD Graphics
Audio
Built-in speaker(s)	N
Network
Ethernet LAN	Y
Wi-Fi	N
LAN controller	Intel I219, Intel I226-LM
Ports & interfaces
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	2
HDMI ports quantity	1
HDMI version	2.0b
VGA (D-Sub) ports quantity	1
DisplayPorts quantity	1
DisplayPort version	1.4
Microphone in	Y
Headphone outputs	1
Ethernet LAN (RJ-45) ports	2
Serial ports quantity	1
DC-in jack	Y
Design
Chassis type	1.3L sized PC
Product colour	Black
Cooling type	Passive
On/off switch	Y
LED indicators	HDD, Power
Housing material	Steel
Cable lock slot	Y
Cable lock slot type	Kensington
VESA mounting	Y
Panel mounting interface	75 x 75, 100 x 100 mm
Product type	Mini PC (<= 3L) barebone
Performance
Number of processors supported	1
BIOS type	UEFI AMI
Trusted Platform Module (TPM)	Y
Trusted Platform Module (TPM) version	2.0
Audio chip	RealTek ALC888S
Windows operating systems supported	Windows 10, Windows 11
Linux operating systems supported	Y
Operating system installed	N
Harmonized System (HS) code	84733080
Technical details
Sustainability compliance	Y
Sustainability certificates	BSMI, CB, CE, ENERGY STAR, ErP, Federal Communications Commission (FCC), RCM, RoHS, VCCI, cTUVus
Power
Power supply type	External AC adapter
Power supply	90 W
Number of power supply units	1
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
AC adapter output voltage	19 V
AC adapter output current	1.6 A
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 procent
Weight & dimensions
Width	200 mm
Depth	165 mm
Height	39.5 mm
Weight	1600 g
Package weight	2300 g
Packaging content
Power cord included	Y
AC adapter included	Y
Quick start guide	Y
