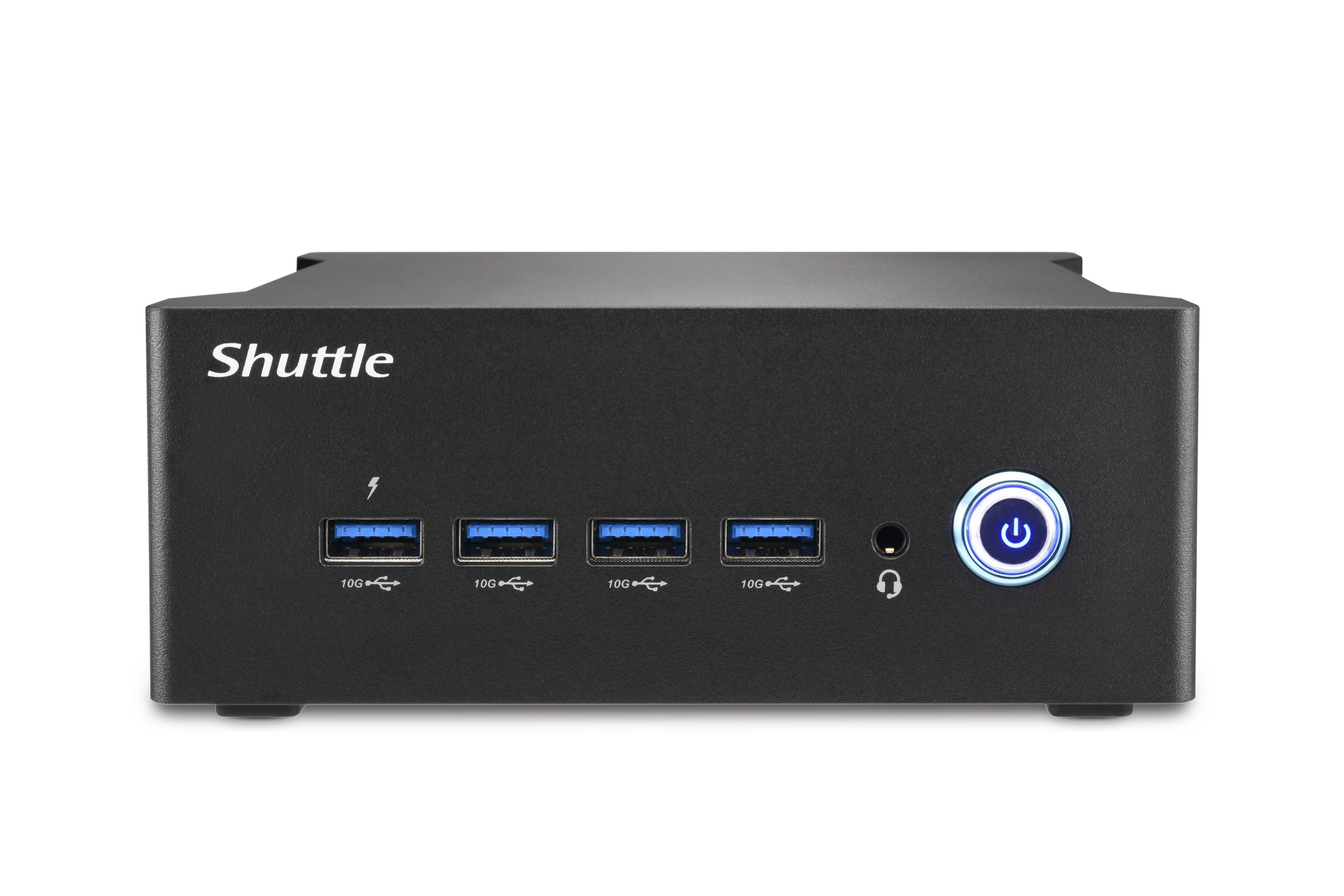

The Shuttle nano Barebone NT10H Series is designed as a compact, 1-litre nano-style mini-PC with enhanced features and efficiency for multitasking and AI workloads. Equipped with Intel® Core™ Ultra processors with integrated Intel® Arc™ graphics and AI Boost NPU, it effortlessly handles demanding graphics processing. It supports output to four 4K/UHD displays and offering comprehensive connectivity including dual USB4, dual 2.5G Intel® LAN, and PCIe 4.0 SSD slot. This powerhouse is ideal for gaming, AI inference, image processing, and multimedia content creation tasks, delivering powerful performance at an affordable price point, empowering both everyday tasks and professional projects with outstanding results.

Specification

Product
Product id	986327
Brand	Shuttle
Partnr	NT10H9
EAN/UPC code	887993007687
Processor
Built-in processor	Y
Processor manufacturer	Intel
Low Power Efficient-cores	2
Processor family	Intel Core Ultra 9
Performance-core Max Turbo Frequency	5.1 GHz
Processor model	185H
Processor generation	Intel Core Ultra (Series 1)
Efficient-core Max Turbo Frequency	3.8 GHz
Low Power Efficient-core Max Turbo Frequency	2.5 GHz
Processor cores	16
Performance-core base frequency	2.3 GHz
Processor threads	22
Efficient-core base frequency	1.8 GHz
Low Power Efficient-core Base Frequency	1000 MHz
Processor boost frequency	5.1 GHz
Processor cache	24 MB
Performance cores	6
Efficient cores	8
Memory
Memory slots type	SO-DIMM
Number of memory slots	2
Memory channels	Dual-channel
Memory voltage	1.1 V
Supported memory clock speeds	5600 MHz
Supported memory types	DDR5-SDRAM
Maximum internal memory	64 GB
ECC	N
Non-ECC	Y
Storage
Supported storage drive types	SSD
Storage drive sizes supported	M.2 "
SSD form factor	M.2
Storage drive interface	PCI Express
NVMe	Y
Card reader integrated	Y
Compatible memory cards	SD
Graphics
On-board graphics adapter	Y
Graphics adapter family	Intel
On-board graphics adapter model	Intel Arc Graphics
Maximum resolution	3840 x 2160 Pixels
Number of displays supported	4
Audio
Built-in speaker(s)	N
Network
Ethernet LAN	Y
Wi-Fi	N
LAN controller	Intel I226-V
Ports & interfaces
USB 2.0 ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	5
HDMI ports quantity	2
USB4 Gen 2x2 ports quantity	2
HDMI version	2.0
Combo headphone/mic port	Y
Ethernet LAN (RJ-45) ports	2
DC-in jack	Y
Design
Chassis type	1L sized PC
Product colour	Black
Cooling type	Active
On/off switch	Y
Housing material	Plastic
Cable lock slot	Y
Cable lock slot type	Kensington
VESA mounting	Y
Panel mounting interface	75 x 75, 100 x 100 mm
Product type	Mini PC (<= 3L) barebone
Performance
Motherboard chipset	Intel SoC
BIOS type	UEFI AMI
Trusted Platform Module (TPM)	Y
Trusted Platform Module (TPM) version	2.0
Audio chip	Realtek ALC269
Windows operating systems supported	Windows 11 x64
Linux operating systems supported	Y
Harmonized System (HS) code	84733080
Technical details
Sustainability certificates	ENERGY STAR, ErP
Compliance certificates	BSMI, CE, Federal Communications Commission (FCC), RoHS, cTUVus
Power
Power supply type	External AC adapter
Power supply	120 W
Number of power supply units	1
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
AC adapter output voltage	19 V
AC adapter output current	6.32 A
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 procent
Weight & dimensions
Width	132 mm
Depth	143 mm
Height	55 mm
Weight	800 g
Package weight	1700 g
Packaging content
Power cord included	Y
AC adapter included	Y
Quick start guide	Y
