ROBUST INDUSTRY PC WITH VESA/DIN-RAIL MOUNT

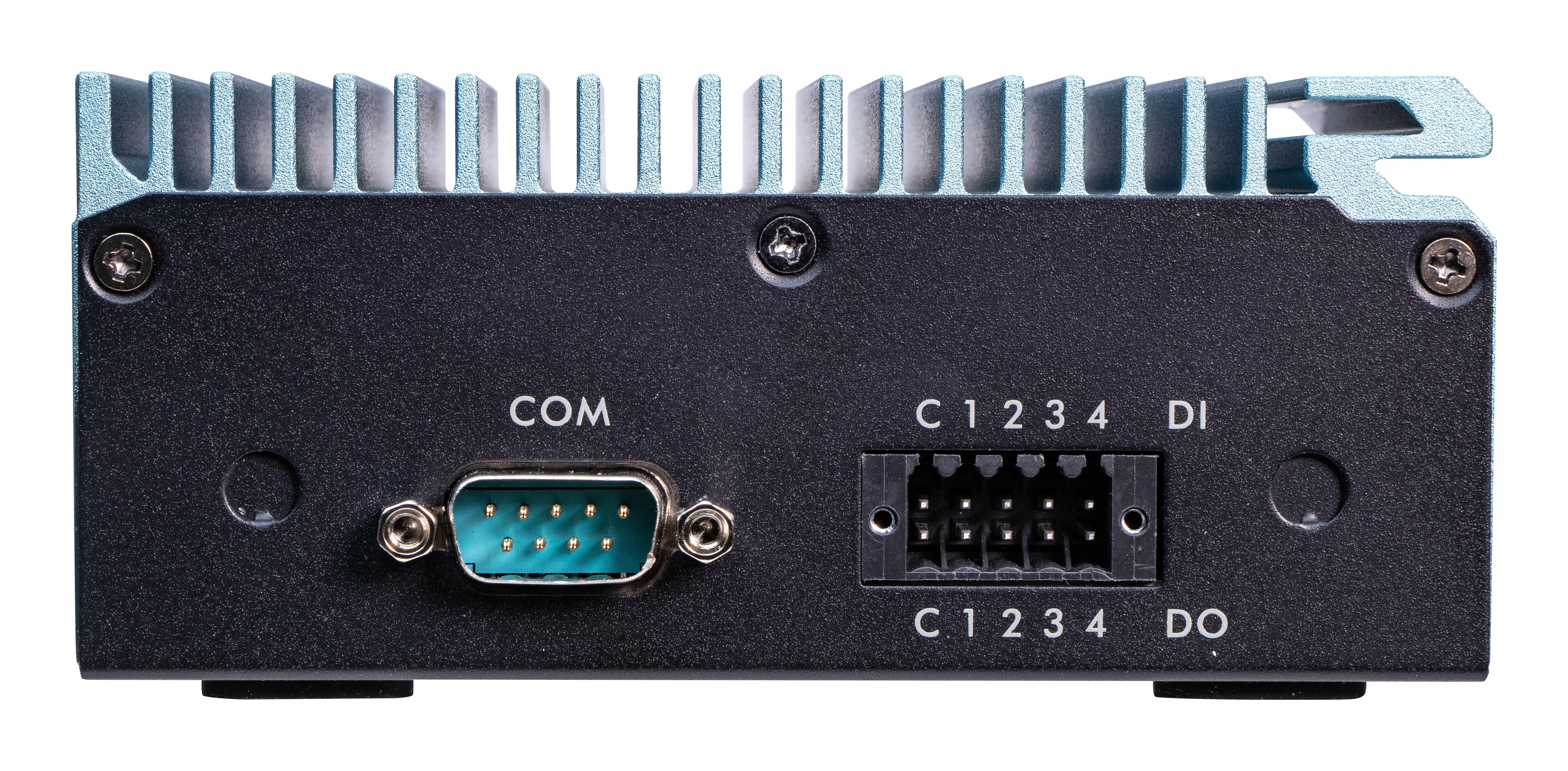

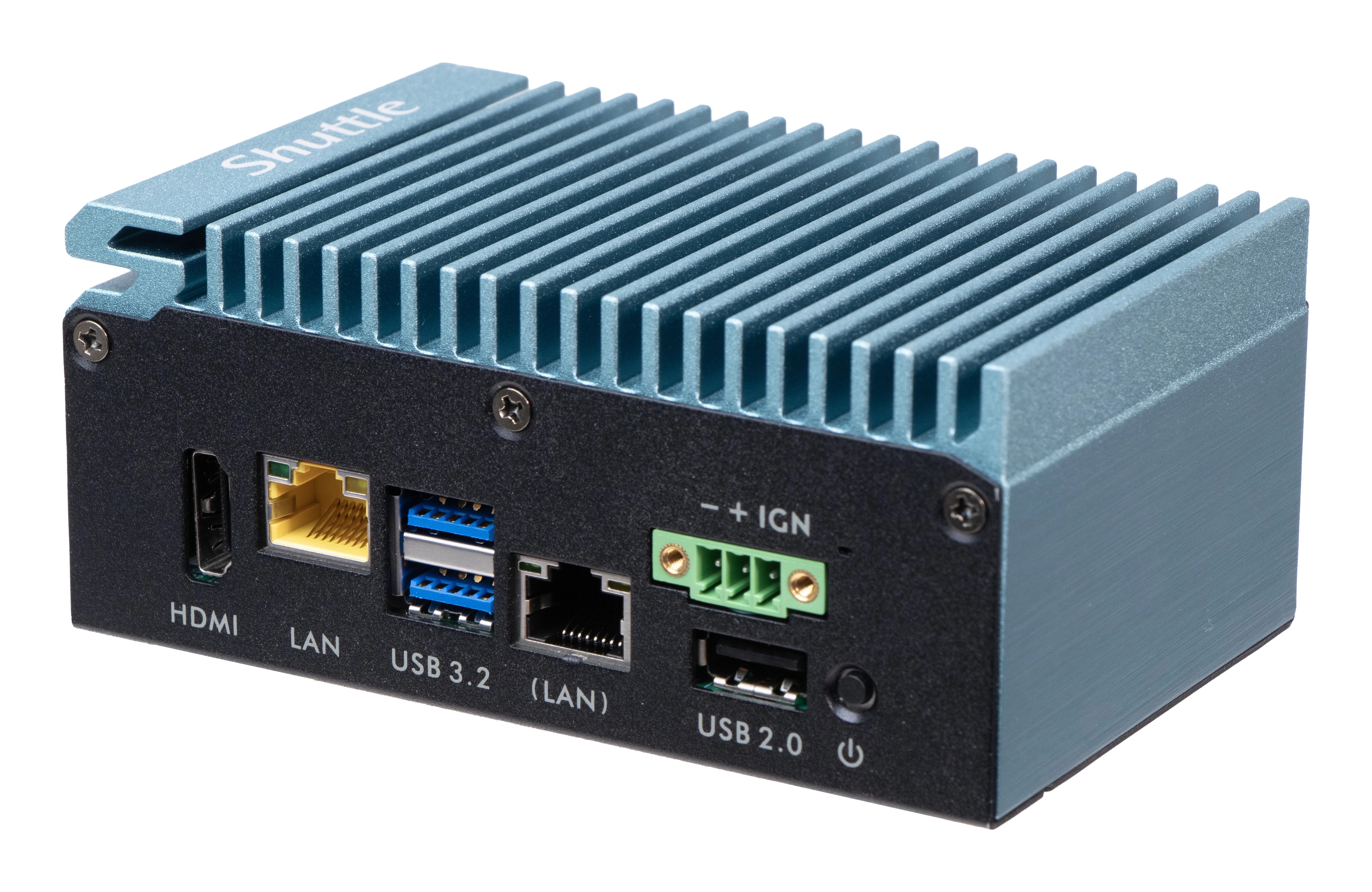

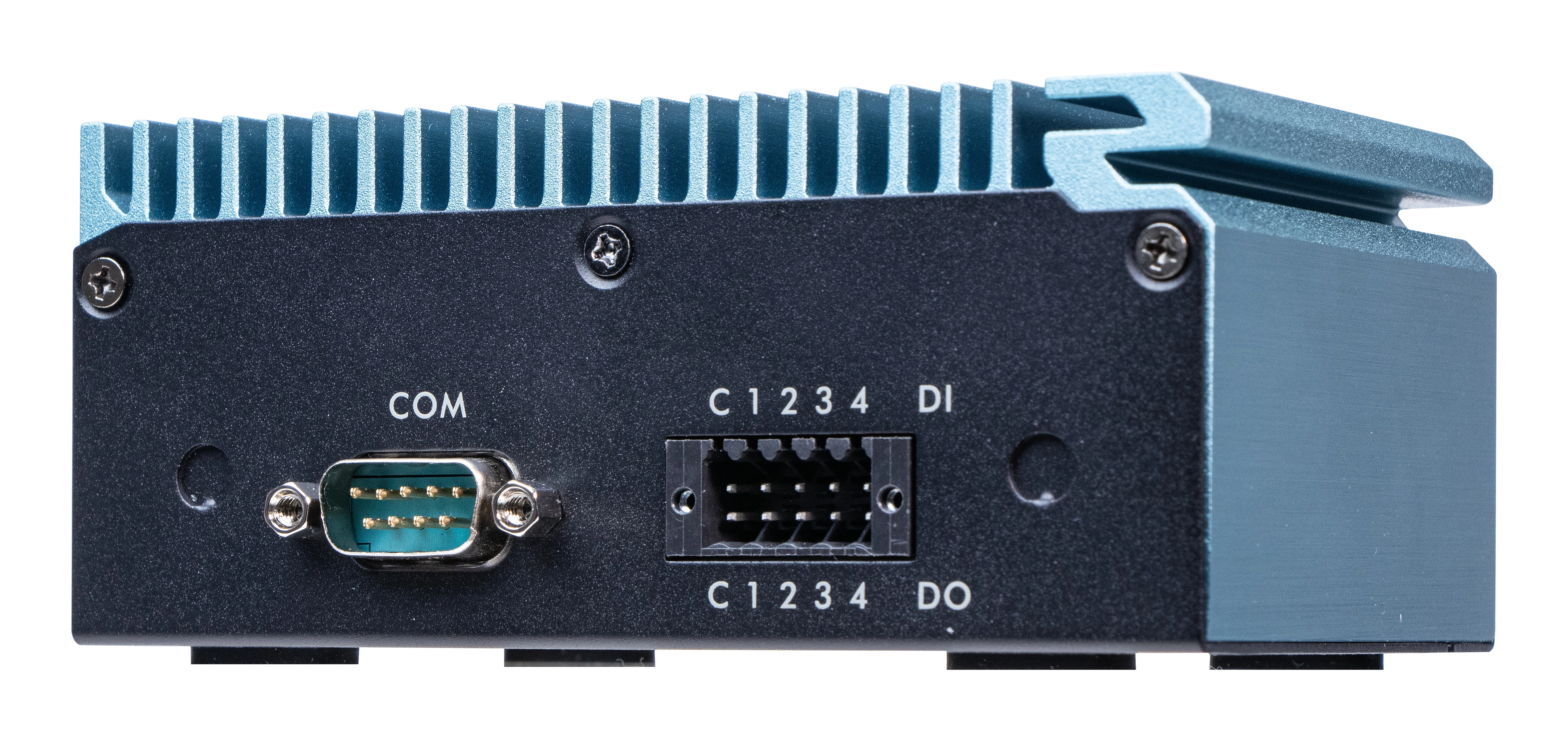

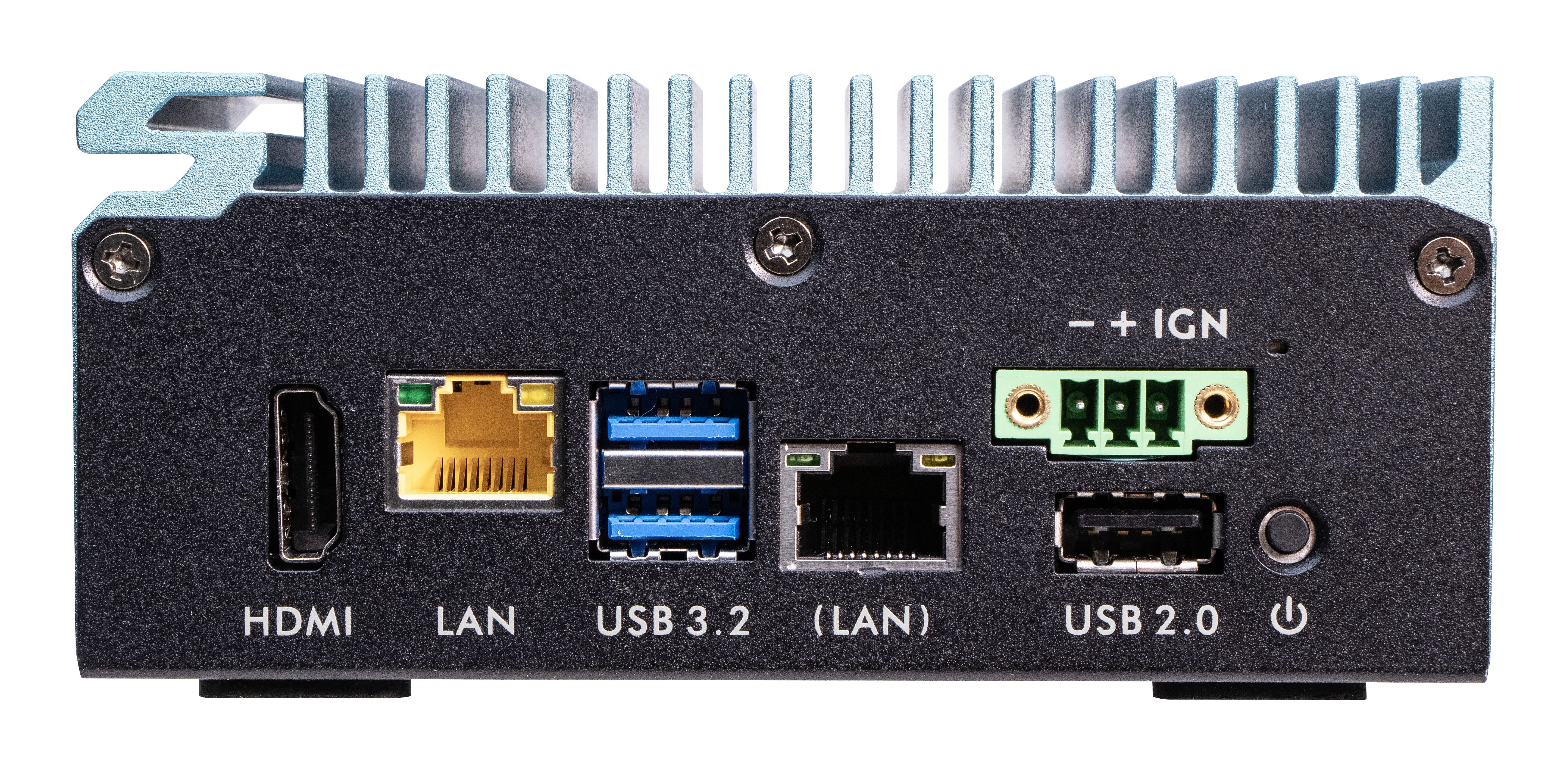

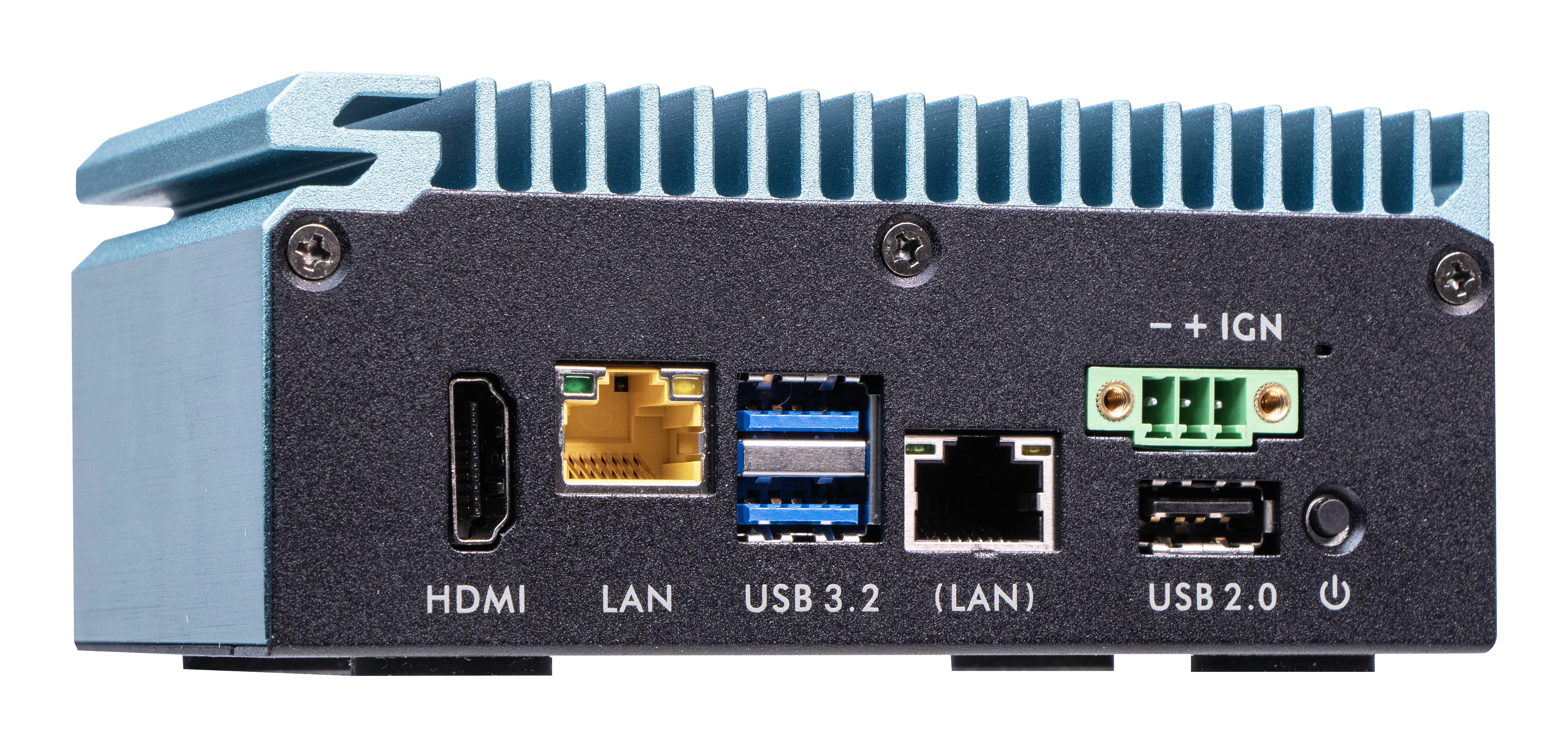

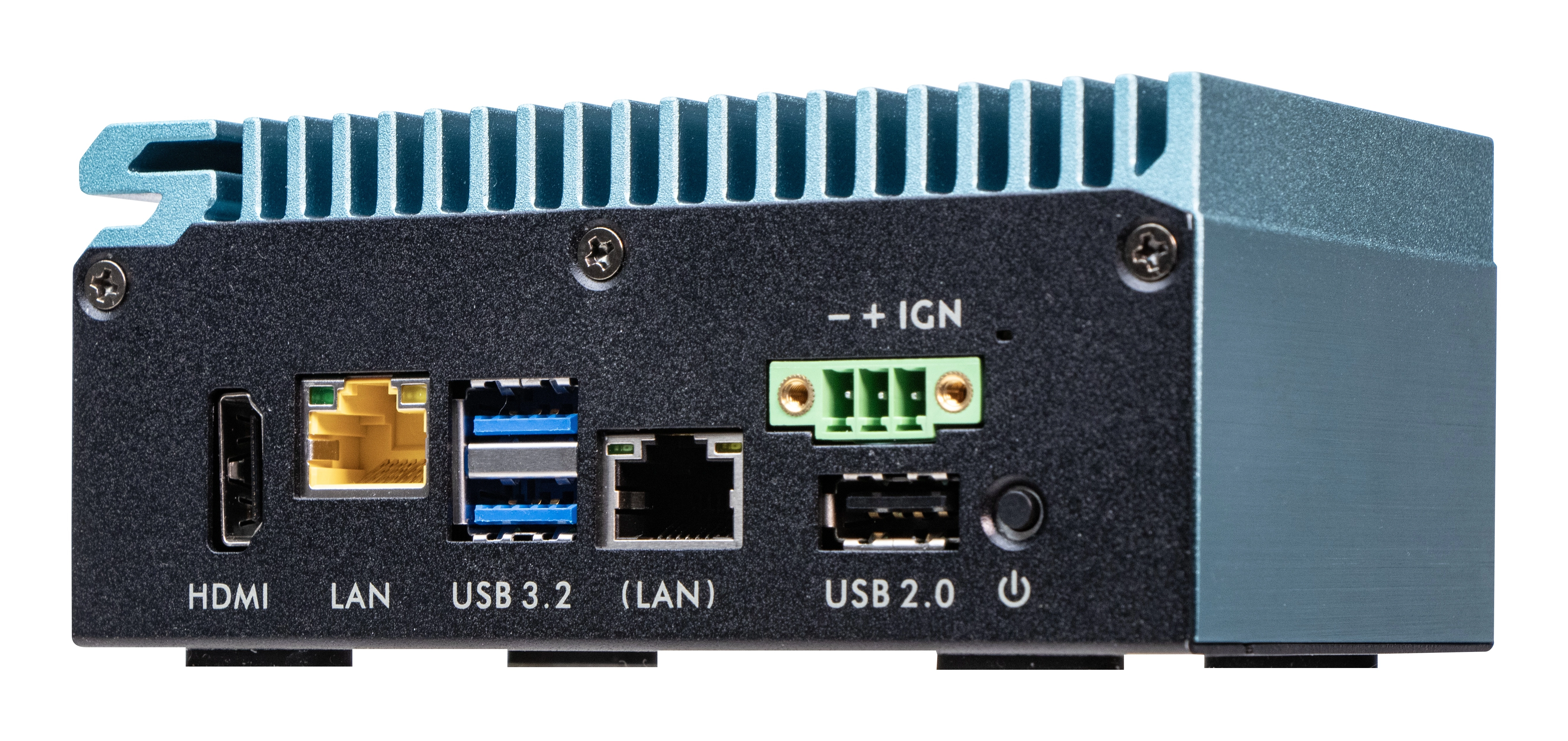

The Shuttle Edge PC SPCEL02XA System (based on SPCEL02) is a fanless IPC barebone in a robust 450 ml metal chassis and intended for DIN-Rail or VESA mounting. It is flexible in use and de-signed for maintenance-free 24/7 operation at ambient temperatures of up to 40°C. Inside there is an Intel Celeron "Elkhart Lake" processor with 8 GB RAM and 120 GB SSD, but no operation system. The small housing offers an amazing variety of connections, including dual LAN, COM port and Digital I/O. This product is targeted at professional applications such as edge computing (IoT gateway), automation, digital signage, control, data logging and video surveillance.

Specification

Product
Product id	986331
Brand	Shuttle
Partnr	SPCEL02XA
EAN/UPC code	4046047104291
Processor
Processor manufacturer	Intel
Processor family	Intel Celeron J
Processor model	J6412
Processor cores	4
Processor frequency	2 GHz
Processor boost frequency	2.6 GHz
Processor cache	1.5 MB
Processor cache type	L2
Processor threads	4
Number of processors installed	1
Memory
Internal memory	8 GB
Internal memory type	DDR4-SDRAM
Maximum internal memory	32 GB
Memory slots	2x SO-DIMM
Memory clock speed	3200 MHz
Storage
Total storage capacity	120 GB
Optical drive type	N
Storage media	SSD
Number of storage drives installed	1
Total SSDs capacity	120 GB
Number of SSDs installed	1
SSD capacity	120 GB
SSD interface	SATA
SSD form factor	M.2
M.2 SSD size	2242 (22 x 42 mm)
Graphics
Discrete graphics adapter	N
On-board graphics adapter	Y
Discrete graphics adapter model	Not available
On-board graphics adapter family	Intel UHD Graphics
On-board GPU manufacturer	Intel
On-board graphics adapter model	Intel UHD Graphics
Network
Ethernet LAN	Y
Ethernet LAN data rates	100, 1000, 2500 Mbit/s
LAN controller	Intel I226-V
Wi-Fi	N
Ports & interfaces
USB 2.0 ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	2
HDMI ports quantity	1
HDMI version	2.0b
Ethernet LAN (RJ-45) ports	2
DC-in jack	Y
Serial ports quantity	1
Design
Chassis type	Mini PC
Volume	0.46 l
VESA mounting	Y
Placement supported	Horizontal/Vertical
Product colour	Black, Blue
Housing material	Aluminium
Performance
Product type	Mini PC (<= 3L)
Password protection	Y
Trusted Platform Module (TPM)	Y
Trusted Platform Module (TPM) version	2.0
Software
Operating system installed	N
Power
Power supply	90 W
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	20 - 80 procent
Certificates
Compliance certificates	BSMI, CB, CE, Federal Communications Commission (FCC), VCCI, cTUVus
Weight & dimensions
Width	120 mm
Depth	75 mm
Height	51 mm
Weight	720 g
Package weight	1200 g
Packaging content
Display included	N
VESA mount included	Y
Other features
Fanless	Y
Harmonized System (HS) code	84714900
