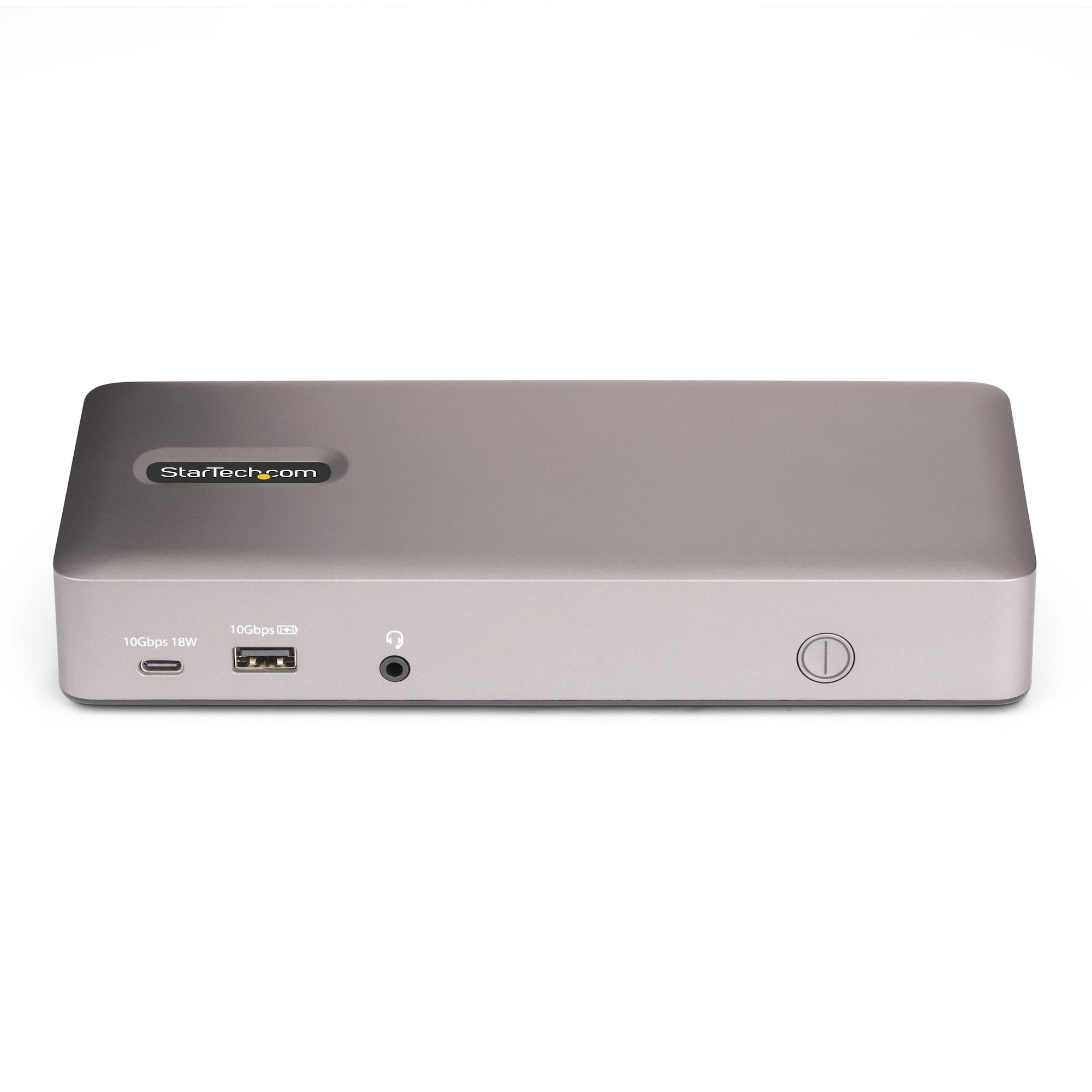

Expand your workspace with a high-performance docking station that delivers triple 4K 60Hz display output, 2.5G Ethernet, and broad device connectivity, all through a single USB4 or Thunderbolt 4 connection.

High-Performance Display and Networking
Connect up to three 4K 60Hz displays via a single USB4 or Thunderbolt 4 port, leveraging full GPU capabilities without software or compression. Boost productivity with fast 2.5GbE networking, supporting PXE Boot and Wake-on-LAN for streamlined IT-managed deployments.

Comprehensive Connectivity and Power
The dock offers three video outputs (HDMI or DisplayPort), four USB-A ports (10Gbps), two USB-C ports (10Gbps and 5Gbps), and delivers up to 100W of host charging. A 180W power adapter ensures all ports operate at full capacity.

Driverless Deployment with Secure Mounting Options
Driverless setup with native Windows and ChromeOS support. Built-in lock slots and VESA or surface mounting options (accessories sold separately) provide secure, flexible installation.

Enterprise Management Tools
StarTech. com Connectivity Tools offer practical utilities to support device management and increase productivity in modern IT environments. With features like MAC address pass-through, Wi-Fi auto switch, and USB device monitoring, the software helps IT teams streamline deployment and strengthen security across diverse setups.

Specification

Product
Product id	1000942
Brand	StarTech.com
Partnr	150UE-USB4DOCKTRIPLE
EAN/UPC code	065030902885
Warranty (months)	3 Years
Ports & interfaces
Connectivity technology	Wired
Host interface	USB4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	4
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	2
USB Power Delivery	Y
USB Power Delivery revision	3.0
HDMI ports quantity	3
DisplayPorts quantity	3
Combo headphone/mic port	Y
Headphone outputs	1
Headphone connectivity	3.5 mm
DC-in jack	Y
Network
Ethernet LAN	Y
Ethernet LAN (RJ-45) ports	1
Ethernet LAN data rates	10, 100, 1000, 2500 Mbit/s
Wake-on-LAN ready	Y
Full duplex	Y
Performance
Product colour	Grey
Card reader integrated	N
Data transfer rate	40 Gbit/s
HD type	4K Ultra HD
Maximum digital resolution	3840 x 2160 Pixels
Number of displays supported	3
Cable lock slot	Y
Cable lock slot type	Kensington, Nano
Maximum refresh rate	144 Hz
UASP support	Y
Power
AC input voltage	100 - 240 V
Input current	2.5 A
Output current	9 A
Output voltage	20 V
Power consumption (max)	180 W
Compatible power plug types	US
Software
Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64
Other operating systems supported	ChromeOS
Weight & dimensions
Width	95 mm
Depth	210 mm
Height	34 mm
Weight	1057 g
Packaging data
Package width	145 mm
Package depth	235 mm
Package height	99 mm
Package weight	1400 g
Packaging content
AC adapter included	Y
Cables included	USB Type-C
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 70 °C
Operating relative humidity (H-H)	0 - 95 procent
Technical details
Compliance certificates	CE
Other features
Chipset	VIA - VL830, VIA - VL163, VIA - VL162, VIA - VL105, Realtek - RTL8156BS, Realtek - ALC4030U, Parade - PS8469
