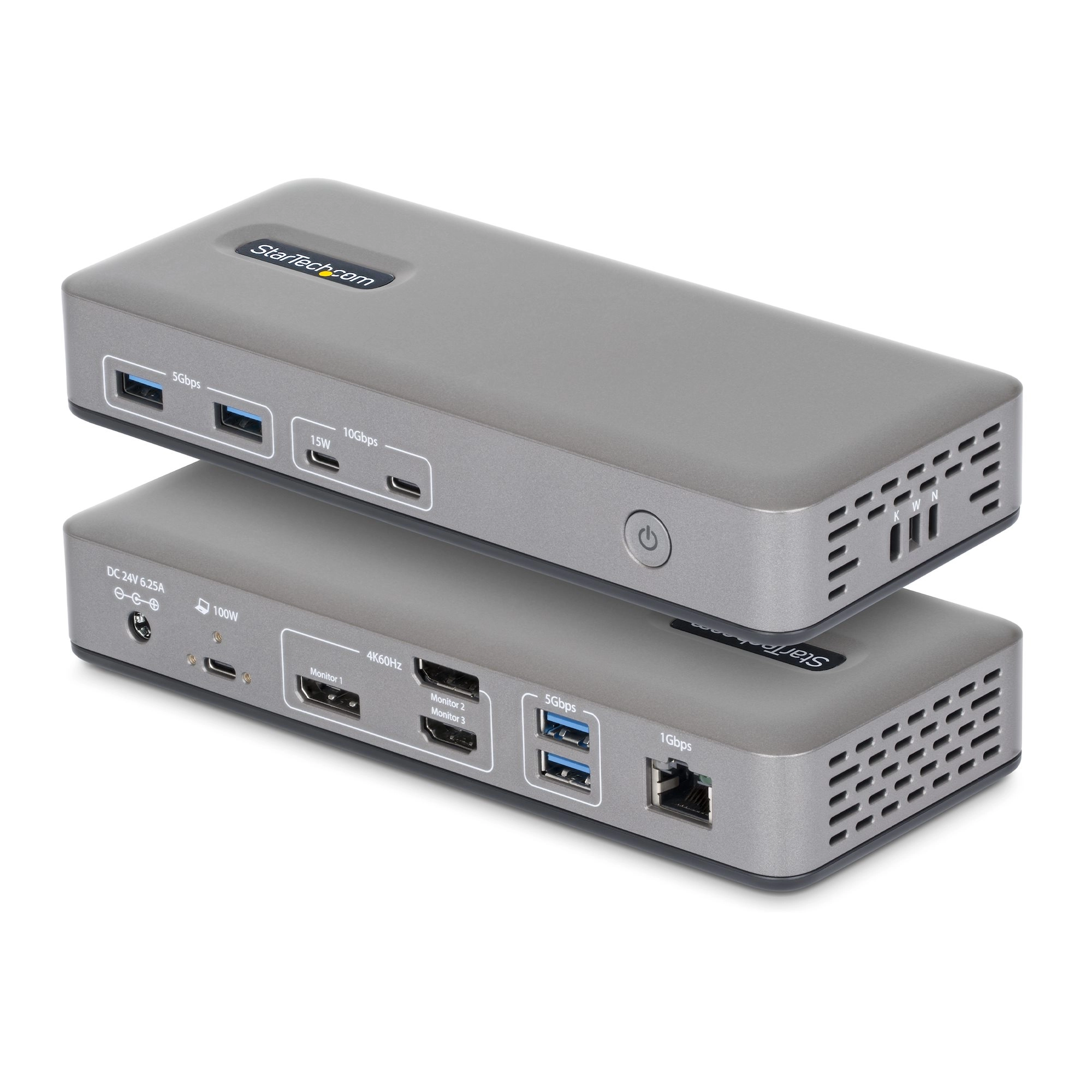

StarTech. com 199UE-USBC-DOCK. Connectivity technology: Wired, Host interface: USB 3.2 Gen 2 (3.1 Gen 2) Type-C. Ethernet LAN data rates: 10, 100, 1000 Mbit/s. Product colour: Grey, Data transfer rate: 10 Gbit/s, HD type: 4K Ultra HD. AC input voltage: 100 - 240 V, Input current: 2.5 A, Output voltage: 24 V. Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10. . . , Linux operating systems supported: Ubuntu 24.04 LTS

Specification

Product
Product id	1014173
Brand	StarTech.com
Partnr	199UE-USBC-DOCK
EAN/UPC code	065030921817
Warranty (months)	24 months
Ports & interfaces
Connectivity technology	Wired
Host interface	USB 3.2 Gen 2 (3.1 Gen 2) Type-C
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	2
USB Power Delivery	Y
USB Power Delivery revision	3.0
HDMI ports quantity	1
HDMI version	2.0
DisplayPorts quantity	1
DisplayPort version	1.4
Microphone in	N
DC-in jack	Y
Network
Ethernet LAN	Y
Ethernet LAN (RJ-45) ports	1
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Wake-on-LAN ready	Y
Full duplex	Y
Performance
Product colour	Grey
Card reader integrated	N
Data transfer rate	10 Gbit/s
HD type	4K Ultra HD
Maximum digital resolution	4096 x 2160 Pixels
Number of displays supported	2
Cable lock slot	Y
Cable lock slot type	Kensington, Nano, Wedge, Noble
On/off switch	Y
LED indicators	Y
Mean time between failures (MTBF)	84290 uur
Power
AC input voltage	100 - 240 V
Input current	2.5 A
Output current	6.25 A
Output voltage	24 V
Power consumption (typical)	150 W
Compatible power plug types	EU, UK
Software
Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64
Linux operating systems supported	Ubuntu 24.04 LTS
Weight & dimensions
Width	79 mm
Depth	190 mm
Height	27 mm
Weight	300 g
Packaging data
Package width	250 mm
Package depth	205 mm
Package height	50 mm
Package weight	1000 g
Packaging content
AC adapter included	Y
Cables included	USB Type-C
Operational conditions
Operating temperature (T-T)	0 - 70 °C
Storage temperature (T-T)	10 - 70 °C
Operating relative humidity (H-H)	10 - 85 procent
Technical details
Compliance certificates	RoHS, Federal Communications Commission (FCC)
Logistics data
Master (outer) case height	280 mm
Master (outer) case length	270 mm
Master (outer) case width	430 mm
Quantity per master (outer) case	10 stuk(s)
Other features
Chipset	VMM5320, VL103R, VL171, VL822, VP226, VL817, RTL8153E
