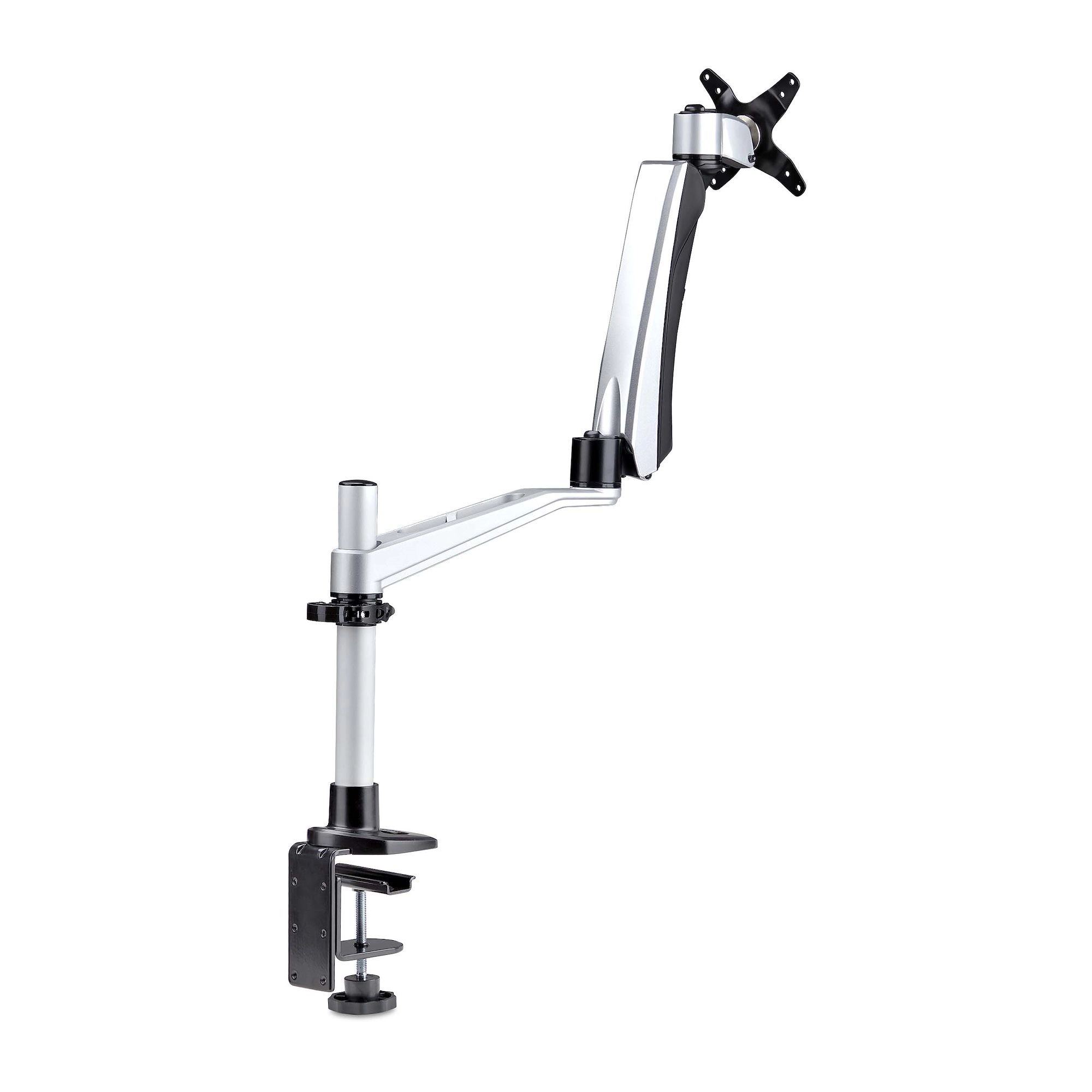

Single monitor desk mount with support up to 30" monitors and height-adjustable articulating arm

This monitor desk mount is designed to support up to 27-inch 16:9 or 30-inch 21:9 display, creating an ergonomic area for productivity. The mechanical spring-assisted arm enables multiple adjustment to suit different ergonomic needs.

Height Adjustment with One Smooth Motion

The spring arm enables toolless height adjustment of up to 10.6in (270mm) with effortless one-touch motion. For additional adjustments, reposition the arm along the 11.9in (302mm) pole for different height ranges. The arm can extend up to 22.2in (590mm) from the pole.

Toolless Assembly

The quick toolless slide and click design makes assembly quick and simple. The pre-assembled desk clamp and pole can be easily secured by hand to the desk, saving total installation time.

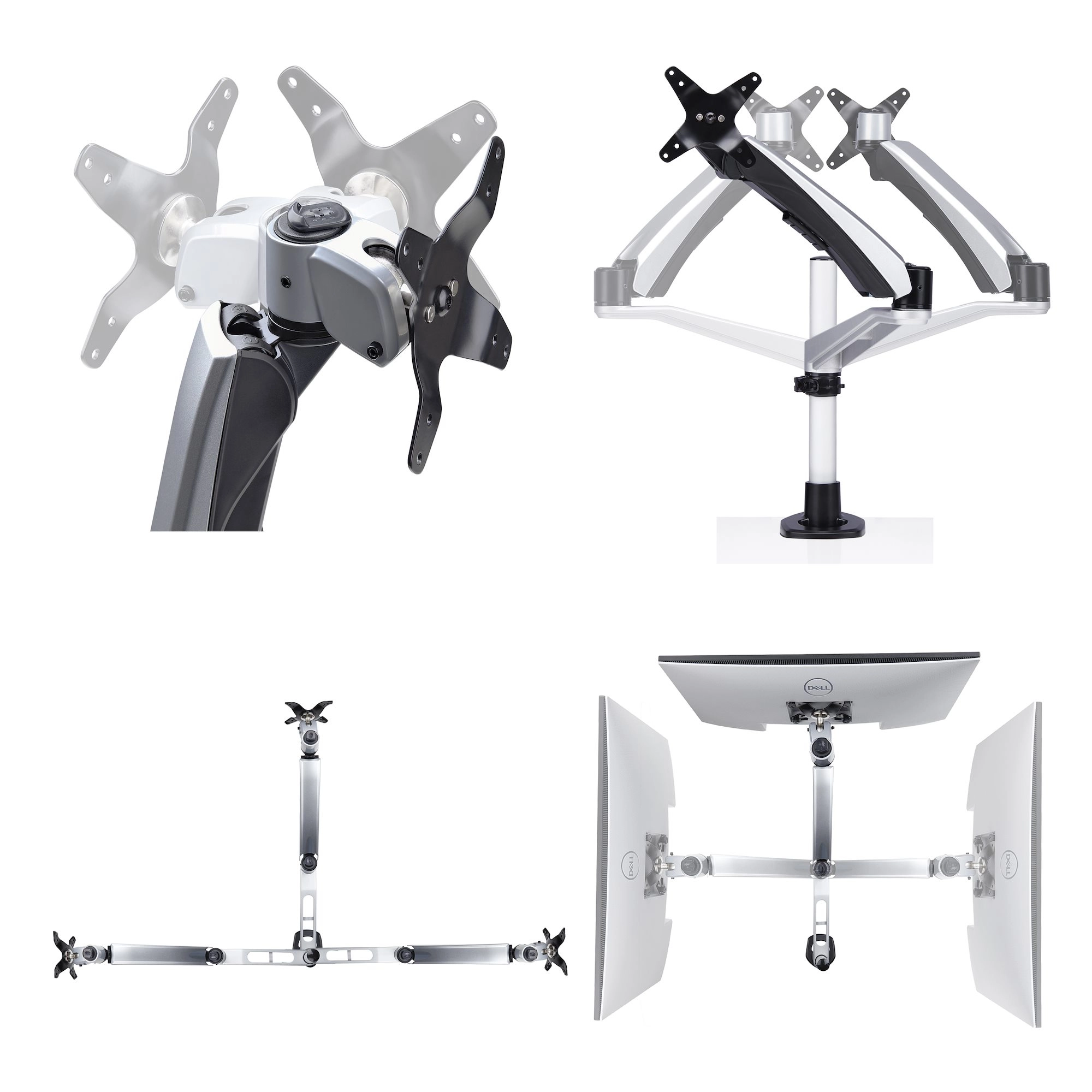

Range of Motion

The articulating arm enables toolless adjustments of +/-180° horizontal swivel, 105° tilt, 240° pan, and 360° screen rotation on the VESA plate for portrait or landscape orientations. This flexibility enables users to customize the screen placement for maximum productivity and comfort.

Durable Construction

With its steel and aluminum construction, the premium dial monitor arm supports a weight capacity of 19.8 lb. (9 kg). Die-cast aluminum arms with mechanical springs that passed 10, 000 cycle test and are backed for 10 years for long-lasting performance.

Cable Management

To maintain an organized workspace, the adjustable arm features a cable management channel along the underside to keep cables out of sight, reducing clutter and contributing to a tidy setup. A cable clip on the pole also helps maintain an organized workspace.

The TAA compliant 1MP1ACG-MONITOR-ARM is backed for 10 years for long-lasting performance.

The StarTech. com Advantage

Specification

Product
Product id	970573
Brand	StarTech.com
Partnr	1MP1ACG-MONITOR-ARM
EAN/UPC code	065030902045
Warranty (months)	10 Years
Mounting
Maximum weight capacity	9 kg
Minimum screen size compatibility	17 "
Maximum screen size	30
Mounting type	Desk
Mounting	Clamp/Grommet
Minimum VESA mount	75 x 75 mm
Maximum VESA mount	100 x 100 mm
Number of displays supported	1
Extension arm (max)	590 mm
Desk thickness (min)	10 mm
Clamp mount desk thickness (max)	110 mm
Grommet mount desk thickness (max)	60 mm
Ergonomics
Height adjustment	Y
Height adjustment range	270 - 302 mm
Tilt angle range	-15 - 90 °
Swivelling	Y
Swivel angle	120 °
Angle of rotation	90 °
Pivot angle	-180 - 180 °
Cable management	Y
Rotating	Y
Design
Product colour	Black, Silver
Housing material	Aluminium, Plastic, Steel
Anti-theft function	N
Packaging content
Wrench included	Y
Wrench type	Hexagonal wrench
VESA mount included	Y
Number of cable clips	1
Screws included	Y
Number of screws	4
Manual	Y
Weight & dimensions
Width	674 mm
Depth	103 mm
Height	361 mm
Weight	3000 g
Package width	290 mm
Package depth	136 mm
Package height	462 mm
Package weight	3800 g
Logistics data
Master (outer) case width	706 mm
Master (outer) case length	136 mm
Master (outer) case height	312 mm
Quantity per master (outer) case	5 stuk(s)
Other features
Compliance certificates	Trade Agreements Act (TAA)
