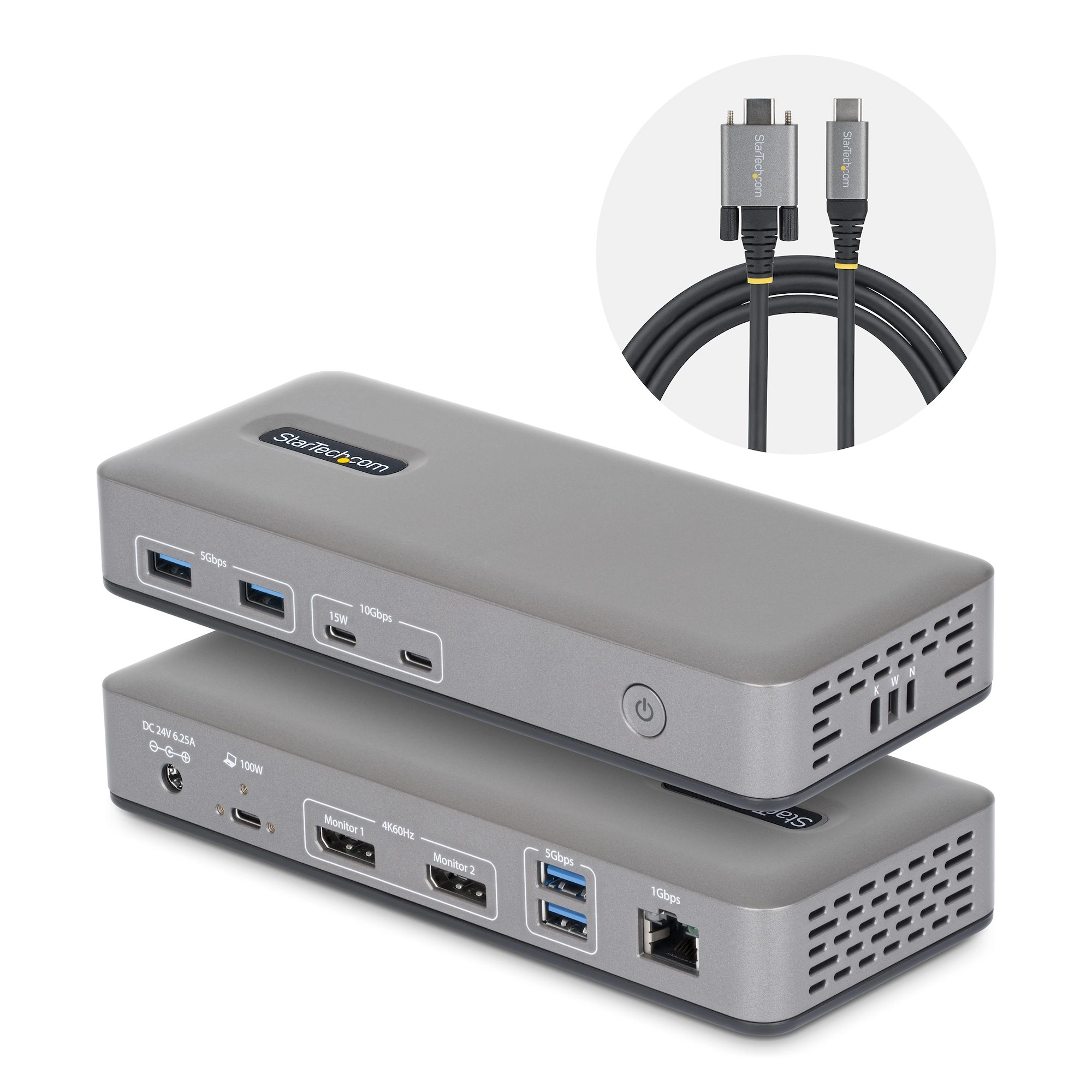

Transform a USB-C laptop into a dual-monitor workstation with DisplayPort video and USB-A and USB-C ports

Connect up to two 4K 60 Hz DisplayPort displays through a single USB-C port, while also providing USB-C, USB-A, and Gigabit Ethernet connectivity.

Uncompressed Video Over USB-C

Connect up to two 4K 60Hz DisplayPort displays through a single USB Type-C port with uncompressed video powered by your laptop's native GPU; Drive demanding workflows with high-performance visuals and no software compression

Driverless Deployment

Features plug-and-play functionality on Windows with no drivers or software required*. It is engineered for scalable, zero-touch rollouts across shared workspaces, corporate environments, and BYOD deployments.

Flexible, High-Speed I/O

This dock is equipped with 4× USB-A 5 Gbps ports and 2× USB-C 10 Gbps ports (including one with 15 W PD), providing support for both legacy peripherals and modern high-throughput devices without compromising performance. A Gigabit Ethernet port ensures a reliable wired network connection.

Mounting and Security

This multi-monitor dock includes built-in lock slots for enhanced physical security and supports Surface or VESA mounting to keep the dock secure and out of the way. Mounting accessories are sold separately (SSPMSUDWM, DOCK-NUC-VESA-MOUNT, SSPMSVESA).

*Note: Not compatible with macOS or ChromeOS

Specification

Product
Product id	1012753
Brand	StarTech.com
Partnr	201UE-USBC-DOCK
EAN/UPC code	065030921855
Warranty (months)	3 Years
Ports & interfaces
Connectivity technology	Wired
Host interface	USB 3.2 Gen 2 (3.1 Gen 2) Type-C
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	2
USB Power Delivery	Y
USB Power Delivery revision	3.0
USB Power Delivery up to	100 W
DisplayPorts quantity	2
Microphone in	N
DC-in jack	Y
Network
Ethernet LAN	Y
Ethernet LAN (RJ-45) ports	1
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Full duplex	Y
Performance
Product colour	Grey
Card reader integrated	N
Data transfer rate	10 Gbit/s
Number of displays supported	2
Cable lock slot	Y
Cable lock slot type	Kensington, Nano, Noble, Wedge
On/off switch	Y
Housing material	Plastic
LED indicators	Power
Plug and Play	Y
Power
Power source type	DC
AC input voltage	100 - 240 V
Input current	2.5 A
Output current	6.25 A
Output voltage	24 V
Power consumption (max)	150 W
Compatible power plug types	EU, UK
Software
Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64
Linux operating systems supported	Ubuntu 24.04 LTS
Weight & dimensions
Width	79 mm
Depth	190 mm
Height	27 mm
Weight	300 g
Packaging data
Package width	250 mm
Package depth	205 mm
Package height	50 mm
Package weight	1000 g

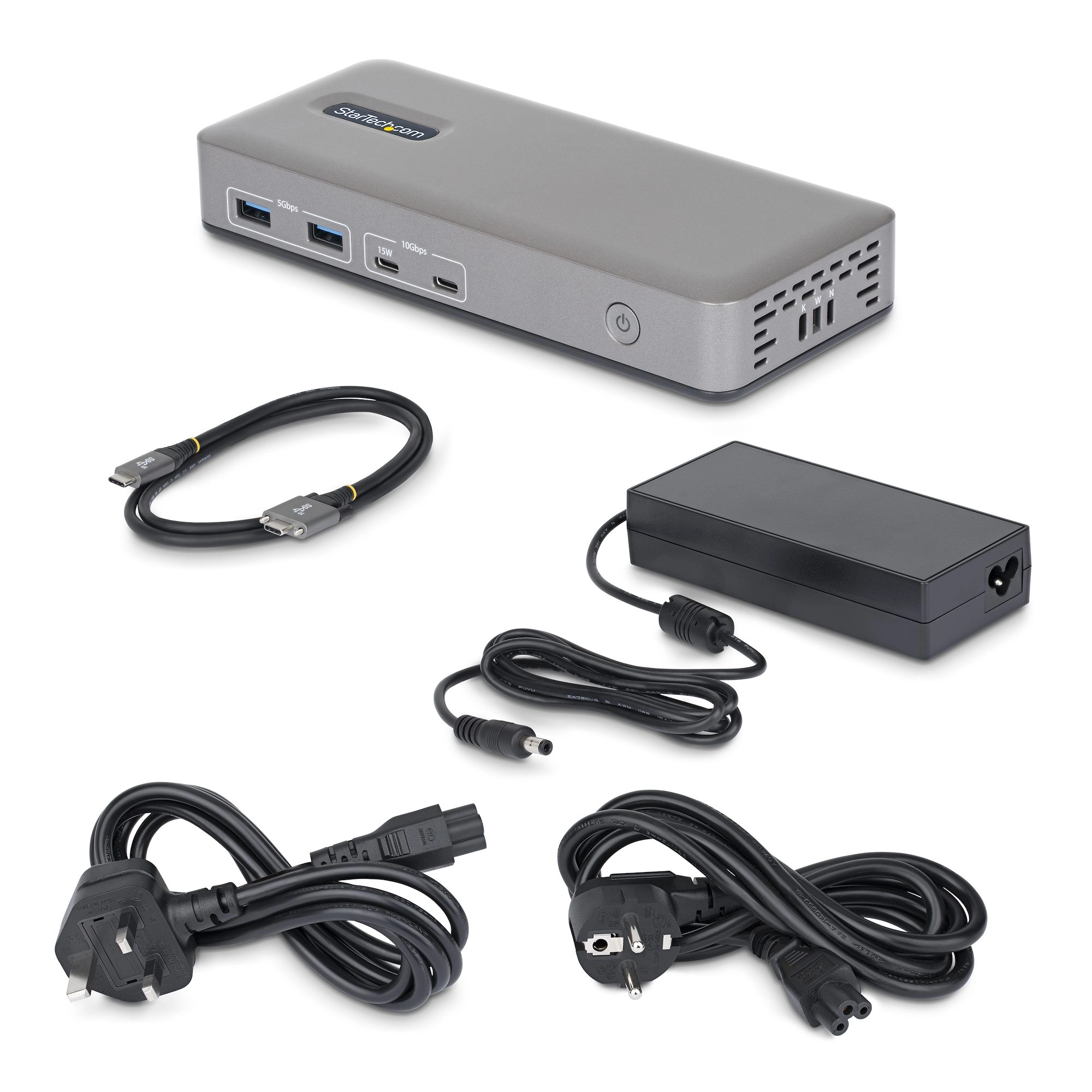

Packaging content
User guide	Y
AC adapter included	Y
Cables included	USB
Operational conditions
Operating temperature (T-T)	0 - 70 °C
Storage temperature (T-T)	10 - 70 °C
Operating relative humidity (H-H)	10 - 85 procent
Technical details
Compliance certificates	Federal Communications Commission (FCC), RoHS
Logistics data
Master (outer) case height	280 mm
Master (outer) case length	270 mm
Master (outer) case width	430 mm
Quantity per master (outer) case	10 stuk(s)
Other features
Chipset	Synaptics - VMM5220, VIA Labs - VL103R, VIA Labs - VL171, VIA Labs - VL822-Q8T, VIA Labs - VL817-Q7S, VIA Labs - VP226, Realtek - RTL8153E
