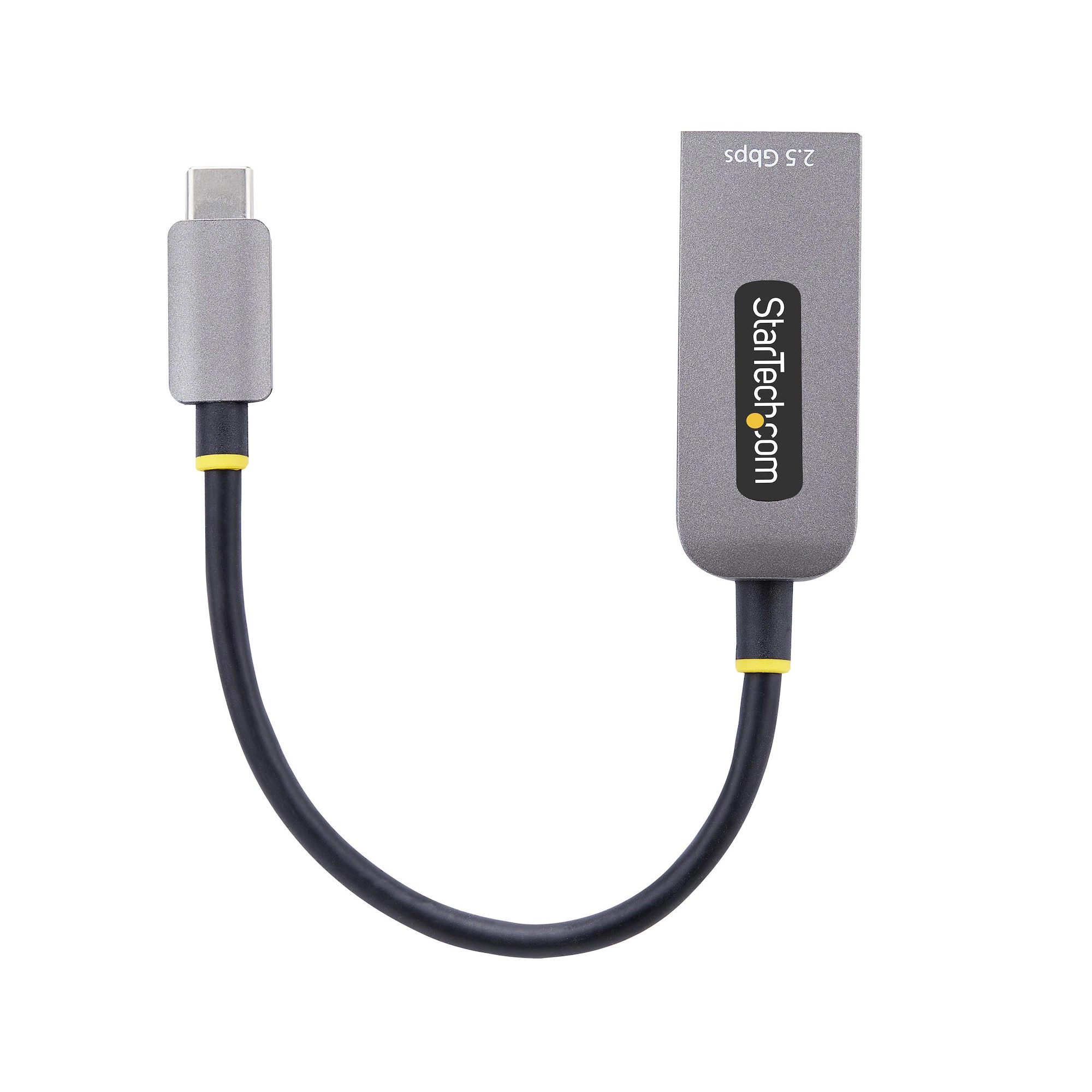

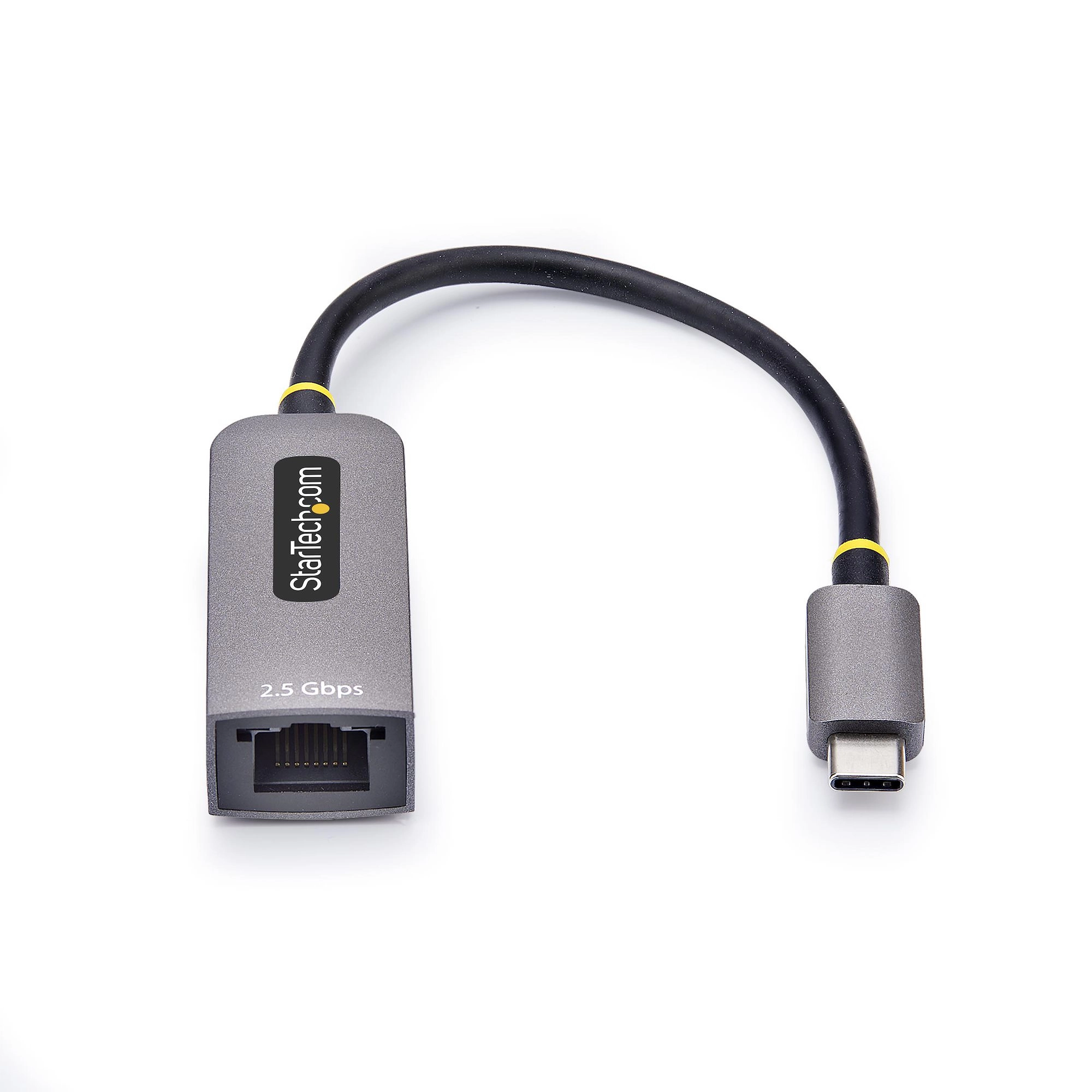

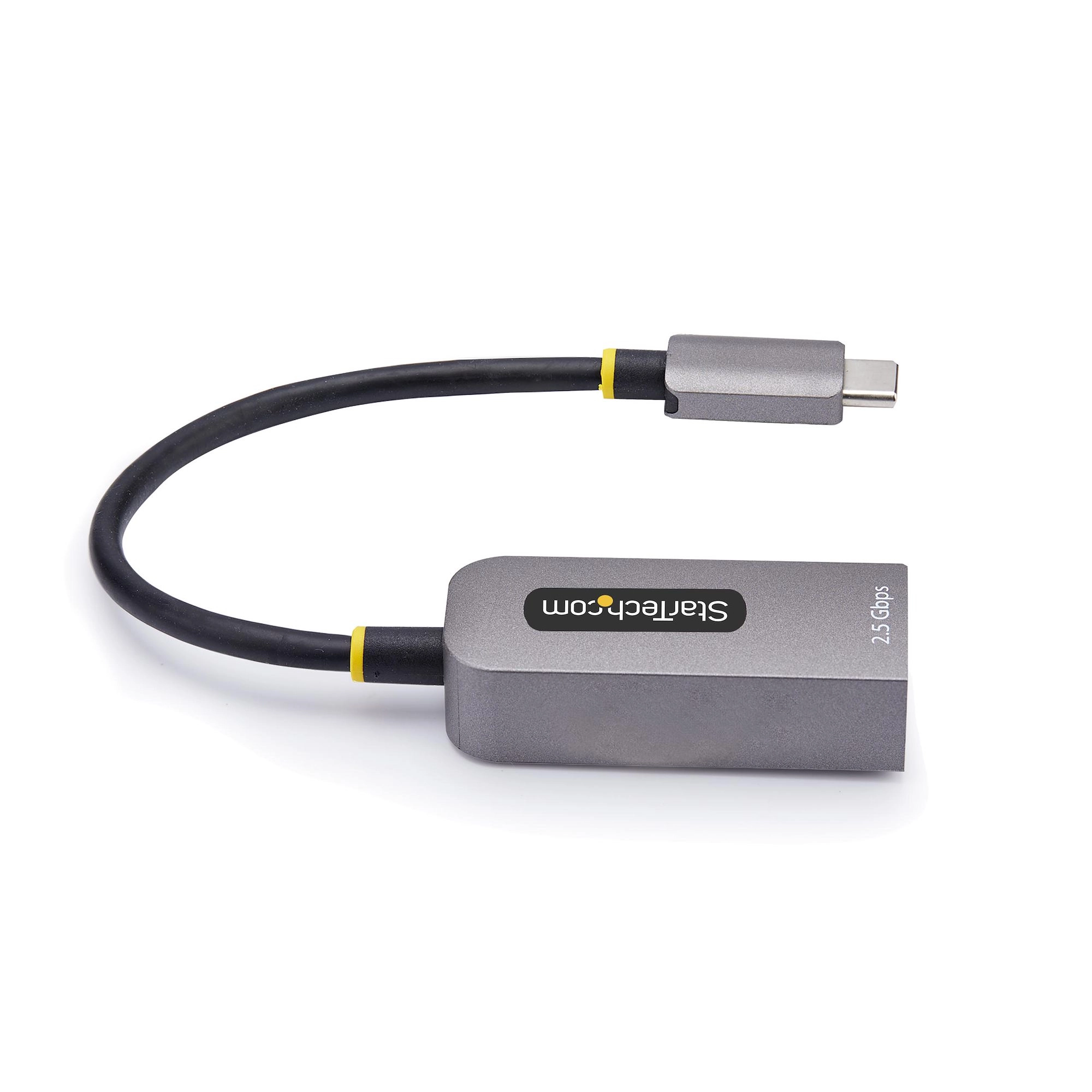

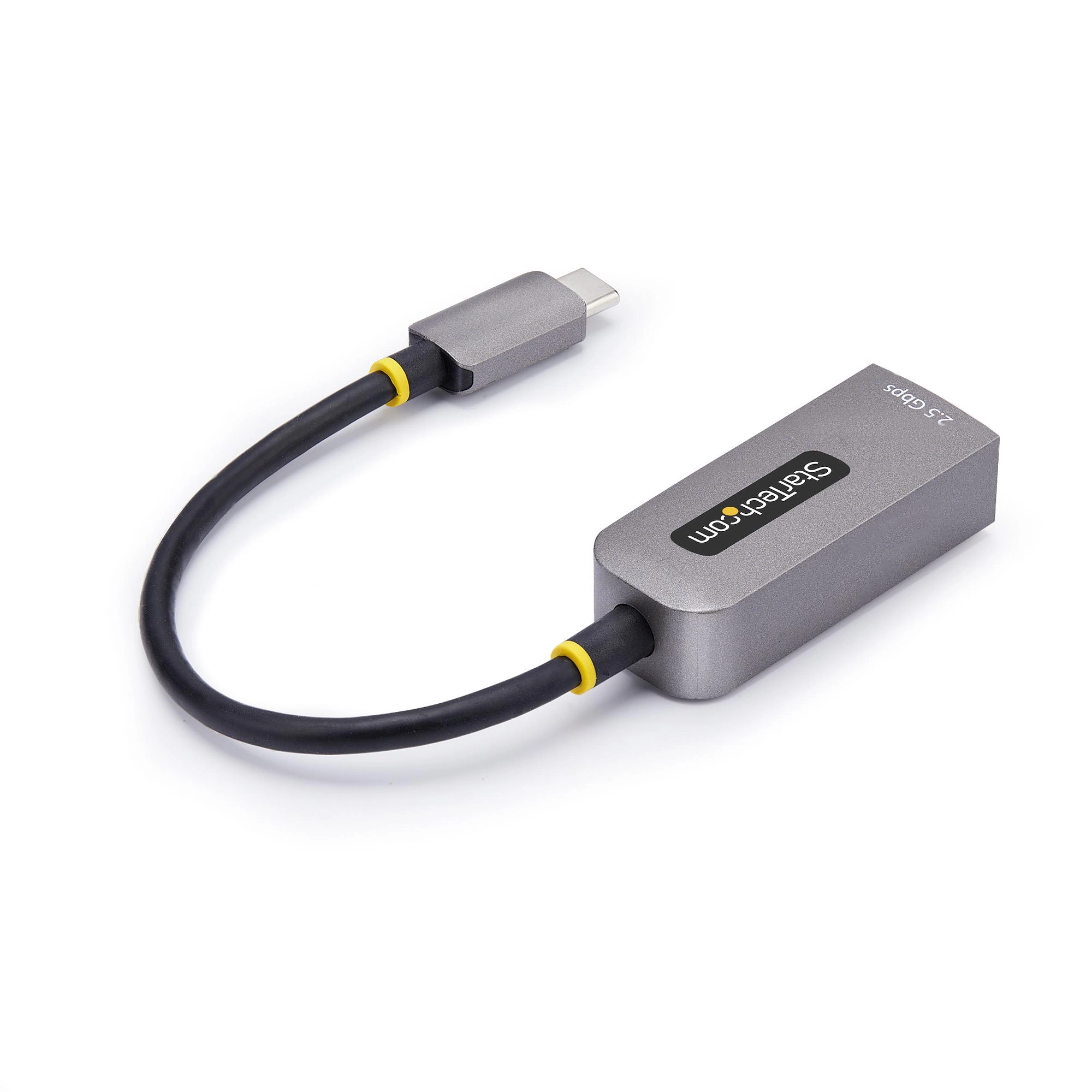

Add a 2.5Gb Ethernet port to your MacBook, Chromebook™ or laptop with USB-C or Thunderbolt™ 3

Add 2.5GbE network access to a laptop, tablet, or iPhone using an available USB Type-C or Type-A port. This USB 3.0 Type-C to Gigabit network adapter doubles your network performance on existing Cat5e cables, so there is no need to change or add to existing cabling infrastructure. This versatile adapter features a built-in 6in (15cm) USB cable and is bus-powered, drawing its power directly from the computer's USB port, reducing clutter and simplifying setup by eliminating the need for an external power adapter.

2.5 Gigabit Network Connection

This slim form factor adapter is ideal for office use and hot desks. Download large files from a network more quickly, experience higher quality video conference streaming, and sync files to the cloud in the background, without impacting your other browsing. The adapter provides faster and more secure wireless connections, making it ideal for IT professionals.

Native Driver Support Makes Installation Easy

Simply plug this USB-C to Ethernet adapter into the USB port on a laptop and connect to a network. The network adapter Realtek chipset provides native driver support for Windows (10/11, ARM supported) Macbooks (MacOS), Chromebooks (ChromeOS), Snapdragon, Linux, iPhones, and tablets. Any Windows operating systems without the driver will be automatically prompted to download the software directly from the adapter, ensuring quick and effective installation with no Internet access required

The StarTech. com Advantage

Specification

Product
Product id	978053
Brand	StarTech.com
Partnr	C22G-USB-ETHERNET
EAN/UPC code	065030910415
Warranty (months)	2 Years
Technical details
Compliance certificates	CE, RoHS
Ports & interfaces
Connectivity technology	Wired
Host interface	USB Type-C
Interface	Ethernet
Ethernet LAN	Y
Ethernet LAN (RJ-45) ports	1
USB version	3.2 Gen 1 (3.1 Gen 1)
USB connector form factor	Straight
Network
Maximum data transfer rate	5000 Mbit/s
Networking standards	IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3bz, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
Ethernet interface type	2.5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet
Ethernet LAN data rates	10, 100, 1000, 2500 Mbit/s
Cabling technology	NBase-T
Wake-on-LAN ready	Y
Auto MDIX IEEE	Y
Full duplex	Y
Jumbo frames support	Y
VLAN support	Y
Design
Internal	N
Component for	PC/Notebook
Product colour	Grey
Chipset	Realtek RTL8156BG
LED indicators	Y
Mean time between failures (MTBF)	1912948 uur
Power
Output voltage	5 V
USB powered	Y
Packaging data
Package width	220 mm
Package depth	128 mm
Package height	16 mm
Package weight	24 g
System requirements
Windows operating systems supported	Windows 11 Enterprise x64, Windows 7 Professional x64, Windows 8.1 Pro, Windows 10, Windows 11 Home, Windows 7 Starter, Windows 8.1 Pro x64, Windows 10 Education, Windows 11 Pro, Windows 7 Starter x64, Windows 8.1 x64, Windows 10 Education x64, Windows 11 x64, Windows 7 Ultimate, Windows 10 Enterprise, Windows 7 Ultimate x64, Windows 10 Enterprise x64, Windows 7 x64, Windows 10 Home, Windows 8, Windows 10 Home x64, Windows 7, Windows 8 Enterprise, Windows 10 IOT Core, Windows 7 Enterprise, Windows 8 Enterprise x64, Windows 10 IoT Enterprise, Windows 7 Enterprise x64, Windows 8 Pro, Windows 10 Pro, Windows 7 Home Basic, Windows 8 Pro x64, Windows 10 Pro x64, Windows 7 Home Basic x64, Windows 8 x64, Windows 10 x64, Windows 7 Home Premium, Windows 8.1, Windows 11, Windows 7 Home Premium x64, Windows 8.1 Enterprise, Windows 11 Enterprise, Windows 7 Professional, Windows 8.1 Enterprise x64
Mac operating systems supported	Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 10.11 El Capitan, Mac OS X 12.0 Monterey, Mac OS X 10.12 Sierra, Mac OS X 13.0 Ventura, Mac OS X 10.13 High Sierra, Mac OS X 14.0 Sonoma
Linux operating systems supported	Y
Server operating systems supported	Windows Server 2012 R2, Windows Server 2008 R2, Windows Server 2016, Windows Server 2022
Weight & dimensions
Width	22 mm
Depth	152 mm
Height	15 mm
Weight	18 g
Logistics data
Master (outer) case width	500 mm
Master (outer) case length	320 mm
Master (outer) case height	210 mm
Quantity per master (outer) case	250 stuk(s)
Other features
Jumbo frames	16000
Cable length	0.152 m
