1000 Mbps (1 Gbps) | Copper | RJ-45 | 100 m (328 ft) | Lifetime Warranty

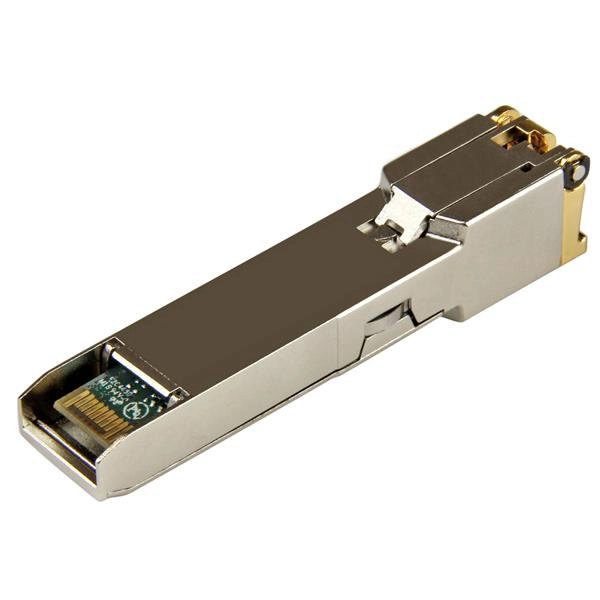

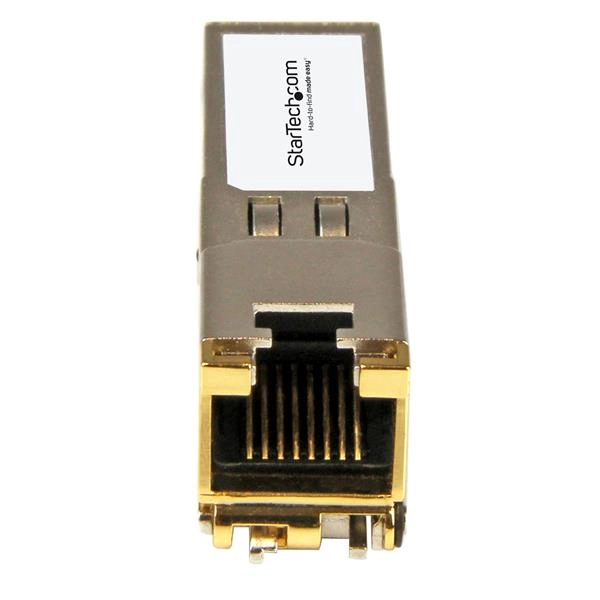

The E1MG-TX-ST is a Brocade E1MG-TX compatible copper transceiver module that has been designed, programmed and tested to work with Brocade brand switches and routers. It delivers dependable 1 GbE connectivity over copper cable, for 10/100/1000Base-TX compliant networks, with a maximum distance of up to 100 m (328 ft).

Technical Specifications:

Maximum Data Transfer Rate: 1000 Mbps (1 Gbps)

Type: Copper

Connection Type: RJ-45

Maximum Transfer Distance: 100 m (328 ft)

MTBF: 510, 469, 759 hours

Power Consumption: Low power consumption

Digital Diagnostics Monitoring (DDM): No

This SFP copper module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.

StarTech. com SFPs

All StarTech. com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech. com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.

The StarTech. com Advantage

- 100% BROCADE E1MG-TX COMPATIBLE SFP TRANSCEIVER: Designed, programmed and tested to work with compatible Brocade switches and routers to deliver dependable 1GbE connectivity
- TECHNICAL SPECS: 1000BASE-T
- 1Gbps

Specification

Product
Product id	666189
Brand	StarTech.com
Partnr	E1MG-TX-ST
EAN/UPC code	065030885416
Warranty (months)	Lifetime
Network
SFP transceiver type	Copper
Technical details
Sustainability certificates	RoHS
Packaging data
Number of products included	1 stuk(s)
Package width	90 mm
Package depth	115 mm
Package height	31 mm
Package weight	50 g
Performance
Maximum data transfer rate	1250 Mbit/s
Interface type	SFP
Maximum transfer distance	100 m
Ethernet LAN	Y
Ethernet interface type	Fast Ethernet, Gigabit Ethernet
Duplex system	Full
Digital Diagnostics Monitoring (DDM)	N
Features
Product colour	Silver
Plug and Play	Y
Hot-swap	Y
Mean time between failures (MTBF)	510469759 uur
Brand compatibility	Brocade
Compatible products	E1MG-TX
Certification	CE, FCC, UR, REACH
Weight & dimensions
Width	68 mm
Depth	13.7 mm
Height	13.8 mm
Weight	15 g
Logistics data
Master (outer) case width	90 mm
Master (outer) case length	115 mm
Master (outer) case height	31 mm
Quantity per master (outer) case	1 stuk(s)
